NOTE:To ensure proper operation a MOPAR cigar knob
and element must be used.
CAUTION!
• Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system
will need to be replaced.
• Power outlets are designed for accessory plugs
only. Do not insert any other object in the power
outlets as this will damage the outlet and blow the
fuse. Improper use of the power outlet can cause
damage not covered by your New Vehicle Limited
Warranty.
There is also a 12 Volt power outlet located in the center
console. This power outlet has power available only
when the ignition is placed in the ACC or RUN position
(if equipped).
Instrument Panel Outlet
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 283

Center Console OutletUnderhood Fuses (Power Outlet Fuses)
1 — F84 Fuse 20 A Yellow Cigar Lighter
2 — F30 Fuse 20 A Yellow Center Console Outlet
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

▫Exhaust System ..................... .589
▫ Cooling System ..................... .591
▫ Brake System ....................... .597
▫ Automatic Transmission — If Equipped .....599
▫ Manual Transmission — If Equipped .......601
▫ Appearance Care And Protection From
Corrosion .......................... .602
 FUSES ............................. .609
▫ Interior Fuses ....................... .610
▫ Underhood Fuses ......................611
▫ Body Control Module (BCM) Fuses .........614
VEHICLE STORAGE ....................616
 REPLACEMENT BULBS .................616
 BULB REPLACEMENT ..................618
▫ Headlamps ......................... .618
▫ Backup Lamps ....................... .618
▫ License Lamp ....................... .620
 FLUID CAPACITIES ....................622
 FLUIDS, LUBRICANTS, AND GENUINE
PARTS ............................. .623
▫ Engine ............................ .623
▫ Chassis ........................... .625
570 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 1.4L TURBO
1 — Engine Coolant Reservoir5 — Power Distribution Center (Fuses)
2 — Engine Oil Level Indicator 6 — Washer Fluid Reservoir
3 — Engine Oil Fill 7 — Battery
4 — Brake Fluid Reservoir 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 571

ENGINE COMPARTMENT — 2.0L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Power Distribution Center (Fuses) 8 — Air Cleaner Filter
572 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 2.4L
1 — Engine Coolant Reservoir5 — Washer Fluid Reservoir
2 — Engine Oil Fill 6 — Battery
3 — Brake Fluid Reservoir 7 — Engine Oil Level Indicator
4 — Power Distribution Center (Fuses) 8 — Air Cleaner Filter
7
MAINTAINING YOUR VEHICLE 573

FUSES
WARNING!
•When replacing a blown fuse, always use an appro-
priate replacement fuse with the same amp rating as
the original fuse. Never replace a fuse with another
fuse of higher amp rating. Never replace a blown
fuse with metal wires or any other material. Failure
to use proper fuses may result in serious personal
injury, fire and/or property damage.
(Continued)
WARNING! (Continued)
•Before replacing a fuse, make sure that the ignition
is off and that all the other services are switched off
and/or disengaged.
• If the replaced fuse blows again, contact an autho-
rized dealer.
• If a general protection fuse for safety systems (air
bag system, braking system), power unit systems
(engine system, gearbox system) or steering system
blows, contact an authorized dealer.
7
MAINTAINING YOUR VEHICLE 609

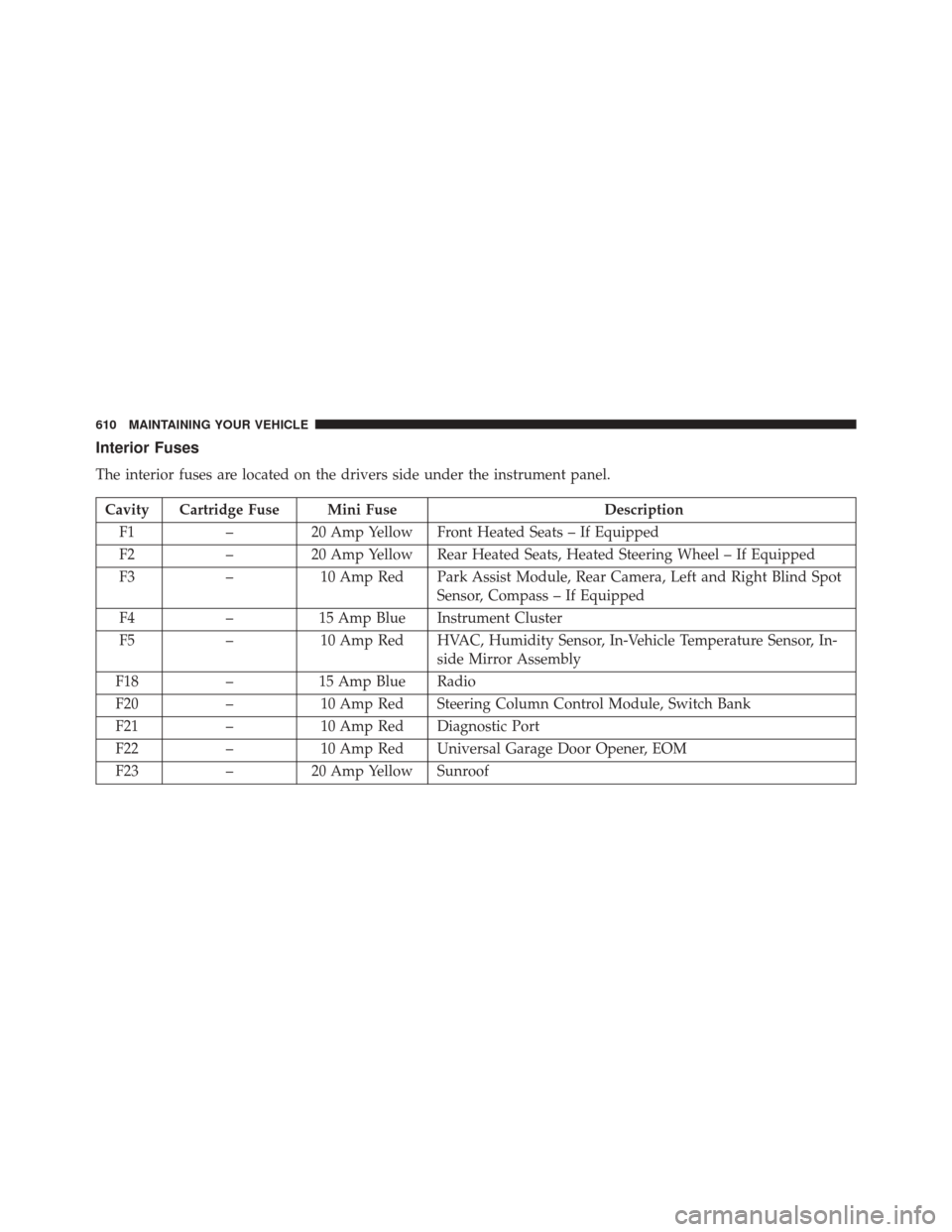

Interior Fuses
The interior fuses are located on the drivers side under the instrument panel.
Cavity Cartridge Fuse Mini FuseDescription
F1 –20 Amp Yellow Front Heated Seats – If Equipped
F2 –20 Amp Yellow Rear Heated Seats, Heated Steering Wheel – If Equipped
F3 –10 Amp Red Park Assist Module, Rear Camera, Left and Right Blind Spot
Sensor, Compass – If Equipped
F4 –15 Amp Blue Instrument Cluster
F5 –10 Amp Red HVAC, Humidity Sensor, In-Vehicle Temperature Sensor, In-
side Mirror Assembly
F18 –15 Amp Blue Radio
F20 –10 Amp Red Steering Column Control Module, Switch Bank
F21 –10 Amp Red Diagnostic Port
F22 –10 Amp Red Universal Garage Door Opener, EOM
F23 –20 Amp Yellow Sunroof
610 MAINTAINING YOUR VEHICLE
