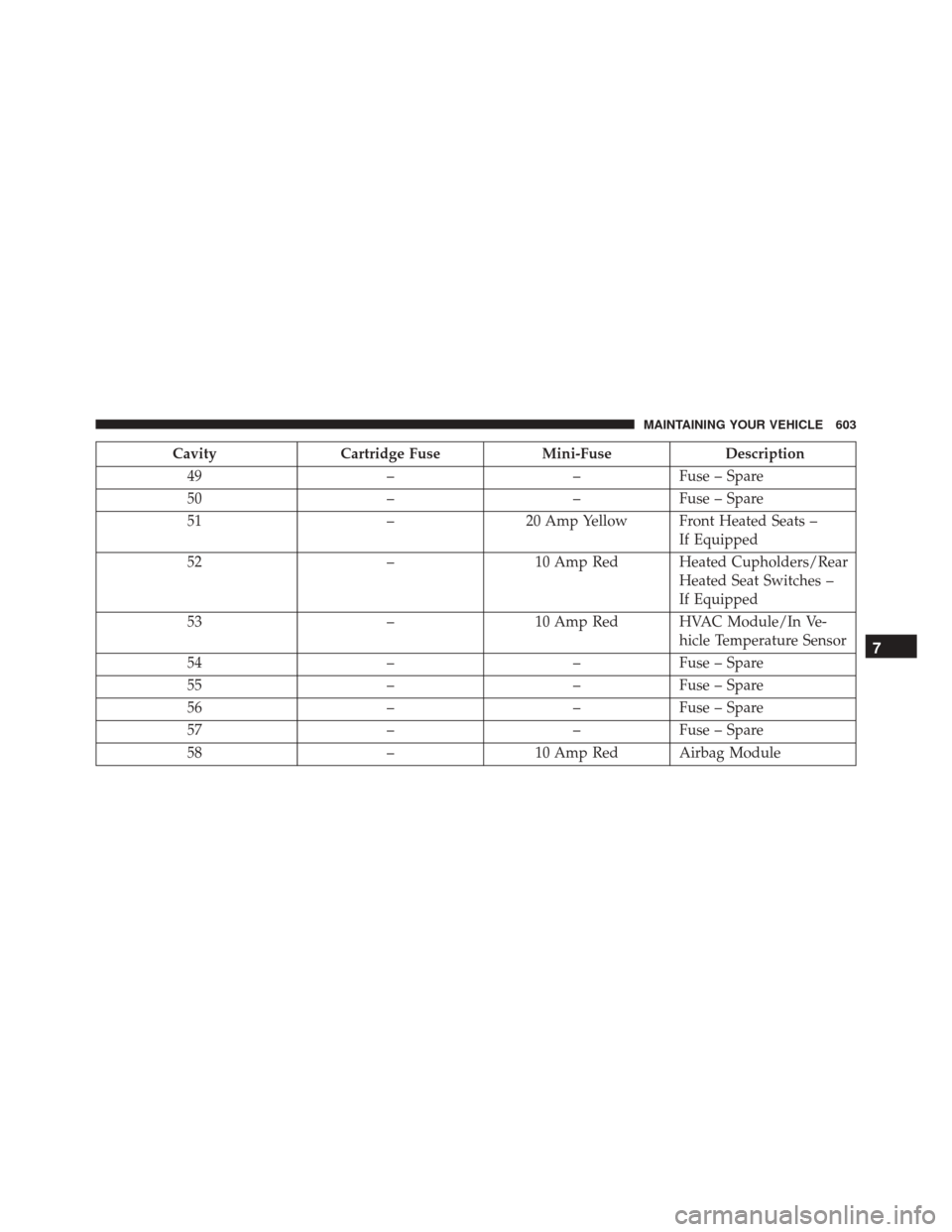

CavityCartridge Fuse Mini-FuseDescription
49 ––Fuse – Spare
50 ––Fuse – Spare
51 –20 Amp Yellow Front Heated Seats –
If Equipped
52 –10 Amp Red Heated Cupholders/Rear
Heated Seat Switches –
If Equipped
53 –10 Amp Red HVAC Module/In Ve-
hicle Temperature Sensor
54 ––Fuse – Spare
55 ––Fuse – Spare
56 ––Fuse – Spare
57 ––Fuse – Spare
58 –10 Amp Red Airbag Module
7
MAINTAINING YOUR VEHICLE 603

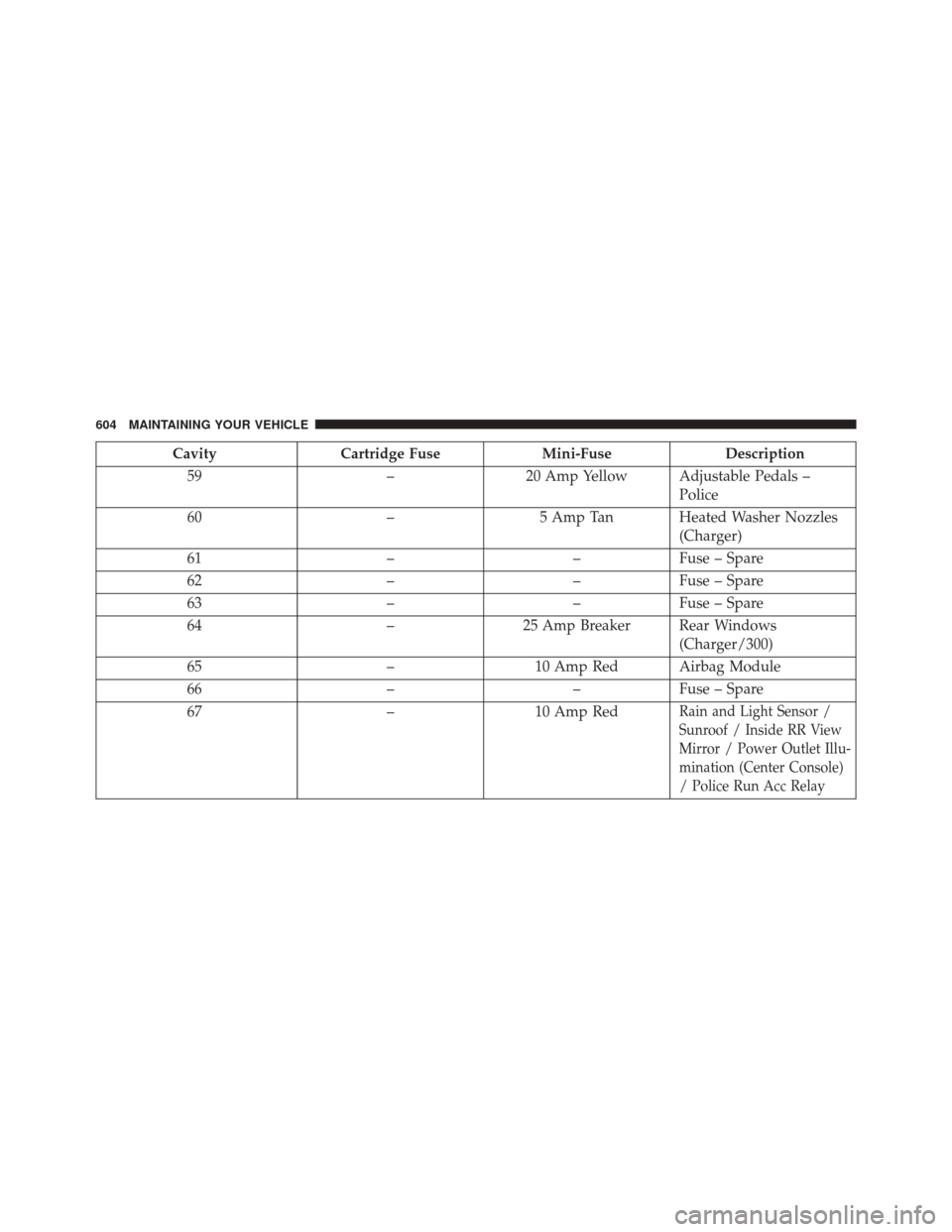

CavityCartridge Fuse Mini-FuseDescription
59 –20 Amp Yellow Adjustable Pedals –
Police
60 –5 Amp Tan Heated Washer Nozzles
(Charger)
61 ––Fuse – Spare
62 ––Fuse – Spare
63 ––Fuse – Spare
64 –25 Amp Breaker Rear Windows
(Charger/300)
65 –10 Amp Red Airbag Module
66 ––Fuse – Spare
67 –10 Amp Red
Rain and Light Sensor /
Sunroof / Inside RR View
Mirror / Power Outlet Illu-
mination (Center Console)
/ Police Run Acc Relay
604 MAINTAINING YOUR VEHICLE
