2016 DODGE CHARGER fuse

CavityCartridge Fuse Mini-FuseDescription
43 –20 Amp Yellow Comfort Seat And
Steering Wheel Module
(Heated Steering
Wheel/RR Heated Seats)
44 –10 Amp Red Park Assist / Blind Spot
/ Rear View Camera
45 –15 Amp Blue Cluster / Rearview Mir-
ror / Compass (Charger/
300) / Humidity Sensor
46 ––Fuse – Spare
47 –10 Amp Red Adaptive Front Lighting
/ Auto High BEAM /
Day Time Running
Lamps – If Equipped
48 –20 Amp Yellow Active Suspension –
If Equipped
602 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription
49 ––Fuse – Spare
50 ––Fuse – Spare
51 –20 Amp Yellow Front Heated Seats –
If Equipped
52 –10 Amp Red Heated Cupholders/Rear
Heated Seat Switches –
If Equipped
53 –10 Amp Red HVAC Module/In Ve-
hicle Temperature Sensor
54 ––Fuse – Spare
55 ––Fuse – Spare
56 ––Fuse – Spare
57 ––Fuse – Spare
58 –10 Amp Red Airbag Module
7
MAINTAINING YOUR VEHICLE 603

CavityCartridge Fuse Mini-FuseDescription
59 –20 Amp Yellow Adjustable Pedals –
Police
60 –5 Amp Tan Heated Washer Nozzles
(Charger)
61 ––Fuse – Spare
62 ––Fuse – Spare
63 ––Fuse – Spare
64 –25 Amp Breaker Rear Windows
(Charger/300)
65 –10 Amp Red Airbag Module
66 ––Fuse – Spare
67 –10 Amp Red
Rain and Light Sensor /
Sunroof / Inside RR View
Mirror / Power Outlet Illu-
mination (Center Console)
/ Police Run Acc Relay
604 MAINTAINING YOUR VEHICLE

CavityCartridge Fuse Mini-FuseDescription

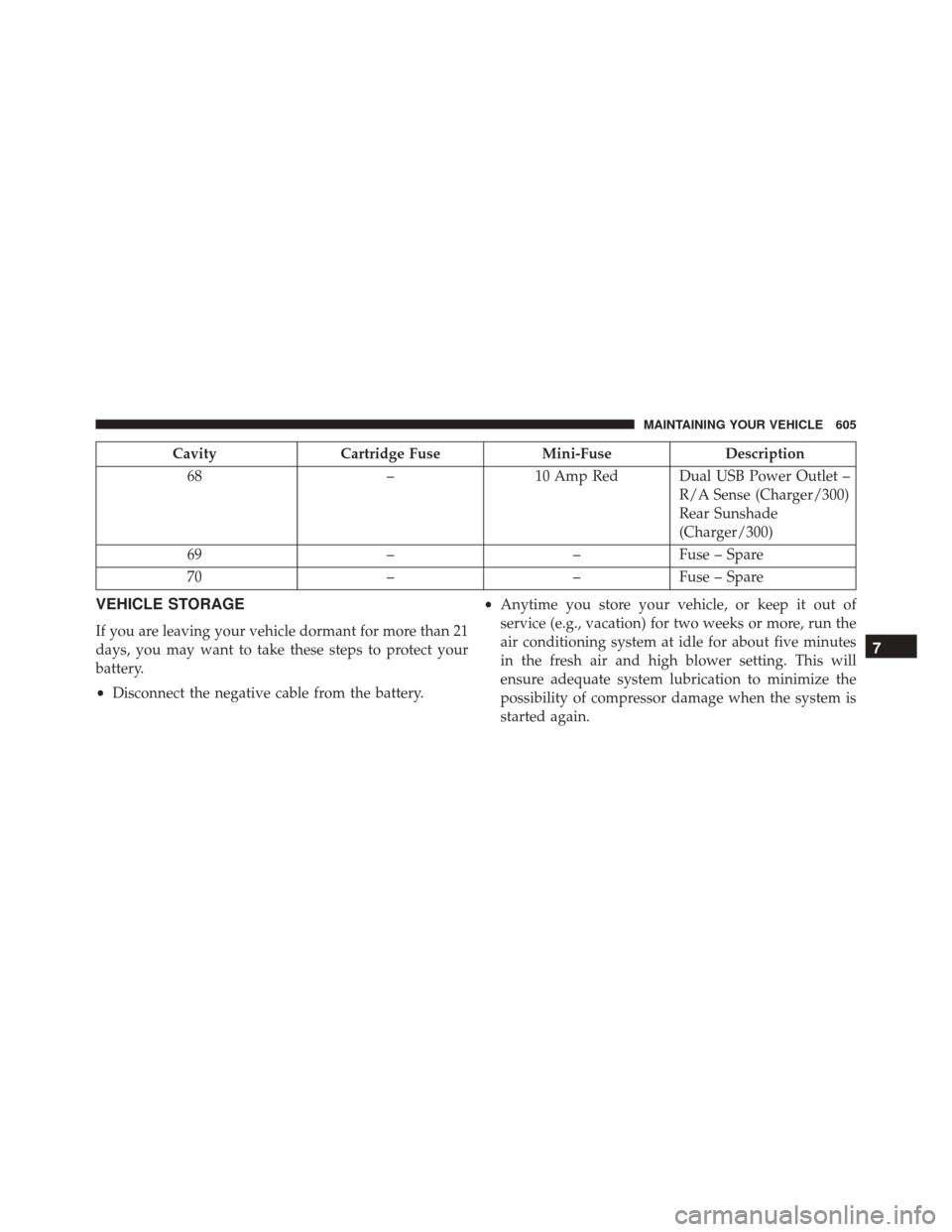

68 –10 Amp Red Dual USB Power Outlet –
R/A Sense (Charger/300)
Rear Sunshade
(Charger/300)
69 ––Fuse – Spare
70 ––Fuse – Spare
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days, you may want to take these steps to protect your
battery.
•Disconnect the negative cable from the battery. •
Anytime you store your vehicle, or keep it out of
service (e.g., vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
ensure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
7
MAINTAINING YOUR VEHICLE 605

DrivingThrough Flowing, Rising, Or Shallow Standing
Water ............................... .430
E-85 Fuel .............................. .488
Electrical Power Outlets .....................245
Electric Rear Window Defrost .................254
Electric Remote Mirrors .....................121
Electronic Brake Control System ...............437
Anti-Lock Brake System ..................438
Electronic Roll Mitigation .................449
Traction Control System ...................444
Electronic Power Distribution Center (Fuses) ......591
Electronic Speed Control (Cruise Control). .176, 177, 180
Electronic Stability Control (ESC) ..............444
Electronic Throttle Control Warning Light ........275
Emergency Deck Lid Release ..................47
Emergency, In Case Of Freeing Vehicle When Stuck ................539 Jacking
.............................. .516
Jump Starting ..................... .535, 537
Overheating .......................... .513
Towing ............................. .544
Emergency Trunk Release ....................47
Emission Control System Maintenance ..........555
Engine ................................ .553
Air Cleaner .......................... .563
Block Heater ......................... .414
Break-In Recommendations .................99
Checking Oil Level ..................... .559
Compartment ...................... .552, 553
Compartment Identification ................552
Coolant (Antifreeze) ...........573, 613, 614, 615
Cooling ............................. .573
Exhaust Gas Caution .................100, 488
Fails To Start ......................... .413
Flooded, Starting ...................... .413
Fuel Requirements ..................... .483
10
INDEX 641

Floor Console........................... .251
Fluid, Brake ......................... .613, 616
Fluid Capacities ..........................611
Fluid Leaks ............................ .104
Fluid Level Checks ....................... .583
Automatic Transmission ..................582
Brake ............................... .579
Cooling System ........................ .573
Engine Oil ........................... .559
Transfer Case ......................... .583
Fluids, Lubricants And Genuine Parts ...........613
Fog Lights ............................. .158
Folding Rear Seat ........................ .146
Forward Collision Warning ..................207
Freeing A Stuck Vehicle .....................539
Fuel .................................. .483
Additives ............................ .486
Clean Air ............................ .484
Ethanol .......................... .485, 488Gasoline
............................. .483
Light ............................... .285
Materials Added ....................... .486
Methanol ............................ .485
Octane Rating ................483, 613, 614, 615
Requirements ......................... .483
Specifications ...................613, 614, 615
Tank Capacity ..........................611
Fuel, Flexible ........................... .488
Fuses ................................. .590
Garage Door Opener (HomeLink) ..........232, 239
Gasoline, Clean Air ....................... .484
Gasoline (Fuel) .......................... .483
Gasoline, Reformulated .....................484
Gear Ranges ............................ .419
Glass Cleaning .......................... .589
Gr

oss Axle Weight Rating ................496, 498
Gross Vehicle Weight Rating ..............496, 49710
INDEX 643

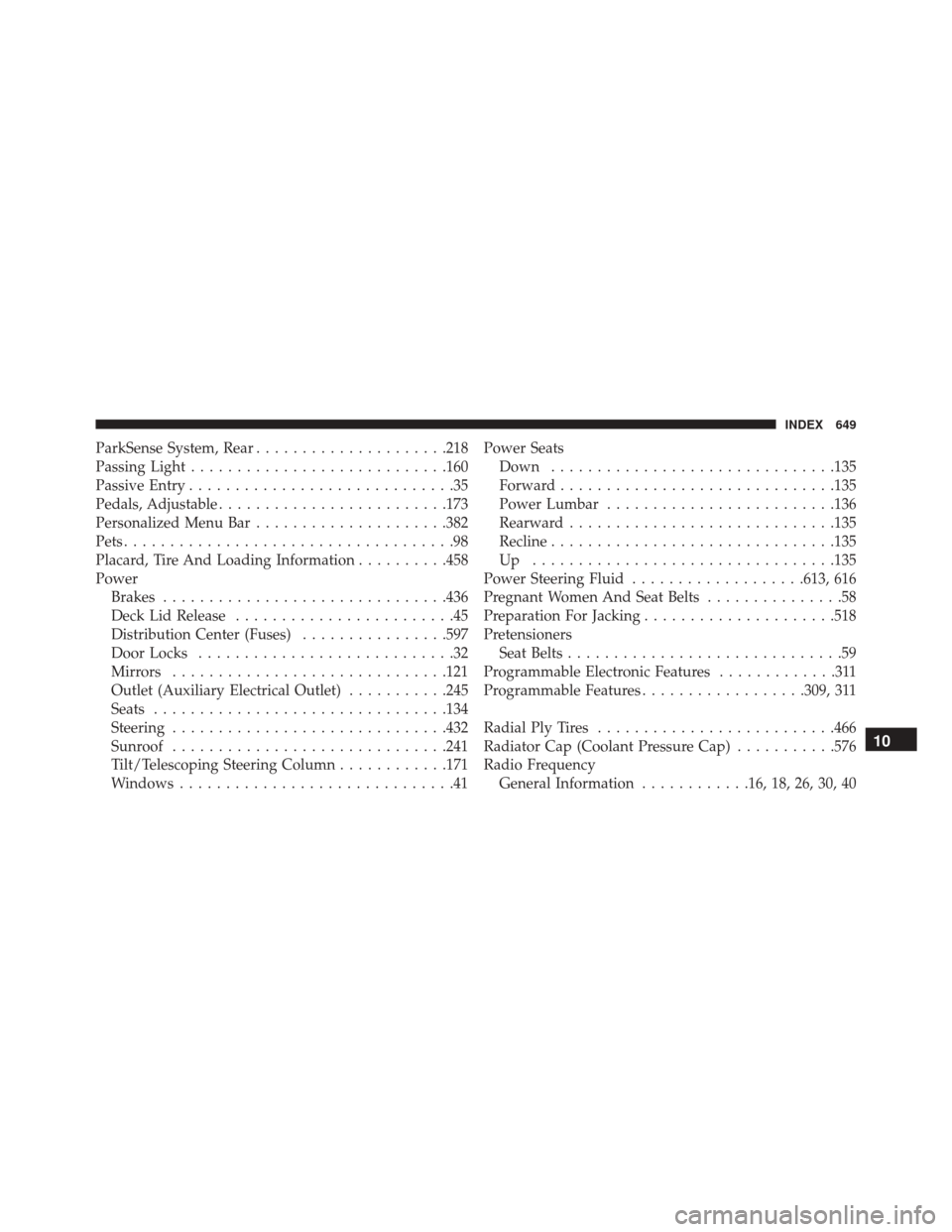

ParkSense System, Rear.....................218
Passing Light ........................... .160
Passive Entry .............................35
Pedals, Adjustable ........................ .173
Personalized Menu Bar .....................382
Pets ....................................98
Placard, Tire And Loading Information ..........458
Power Brakes .............................. .436
Deck Lid Release ........................45
Distribution Center (Fuses) ................597
Door Locks ............................32
Mirrors ............................. .121
Outlet (Auxiliary Electrical Outlet) ...........245
Seats ............................... .134
Steering ............................. .432
Sunroof ............................. .241
Tilt/Telescoping Steering Column ............171
Windows ..............................41 Power Seats
Down .............................. .135
Forward ............................. .135
Power Lumbar ........................ .136
Rearward ............................ .135
Recline .............................. .135
Up ................................ .135
Power Steering Fluid ...................613, 616
Pregnant Women And Seat Belts ...............58
Preparation For Jacking .....................518
Pretensioners Seat Belts ..............................59
Programmable Electronic Features .............311
Programmable Features ..................309, 311
Radial Ply Tires ......................... .466
Radiator Cap (Coolant Pressure Cap) ...........576
Radio Frequency General Information ............16, 18, 26, 30, 40
10
INDEX 649

INSTALLATION OF RADIO TRANSMITTING
EQUIPMENT
Special design considerations are incorporated into this
vehicle’s electronic system to provide immunity to radio
frequency signals. Mobile two-way radios and telephone
equipment must be installed properly by trained person-
nel. The following must be observed during installation.
The positive power connection should be made directly
to the battery and fused as close to the battery as possible.
The negative power connection should be made to body
sheet metal adjacent to the negative battery connection.
This connection should not be fused.
Antennas for two-way radios should be mounted on the
roof or the rear area of the vehicle. Care should be used
in mounting antennas with magnet bases. Magnets may
affect the accuracy or operation of the compass on
vehicles so equipped.The antenna cable should be as short as practical and
routed away from the vehicle wiring when possible. Use
only fully shielded coaxial cable.
Carefully match the antenna and cable to the radio to
ensure a low Standing Wave Ratio (SWR).
Mobile radio equipment with output power greater than
normal may require special precautions.
All installations should be checked for possible interfer-
ence between the communications equipment and the
vehicle’s electronic systems.
