2016 CITROEN RELAY remote start

2
contents
3. EASE OF u SE and c
OMFO rt 44-86
Lighting control stalk 45
Wipers 48
Cruise control

49
Speed limiter


55
Demisting and


defrosting
59
Heating / Manual air conditioning
61
Digital air conditioning

63
Additional heating


systems

65
Rear Heating /


Air Conditioning

65
Programmable


additional heating

67
Front seats


71
Front bench seat


73
Rear seats


74
Front fittings


76
Rear fittings


81
Exterior fittings


84
Mirrors

85
Electric windows

86
Presentation


4
Exterior
6
Interior

7
Instruments and controls


9
T

echnical data - Maintenance

10
Environment


11
Eco-driving

12
1. OVErVIEW 4-15 4. t E c H n OLOGY on
BOA rd 87-97
Vehicle configuration 87
T rip computer 92
T
achograph
93
Rear parking sensors


94
Reversing camera


95
Pneumatic suspension


96
2. rEAdY tO GO 14-43
Remote control 14
Key 16
Alarm
19
Front / rear doors

20
Load space


22
Instrument panel


23
W

arning/indicator lamps
24
Fuel gauge


32
T

emperature indicator
32
Tyre under-inflation detection
33
Service indicator

35
Gearbox and steering


wheel
36
Gear shift indicator

36
Starting and


switching off

38
Hill start assist


39
Stop & Start


40
Driving


recommendations

43
This symbol informs you
of equipment which is
specific to the Combi /
Minibus model. Child lock.Rear heating / air
conditioning / Rear
seats / bench seats.
Reading lamps. Sliding
side windows.

6
ExtErIOr
Reversing camera 95
3rd brake lamp 149, 154
Left-hand side:
Fuel filler cap, fuel tank

134
Fuel cut-of
f
135
AdBlue filler cap, tank

136-139Topping-up the AdBlue additive 140-141
Load space

81-83
Rear doors


21
Rear lamps, direction indicators, foglamps


45, 149, 153-154
Number plate lamp


154
Rear parking sensors


94
Spare wheel, changing a wheel,
jack, tools


156-160
Inflating, pressures


162, 182
Snow chains


125
T

owing, lifting

163
T

owbar
121-122
Removable towball

164-167 Dimensions


172-176
Accessories
124
Roof rack, roof bars 123
Brakes, pads

129, 132
T

yres, pressures
162, 182
Braking assistance systems


9
9-100
Trajectory control

101-104
Pneumatic suspension


96-97Key

, remote control, battery
14-17
Starting


18, 38-39
Central locking


22
Confidential card


18
Alarm

19
Wiper blade

155
Door mirror


85
Side repeater


152
Opening/closing doors


20-22
Remote control


14-15
Autoclose


87, 90
T

emporary puncture repair kit

161-162
Front lamps,


direction indicators,
front foglamps

45, 149-152
Headlamp beam height adjustment

47
Headlamp wash

48
Changing bulbs


149-152
Location

16
KEY
This locks and unlocks the vehicle's doors,
opens and closes the fuel filler cap, as well
as starting and stopping the engine.
rEMOtE cOntrOL BAtt E rY
Reference: CR 2032/3 volts.
changing the battery
- Press the button to eject the key .
-
T
urn the screw 1 from the closed
padlock to the open padlock using a
screwdriver with a thin lip.
-

Use the screwdriver as a lever to extract

the battery holder housing 2 .-

Remove the housing and change the

battery 3 observing the polarities.
-
Put the battery holder housing
2
back
inside the key and secure it by turning
the screw 1 .
There is a risk of damage if the
replacement battery is not of the
correct type.
Only use batteries which are identical or of
an equivalent type to those recommended
by a CITROËN dealer. Take used batteries
to an authorised collection point.
Access

18ELEctrOnIc IMMOBILISEr
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
CITROËN dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer. After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
cOnFIdEntIAL cArd
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-

ensure that you are given the


confidential card,
-

have the keys memorised by a


CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.
Access

22
LOcKInG / unLOcKInG FrOM InSIdEd oor open warning lamp
If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.
reversing camera
With the vehicle stationary, opening the rear
doors activates the camera and sends the
image to the screen fitted in the cab.
cab and load space
Pressing permits electric central
locking and unlocking, when the
doors are closed.
The doors can still be opened from the
inside. If one of the doors is open or is not
closed correctly, the central locking
does not work. The indicator lamp in the control:
Load space
Press to lock or unlock the side
door and rear doors from the cab.
The indicator lamp remains on
when locked
Anti-intrusion security
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the system
The system setting is made with the MO
d E
button: in the "Autoclose" menu, select "ON"
or "OFF".
-

comes on when the doors


are locked and the ignition is
switched on,
-

then flashes when the doors


are locked when stationary
with the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency. Refer to the "Technology on board -
Vehicle configuration" section.
Access

38
IGnItIOn SWItcH
StOP position: steering lock.
The ignition is off.
MA
r position: ignition on.
Certain accessories can be used.
AV V position: starter.
The starter is operated.
Starting the engine
Engine immobiliser warning lamp
If this warning lamp comes

on, use another key and have
the faulty key checked by a
CITROËN dealer.
d

iesel pre-heating warning lamp
With the parking brake applied
and the gearbox in neutral, turn
the key to the MA
r position.
Wait for this warning lamp to go off then
operate the starter (AV V position) until the
engine starts.
The period of illumination of the warning
lamp depends on the climatic conditions.
d
oor or bonnet open warning lamp
If this warning lamp comes on,
check that the doors and bonnet
are closed correctly.
Switching off the engine
Stop the vehicle and apply the parking
brake, then, with the engine at idle, return
the key to the S
t
OP
position.
In low temperatures
In mountainous and/or cold areas, it is
advisable to use a "winter" type fuel suited
to low or minus temperatures.
Avoid attaching heavy objects to the
key or the remote control, which would
weigh down on its blade in the ignition
switch and could cause a malfunction.
It could adversely affect the deployment of
the front airbag. With the engine hot, the warning lamp
comes on for a few moments, you can start
the engine without waiting.
As soon as the engine is running, release
the key.
Starting and switching off

3
2
READY
TO GO
Starting and switching off

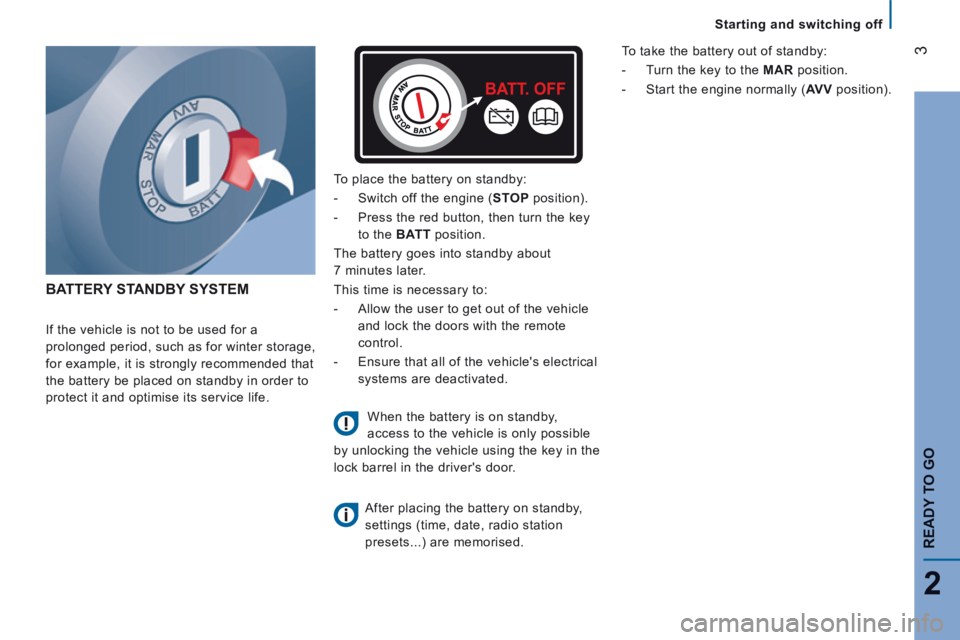

BATTERY STANDBY SYSTEM
If the vehicle is not to be used for a
prolonged period, such as for winter storage,
for example, it is strongly recommended that
the battery be placed on standby in order to
protect it and optimise its service life.
To place the battery on standby:
- Switch off the engine ( STOP position).
- Press the red button, then turn the key
to the BATT position.
The battery goes into standby about
7 minutes later.
This time is necessary to:
- Allow the user to get out of the vehicle
and lock the doors with the remote
control.
- Ensure that all of the vehicle's electrical
systems are deactivated.
When the battery is on standby,
access to the vehicle is only possible
by unlocking the vehicle using the key in the
lock barrel in the driver's door.
After placing the battery on standby,
settings (time, date, radio station
presets...) are memorised.
To take the battery out of standby:
- Turn the key to the MAR position.
- Start the engine normally ( AV V position).

3
2
READY
TO GO
Starting and switching off
BATTERY STANDBY SYSTEM
If the vehicle is not to be used for a
prolonged period, such as for winter storage,
for example, it is strongly recommended that
the battery be placed on standby in order to
protect it and optimise its service life.
To place the battery on standby:
- Switch off the engine ( STOP position).
- Press the red button, then turn the key
to the BATT position.
The battery goes into standby about
7 minutes later.
This time is necessary to:
- Allow the user to get out of the vehicle
and lock the doors with the remote
control.
- Ensure that all of the vehicle's electrical
systems are deactivated.
When the battery is on standby,
access to the vehicle is only possible
by unlocking the vehicle using the key in the
lock barrel in the driver's door.
After placing the battery on standby,
settings (time, date, radio station
presets...) are memorised.
To take the battery out of standby:
- Turn the key to the MAR position.
- Start the engine normally ( AV V position).
