2016 Citroen JUMPER RHD service

This personal and customisable space allows you to establish direct and \
special contact with
the manufacturer.

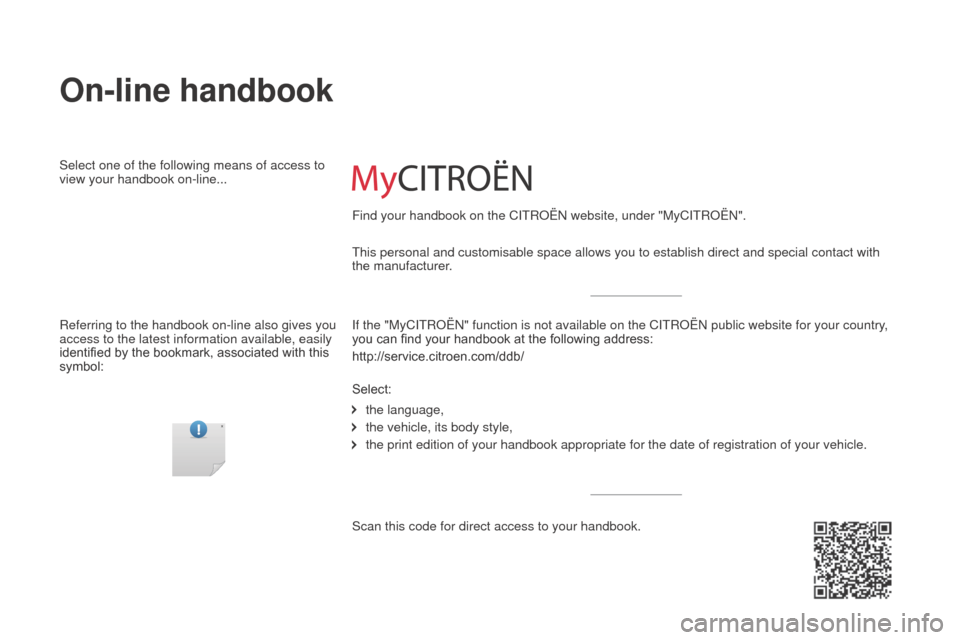

On-line handbook
Select one of the following means of access to
view your handbook on-line...Find your handbook on the CITROËN website, under "MyCITROËN".
Scan this code for direct access to your handbook. If the "MyCITROËN" function is not available on the CITROËN public\
website for your country,
you can find your handbook at the following address:
http://service.citroen.com/ddb/
Select:
Referring to the handbook on-line also gives you
access to the latest information available, easily
identified by the bookmark, associated with this
symbol:
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of registrat\
ion of your vehicle.

2
contents
3. EASE OF u SE and c
OMFO rt 44-86
Lighting control stalk 45
Wipers 48
Cruise control

49
Speed limiter


55
Demisting and


defrosting
59
Heating / Manual air conditioning
61
Digital air conditioning

63
Additional heating


systems

65
Rear Heating /


Air Conditioning

65
Programmable


additional heating

67
Front seats


71
Front bench seat


73
Rear seats


74
Front fittings


76
Rear fittings


81
Exterior fittings


84
Mirrors

85
Electric windows

86
Presentation


4
Exterior
6
Interior

7
Instruments and controls


9
T

echnical data - Maintenance

10
Environment


11
Eco-driving

12
1. OVErVIEW 4-15 4. t E c H n OLOGY on
BOA rd 87-97
Vehicle configuration 87
T rip computer 92
T
achograph
93
Rear parking sensors


94
Reversing camera


95
Pneumatic suspension


96
2. rEAdY tO GO 14-43
Remote control 14
Key 16
Alarm
19
Front / rear doors

20
Load space


22
Instrument panel


23
W

arning/indicator lamps
24
Fuel gauge


32
T

emperature indicator
32
Tyre under-inflation detection
33
Service indicator

35
Gearbox and steering


wheel
36
Gear shift indicator

36
Starting and


switching off

38
Hill start assist


39
Stop & Start


40
Driving


recommendations

43
This symbol informs you
of equipment which is
specific to the Combi /
Minibus model. Child lock.Rear heating / air
conditioning / Rear
seats / bench seats.
Reading lamps. Sliding
side windows.

11

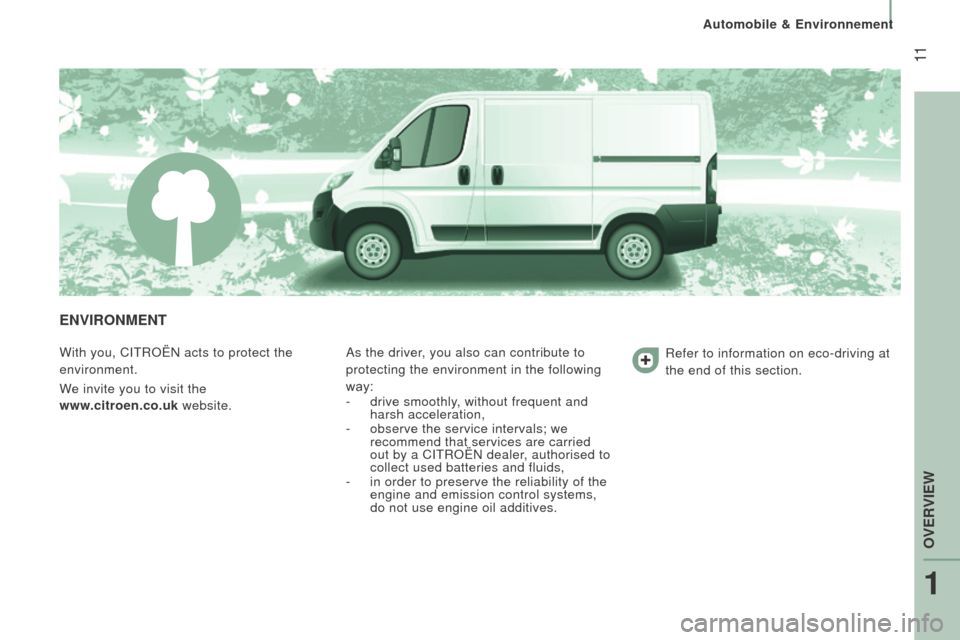

EnVIrOnMEnt
With you, CITROËN acts to protect the
environment.
We invite you to visit the
www.citroen.co.uk website. As the driver, you also can contribute to
protecting the environment in the following
way:
-

drive smoothly
, without frequent and
harsh acceleration,
-

observe the service intervals; we

recommend that services are carried
out by a CITROËN dealer, authorised to
collect used batteries and fluids,
-

in order to preserve the reliability of the

engine and emission control systems,
do not use engine oil additives. Refer to information on eco-driving at
the end of this section.
1
OVERVIEW
Automobile & Environnement

13
Limit the causes of excess consumption
Spread loads throughout the vehicle; place the heaviest items in
the bottom of the boot, as close as possible to the rear seats.
Limit the loads carried in the vehicle and reduce wind resistance
(roof bars, roof rack, trailer...).
At the end of winter, remove snow tyres and refit your summer
tyres.
Observe the recommendations on maintenance
Check the tyre pressures regularly, when cold, referring to the
label in the door aperture, driver's side.
Carry out this check in particular:
-
before a long journey
,
-

at each change of season,
-


after a long period out of use.
Don't forget the spare wheel and the tyres on any trailer or


caravan.
Have your vehicle serviced regularly (engine oil, oil filter, air
filter, cabin filter...) and observe the schedule of operations in the
manufacturer's service schedule.
With a BlueHDi Diesel engine, if the SCR has a fault your vehicle
becomes polluting; go to a CITROËN dealer or a qualified
workshop as soon as possible to bring the levels of nitrous oxide
emissions back into line with the regulations.
When refuelling, do not continue after the 3
rd cut-off of the nozzle
to avoid any overflow.
At the wheel of your new vehicle, it is only after the first 1
800 miles
(3 000 kilometres) that you will see the fuel consumption settle
down to a consistent average.
1
OVERVIEW
Motoring & the Environment

18ELEctrOnIc IMMOBILISEr
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply system.
It is activated automatically when the key is
removed from the ignition.Operating the remote control, even when it
is in your pocket, may result in involuntary
unlocking of the doors.
The simultaneous use of other high
frequency equipment (mobile telephones,
domestic alarms…), may interfere with the
operation of the remote control temporarily.
The remote control does not operate while
the key is in the ignition, even if the ignition
is off, except for reinitialisation.
Good practice
Make a careful note of the key number. If the
keys are are lost, it will be easier for your
CITROËN dealer to help if you can supply
this number and the confidential card.
Do not make any modifications to the
electronic immobiliser system.This warning lamp is switched off
after the ignition is switched on
and the key has been recognised,
the engine can be started.
If the key is not recognised, the engine
cannot be started. Use another key and
have the faulty key checked by a CITROËN
dealer. After the ignition is switched on, a dialogue
is established between the key and the
electronic immobiliser system.
cOnFIdEntIAL cArd
This is given to you on delivery of your
vehicle with the duplicate keys.
It contains the identification code necessary
for any work carried out by a CITROËN
dealer on the electronic immobiliser system.
This code is hidden by a film, which should
be removed only if necessary.
Keep your card in a safe place, never inside
the vehicle.
When undertaking a long trip or journey,
however, it is advisable to take it with you
along with your personal papers.
When purchasing a second-hand vehicle:
-

ensure that you are given the


confidential card,
-

have the keys memorised by a


CITROËN dealer to ensure that the keys
in your possession are the only ones
which can start the vehicle.
Driving with the doors locked may
make access to the passenger
compartment by the emergency services
more difficult in an emergency.
As a safety precaution (with children on
board), remove the key from the ignition
when leaving the vehicle, even for a short
time.
Access

22
LOcKInG / unLOcKInG FrOM InSIdEd oor open warning lamp
If this warning lamp comes on,
check that all of the doors and
the bonnet are closed correctly.
reversing camera
With the vehicle stationary, opening the rear
doors activates the camera and sends the
image to the screen fitted in the cab.
cab and load space
Pressing permits electric central
locking and unlocking, when the
doors are closed.
The doors can still be opened from the
inside. If one of the doors is open or is not
closed correctly, the central locking
does not work. The indicator lamp in the control:
Load space
Press to lock or unlock the side
door and rear doors from the cab.
The indicator lamp remains on
when locked
Anti-intrusion security
When the vehicle is started, the system
locks the cab and load space doors
automatically when you reach approximately
12 mph (20 km/h).
If none of the doors is opened during the
journey, the locking remains active.
Activation/deactivation of the system
The system setting is made with the MO
d E
button: in the "Autoclose" menu, select "ON"
or "OFF".
-

comes on when the doors


are locked and the ignition is
switched on,
-

then flashes when the doors


are locked when stationary
with the engine off.
The control is not active when the vehicle
has been locked using the remote control or
the key from the outside.
Good practice
If you decide to drive with the doors locked,
be aware that this could make access to the
vehicle by the emergency services more
difficult in an emergency. Refer to the "Technology on board -
Vehicle configuration" section.
Access

23
1. Distance recorder in miles / kilometres.
2. Screen.
3.

Fuel gauge.
4.


Coolant temperature.
5.


Rev counter
.
InStruMEnt PAnEL d isplay screen
In the lower part:
-
Time,
-

Ambient temperature,
-


Miles / Kilometres travelled,
-


T
rip computer (range, fuel
consumption...),
-

Headlamp beam height,
-


Programmable overspeed warning,
-


Cruise control or speed limiter
,
-

Gear ef
ficiency indicator,
-

Stop & Start.
In the upper part:
-

Date,
-

Service indicator
,
-

Alert messages,
-


System status messages,
-


V
ehicle configuration.
2
rEAdY tO GO
Instruments and controls

24WArn I n G / I nd I c AtO r LAMPS
Every time the engine is started: a series of warning lamps comes on, applying a self-checking test. They go off almost immediately.
When the engine is running: a warning lamp becomes an alert if it remains on continuously or flashes. This initial warning may be
accompanied by an audible signal and a message in the screen. "Do not ig\
nore these warnings."
Warning/indicator lamp isindicates Solution - action
Service on temporarily. minor faults.
Contact a CITROËN dealer or a qualified workshop.
continuously on,
accompanied by
a message on
the screen. major faults.
Make a note of the warning message and contact a
CITROËN dealer or a qualified workshop.
Parking brake -
Brake fluid level on.
that the parking brake is applied
or has not been released correctly. Releasing the parking brake switches off the warning
lamp.
on. that the fluid level is too low. Top up with a fluid listed by CITROËN.
continuously on,
even though the
level is correct. Stop as soon as it is safe to do so. Park, switch
off the ignition and contact a
c I tr OË n dealer or a
qualified workshop.
+ Electronic brake
force distribution on.
a fault with the system. Stop as soon as it safe to do so. Contact a CITROËN
dealer or a qualified workshop.
Anti-lock braking
system on.
a fault with the system. The vehicle retains conventional braking without
assistance. However, we recommend that you stop and
contact a CITROËN dealer or a qualified workshop.
Instruments and controls
