2016 Citroen JUMPER RHD service

25
Warning/indicator lampisindicates Solution - action
Coolant
temperature on with the
needle in the red
zone.
an abnormal increase.
Park and switch off the ignition. Allow the system to cool
sufficiently. Visually check the level.
on H in the red
zone. the coolant temperature is too
high. "Checks - Levels and checks" section.
Contact a CITROËN dealer or a qualified workshop.
Engine oil
pressure on while driving. that the pressure is too low.
Park and switch off the ignition. Allow the lubrication
system to cool in order to check its level.
"Checks - Levels and checks" section.
continuously on,
even though the
level is correct. a major fault.
Contact a CITROËN dealer or a qualified workshop.
flashing, for a
few seconds,
with a message
in the screen. a high level of deterioration of
the engine oil. Have the engine oil changes as soon as possible. After
the second level of alert, engine performance will be
limited. Your vehicle's programmed service schedule is
not altered.
Battery charge on.
a fault with the charging
system. Check the battery terminals…
"Quick help - Flat battery" section.
continuously on,
fixed or flashing
in spite of the
checks. an ignition or injection fault.
Have it checked by a CITROËN dealer or a qualified
workshop.
Door or bonnet
open detection on.that a door or the bonnet is not
closed correctly. Check that the cab doors, the rear and side doors and
the bonnet are closed.
2
rEAdY tO GO
Instruments and controls

27
Warning/indicator lampisindicates Solution - action
DSC/ASR flashing.
that it is in operation. The system optimises traction and allows improved
directional stability of the vehicle.
on,
accompanied
by an audible
signal and a
message in the
screen. a fault with the system or the
hill start assist.
Contact a CITROËN dealer or a qualified workshop.
"Safety - Driving safely" section.
on. a fault with the Intelligent
Traction Control.
Particle filter on. the regeneration of the particle
filter. It is recommended that you leave the engine running
until the warning lamp goes off so that regeneration can
be completed.
"Checks - Levels and checks" section.
Emission control
system on.
a fault with the system. Have the system checked by a CITROËN dealer or a
qualified workshop without delay.
Tyre under-
inflation
detection on.
a tyre deflated or punctured. Park and switch off the ignition. Change or repair the
wheel.
on,
accompanied
by the service
warning lamp. a faulty sensor.
Have it checked by a CITROËN dealer or a qualified
workshop.
2
rEAdY tO GO
Instruments and controls

30
Screendisplays indicates Solution - action
Temperature /
Ice the ice warning,
the temperature
flashing
accompanied by
a message in
the screen.weather conditions which could
result in ice on the road.
Be particularly vigilant and do not brake sharply.
"Safety - Driving safely".
Date / Time a setting: date,
time.a configuration via the "MODE"
menu.
"Technology on board
- Vehicle configuration" section.
Headlamp beam
height a headlamp
height setting.a position from 0 to 3
depending
on the load carried Adjust using the buttons on the MODE control panel.
"Ease of use and comfort - Steering mounted controls"
section.
Service spanner a service
spanner which
remains on.that a service will soon be due.
Refer to the list of checks in the maintenance and
warranty guide, then have the service carried out.
Stop & Start on.
engine going into STOP mode
after the the vehicle stops. As soon as you want to move off, the warning lamp
goes off and the engine restarts automatically in START
mode.
flashes for a few
seconds, then
goes off. STOP mode temporarily
unavailable or automatic
operation of START mode.
Special cases for STOP mode and START mode.
"Ready to go
- Starting and stopping" section.
Instruments and controls

34under-inflation alert
The alert is given by the fixed
illumination of this warning lamp,
accompanied by an audible signal,
and depending on equipment, the
display of a message.
In the event of a problem on one of the
tyres, the symbol or the message appears,
according to equipment, to identify it.
-

Reduce speed, avoid sudden steering

movements or harsh brake applications.
-

Stop as soon as it is safe to do so.
-


In the event of a puncture, use the

temporary puncture repair kit or the
spare wheel (according to equipment).
-

In the event of under-inflation:
●


if you have a compressor
, the one
in the temporary puncture repair
kit for example, check the four tyre
pressures when cold,


or
●

if it is not possible to check the

tyre pressures at the time, drive
carefully at reduced speed and go
to the nearest CITROËN dealer or a
qualified workshop. The loss of pressure detected does not
always lead to visible deformation of the tyre.
Do not rely on just a visual check.
The alert is maintained until the tyre or
tyres concerned is reinflated, repaired
or replaced.
Operating fault
The flashing and then fixed
illumination of this warning lamp
accompanied by the illumination
of the service warning lamp, and
depending on equipment, the display of a
message indicates a fault with the system.
In this case, monitoring of the tyre pressures
is not assured.
This alert is also displayed when one or
more wheels is not fitted with a sensor.
Go to a CITROËN dealer or a qualified
workshop

to have the system checked or,
following the repair of a puncture, to have
the original wheel, equipped with a sensor,
refitted.
Instruments and controls

35SErVIc E I nd I c AtO r
For a few seconds after the ignition is
switched on, the spanner symbolising the
service indicator comes on: the screen
informs you when the next service is due,
in accordance with the servicing schedule
indicated in the maintenance and warranty
guide. This information is determined in
relation to the distance travelled since the
previous service.
After a few seconds, the display returns to
its usual functions. A long press returns you to the main menu.
Refer to the "Technology on board -
Vehicle configuration" section.
deterioration of the engine oil
Refer to the list of checks in the
maintenance and warranty guide which
was given to you on handover of the
vehicle.
reminder of servicing information
At any time, to access the service indicator,
press briefly on the MO d E button.
Use the up/down arrows to see
the scheduling and engine oil wear
information.
Pressing the MO
d E button again allows
you to return to the various display
menus.
Menu...
c

hoose...
Allows you to...
11
Service Service
(miles/
km before
service)
Display the
distance
remaining
before the
next service.
Oil (miles/
km before
oil change) Display
the miles/
kilometres to
the next oil
change.
resetting to zero
The continuous flashing of the indicator is
stopped by a qualified workshop using a
diagnostic tool.This 2
nd warning lamp, coupled
with the 1st, comes on in the
instrument panel when the oil
has not been changed and the
deterioration of the oil has reached another
threshold. To avoid the risk of damage, have
the oil changed without waiting for this level. The warning lamp flashing and,
if your vehicle has the function,
a message displayed at every
engine start: the system has
detected deterioration of the engine oil.
Have the oil changed as soon as possible.
For 3.0 litre HDi engines, the engine speed
is restricted to 3 000 rpm, then 1 500 rpm
until the oil change is done. Have the engine
oil changed to avoid any risk of damage.
2
rEAdY tO GO
Instruments and controls

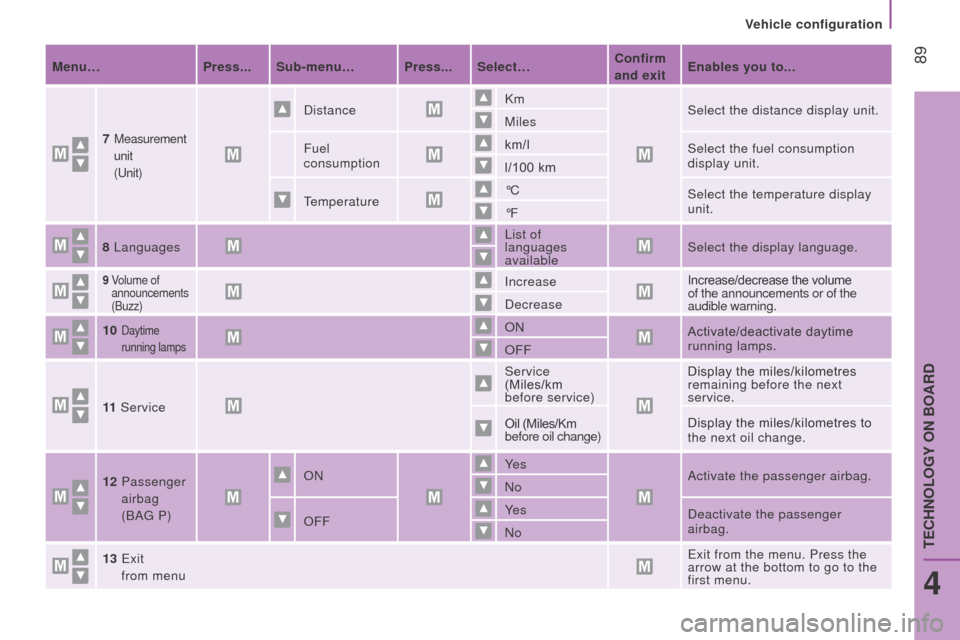

89Menu…Press... Sub-menu… Press... Select…c onfirm
and exit Enables you to...
7

Measurement
unit
(Unit)
Distance Km
Select the distance display unit.
Miles
Fuel
consumption km/l
Select the fuel consumption
display unit.
l/100 km
Temperature °C
Select the temperature display
unit.
°F
8 Languages List of
languages
availableSelect the display language.
9
Volume of
announcements
(Buzz)Increase Increase/decrease the volume
of the announcements or of the
audible warning.
Decrease
10

Daytime
running lampsON Activate/deactivate daytime
running lamps.
OFF
11 Service Service

(Miles/km
before service) Display the miles/kilometres
remaining before the next
service.
Oil (Miles/Km
before oil change) Display the miles/kilometres to
the next oil change.
12


Passenger
airbag
(BAG P) ON
Ye s
Activate the passenger airbag.
No
OFF Ye s
Deactivate the passenger
airbag.
No
13


Exit
from menu Exit from the menu. Press the
arrow at the bottom to go to the
first menu.
4
TECHNOLOGY ON BOARD
Vehicle configuration

126TOTAL & CITROËN
Partners in performance and
protecting the environment
Innovation in the search for performance
For over 40 year, the TOTAL Research and
Development departments have developed
lubricants for CITROËN, to match the latest
technical innovations on CITROËN vehicles,
both for competition and for everyday motoring.
For you, this is an assurance that you will obtain
the best performance from your engine.
Optimum protection for your
engine
By having your CITROËN vehicle
serviced with TOTAL lubricants, you
are contributing towards improving
the life and performance of your
engine, while also protecting the
environment.
Maintenance with TOTAL

132
Manual gearbox
Have the level checked in accordance with
the manufacturer's servicing schedule.
Good practice
Oil filter
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances. It may
be necessary to check the thickness of the
pads, even between services.
Brake disc wear
For any information on checking the brake
disc wear, contact a CITROËN dealer or a
qualified workshop.
Parking brake
Where the parking brake travel is too great
or there is a reduction in the performance
of the system, the parking brake should be
adjusted, even between services.
Have the system checked by a CITROËN
dealer or a qualified workshop.
If this warning lamp comes on,
have the brake pad wear checked
by a CITROËN dealer or a
qualified workshop. In order to avoid damaging the
electrical units, we strongly advise you
not to use high pressure washing to clean
the engine compartment.
After washing the vehicle dampness, or in
winter, ice may form on the brake discs and
pads: braking efficiency may be reduced.
Make some light brake applications to dry
and de-ice the brakes. Only use products recommended by
CITROËN or products of equivalent quality
and specification.
In order to optimise the operation of units as
important as the braking system, CITROËN
selects and offers specific products.
Change the filter regularly, in accordance
with the manufacturer's servicing schedule.
Levels and checks
