2016 Citroen JUMPER steering wheel adjustment

8
jumper_en_Chap01_vue-ensemble_ed01-2015
InStruMEntS And cOntrOLS
instrument panels, screens, speedometer 23
W
arning lamps,
indicator lamps

24-31
Gauges, indicators


32, 35
Gear shift indicator


36-37
Lighting controls


45-47
Automatic illumination of headlamps


46
Guide-me-home lighting


46
Parking lamps


47
o

pening the bonnet

127
Dashboard fuses


145-146
V

ehicle configuration

87-89
Setting the time


88
Headlamp beam height adjustment

47
Front/rear fog lamps

45
Pneumatic suspension


96-97
Stop & Start


40-42 Front/rear wipers


48
Screenwash/headlamp wash


48
T

rip computer
92
Starter

, ignition switch
38
Hill start


39
Cruise control


49-51, 52-54
Speed limiter


55-57
Fixed speed limiter


58
instruments and controls 4-5
Steering wheel, reach adjustment

37
Horn


99
Steering mounted radio controls


186, 233
Mirrors, electric windows


85-86
Locking the load space


22
Additional heating, rear air
conditioning


65-66
Programmable additional heating


67-70
Location

37
jumper_en_Chap02_Pret-a-Partir_ed01-2015
StEErInG WHEEL A dju S t ME nt
With the vehicle stationary, first adjust your
seat to the most suitable position.
r

elease the steering wheel adjustment
mechanism by pulling the lever towards you.
Adjust the reach of the steering wheel, then
lock the mechanism by pushing the lever
fully forwards.
Operation
The information appears in the
instrument panel screen in the
form of the SHIF
t indicator,
accompanied by an upward arrow
to signal to the driver that they can change up.
The system adapts its gear change
recommendations according to the driving
conditions (slope, load, ...) and demands
from the driver (for power, acceleration,
braking,

...).
Switching off
This system cannot be deactivated by the
driver.
As a safety measure, these operations
must not be carried out while driving.
Gearbox and steering wheel
2
rEAdY tO GO

64
jumper_en_Chap03_Ergo-et-confort_ed01-2015
comfort value adjustment ring
The settings range between:
-
increasing the interior ambient air

temperature H
i (High) which goes up to
to a maximum setting of 32,
-

cooling the interior ambient air

temperature L
o (Low) which goes down
to a setting of 16.
Air distribution
A press illuminates the LED on the buttons
which distribute the air flow towards:
the windscreen and front side
window vents (demisting/
defrosting the windows),
the central and side vents (chest
and face),
the vents in the front and rear
areas (feet).
The combination of buttons permits
improvement of air distribution.
Air flow
Successive presses of this button
increase (+) or reduce (-) the
force of the air flow to the interior.
Intake of exterior air / r ecirculation of interior air
When the LED is on, the air
recirculates inside the passenger
compartment to prevent the entry of exterior
odours and smoke. This position should be
temporary.
When the ambient air comfort level has been
reached, pressing the button switches the
LED off and reopens the exterior air intake.
Pressing the A
ut
O
button also restores
the intake of exterior air.
r eturning to this
position permits renewal of the air in the
passenger compartment and demisting.
Pressing the A
ut
O
button again restores
the F
u
LL A ut
O
function.
rapid demisting / defrosting
Pressing this control permits
rapid clearing of the windows.
The LED is on.
The system manages the air conditioning,
the flow and intake of air, the defrosting
of the rear screen and provides optimum
distribution of the air to the windscreen and
front side windows.
i

f your vehicle is fitted with additional
heating, switch it off to ensure rapid and
effective demisting/defrosting.
AddItIOnAL r EA r VE nt ILAt IO n
The controls for this system, additional to
the standard cabin ventilation system, are
on the lower dashboard, to the left of the
steering wheel.
Air outlet
A press on this control activates
the extraction of air to the
outside; the LED comes on.
Press again to switch off.
Air inlet
A press on this control activates
the entry of air into the cabin; the
LED comes on. Press again to
switch off.
Ventilation

96
jumper_en_Chap04_Technologie-a-bord_ed01-2015

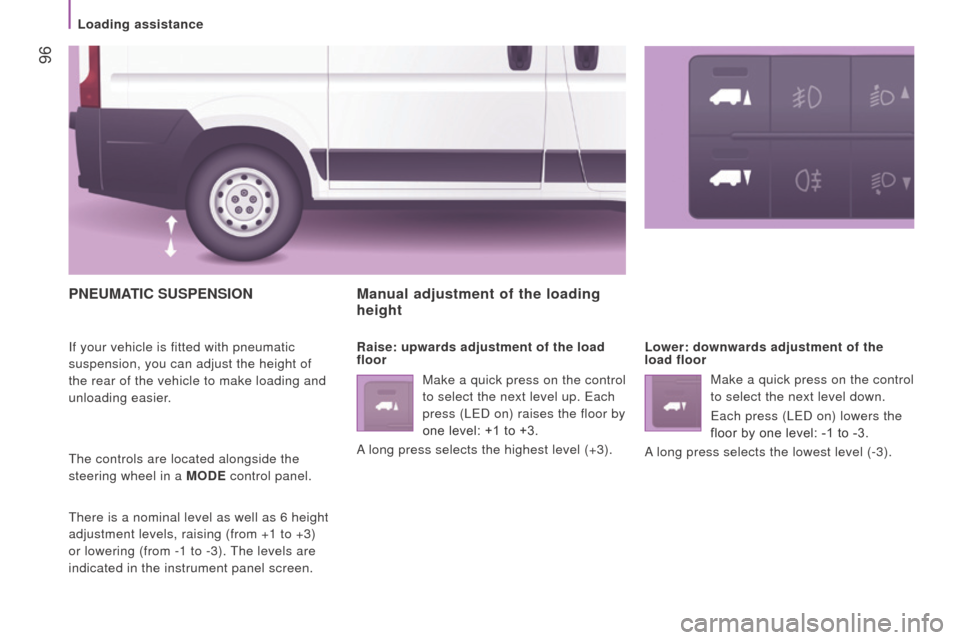

PnEuMAtI c S u SPE n SIO n
if your vehicle is fitted with pneumatic
suspension, you can adjust the height of
the rear of the vehicle to make loading and
unloading easier.
The controls are located alongside the
steering wheel in a MO
d E control panel.
There is a nominal level as well as 6 height
adjustment levels, raising (from +1 to +3)
or lowering (from -1 to -3). The levels are
indicated in the instrument panel screen.
Manual adjustment of the loading
height
raise: upwards adjustment of the load
floor Lower: downwards adjustment of the

load floor
Make a quick press on the control
to select the next level up. Each
press (LED on) raises the floor by
one level: +1 to +3.
A long press selects the highest level (+3). Make a quick press on the control
to select the next level down.
Each press (LED on) lowers the
floor by one level: -1 to -3.
A long press selects the lowest level (-3).
Loading assistance
