2016 CITROEN DS5 Owners Manual

215
DS5_en_Chap08_info-pratiques_ed01-2015
dipped beam headlamps
(halogen model)
Main beam headlamps
(halogen model)
F Press on the top of the connector then
pivot the assembly downwards.
F

R
emove the connector with the bulb.
F

R
emove the bulb and change it.
For reassembly, carry out these operations in
reverse order, but engaging the bottom of the
bulb first.
F
R
emove the protective plastic cover by
pulling on the tab.
F
R
emove the protective plastic cover by
pulling on the tab.
F

R

emove the connector with the bulb by
pressing on the lug at the bottom.
F

R

emove the bulb and change it.
For reassembly, carry out these operations in
reverse order.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015

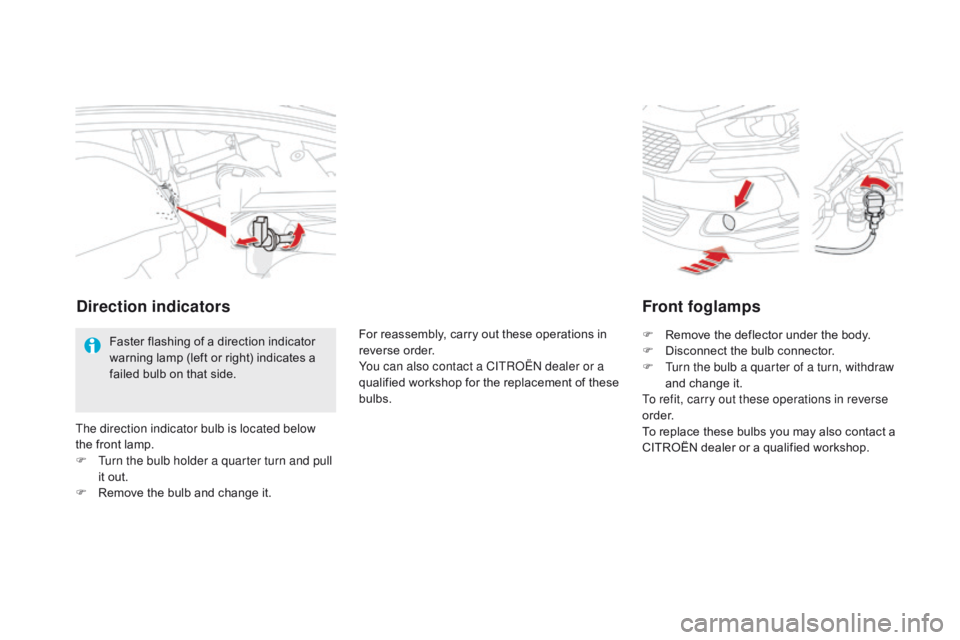

Front foglamps
F Remove the deflector under the body.
F D isconnect the bulb connector.
F

T
urn the bulb a quarter of a turn, withdraw
and change it.
To refit, carry out these operations in reverse
o r d e r.
To replace these bulbs you may also contact a
CITROËN dealer or a qualified workshop.
direction indicators
Faster flashing of a direction indicator
warning lamp (left or right) indicates a
failed bulb on that side.
The direction indicator bulb is located below
the front lamp.
F

T

urn the bulb holder a quarter turn and pull
it out.
F

R

emove the bulb and change it. For reassembly, carry out these operations in
reverse order.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.

217
DS5_en_Chap08_info-pratiques_ed01-2015
Integrated direction indicator
side repeatersdoor mirror spotlamps
You should contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.You should contact a CITROËN dealer or a
qualified workshop
for the replacement of the
light emitting diode - LED.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
1. Sidelamps (light emitting diodes - LEds ).
2.


d
i
rection indicators (PY21W amber).
3.

R
eversing lamps (P21W).
4.

B
rake lamps (P21W).
5.

F
oglamps (P21W).
Rear lamps
direction indicators and brake
lamps (on the wings)
F Open the boot then remove the access c ove r.
F

D
isconnect the lamp connector.
F

R
emove the two lamp fixing nuts. F
C arefully remove the lamp unit from
outside. The retaining clips unclip
automatically.
F

T
urn the bulb holder a quarter of a turn and
change the bulb.
For reassembly, carry out these operations in
reverse order.
Light emitting diodes-LEds
For replacement, contact a CITROËN
dealer or qualified workshop.

219
DS5_en_Chap08_info-pratiques_ed01-2015
Reversing lamp (tailgate)
F Carefully remove the lamp from the outside. The retaining clips unclip
automatically.
F

T
urn the bulb holder a quarter of a turn and
replace the bulb.
For reassembly, carry out these operations in
reverse order.
Foglamp
F Open the tailgate.
F U nclip the skirt of the lamp.
F

R
emove the access cover and the lamp
fixing nut. Access is by passing a hand under the bumper.
F
T urn the bulb holder a quarter of a turn and
pull it out.
F

C
hange the bulb.
To refit, carry out these operations in reverse
o r d e r.
You can also contact a CITROËN dealer or a
qualified workshop for the replacement of these
bulbs.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
Number plate lamps
F Insert a thin screwdriver into the slot in the lens.
F

P
ush it outwards to unclip it.
F

R
emove the lens.
F

P
ull the bulb out and change it.
Third brake lamp
(light emitting diodes - LEds )
Contact a CITROËN dealer or qualified
workshop.

221
DS5_en_Chap08_info-pratiques_ed01-2015
Changing a fuseProcedure for replacing a failed fuse with a new fuse to rectify a failure of the corresponding function.
The fuse extraction tweezer is fitted to the back
of the dashboard fusebox cover.
For access to it:
F
r
emove the cover completely,
F

r
emove the tweezer.
Access to tooling
Before changing a fuse, the cause of the failure
must be identified and rectified.
F
I
dentify the failed fuse by checking the
condition of its filament.
changing a fuse
Good Failed
F

U

se the special tweezer to extract the fuse
from its housing.
F

A

lways replace the failed fuse with a fuse
of the same rating.
F

C

heck that the number marked on the
fusebox, the rating marked on the fuse and
the following tables all agree. CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
Practical information

DS5_en_Chap08_info-pratiques_ed01-2015
dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Remove the cover.Fuse
N° Rating
(A) Functions
F6 A or B 15Audio system.
F8 3Alarm.
F13 10Front cigarette lighter, front 12 V socket.
F14 10Rear 12 V socket.
F16 3Rear map reading lamps.
F17 3Courtesy mirror.
F28 A or B 15Audio system.
F30 20Rear wiper.
F32 10Audio amplifier.
