2016 Citroen DS5 HYBRID ESP

45
"driving" menu
The systems with settings that can be adjusted are detailed in the table below.Button
cor
responding function
com
ments
Speed settings Memorisation of speeds for use with the speed limiter or cruise control.
veh

icle settings Access to other functions with settings that can be adjusted:
-
Au

tomatic parking brake (Automatic electric parking brake; see the "Driving" section),
-
Au

tomatic rear wiper in reverse (Activation of rear wiper coupled to reverse gear; see the
"Visibility" section).
-
Gu

ide-me-home lighting (Automatic guide me home lighting; see the " Visibility" section),
-
We

lcome lighting (Exterior welcome lighting; see the " Visibility" section),
-
Mo

od lighting (Mood lighting; see the " Visibility" section),
-
Ad

aptive lighting (Main / additional directional lighting; see the " Visibility" section).
-
Dr

iver plip action (Selective unlocking of the driver's door; see the "Access" section),
-
Un

locking boot (Selective unlocking of the boot; see the "Access" section).
Stop & Star t Deactivation of the function.
Function deactivated = indicator lamp on (orange).
Monitoring

DS5_en_Chap02_ouvertures_ed02-2015

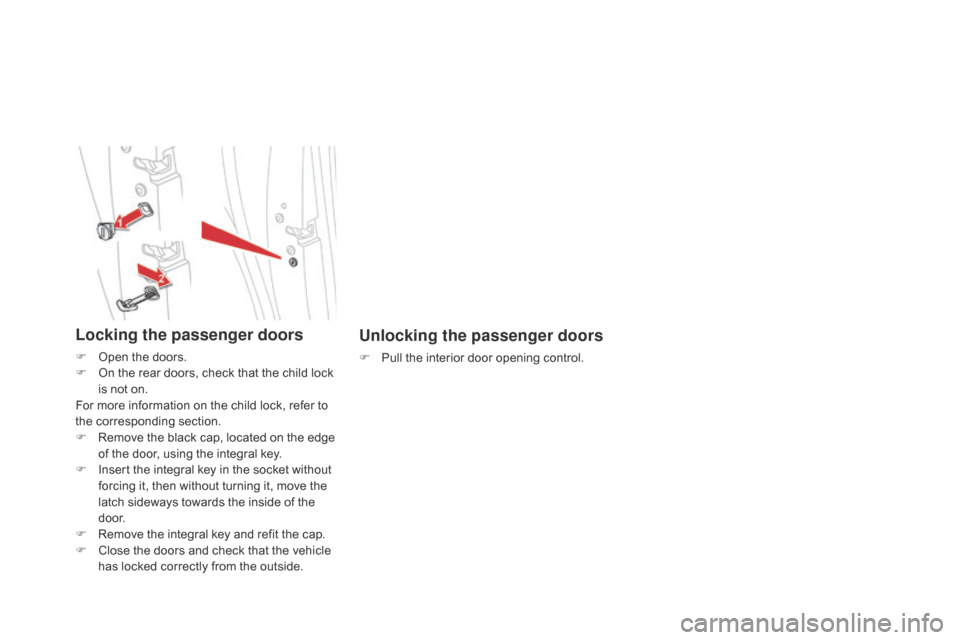

Unlocking the passenger doors
F Pull the interior door opening control.
Locking the passenger doors
F Open the doors.
F On t he rear doors, check that the child lock
is not on.
For more information on the child lock, refer to
the corresponding section.
F
Re

move the black cap, located on the edge
of the door, using the integral key.
F
In

sert the integral key in the socket without
forcing it, then without turning it, move the
latch sideways towards the inside of the
d o o r.
F
Re

move the integral key and refit the cap.
F
Cl

ose the doors and check that the vehicle
has locked correctly from the outside.

67
DS5_en_Chap02_ouvertures_ed02-2015
Safety anti-pinch
When the window rises and meets an obstacle,
it stops and immediately partially lowers again.
In the event of unwanted opening of the
window on closing, press the switch until the
window opens completely, then pull the switch
immediately until the window closes. Continue
to hold the switch for approximately one second
after the window has closed.
The safety anti-pinch function is not active
during this operation.
deactivating the rear
w indow controls Reinitialisation of the
electric windows
In the event of contact during operation of the windows, you must reverse the movement of
the window. To do this, press the switch concerned.
When operating the passenger electric window switches, the driver must ensure that no one
is preventing correct closing of the windows.
The driver must ensure that the passengers use the electric windows correctly.
Be particularly aware of children when operating the windows.
Be aware of passengers and other persons present close to the vehicle when closing the
windows remotely using the the electronic key or the Keyless Entry and Starting system. Following reconnection of the battery, the
safety anti-pinch function must be reinitialised.
The safety anti-pinch function is not active
during these operations.
For each window:
-
lo

wer the window completely, then raise
it. It will rise in steps of a few centimetres
each time the switch is pressed. Repeat
the operation until the window closes
completely,
-
co
ntinue to press the switch for at least
one
s
econd after reaching this position,
window closed.
For the safety of your children, press
switch 5 to prevent operation of the
rear windows irrespective of their
position.
The warning lamp in the button comes on,
accompanied by a message confirming
activation. It remains on, as long as the child
lock is activated.
The interior controls for the rear doors are also
deactivated.
Opening the doors from the outside and
operation of the rear windows from the driver's
controls remain possible.
Access

DS5_en_Chap03_confort_ed02-2015
Storing driving positions
System which stores the electrical settings
of the driver's seat and the head-up display
settings. It enables you to store up to
two
p
ositions using the buttons on the side
of
t

he driver's seat.
Storing a position using
buttons M / 1 / 2
F Switch on the ignition.
F Ad just your seat and the head-up display.
F
Pr

ess button M , then press button 1 or 2
within four seconds.
An a

udible signal indicates that the position
has been stored.
Storing a new position cancels the previous
position.
Recalling a stored position
F Briefly press button 1 or 2 to recall the
c orresponding position.
An audible signal indicates the end of the
adjustment.
You can interrupt the current movement
by pressing button M , 1 or 2 or by using
one of the seat controls.
A stored position cannot be recalled
while driving.
Recalling stored positions is
deactivated 45 seconds after switching
off the ignition.

77
DS5_en_Chap03_confort_ed02-2015
Rear seats
F Move the corresponding front seat for ward
if necessary.
F
Pl

ace the head restraints in the low
position or remove them.
F
Re

move the seat belt from its guide.
Folding the cushion and
backrest
F Lift the cushion 1 by hand, lifting from
the r ear.
F
Ti

p the seat cushion 1 fully against the
front seat.
F
Ke

ep the seat belt guide 2 held against
the
v

ehicle. F
Pu

ll control 3 for wards to release the seat
back 4 .
F
Fo

ld the seat backrest 4.
Bench seat with split cushion and backrest (left hand 2/3, right hand 1/3) which can be folded individually to adapt the load space in the boot.
comfort

DS5_en_Chap03_confort_ed02-2015
Mirrors
As a safety measure, the mirrors should
be adjusted to reduce the blind spot.
door mirrors
If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked.
The folding and unfolding of the door
mirrors using the electronic key can be
deactivated by a CITROËN dealer or a
qualified workshop.
Fold the mirrors when putting your
vehicle through an automatic car wash.
The objects observed are, in reality,
closer than they appear.
Take this into account in order to
correctly judge the distance of vehicles
approaching from behind.
demisting - defr
osting Adjustment
F Turn control A to the right or to the left to
s
elect the corresponding mirror.
F
Mov

e control A in all four directions to
adjust.
F
Re

turn control A to the central position.
Folding
Automatic: lock the vehicle using the
electronic ke y.
Unfolding
Automatic: unlock the vehicle using the
electronic key.Manual: with the ignition on, move
control A downwards.
Manual: with the ignition on, move
control A upwards.
Demisting-defrosting of the door
mirrors operates by switching on
the heated rear screen.
The rear screen demist - defrost
can only operate when the engine is
running. The mirrors can be folded manually if
necessary.
For more information, refer to the "Rear screen
and door mirrors demist-defrost" section.

85
DS5_en_Chap03_confort_ed02-2015
USB Player
This connection box comprises a USB port and
a Jack auxiliary socket.
Jack auxiliary socket
The Jack auxiliary socket allows the connection
of a portable device, such as a digital audio
player, so that your audio files can be heard
through the vehicle's speakers.
The management of these files is from the
portable device.
It contains two storage compartments.
centre armrest
Storage compartments
F For access to the large compartment,
p
ress button 1 then raise the cover.
F
Fo

r access to the small compartment
(below the armrest cover) press button 2
then raise the cover.
The large compartment houses a USB port and
a Jack auxiliary socket. It also houses an air
vent (adjustable for flow) that delivers cooled
a i r. For more information, refer to the
corresponding part of the "Audio and
telematics" section.
USB port
The USB port allows the connection of a
portable device, such as a digital audio player
of the iPod
® type or a USB memory stick.
The USB player reads your audio files, which
are transmitted to your audio system and
played via the vehicle's speakers.
The management of these files is from the
steering mounted controls or the audio system. When connected to the USB port, the
portable device charges automatically.
While charging, a message is displayed
if the power consumption of the
portable device exceeds the current
delivered by the vehicle.
The USB port also allows a telephone to be
connected by MirrorLink™ or CarPlay
®, so that
certain applications on the telephone can be
used in the touch screen.
comfort

DS5_en_Chap03_confort_ed02-2015
4. Automatic visibility
programme
For maximum cooling or heating of the
passenger compartment, it is possible
to exceed the minimum value 14 or the
maximum value 28.
F
Tu

rn control 2 or 3 to the left until
"LO" is displayed or to the right
until "HI" is displayed.
For more information on the
automatic visibility programme,
refer to the corresponding section
in "Front demisting - defrosting".
2-3. driver's-passenger's side
se ttings
The driver and front passenger can
each adjust the temperature to their
requirements.
F
Tu

rn control 2 or 3 to the left or to the right
respectively to decrease or increase this
value.
A setting around the value 21 provides
optimum comfort. However, depending on your
requirements, a setting between 18 and 24 is
normal.
You are advised to avoid a left / right setting
difference of more than 3.
Manual operation
If you wish, you can make a different choice
from that offered by the system by changing a
setting. The "AUTO" indicator lamps go off; the
other functions, except the air conditioning, will
still be controlled automatically.
F
Pr

essing the "AUTO" button returns the
system to completely automatic operation.
With Stop & Start, when demisting has
been activated, the STOP mode is not
available.
The value indicated on the display corresponds
to a level of comfort and not to a temperature in
degrees Celsius or Fahrenheit.
