Automatic gearbox
Gear selection gate
Six speed automatic gearbox which offers a
choice between the comfort of fully automatic
operation, enhanced by sport and snow
programmes, and the pleasure of manual gear
changing.
Two driving modes are offered:
-
a
utomatic operation for electronic
management of the gears by the gearbox,
with a sport programme for a more
dynamic style of driving and a snow
programme to improve driving when
traction is poor,
-

m
anual operation for sequential changing
of the gears by the driver.
1.
G

ear selector.
2.
B

utton " T" (snow) .
3.
B

utton " S" (spor t) .
4.
P

osition markings for the gear selector.Gear selector positions
P. Park.
-
I mmobilisation of the vehicle, parking brake
on or off.
-

S
tarting the engine.
R.
R

everse.
-

R
eversing manoeuvres, vehicle stationary,
engine at idle.
N.

N
eutral.
-

I
mmobilisation of the vehicle, parking brake
on.
-

S
tarting the engine.
d

.
A

utomatic operation.
M.+ / -

M
anual operation with sequential
changing of the six gears.
F

P
ush for wards to change up through the
gears.
or
F

P
ull backwards to change down through
the gears.
displays in the instrument panel
When you move the selector in the gate to
select a position, the corresponding indicator
comes on in the instrument panel.
P

P
ark
R

R
everse
N

N
eutral
d


D
rive (automatic driving)
S

Sp
ort programme
T

S
now programme
1 to 6

G
ear engaged during manual operation
-

I
nvalid value during manual operation

205
DS4_en_Chap08_conduite_ed03-2015
Gear shift indicator*
On vehicle fitted with a manual
gearbox, the arrow may be
accompanied by the gear
recommended.
With an automatic gearbox, the system
is only active in manual mode.
* Depending on engine.
On BlueHDi Diesel 150 versions with manual
gearbox, the system may suggest changing into
neutral so that the engine can go into standby
(STOP mode with Stop & Start), in certain
driving conditions. In this case, N is displayed
in the instrument panel. System which reduces fuel consumption by recommending the most appropriate gear.
Operation
Depending on the driving situation and your
vehicle's equipment, the system may advise
you to skip one (or more) gear(s). You can
follow this instruction without engaging the
intermediate gears.
The gear engagement recommendations must
not be considered compulsory. In fact, the
configuration of the road, the amount of traffic
and safety remain determining factors when
choosing the best gear. Therefore, the driver
remains responsible for deciding whether or not
to follow the advice given by the system.
This function cannot be deactivated. Example:
-

Y
ou are in third gear.
-

Y
ou press the accelerator pedal.
-

T
he system may suggest that you engage
a higher gear.
The information appears in the instrument
panel in the form of an arrow.
The system adapts its gear change
recommendation according to the
driving conditions (slope, load,
...) and
the demands of the driver (power,
acceleration, braking,
...).
The system never suggests:
-

e
ngaging first gear,
-
enga

ging reverse gear.
driving

213
DS4_en_Chap08_conduite_ed03-2015
Blind spot sensors
This driving assistance system warns the driver
of the presence of another vehicle in the blind
spot angle of their vehicle (areas masked from
the driver's field of vision), as soon as this
presents a potential danger.
Operation
This system is designed to improve safety when driving and is in no circumstances a
substitute for the use of the interior rear view mirror and door mirrors. It is the driver's
responsibility to constantly check the traffic, to assess the distances and relative speeds of
other vehicles and to predict their movements before deciding whether to change lane.
The blind spot sensor system can never replace the need for vigilance on the part of
the
d
river. F

O
n switching on the ignition, or engine
running, press this button to activate the
function; the warning lamp comes on.
Sensors fitted in the front and rear bumpers
monitor the blind spots.
A warning lamp appears in the door mirror on
the side in question:
-
i
mmediately, when being overtaken,
-
a
fter a delay of about one second, when
overtaking a vehicle slowly.
driving

217
DS4_en_Chap08_conduite_ed03-2015
With the touch screen tablet
Modifying a speed setting
F In the secondary page, press "Speed settings ".
F

S

elect the system for which you want to
memorise new speed settings:
●

s
peed limiter
or
●

c
ruise control.
"MEM" button
Press this button to select a speed settings for
use by the speed limiter or cruise control.
Refer to the corresponding section.
F

P

ress this button to select the
"
dr

iving
" menu.
F

C

hoose the speed setting to be modified. F
E
nter the new value using the numerical
keypad and confirm.
F

C

onfirm to save the modification and quit
the menu.
driving

DS4_en_Chap09_info-pratiques_ed03-2015

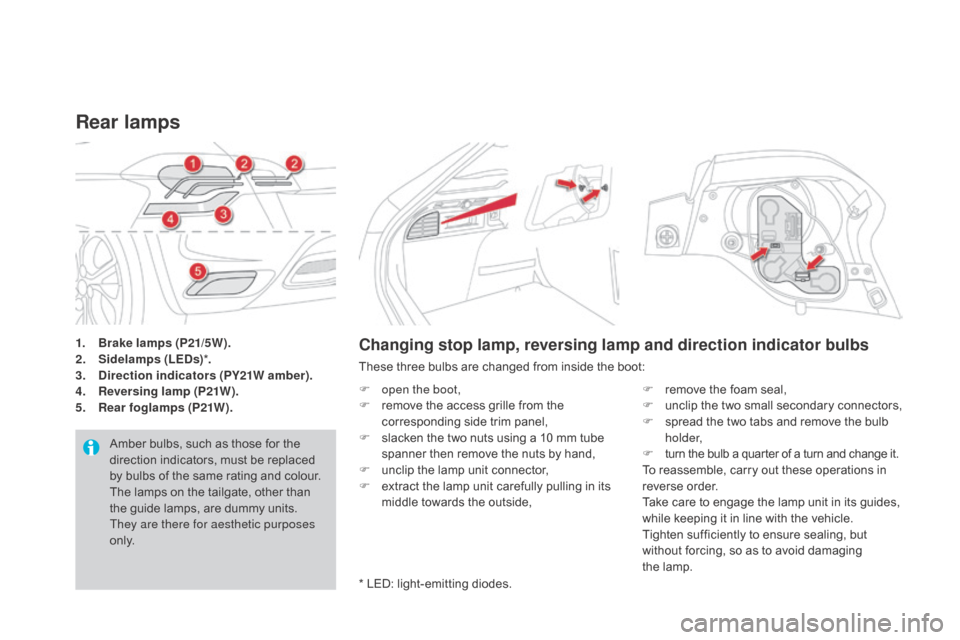

1. Brake lamps (P21/5W).
2. Sidelamps (LE d s)*.
3.
di

rection indicators (PY21W amber).
4.
R

eversing lamp (P21W).
5.
R

ear foglamps (P21W).
Rear lamps
Amber bulbs, such as those for the
direction indicators, must be replaced
by bulbs of the same rating and colour.
The lamps on the tailgate, other than
the guide lamps, are dummy units.
They are there for aesthetic purposes
o n l y.
Changing stop lamp, reversing lamp and direction indicator bulbs
These three bulbs are changed from inside the boot:
F
o
pen the boot,
F

r
emove the access grille from the
corresponding side trim panel,
F

s
lacken the two nuts using a 10 mm tube
spanner then remove the nuts by hand,
F

u
nclip the lamp unit connector,
F

e
xtract the lamp unit carefully pulling in its
middle towards the outside, F

r
emove the foam seal,
F

u
nclip the two small secondary connectors,
F

s
pread the two tabs and remove the bulb
h o l d e r,
F

t
urn the bulb a quarter of a turn and change it.
To reassemble, carry out these operations in
reverse order.
Take care to engage the lamp unit in its guides,
while keeping it in line with the vehicle.
Tighten sufficiently to ensure sealing, but
without forcing, so as to avoid damaging
the
lamp.
* LED: light-emitting diodes.

DS4_en_Chap09_info-pratiques_ed03-2015
Installing electrical
accessories
Your vehicle's electrical system is
designed to operate with standard or
optional equipment.
Before installing other electrical
equipment or accessories on your
vehicle, contact a CITROËN dealer or a
qualified workshop.
CITROËN will not accept responsibility
for the cost incurred in repairing your
vehicle or for rectifying malfunctions
resulting from the installation of
accessories not supplied and not
recommended by CITROËN and
not installed in accordance with its
instructions, in particular when the
combined consumption of all of the
additional equipment connected
exceeds 10 milliamperes.
Before changing a fuse:
F

t

he cause of the failure must be identified
and rectified,
F
all electrical consumers must be switched off,F the vehicle must be immobilised with the
ignition off,
F

i
dentify the failed fuse using the tables and
layout drawings in the following pages.
Changing a fuse
Good Failed
The replacement of a fuse not shown in
the tables below may cause a serious
malfunction of your vehicle. Contact
a CITROËN dealer or a qualified
workshop. Tw e e z e r
To replace a fuse, you must:
F

u

se the special tweezer to extract the fuse
from its housing and check the condition of
its filament.
F

a

lways replace the failed fuse with a fuse
of the same rating (same colour); using a
different rating could cause faults (risk of
f i r e).
If the fuse fails again soon after replacement,
have the vehicle's electrical system checked by
a CITROËN dealer or a qualified workshop.

257
DS4_en_Chap09_info-pratiques_ed03-2015
The fusebox is placed in the engine
compartment near the battery (left-hand side).Access to the fuses
F Unclip the cover.
F C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Engine compartment fuses
Practical information

261
DS4_en_Chap09_info-pratiques_ed03-2015
Charging the battery using
a battery charger
F Disconnect the battery from the vehicle.
F F ollow the instructions for use provided by
the manufacturer of the charger.
F

C
onnect the battery starting with the
negative terminal (-).
F

C
heck that the terminals and connectors
are clean. If they are covered with sulphate
(whitish or greenish deposit), remove them
and clean them. With Stop & Start, the battery does not
have to be disconnected for charging.
Reinitialisation after
reconnection
After any reconnection of the battery, switch on
the ignition and wait at least one minute before
starting, to allow time for the initialisation of the
electronic systems.
By referring to the corresponding sections, you
should set or initialise the following systems
yourself:
-

o
ne-touch electric windows,
-

t
ime and date,
-

a
udio and navigation system settings.Check that no alert message or
warning lamp comes on after switching
on the ignition.
However, if minor problems persist
after carrying out these operations,
contact a CITROËN dealer or a
qualified workshop.
F

P

osition the open clamp E of the cable on
the positive post (+) of the battery.
F

P

ress down on the clamp to position it
correctly on the battery post.
F

L

ock the clamp by lowering the lever
d
.
Reconnecting
the (+) terminal
di
sconnecting

the (+) terminal
F Raise the lever d f ully to release the clamp E .
Do not force the lever as locking will not
be possible if the clamp is not positioned
correctly; start the procedure again.
