2016 Citroen C5 RHD Owner's Manual

239

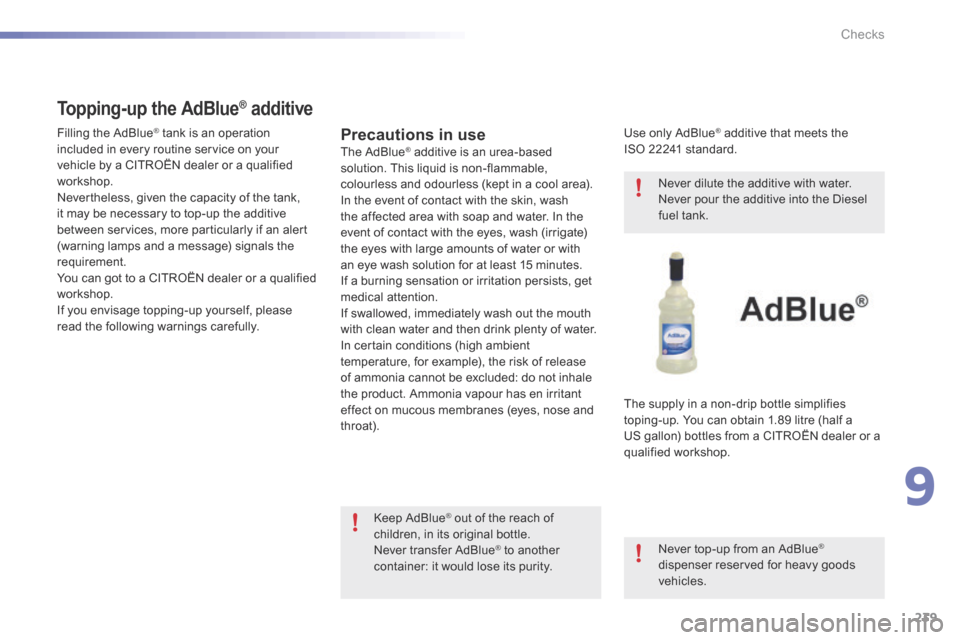

Precautions in useThe AdBlue® additive is an urea-based
solution. This liquid is non-flammable,
colourless and odourless (kept in a cool area).
In the event of contact with the skin, wash
the affected area with soap and water. In the
event of contact with the eyes, wash (irrigate)
the eyes with large amounts of water or with
an eye wash solution for at least 15 minutes.
If a burning sensation or irritation persists, get
medical attention.
If swallowed, immediately wash out the mouth
with clean water and then drink plenty of water.
In certain conditions (high ambient
temperature, for example), the risk of release
of ammonia cannot be excluded: do not inhale
the product. Ammonia vapour has en irritant
effect on mucous membranes (eyes, nose and
throat).
Keep AdBlue
® out of the reach of
children, in its original bottle.
Never transfer AdBlue
® to another
container: it would lose its purity. Use only AdBlue
® additive that meets the
ISO 22241 standard.
Never dilute the additive with water.
Never pour the additive into the Diesel
fuel tank.
The supply in a non-drip bottle simplifies
toping-up. You can obtain 1.89 litre (half a
US gallon) bottles from a CITROËN dealer or a
qualified workshop. Never top-up from an AdBlue
®
dispenser reserved for heavy goods
vehicles.
Topping-up the AdBlue® additive
Filling the AdBlue® tank is an operation
included in every routine service on your
vehicle by a CITROËN dealer or a qualified
workshop.
Nevertheless, given the capacity of the tank,
it may be necessary to top-up the additive
between services, more particularly if an alert
(warning lamps and a message) signals the
requirement.
You can got to a CITROËN dealer or a qualified
workshop.
If you envisage topping-up yourself, please
read the following warnings carefully.
9
Checks

240
Recommendations on storage
AdBlue® freezes at about -11°C and
deteriorates above 25°C. It is recommended
that bottles be stored in a cool area and
protected from direct sunlight.
Under these conditions, the additive can be
kept for at least a year.
If the additive has frozen, it can be used once it
has completely thawed out.
Never store bottles of AdBlue
® in your
vehicle.
Procedure
Before topping-up, ensure that the vehicle is
parked on a flat and level sur face.
In wintry conditions, ensure that the
temperature of the vehicle is above -11°C.
Other wise, by freezing, the AdBlue
® cannot
be poured into its tank. Park your vehicle in a
warmer area for a few hours to allow the top-up
to be carried out.
F Switch off the ignition and remove the key.
F For access to the AdBlue
® tank, raise the
boot carpet then, depending on equipment,
lift out the spare wheel and/or the
storage box. F
Without pressing, turn the black cap a
quarter turn anti-clockwise and lift it off.
F Turn the blue cap a 6
th of a turn
anti-clockwise.
F Lift off the cap.
Checks

241
F Refit the blue cap to the tank and turn
it a 6th of a turn clockwise, to its stop.
F Refit the black cap and turn it a quarter of
a turn clockwise without pressing. Ensure
that the indicator on the cap lines up with
the indicator on the support.
F Depending on equipment, return the spare
wheel and/or the storage box to the bottom
of the boot.
F Refit the boot carpet and close the tailgate. Important:
in the event of a top-up
after a breakdown because of a lack
of additive , signalled by the message
"Top up emissions additive: Starting
prevented", you must wait around
5 minutes before switching on the ignition,
without opening the driver's door,
locking the vehicle or introducing the
key into the ignition switch .
Switch on the ignition, then, after
10 seconds, start the engine.
Never dispose of AdBlue® additive
bottles in the household waste. Place
them in a special container provided
this purpose or take them to your dealer.
If any additive is split or splashed, wash
immediately with cold water or wipe with
a damp cloth.
If the additive has crystallised, clean it
off using a sponge and hot water.
F
After emptying the bottle, wipe away any
spillage around the tank filler using a damp
cloth.
Important : if your vehicle's
AdBlue
® tank is completely empty -
which is confirmed by the alert
messages and the impossibility of
starting the engine, you must add at
least 3.8 litres (so two 1.89 litre bottles).
F
Obtain a bottle of AdBlue
®. After first
checking the use-by date, read carefully
the instructions on use on the label before
pouring the contents of the bottle into your
vehicle's AdBlue
® tank.
9
Checks

242
Engines and gearboxes
Petrol engineTHP 155THP 160
THP 15 0
Gearbox Automatic (6-speed)Automatic (6-speed)
Model code:
RD... RW... 5F V- A

5 FN - A* * 5FM-A

5FE-A /D**
Cubic capacity (cc) 1 5981 598
Bore x stroke (mm) 77 x 85.877 x 85.8
EU standard maximum power (kW)* / hp DIN 115 / 110**120 / 110**
Maximum power engine speed (rpm) 6 0006 000
EU standard maximum torque (Nm) 240240
Maximum torque engine speed (rpm) 1 4001 400
Fuel UnleadedUnleaded
Catalytic converter Ye sYe s
Engine oil capacity (with filter replacement) 4.254.25
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
** In Russia, the maximum power is 110 kW and in Brazil, the maximum power is 120 kW. RD...: Saloon.
RW...: Tourer.
Technical data

243
Weights and towed loads (in kg)
Petrol engineTHP 155THP 160
THP 15 0
Gearbox Automatic (6-speed)Automatic (6-speed)
Model code RD 5F V- A

RD 5FN -A RW 5F V- A
RW 5FN-A RD 5FM-A
RD 5FE-A /D RW 5FM-A
RW 5FE-A/D
Body SaloonTourerSaloon Tourer
Unladen weight 1 5151 534 1 5151 534
Kerb weight 1 5901 609 1 5901 609
Gross vehicle weight (GV W) 2 0262 200 2 0262 200
Gross train weight (GTW) 3 5263 700 2 5262 700
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 500 500500
Braked trailer* (with load transfer within GTW
limit) 1 710
1 790 710790
Unbraked trailer 750750500 500
Recommended nose weight 697469 74
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased, within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
10
Technical data

244
RD...: Saloon.
RW...: Tourer.
* The maximum power corresponds to the type approved value on a test bed, under conditions defined by European legislation
(directive 1999/99/EC).
Engines and gearboxes
Diesel engine BlueHDi 150 S&SHDi 160BlueHDi 180 S&S
Gearbox Manual (6-speed)Automatic (6-speed)EAT6 automatic (6-speed)
Model code:
RD... RW... AHR- M/S
RHH-AAHW-T/S
Cubic capacity (cc) 1 9971 9971 997
Bore x stroke (mm) 85 x 8885 x 8885 x 88
EU standard maximum power (kW)* 11 0120 13 3
Maximum power engine speed (rpm) 4 0003 7503 750
EU standard maximum torque (Nm) 370340 400
Maximum torque engine speed (rpm) 2 0002 0002 000
Fuel diesel diesel diesel
Catalytic converter Ye sYe sYe s
Particle filter (FAP) Ye sYe sYe s
Engine oil capacity (with filter replacement) 5 .15.5 5 .1
.../S: model fitted with Stop & Star t.
Technical data

245
Diesel engineBlueHDi 160 S&SHDi 160BlueHDi 180 S&S
Gearbox Manual (6-speed)Automatic (6-speed)EAT6 automatic (6-speed)
Model code RD AHR- M/SRW AHR- M/S RD RHH-ARW RHH-ARD AHW-T/S RW AHW-T/S
Body SaloonTourerSaloon TourerSaloon Tourer
Unladen weight 1 5401 5751 609 1 6421 6201 655
Kerb weight 1 6151 650 1 684 1 7171 695 1 730
Gross vehicle weight (GV W) 2 1602 235 2 1902 286 2 1902 290
Gross train weight (GTW) 3 6603 6353 290 3 2863 290 3 290
Braked trailer (within GTW limit)
- on a 10% or 12% slope 1 500
1 400 1 1001 000 1 1001 000
Braked trailer* (with load transfer within GTW
limit) 1 750
1 650 1 390 1 290 1 350 1 250
Unbraked trailer 750750750750750750
Recommended nose weight 73675753 57 51
The GTW and towed load values indicated apply up to a maximum altitude of 1 000 metres; the towed load mentioned must be reduced by 10 % for
each additional 1 000 metres of altitude.
The maximum authorised speed is reduced when towing (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the per formance of the vehicle in order to protect the engine; when the ambient temperature is
higher than 37 °C, limit the weight towed. * The weight of the braked trailer can be increased within the GTW limit, on condition that the GV W of the towing vehicle is reduced by the same
amount; warning, towing with a lightly loaded towing vehicle may have an adverse effect on its road holding.
Weights and towed loads (in kg)
10
Technical data

246
Dimensions (in mm)
Exterior (Saloon)
A2 815
B 1 054
C 910
D 4 779
E 1 586
F 2 096
G 1 557
H 1 860
I * 1 451
1 458**
* Without roof bars.
** With metal spring suspension.
