2016 Citroen C3 PICASSO table

68
C3Picasso_en_Chap04_ouverture_ed01-2015
Panoramic sunroofSystem which consists of an area of panoramic tinted glass to increase the light and visibility
in the passenger compartment. It is fitted with 2 independent manual blinds to help maintain a
comfortable temperature.
Closing
Rear blind
F Pull the blind for wards until it locks in.
Front blind
F Pull the blind rear wards until it locks in.
Opening
F Raise the blind's handle and release.Each blind is fitted with a roller which
stores it once you release it.
Access

70
C3Picasso_en_Chap04_ouverture_ed01-2015
Fuel used for petrol
engines
The petrol engines are compatible with
E10 bio-petrol (containing 10 % ethanol),
conforming to European standards EN 228 and
EN 15376.
E85 type fuels (containing up to 85 % ethanol)
are reserved exclusively for vehicles marketed
for the use of this type of fuel (BioFlex
vehicles). The quality of the ethanol must
comply with European standard EN 15293.
Fuel used for Diesel
engines
The Diesel engines are compatible with
biofuels which conform to current and future
European standards (Diesel fuel which
complies with standard EN 590 mixed with
a biofuel which complies with standard
EN
14214) available at the pumps (containing
up to 7 % Fatty Acid Methyl Ester).
B30 biofuel can be used in certain Diesel
engines. However, this use, even occasional,
requires strict application of the special
servicing conditions. Contact a CITROËN
dealer or a qualified workshop.
The use of any other type of (bio)fuel
(vegetable or animal oils, pure or diluted,
domestic fuel...) is strictly prohibited (risk of
damage to the engine and fuel system).
Access

71
C3Picasso_en_Chap04_ouverture_ed01-2015
Misfuel prevention (Diesel)*
Operation
When a petrol filler nozzle is introduced into the
fuel filler neck of your Diesel vehicle, it comes
into contact with the flap. The system remains
closed and prevents filling.
Do not persist but introduce a Diesel type
filler nozzle.It remains possible to use a fuel can to
fill the tank.
In order to ensure a good flow of fuel,
do not place the nozzle of the fuel can
in direct contact with the flap of the
misfuel prevention device and pour
s l ow l y.Travelling abroad
As Diesel fuel pump nozzles may
be different in other countries, the
presence of the misfuel prevention
device may make refuelling impossible.
Before travelling abroad, we
recommend that you check with the
CITROËN dealer network, whether your
vehicle is suitable for the fuel pumps in
the country in which you want to travel.
Mechanical device which prevents filling the tank of a Diesel vehicle with petrol. It avoids the risk of
engine damage that can result from filling with the wrong fuel.
Located in the filler neck, the misfuel prevention device appears when the filler cap is removed.
* Depending on the country of sale.
4
Access

88
C3Picasso_en_Chap06_amenagement_ed01-2015

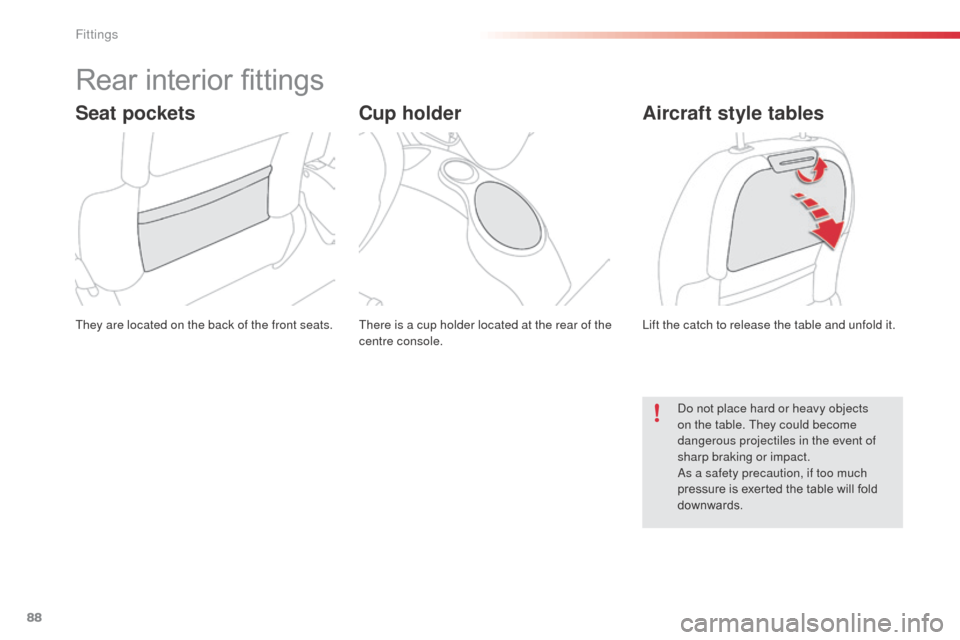

Rear interior fittings
There is a cup holder located at the rear of the
centre console.
They are located on the back of the front seats.
Lift the catch to release the table and unfold it.
Seat pocketsCup holderAircraft style tables
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.
As a safety precaution, if too much
pressure is exerted the table will fold
downwards.
Fittings

89
C3Picasso_en_Chap06_amenagement_ed01-2015
Reading lamps are built into the back of the
front seats, behind the tables.
Individual reading lamps
Blinds are available for the side windows.
Pull the side blind longways by the tab to use it.
Always guide the blind slowly using the tab.
Side blindsStorage tray
When unfolded, this provides a storage area
split into 2 sections, completing the storage
spaces available at the rear of the vehicle.
With the ignition on, they illuminate the top
of the table without inconveniencing other
passengers.
They are only accessible if the table is
unfolded.
F

P

ress the button to switch the lamp on or
of f.
6
Fittings

90
C3Picasso_en_Chap06_amenagement_ed01-2015
Opening
F Lower the storage shelf.
F P ress the flap opening control.
F

L
ower the flap.
F

C
heck that the adjustable boot floor is in
the high position.
F

L
oad the objects from inside the boot.
Ski flap
Device for storing and transporting long
objects.
Fittings

91
C3Picasso_en_Chap06_amenagement_ed01-2015
Boot fittings
1. Open storage compartments.
2. Adjustable boot floor.
3.
Ca

rrier bag hook.
4.
S

ecuring rings.
5.
S

torage space under boot carpet
6.
R

ear parcel shelf.
6
Fittings

92
C3Picasso_en_Chap06_amenagement_ed01-2015
2-position adjustable boot
The two-position adjustable boot floor allows
you to:
-
m
aximise the volume of the boot,
-

p
artition the boot (stowing the rear shelf...),
-

o
btain a flat floor from the boot opening to
the front seats, when the rear bench seat is
in the folded and fully back position.Placing the adjustable boot floor
in the low position
F Lift the adjustable boot floor by pulling on the strap.
F

M
ove the adjustable boot floor rear wards
and then down, following the guides on the
sides.
Placing the adjustable boot floor
in the high position
F Lift the adjustable boot floor by pulling the strap.
F

M
ove the adjustable boot floor rear wards
then up to its high position.
In the high position, the adjustable boot floor
allows stowing of the rear parcel shelf and
fragile objects.
The adjustable boot floor is fitted with four
stowing rings to secure your loads using the net
available as an accessory.
Ensure that your boot is empty before
handling the adjustable boot floor.
Fittings
