2016 CITROEN C-ELYSÉE headlamp

84
In good or rainy weather, both day
and night, the front foglamps and the
rear foglamp are prohibited. In these
situations, the power of their beams
may dazzle other drivers. They should
only be used in fog or snow.
In these weather conditions, it is your
responsibility to switch on the foglamps
and dipped beam headlamps manually
as the sunshine sensor may detect
sufficient light.
Do not forget to switch off the front
foglamps and the rear foglamp when
they are no longer necessary.Switching on the lamps
after the ignition is
switched off
To reactivate the lighting control, rotate
the ring to the "0" position - lamps off,
then to the desired position.
On opening the driver's door a
temporary audible signal warns the
driver that the lighting is on.
The lamps, with the exception of the
sidelamps, switch off automatically after
a maximum duration of thirty minutes to
prevent discharging of the battery.
Switching off the lamps
when the ignition is
switched off
On switching off the ignition, all of the
lamps turn off immediately, except for
dipped beam if guide-me-home lighting
is activated.
Visibility

85
The temporary illumination of the dipped beam
headlamps after the vehicle's ignition has been
switched off makes the driver's exit easier
when the light is poor.
Manual guide-me-home
lighting
Switching on
F With the ignition off, "flash" the headlamps using the lighting stalk.
F

A f
urther "headlamp flash" switches the
function off.
Switching off
The manual guide-me-home lighting switches
off automatically after a set time.
Daytime running lamps*
On starting the vehicle, the daytime running
lamps come on automatically, if the lighting
control stalk is in the "0" position.
* According to country. The daytime running laps go off if
the sidelamps and dipped beam
headlamps are switched on.
This function cannot be deactivated.
6
Visibility

86
Headlamp adjustment
To avoid causing a nuisance to other road users, the headlamp beams should be adjusted
according to the load in the vehicle.
This adjustment can be carried out using the control located:
-
u
nder the bonnet,
-

b
elow and to the left of the steering wheel (depending on version).
The initial setting is position "0".
0

1 o
r 2 people in the front seats.
-

5 p
eople.
1

5 p
eople + maximum authorised load in the
boot.
-

D
river + maximum authorised load in the
boot.
The higher number positions can be used,
but may limit the area illuminated by the
headlamps.
Under the bonnet
F Raise the bonnet for access to the control (one per headlamp).
F

T
urn the control to adjust the height of the
headlamp beam.
Travelling abroad
The design of the dipped beam
headlamps allows, without modification,
driving in a country that drives on the
other side of the road to the country in
which your vehicle was sold.
To the left of the steering wheel
Visibility

136
Changing a bulb
Front lamps
In some weather conditions (e.g. low
temperature or humidity), the presence
of misting on the internal sur face of the
glass of the headlamps and rear lamps
is normal; it disappears after the lamps
have been on for a few minutes.
The headlamps are fitted with
polycarbonate glass with a protective
coating:
F

d

o not clean them using a dr y
or abrasive cloth, nor with a
detergent or solvent product,
F

u

se a sponge and soapy water or a
pH neutral product,
F

w

hen using a high pressure washer
on persistent marks, do not keep
the lance directed towards the
lamps or their edges for too long,
so as not to damage their protective
coating and seals.
Changing a bulb should only be done
after the headlamp has been switched
off for several minutes (risk of serious
burns).
F

D

o not touch the bulb directly with
your fingers, use a lint-free cloth.
It is imperative to use only anti-
ultraviolet (UV) type bulbs to avoid
damaging the headlamp.
Always replace a failed bulb with a
new bulb with the same type and
specification. 1.
D

irection indicators (PY21W amber).
2.
M

ain beam headlamps (H1-55W).
3.
D

ipped beam headlamps (H7-55W).
4.
D

aytime running lamps

/ sidelamps
(W21/5W).


or
S

idelamps (W5W).
5.
F

ront foglamps (H11-55W).
Practical information

137
Amber coloured bulbs, such as the
direction indicators, must be replaced
with bulbs of identical specifications
and colour.
When refitting, close the protective
cover carefully to preserve the sealing
of the headlamp.
Rapid flashing of the direction indicator
warning lamp (right or left) indicates the
failure of a bulb on that side.

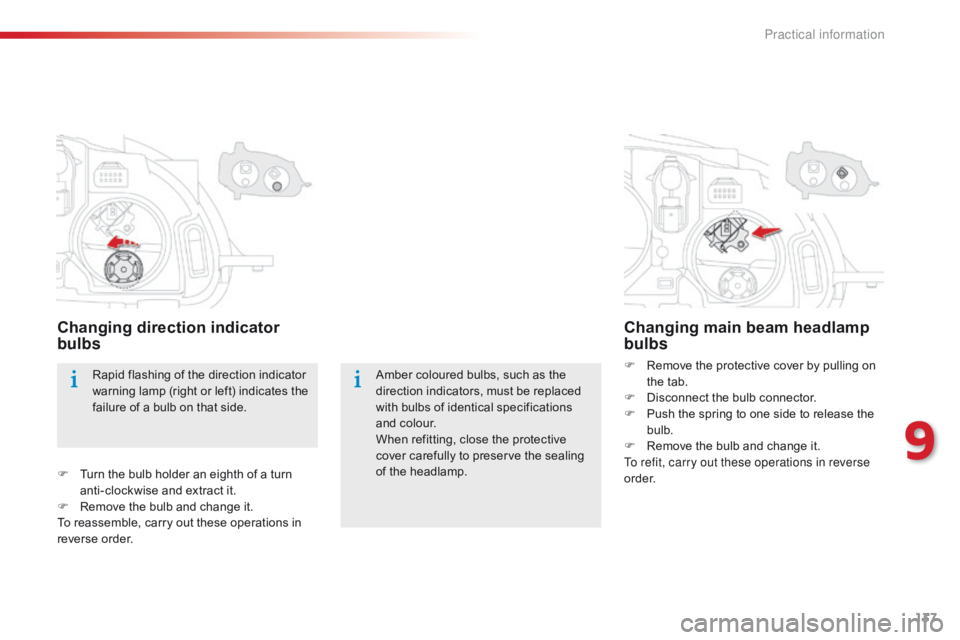

Changing direction indicator
bulbs
F Turn the bulb holder an eighth of a turn
anti-clockwise and extract it.
F

R
emove the bulb and change it.
To reassemble, carry out these operations in
reverse order.
Changing main beam headlamp
bulbs
F Remove the protective cover by pulling on the tab.
F

D
isconnect the bulb connector.
F

P
ush the spring to one side to release the
bulb.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
9
Practical information

138
Changing dipped beam
headlamp bulbs
F Remove the protective cover by pulling
the tab.
F

D
isconnect the bulb connector by lifting
it
off.
F

P
ull the bulb out and change it.
To refit, carry out these operations in reverse
o r d e r.
Changing daytime running lamp /
s idelamp bulbs
F Pull the bulb holder pressing on the tabs on
both sides.
F

R
emove the bulb and change it.
To refit, carry out these operations in reverse
o r d e r.
Practical information

144
Dashboard fuses
The fusebox is placed in the lower dashboard
(left-hand side).
Access to the fuses
F Refer to the paragraph "Access to the tools".Fuse N°
Rating Functions
F02 5 AHeadlamp adjusters, diagnostic socket, air conditioning panel.
F09 5 AAlarm, alarm (accessory).
F11 5 AAdditional heating.
F13 5 AParking sensors, parking sensors (accessory)
F14 10 AAir conditioning panel.
F16 15 ACigarette lighter, 12 V socket.
F17 15 AAudio system, audio system (accessory).
F18 20 AAudio system / Bluetooth, audio system (accessory).
F19 5 AMonochrome screen C.
F23 5 ACourtesy lamps, map reading lamps.
F26 15 AHorn.
F27 15 AScreenwash pump.
F28 5 AAnti-theft.
Fuse tables
Practical information

146
Fuse N°Rating Functions
F14 15 AHeated lower windscreen.
F15 5 AAir conditioning compressor.
F16 15 AFront foglamps.
F18 10 ARight hand main beam headlamp.
F19 10 ALeft hand main beam headlamp.
F29 40 AFront wiper motor.
F30 80 APre-heater plugs (Diesel).
Access to the fuses
F Unclip the cover.
F
C hange the fuse (see corresponding
paragraph).
F

W
hen you have finished, close the cover
carefully to ensure correct sealing of the
fusebox.
Fuse tableEngine compartment fuses
The fusebox is placed in the engine
compartment near the battery (left-hand side).
