Without lifting (4 wheels on the
road)
You should always use a towing arm.
BEING TOWEDFrom the front
- Unclip the cover by pressing the
bottom part.
-

Fully screw in the removable
towing

eye.
From the rear
- Unclip the cover using a coin or the
flat part of the towing eye,
-

Fully screw in the removable
towing

eye. When towing with the engine
switched off, there is no braking or
steering assistance.
Lifting (only 2 wheels on the
road)
It is preferable to raise the vehicle
using professional lifting equipment.
This procedure involves the use of
the

towing eye supplied with the tools
for changing a wheel.
Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fitted with
a manual gearbox, the gear lever
must be in neutral, failure to observe
this special condition may result in
damage to transmission and braking
components and the absence of
braking assistance when the engine is
started again.
Section 8, "Changing a wheel".
8
QUICk HELP
Having your vehicle towed

160
Berlingo-2-VU_en_Chap08_aide-rapide_ed01-2016

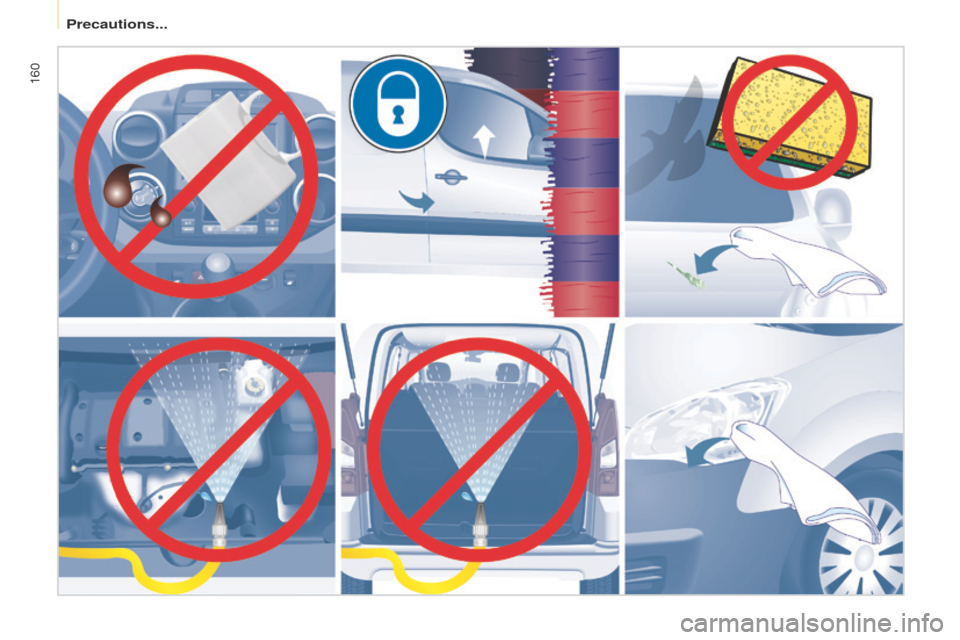

Precautions...

161
Berlingo-2-VU_en_Chap08_aide-rapide_ed01-2016
QUICk HELP
8

162
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
dimensions

163
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Short - L1Long - L2
625 850750
L
o

verall length 43804628
H
o

verall height 1805-1834
aWheelbase 2728
B Front overhang 925
C Rear overhang 727975
dWidth over panels:without mirrors
1810
with mirrors 21

12
E Width of front track 1505
F Width of rear track 1554
G Rear floor load length 18002050
I Load length with front passenger seat folded 30003250
DIMENSIONSV
an (mm)
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables.
dimensions
TECHnICaL daTa
9

164
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
L1 - 625L1 - 850 L2
M Maximum load sill height with 195/65 R15 tyre 584609612
Hinged doors Tailgate
Small Large
nLoad aperture height (under panel) 1

148 1313
oWidth 4955431582
Rear doors (mm)
dimensions

165
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
L1L2
P Load height 1100
Q Load width 650
- Height under raised tailgate 1892
Sliding side door (mm)
dimensions
TECHnICaL daTa
9

166
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Loverall length 4237
H
o
verall height 1821-1822
aWheelbase 2728
B Front overhang 925
C Rear overhang 584
dWidth over panels (without mirrors)1810
E Width of front track 1505
F Width of rear track 1554
Floor cab (mm)
dimensions
