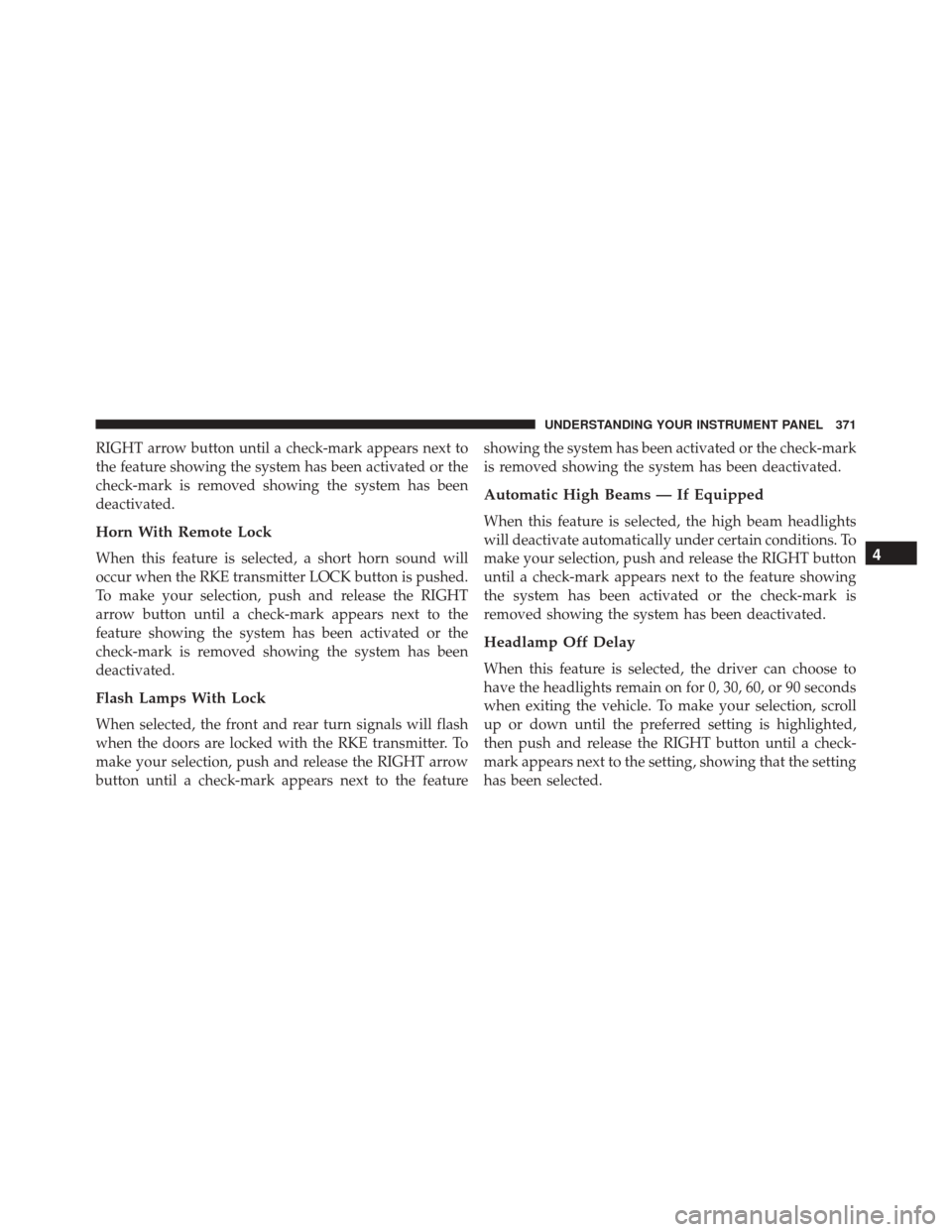

2016 CHRYSLER TOWN AND COUNTRY headlights

RIGHT arrow button until a check-mark appears next to
the feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Horn With Remote Lock
When this feature is selected, a short horn sound will
occur when the RKE transmitter LOCK button is pushed.
To make your selection, push and release the RIGHT
arrow button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated.
Flash Lamps With Lock
When selected, the front and rear turn signals will flash
when the doors are locked with the RKE transmitter. To
make your selection, push and release the RIGHT arrow
button until a check-mark appears next to the featureshowing the system has been activated or the check-mark
is removed showing the system has been deactivated.
Automatic High Beams — If Equipped
When this feature is selected, the high beam headlights
will deactivate automatically under certain conditions. To
make your selection, push and release the RIGHT button
until a check-mark appears next to the feature showing
the system has been activated or the check-mark is
removed showing the system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can choose to
have the headlights remain on for 0, 30, 60, or 90 seconds
when exiting the vehicle. To make your selection, scroll
up or down until the preferred setting is highlighted,
then push and release the RIGHT button until a check-
mark appears next to the setting, showing that the setting
has been selected.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 371

Headlamps With Wipers (Available With Auto
Headlights Only)
When ON is selected, and the headlight switch is in the
AUTO position, the headlights will turn on approxi-
mately 10 seconds after the wipers are turned on. The
headlights will also turn off when the wipers are turned
off if they were turned on by this feature. To make your
selection, push and release the RIGHT button until a
check-mark appears next to the setting, showing that the
setting has been selected.
NOTE:Turning the headlights on during the daytime
causes the instrument panel lights to dim. To increase the
brightness, refer to “Lights” in “Understanding The
Features Of Your Vehicle.”
Intermittent Wiper Options — If Equipped
When ON is selected, the system will automatically
activate the windshield wipers if it senses moisture on
the windshield. To make your selection, push and release the RIGHT button until a check-mark appears next to the
feature showing the system has been activated or the
check-mark is removed showing the system has been
deactivated. When the system is deactivated, the system
reverts to the standard intermittent wiper operation.
Key-Off Power Delay
When this feature is selected, the power window
switches, radio, Uconnect phone (if equipped), DVD
video system (if equipped), power sunroof (if equipped),
and power outlets will remain active for up to 10 minutes
after the ignition switch is turned OFF. Opening either
front vehicle door will cancel this feature. To make your
selection, scroll up or down until the preferred setting is
highlighted, then push and release the RIGHT button
until a check-mark appears next to the setting, showing
that the setting has been selected.
372 UNDERSTANDING YOUR INSTRUMENT PANEL

Illuminated Approach
When this feature is selected, the headlights will activate
and remain on for up to 90 seconds when the doors are
unlocked with the RKE transmitter. To make your selec-
tion, scroll up or down until the preferred setting is
highlighted, then push and release the RIGHT button
until a check-mark appears next to the setting, showing
that the setting has been selected.
Hill Start Assist (HSA) — If Equipped
When on is selected, the HSA system is active. Refer to
“Electronic Brake Control System” in “Starting And
Operating” for system function and operating informa-
tion. To make your selection, push and release the RIGHT
button until “ON” or “OFF” appears.
Flashers With Sliding Door
When this feature is selected, the signal lamps activate
when power or manual sliding doors are in operation,signaling other drivers that someone may be exiting or
entering the vehicle. To make your selection, push and
release the RIGHT button until a check-mark appears
next to the feature showing the system has been activated
or the check-mark is removed, showing the system has
been deactivated.
Keyless Enter-N-Go (Passive Entry) — If Equipped
This feature allows you to lock and unlock the vehicle’s
door(s) without having to push the RKE transmitter lock
or unlock buttons. To make your selection, push and
release the RIGHT button until a check-mark appears
next to the feature showing the system has been acti-
vated, or the check-mark is removed showing the system
has been deactivated. Refer to “Keyless Enter-N-Go” in
“Things To Know Before Starting Your Vehicle.”
Easy Exit Seat
This feature provides automatic driver seat positioning to
enhance driver mobility when entering and exiting the
4
UNDERSTANDING YOUR INSTRUMENT PANEL 373

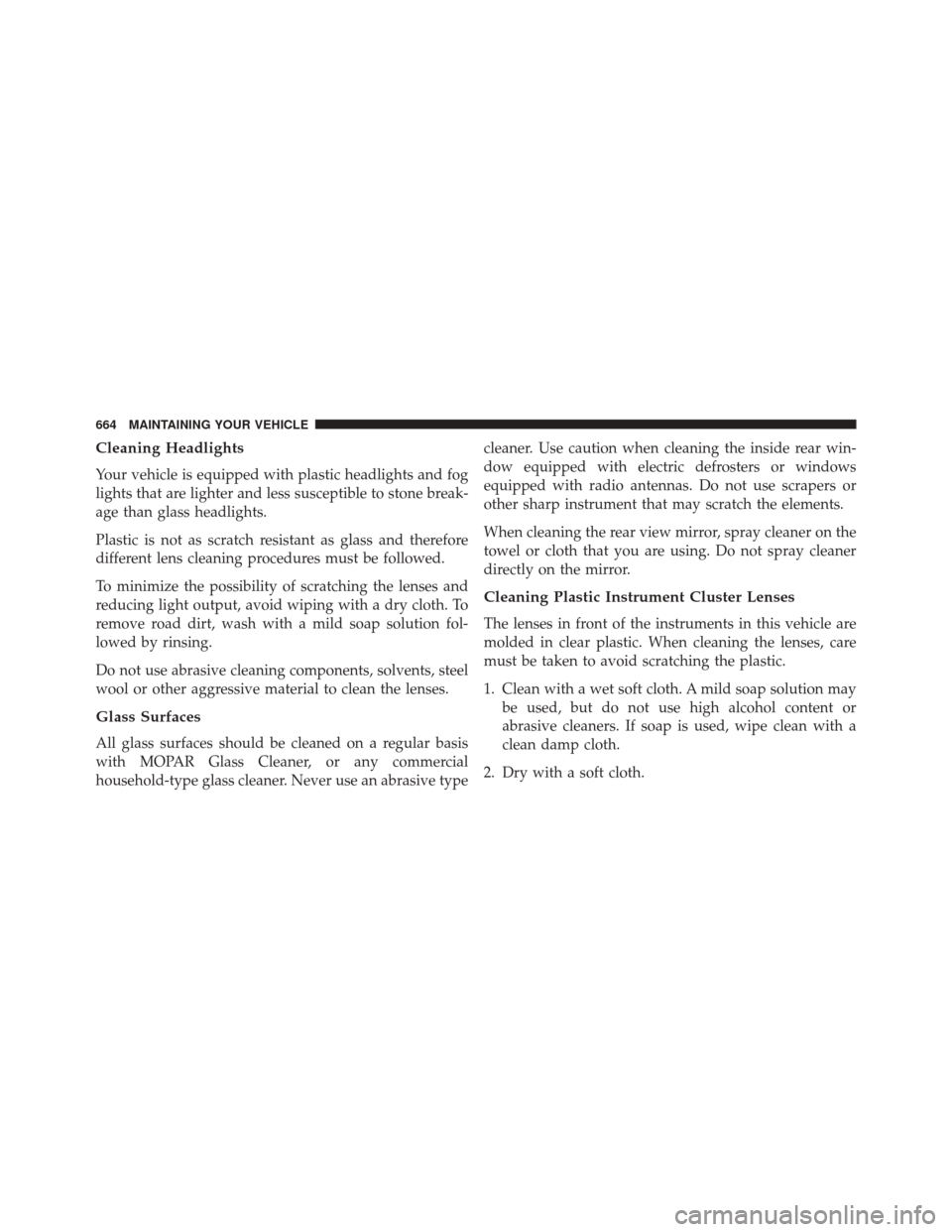

Cleaning Headlights
Your vehicle is equipped with plastic headlights and fog
lights that are lighter and less susceptible to stone break-
age than glass headlights.
Plastic is not as scratch resistant as glass and therefore
different lens cleaning procedures must be followed.
To minimize the possibility of scratching the lenses and
reducing light output, avoid wiping with a dry cloth. To
remove road dirt, wash with a mild soap solution fol-
lowed by rinsing.
Do not use abrasive cleaning components, solvents, steel
wool or other aggressive material to clean the lenses.
Glass Surfaces
All glass surfaces should be cleaned on a regular basis
with MOPAR Glass Cleaner, or any commercial
household-type glass cleaner. Never use an abrasive typecleaner. Use caution when cleaning the inside rear win-
dow equipped with electric defrosters or windows
equipped with radio antennas. Do not use scrapers or
other sharp instrument that may scratch the elements.
When cleaning the rear view mirror, spray cleaner on the
towel or cloth that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft cloth. A mild soap solution may
be used, but do not use high alcohol content or
abrasive cleaners. If soap is used, wipe clean with a
clean damp cloth.
2. Dry with a soft cloth.
664 MAINTAINING YOUR VEHICLE

Alterations/Modifications, Vehicle...............7
Antenna, Satellite Radio .....................398
Antifreeze (Engine Coolant) ...............651, 681
Disposal ............................. .653
Anti-Lock Brake System (ABS) ................512
Anti-Lock Warning Light ....................346
Appearance Care ........................ .659
Ashtray ............................... .288
Assistance Towing ........................ .169
Assist, Hill Start ......................... .515
Auto Down Power Windows ..................47
Automatic Dimming Mirror ..................139
Automatic Door Locks ......................39
Automatic Headlights ..................... .230
Automatic Temperature Control (ATC) ..........467
Automatic Transmission ..............492, 657, 659
Adding Fluid ...................... .658, 659
Fluid And Filter Changes ..................659
Fluid Change ......................... .659Fluid Level Check
...................... .658
Fluid Type ........................ .657, 684
Gear Ranges .......................... .496
Special Additives ...................... .658
Torque Converter ...................... .503
Auto Up Power Windows ....................48
Battery ............................ .334, 644
Charging System Light ...................334
Jump Starting ......................... .622
Keyless Transmitter Replacement (RKE) ........28
Saving Feature (Protection) ................238
Belts, Seat .............................. .126
Body Mechanism Lubrication .................647
B-Pillar Location ......................... .531
Brake Assist System ...................... .514
Brake Control System, Electronic ..............511
Brake Fluid ............................ .684
Brake

System .........................511,655
10
INDEX 705

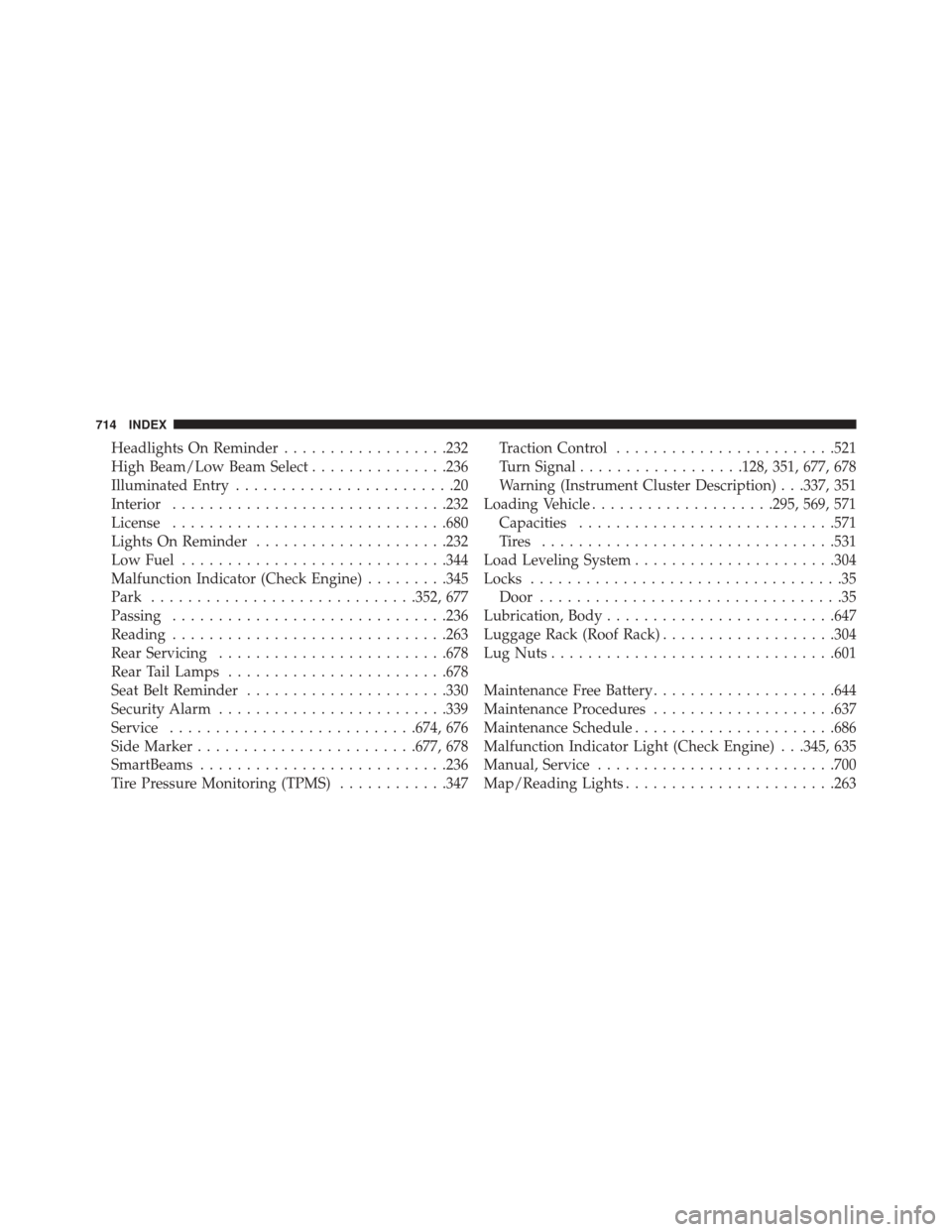

HeadlightsCleaning ............................ .664
Lights On Reminder .....................232
Passing ............................. .236
Time Delay ........................... .231
Washers ............................. .230
Head Restraints ......................... .200
Heated Mirrors .......................... .141
Heater ................................ .460
Heater, Engine Block ...................... .491
High Beam/Low Beam Select (Dimmer) Switch . . . .236
Hill Start Assist .......................... .515
Hitches Trailer Towing ........................ .575
HomeLink (Garage Door Opener) ..............267
Hood Release ........................... .228
Hook, Coat ............................. .295
Ignition .................................13 Key..................................13
Ignition Key Removal .......................13
Illuminated Entry ..........................20
Immobilizer (Sentry Key) ....................15
Information Center, Vehicle ..................355
Inside Rearview Mirror .....................138
Instrument Cluster ..................319, 337, 351
Instrument Panel And Controls ...............318
Instrument Panel Lens Cleaning ...............664
Integrated Power Module (Fuses) ..............666
Interior Appearance Care ....................662
Interior Lights .......................... .232
Intermittent Wipers (Delay Wipers) .............239
Introduction ..............................4
iPod/USB/MP3 Control Bluetooth Streaming Audio .............189, 408
Jack Location ........................... .603
Jack Operation .......................... .603
712 INDEX

Jump Starting........................... .622
Key Fob Arm The Alarm .........................18
Disarm The Alarm .......................18
Programming Additional Key Fobs ...........17
Programming Additional Transmitters .........17
Key-In Reminder ..........................15
Keyless Enter-N-Go .....................39, 487
Keyless Entry System .......................21
Key, Replacement ..........................16
Key, Sentry (Immobilizer) ....................15
Lane Change Assist ....................... .236
Lap/Shoulder Belts .........................65
Latches ............................... .129
Hood ............................... .228
Lead Free Gasoline ....................... .559
Leaks, Fluid ............................ .129Life Of Tires
............................ .546
Liftgate .................................57
Light Bulbs ............................. .128
Lights ............................. .128, 229
AirBag ........................95, 126, 329
Automatic Headlights ....................230
Back-Up ............................. .678
Battery Saver ......................... .238
Brake Assist Warning ....................521
Brake Warning ........................ .331
Bulb Replacement ....................674, 676
Center Mounted Stop ....................680
Cruise .............................. .354
Daytime Running ...................... .232
Dimmer Switch, Headlight .................232
Engine Temperature Warning ...............337
Exterior ............................. .128
Fog............................. .232, 678
Hazard Warning Flasher ..................589
10
INDEX 713

Headlights On Reminder..................232
High Beam/Low Beam Select ...............236
Illuminated Entry ........................20
Interior ............................. .232
License ............................. .680
Lights On Reminder .....................232
Low Fuel ............................ .344
Malfunction Indicator (Check Engine) .........345
Park ............................ .352, 677
Passing ............................. .236
Reading ............................. .263
Rear Servicing ........................ .678
Rear Tail Lamps ....................... .678
Seat Belt Reminder ..................... .330
Security Alarm ........................ .339
Service .......................... .674, 676
Side Marker ....................... .677, 678
SmartBeams .......................... .236
Tire Pressure Monitoring (TPMS) ............347Traction Control
....................... .521
Turn Signal ..................128, 351, 677, 678
Warning (Instrument Cluster Description) . . .337, 351
Loading Vehicle ....................295, 569, 571
Capacities ........................... .571
Tires ............................... .531
Load Leveling System ..................... .304
Locks ..................................35
Door .................................35
Lubrication, Body ........................ .647
Luggage Rack (Roof Rack) ...................304
Lug Nuts .............................. .601
Maintenance Free Battery ....................644
Maintenance Procedures ....................637
Maintenance Schedule ..................... .686
Malfunction Indicator Light (Check Engine) . . .345, 635
Manual, Service ......................... .700
Map/Reading Lights ...................... .263
714 INDEX
