2016 CHEVROLET SONIC run flat

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15

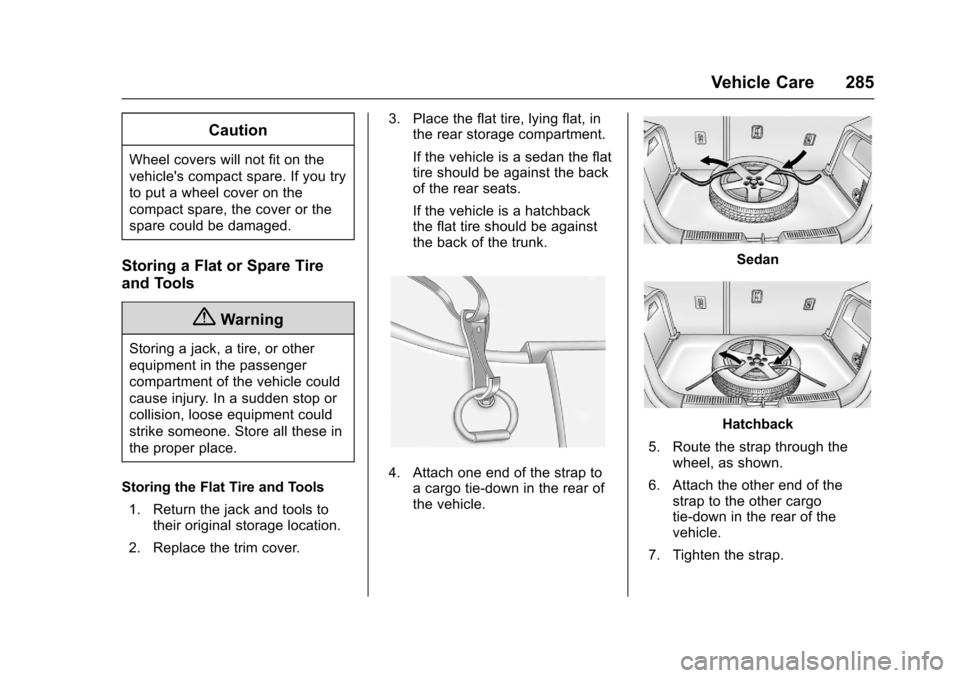

Vehicle Care 285
Caution
Wheel covers will not fit on the
vehicle's compact spare. If you try
to put a wheel cover on the
compact spare, the cover or the
spare could be damaged.
Storing a Flat or Spare Tire
and Tools
{Warning
Storing a jack, a tire, or other
equipment in the passenger
compartment of the vehicle could
cause injury. In a sudden stop or
collision, loose equipment could
strike someone. Store all these in
the proper place.
Storing the Flat Tire and Tools 1. Return the jack and tools to their original storage location.
2. Replace the trim cover. 3. Place the flat tire, lying flat, in
the rear storage compartment.
If the vehicle is a sedan the flat
tire should be against the back
of the rear seats.
If the vehicle is a hatchback
the flat tire should be against
the back of the trunk.
4. Attach one end of the strap to
a cargo tie-down in the rear of
the vehicle.
Sedan
Hatchback
5. Route the strap through the wheel, as shown.
6. Attach the other end of the strap to the other cargo
tie-down in the rear of the
vehicle.
7. Tighten the strap.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Vehicle Care 289
6. Connect the other end of thered positive (+) cable to the
positive (+) terminal of the good
battery.
7. Connect one end of the black negative (–) cable to the
negative (–) terminal of the
good battery.
8. Connect the other end of the black negative (–) cable to the
negative (–) post for the
discharged battery.
9. Start the engine in the vehicle with the good battery and run
the engine at idle speed for at
least four minutes.
10. Try to start the vehicle that had the dead battery. If it will not
start after a few tries, it
probably needs service.Caution
If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
vehicle. The repairs would not be
covered by the vehicle warranty.
Always connect and remove the
jumper cables in the correct order,
making sure that the cables do
not touch each other or other
metal.
Jumper Cable Removal
Reverse the sequence exactly when
removing the jumper cables.
After starting the disabled vehicle
and removing the jumper cables,
allow it to idle for several minutes.
Towing the Vehicle
Caution
Incorrectly towing a disabled
vehicle may cause damage. The
damage would not be covered by
the vehicle warranty.
Do not lash or hook to
suspension components. Use the
proper straps around the tires to
secure the vehicle.
Have the vehicle towed on a flatbed
car carrier. A wheel lift tow truck
could damage the vehicle.
Consult your dealer or a
professional towing service if the
disabled vehicle must be towed.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Index 345
Electrical System (cont'd)Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 252
Overload . . . . . . . . . . . . . . . . . . . . . 248
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 333
Engine Air Cleaner/Filter . . . . . . . . . . . . . 230
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 100
Compartment Overview . . . . . . . 223
Coolant . . . . . . . . . . . . . . . . . . . . . . . 233
Coolant Temperature Warning Light . . . . . . . . . . . . . . . 106
Cooling System . . . . . . . . . . . . . . . 232
Drive Belt Routing . . . . . . . . . . . . 317
Exhaust . . . . . . . . . . . . . . . . . . . . . . 197
Heater . . . . . . . . . . . . . . . . . . . . . . . . 193
Oil Life System . . . . . . . . . . . . . . . 228
Oil Messages . . . . . . . . . . . . . . . . . . 111
Oil Pressure Light . . . . . . . . . . . . 106
Overheating . . . . . . . . . . . . . . . . . . 236
Reduced Power Light . . . . . . . . . 107
Running While Parked . . . . . . . . 197
Starting . . . . . . . . . . . . . . . . . . . .17, 192
Entry Lighting . . . . . . . . . . . . . . . . . . . 125
Event Data Recorders . . . . . . . . . . 330
Exit Lighting . . . . . . . . . . . . . . . . . . . . 125 Extender, Safety Belt . . . . . . . . . . . . 55
Exterior Lamp Controls . . . . . . . . . 120
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 126F
Filter,Engine Air Cleaner . . . . . . . . . . . 230
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 121
Flashers, Hazard Warning . . . . . . 122
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 273 Changing . . . . . . . . . . . . . . . . . . . . . 281
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 300
Fluid Automatic Transmission . . . . . . 229
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 239
Washer . . . . . . . . . . . . . . . . . . . . . . . 237
Fog Lamps Bulb Replacement . . . . . . . 123, 245
Folding Mirrors . . . . . . . . . . . . . . . . . . 39
Forward Collision Alert (FCA) System . . . . . . . . . . . . . . . . . 210
Forward Collision Alert (FCA) Warning Light . . . . . . . . . . 104
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 328
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Front Seat Armrest . . . . . . . . . . . . . . 47 Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 45
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213 Additives . . . . . . . . . . . . . . . . . . . . . 215
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 216
Filling the Tank . . . . . . . . . . . . . . . 215
Foreign Countries . . . . . . . . . . . . 215
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Low Fuel Warning Light . . . . . . . 107
Requirements, California . . . . . 214
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses and Circuit Breakers . . . 248
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 252
G
GaugesFuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Odometer . . . . . . . . . . . . . . . . . . . . . . . 97
Speedometer . . . . . . . . . . . . . . . . . . . 97
Tachometer . . . . . . . . . . . . . . . . . . . . . 97
Trip Odometer . . . . . . . . . . . . . . . . . . 97
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . 95
