314 Technical Data
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 314
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 314
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 315
Engine Drive Belt Routing . . . . 317
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 315 for the vehicle's engine code.
Service Parts
Identification Label
This label, in the spare tire well in
the trunk, has the following
information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Technical Data 315
Vehicle Data

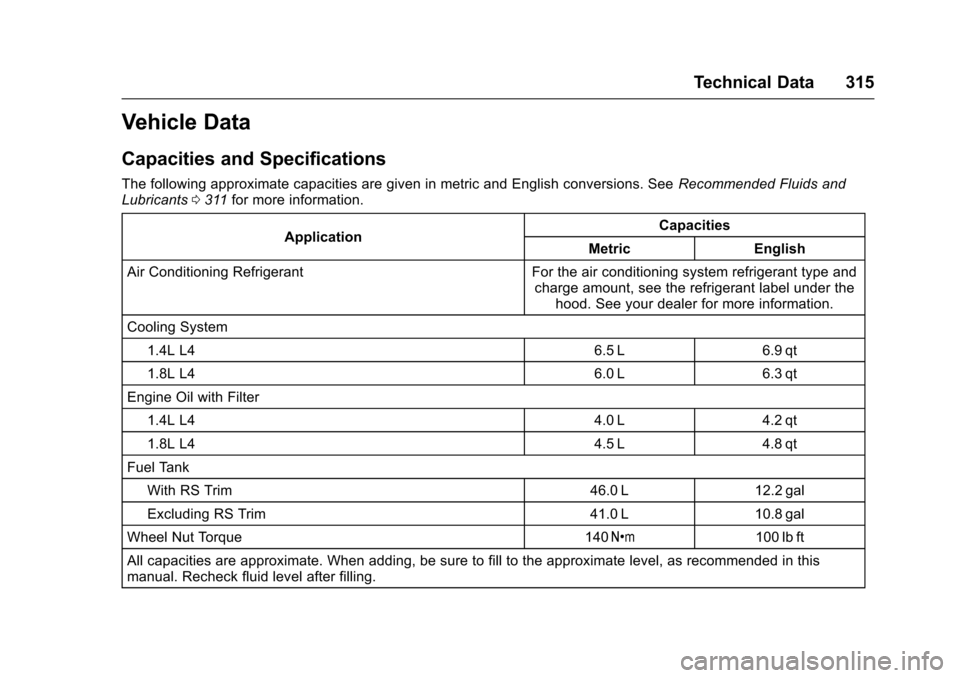

Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0311 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System 1.4L L4 6.5 L 6.9 qt
1.8L L4 6.0 L 6.3 qt
Engine Oil with Filter 1.4L L4 4.0 L 4.2 qt
1.8L L4 4.5 L 4.8 qt
Fuel Tank With RS Trim 46.0 L 12.2 gal
Excluding RS Trim 41.0 L 10.8 gal
Wheel Nut Torque 140 Y100 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
316 Technical Data
Engine Specifications
EngineVIN CodeTransmission Spark Plug Gap
1.4L L4 LUV BAutomatic and Manual 0.60–0.70 mm (0.024–
0.028 in)
1.8L L4 LUW HAutomatic and Manual 0.60–0.70 mm (0.024–
0.028 in)
1.8L L4 LWE GAutomatic and Manual 0.60–0.70 mm (0.024–
0.028 in)

Chevrolet Sonic Owner Manual (GMNA-Localizing-U.S/Canada-9085902) -
2016 - CRC - 5/27/15
Technical Data 317

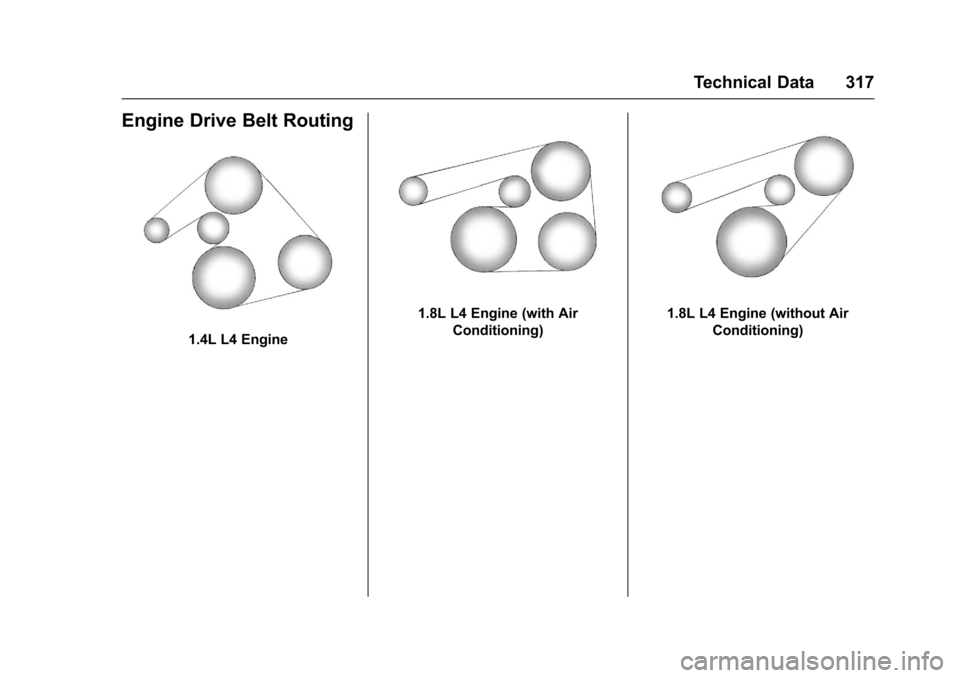

Engine Drive Belt Routing
1.4L L4 Engine
1.8L L4 Engine (with AirConditioning)1.8L L4 Engine (without Air Conditioning)
