Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
New Vehicle Limited Warranty 5
replacement procedure are covered
until the first scheduled
maintenance interval.
Diesel Components Coverage
includes:Parts of the Emissions
Reduction System such as the
emissions reduction fluid tank,
injectors, sensors including NOx
and exhaust, and the Exhaust
Particulate Filter. Glow Plug Control
System: Control/glow plug
assembly, glow plugs, cold advance
relay, and engine control module.
The fuel injection control module,
integral oil cooler, transmission
adapter plate, common fuel rails,
fuel filter assembly, fuel temperature
sensor, and function block.
Exclusions: Excluded from the
powertrain coverage are sensors,
wiring, connectors, engine radiator,
coolant hoses, coolant, and heater
core. Coverage on the engine
cooling system begins at the inlet to
the water pump and ends with the
thermostat housing and/or outlet
that attaches to the return hose.
Also excluded is the starter motor,
entire pressurized fuel system
(in-tank fuel pump, pressure lines, fuel rail(s), regulator, injectors, and
return line) as well as the Engine/
Powertrain Control Module and/or
module programming.
Transmission/Transaxle Coverage
includes:
All internally lubricated
parts, case, torque converter,
mounts, seals, and gaskets as well
as any electrical components
internal to the transmission/
transaxle. Also covered are any
actuators directly connected to the
transmission (slave cylinder, etc.).
Exclusions: Excluded from the
powertrain coverage are
transmission cooling lines, hoses,
radiator, sensors, wiring, and
electrical connectors. Also excluded
are the clutch and pressure plate as
well as any Transmission Control
Module and/or module
programming.
Transfer Case Coverage includes:
All internally lubricated parts, case,
mounts, seals, and gaskets as well
as any electrical components
internal to the transfer case. Also covered are any actuators directly
connected to the transfer case as
well as encoder motor.
Exclusions:
Excluded from the
powertrain coverage are transfer
case cooling lines, hoses, radiator,
sensors, wiring, and electrical
connectors as well as the transfer
case control module and/or module
programming.
Drive Systems Coverage
includes: All internally lubricated
parts, final drive housings, axle
shafts and bearings, constant
velocity joints, propeller shafts and
universal joints. All mounts,
supports, seals, and gaskets as well
as any electrical components
internal to the drive axle. Also
covered are any actuators directly
connected to the drive axle (e.g.,
front differential actuator).
Exclusions: Excluded from the
powertrain coverage are all wheel
bearings, drive wheel front and rear
hub bearings, locking hubs, drive
system cooling, lines, hoses,
radiator, sensors, wiring, and
electrical connectors related to drive

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
Things to Know About the New Vehicle Limited Warranty 17
.Diesel Fuel Metering System:
injection pump, nozzles, high
pressure lines, and high
pressure sealing devices
. Glow Plug Control System:
control/glow plug assembly, glow
plugs, cold advance relay, and
Engine Control Module (ECM)
. Emissions Reduction System:
Emissions Reduction Fluid Tank,
Injectors, Sensors including NOx
and exhaust, and Exhaust
Particulate Filter
. Fuel injection control module,
integral oil cooler, transmission
adapter plate, left and right
common fuel rails, fuel filter
assembly, fuel temperature
sensor, and function block
Important: Some of these
components may also be covered
by the Emission Warranty. See
Emission Warranty Parts List 025
for details.Aftermarket Engine
Performance Enhancement
Products and Modifications
Some aftermarket engine
performance products and
modifications promise a way to
increase the horsepower and torque
levels of your vehicle’s powertrain.
You should be aware that these
products may have detrimental
effects on the performance and life
of the engine, exhaust emission
system, transmission, and
drivetrain. The Duramax Diesel
Engine, Allison Automatic
Transmission
®, and drivetrain have
been designed and built to offer
industry leading durability and
performance in the most demanding
applications. Engine power
enhancement products may enable
the engine to operate at horsepower
and torque levels that could
damage, create failure, or reduce
the life of the engine, engine
emission system, transmission, and
drivetrain. Damage, failure,
or reduced life of the engine,
transmission, emission system,
drivetrain or other vehicle components caused by aftermarket
engine performance enhancement
products or modifications may not
be covered under your vehicle
warranty.
After-Manufacture
“Rustproofing”
Your vehicle was designed and built
to resist corrosion. Application of
additional rust-inhibiting materials is
neither necessary nor required
under the Sheet Metal Coverage.
GM makes no recommendations
concerning the usefulness or value
of such products.
Application of after-manufacture
rustproofing products may create an
environment which reduces the
corrosion resistance built into your
vehicle. Repairs to correct damage
caused by such applications are not
covered under your New Vehicle
Limited Warranty.
Paint, Trim, and Appearance
Items
Defects in paint, trim, upholstery,
or other appearance items are
normally corrected during new

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15
Emission Warranty Parts List 27
Evaporative Emission Control
System (Gasoline Engines)
Canister
Canister Solenoids and Valves
Fuel Feed and Return Pipes and
Hoses
Fuel Filler Cap
Fuel Level Sensor
Fuel Limiter Vent Valve
Fuel Tank(s) *
Fuel Tank Filler Pipe (with restrictor)
Fuel Tank Vacuum or Pressure
Sensor
Hybrid
Accm Hood Switch
Auxiliary Transmission Fluid Pump
Battery Cooling Circuit
Battery Control Module **
Battery Pack Current Sensor
Brake Pedal Travel Sensor
Drive Motors and Resolvers*
Drive Motor/Generator Control
Module**Eboost Brake Control Module**
Traction Power Inverter Module
(TPIM)**
Electro-Hydraulic Brake Control
Module**
Energy Storage Control Module **
Hybrid Batteries *
Hybrid Battery Temp. and Voltage
Sensors
Starter Generator*
Starter Generator Control Module **
Starter Generator Drive Belt
SGCM Coolant Circuit (fan,
relay, pump)
Wheel Speed Sensor
Voltec/EREV Specific
Components
Fuel Fill Door Sensors
High Voltage Battery Contactor
Vehicle Interface Control Module**
Voltec/EREV RESS Battery* **
Onboard Charger* **
Charge Port
Charge Port Switches and Sensors
Voltec/EREV EVAP Canister
Assembly
Voltec/EREV RESS Thermal
Management:
E-compressor * * *
Port Valves
Battery Temperature Sensors
Battery High Voltage Heater
Battery Coolant Pump
Power Electronics
Coolant Pump
Air and Coolant Temperature
Sensors
Rfg. Temperature and Pressure
Sensors
Miscellaneous Items Used with
Above Components and Certain
Tires are Covered
Belts
Boots
Clamps
Connectors
Ducts
Fittings
Gaskets

Chevrolet Limited Warranty and Owner Assistance Information (GMNA-
Localizing-U.S-9159214) - 2016 - crc - 8/17/15

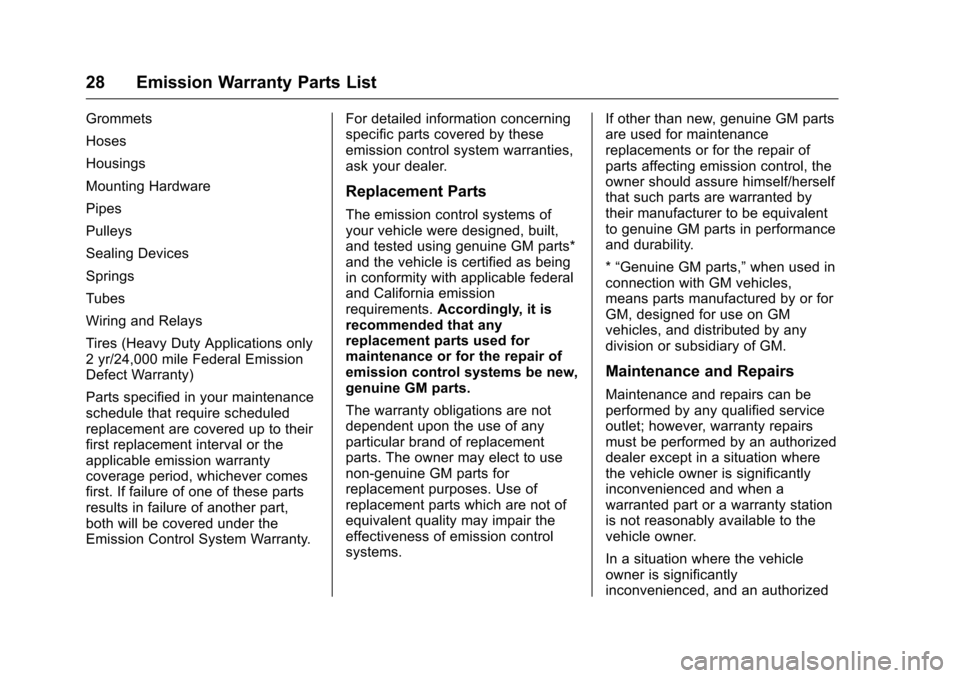

28 Emission Warranty Parts List
Grommets
Hoses
Housings
Mounting Hardware
Pipes
Pulleys
Sealing Devices
Springs
Tubes
Wiring and Relays
Tires (Heavy Duty Applications only
2 yr/24,000 mile Federal Emission
Defect Warranty)
Parts specified in your maintenance
schedule that require scheduled
replacement are covered up to their
first replacement interval or the
applicable emission warranty
coverage period, whichever comes
first. If failure of one of these parts
results in failure of another part,
both will be covered under the
Emission Control System Warranty.For detailed information concerning
specific parts covered by these
emission control system warranties,
ask your dealer.
Replacement Parts
The emission control systems of
your vehicle were designed, built,
and tested using genuine GM parts*
and the vehicle is certified as being
in conformity with applicable federal
and California emission
requirements.
Accordingly, it is
recommended that any
replacement parts used for
maintenance or for the repair of
emission control systems be new,
genuine GM parts.
The warranty obligations are not
dependent upon the use of any
particular brand of replacement
parts. The owner may elect to use
non-genuine GM parts for
replacement purposes. Use of
replacement parts which are not of
equivalent quality may impair the
effectiveness of emission control
systems. If other than new, genuine GM parts
are used for maintenance
replacements or for the repair of
parts affecting emission control, the
owner should assure himself/herself
that such parts are warranted by
their manufacturer to be equivalent
to genuine GM parts in performance
and durability.
*
“Genuine GM parts,” when used in
connection with GM vehicles,
means parts manufactured by or for
GM, designed for use on GM
vehicles, and distributed by any
division or subsidiary of GM.
Maintenance and Repairs
Maintenance and repairs can be
performed by any qualified service
outlet; however, warranty repairs
must be performed by an authorized
dealer except in a situation where
the vehicle owner is significantly
inconvenienced and when a
warranted part or a warranty station
is not reasonably available to the
vehicle owner.
In a situation where the vehicle
owner is significantly
inconvenienced, and an authorized
