Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
228 Vehicle Care
is recommended to select an oil of
the correct specification. See
“Specification”earlier in this section.
For track events or competitive
driving, use Mobil 1
®15W-50 engine
oil. An instrument cluster warning
light will be illuminated at high oil
temperatures. See Driver
Information Center (DIC) 0113.
Engine Oil Additives/Engine
Oil Flushes
Do not add anything to the oil. The
recommended oils meeting the
dexos1™ specification are all that is
needed for good performance and
engine protection.
Engine oil system flushes are not
recommended and could cause
engine damage not covered by the
vehicle warranty.
What to Do with Used Oil
Used engine oil contains certain
elements that can be unhealthy for
your skin and could even cause
cancer. Do not let used oil stay on
your skin for very long. Clean your
skin and nails with soap and water, or a good hand cleaner. Wash or
properly dispose of clothing or rags
containing used engine oil. See the
manufacturer's warnings about the
use and disposal of oil products.
Used oil can be a threat to the
environment. If you change your
own oil, be sure to drain all the oil
from the filter before disposal. Never
dispose of oil by putting it in the
trash or pouring it on the ground,
into sewers, or into streams or
bodies of water. Recycle it by taking
it to a place that collects used oil.
Engine Oil Life System
When to Change Engine Oil
This vehicle has a computer that
indicates when to change the
engine oil and filter. This is based
on a combination of factors which
include engine revolutions, engine
temperature, and miles driven.
Based on driving conditions, the
mileage at which an oil change is
indicated can vary considerably. For
the oil life system to work properly,
the system must be reset every time
the oil is changed.Z51 and Z06 models have a
racetrack-ready dry sump engine
lubrication system. This high
performance system operates
differently than a standard engine
lubrication system and requires a
special procedure when changing
the engine oil and filter. See
Engine
Oil 0223.
When the system has calculated
that oil life has been diminished, it
indicates that an oil change is
necessary. A CHANGE ENGINE
OIL SOON message comes on.
Change the oil as soon as possible
within the next 1 000 km (600 mi).
It is possible that, if driving under
the best conditions, the oil life
system may not indicate that an oil
change is necessary for up to a
year. The engine oil and filter must
be changed at least once a year
and, at this time, the system must
be reset. Your dealer has trained
service people who will perform this
work and reset the system. It is also
important to check the oil regularly
over the course of an oil drain
interval and keep it at the proper
level.
Page 231 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
230 Vehicle Care
reason for fluid loss. If a leak
occurs, take the vehicle to the
dealer and have it repaired as soon
as possible. SeeRecommended
Fluids and Lubricants 0307 for the
proper fluid to use.
Hydraulic Clutch
It is not necessary to regularly
check clutch fluid unless you
suspect there is a leak in the
system. Adding fluid will not correct
a leak. A fluid loss in this system
could indicate a problem. Have the
system inspected and repaired.
The fluid will darken over time. See
Maintenance Schedule 0298 for
when to replace the fluid.
When to Check and What
to Use
The hydraulic clutch fluid reservoir
cap has this symbol on it. See
Engine Compartment Overview
0 218 for reservoir location.
Refer to Recommended Fluids and
Lubricants 0307 for the proper fluid
to use. The fluid requires changing.
See Maintenance Schedule 0298.
How to Check and Add Fluid
Visually check the clutch fluid
reservoir to make sure the fluid level
is at the MIN (minimum) line on the
side of the reservoir. The hydraulic
clutch fluid system should be closed
and sealed.
Do not remove the cap to check the
fluid level or to top off the fluid level.
Remove the cap only when
necessary to add the proper fluid
until the level reaches the MIN line.
Engine Air Cleaner/Filter
See Engine Compartment Overview
0 218 for the location of the engine
air cleaner/filter.
Caution
If water is sprayed and enters the
engine air cleaner/filter intake and
housing, the engine could be
damaged. The repairs would not
be covered by the vehicle
warranty.
When to Inspect the Engine Air
Cleaner/Filter
For intervals on changing and
inspecting the engine air cleaner/
filter, see Maintenance
Schedule 0298.
How to Inspect the Engine Air
Cleaner/Filter
Do not start the engine or have the
engine running with the engine air
cleaner/filter housing open. Before
removing the engine air cleaner/
filter, make sure that the engine air
cleaner/filter housing and nearby
components are free of dirt and
debris. Remove the engine air
cleaner/filter. Lightly tap and shake
the engine air cleaner/filter (away
from the vehicle), to release loose
Page 305 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

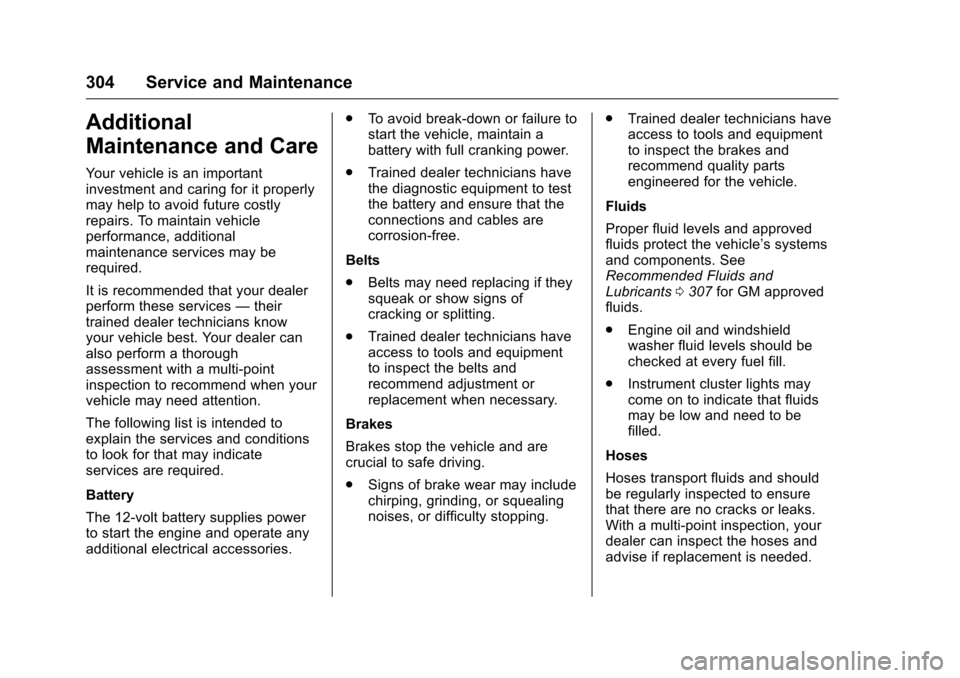

304 Service and Maintenance
Additional
Maintenance and Care
Your vehicle is an important
investment and caring for it properly
may help to avoid future costly
repairs. To maintain vehicle
performance, additional
maintenance services may be
required.
It is recommended that your dealer
perform these services—their
trained dealer technicians know
your vehicle best. Your dealer can
also perform a thorough
assessment with a multi-point
inspection to recommend when your
vehicle may need attention.
The following list is intended to
explain the services and conditions
to look for that may indicate
services are required.
Battery
The 12-volt battery supplies power
to start the engine and operate any
additional electrical accessories. .
To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0307 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed.
Page 341 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

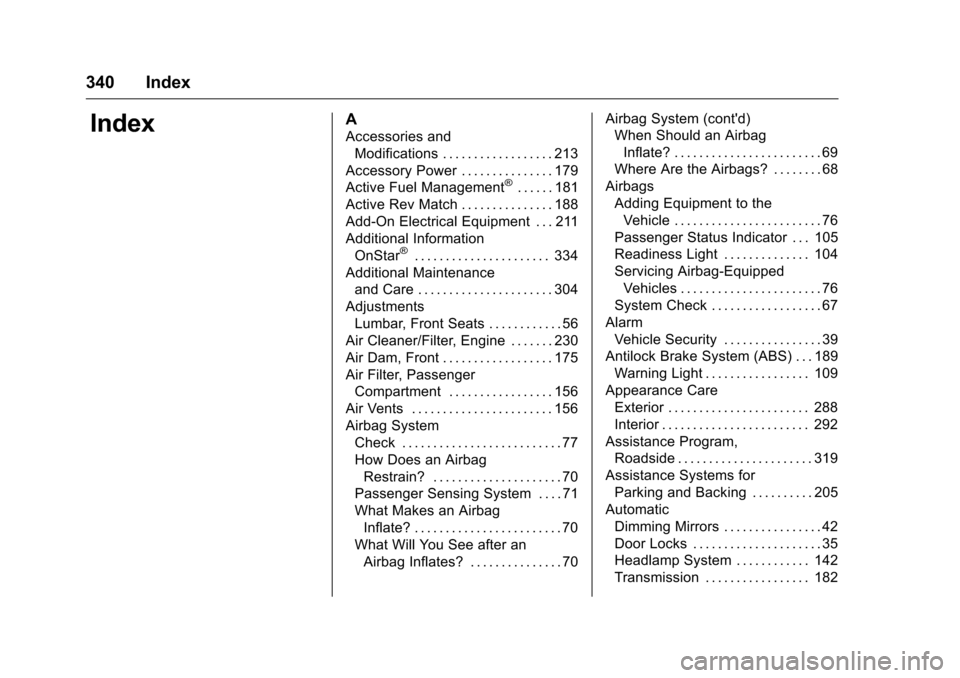

340 Index
IndexA
Accessories andModifications . . . . . . . . . . . . . . . . . . 213
Accessory Power . . . . . . . . . . . . . . . 179
Active Fuel Management
®. . . . . . 181
Active Rev Match . . . . . . . . . . . . . . . 188
Add-On Electrical Equipment . . . 211
Additional Information OnStar
®. . . . . . . . . . . . . . . . . . . . . . 334
Additional Maintenance
and Care . . . . . . . . . . . . . . . . . . . . . . 304
Adjustments Lumbar, Front Seats . . . . . . . . . . . . 56
Air Cleaner/Filter, Engine . . . . . . . 230
Air Dam, Front . . . . . . . . . . . . . . . . . . 175
Air Filter, Passenger
Compartment . . . . . . . . . . . . . . . . . 156
Air Vents . . . . . . . . . . . . . . . . . . . . . . . 156
Airbag System Check . . . . . . . . . . . . . . . . . . . . . . . . . . 77
How Does an AirbagRestrain? . . . . . . . . . . . . . . . . . . . . . 70
Passenger Sensing System . . . . 71
What Makes an Airbag Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 70
What Will You See after an Airbag Inflates? . . . . . . . . . . . . . . . 70 Airbag System (cont'd)
When Should an Airbag
Inflate? . . . . . . . . . . . . . . . . . . . . . . . . 69
Where Are the Airbags? . . . . . . . . 68
Airbags Adding Equipment to theVehicle . . . . . . . . . . . . . . . . . . . . . . . . 76
Passenger Status Indicator . . . 105
Readiness Light . . . . . . . . . . . . . . 104
Servicing Airbag-Equipped Vehicles . . . . . . . . . . . . . . . . . . . . . . . 76
System Check . . . . . . . . . . . . . . . . . . 67
Alarm Vehicle Security . . . . . . . . . . . . . . . . 39
Antilock Brake System (ABS) . . . 189 Warning Light . . . . . . . . . . . . . . . . . 109
Appearance Care Exterior . . . . . . . . . . . . . . . . . . . . . . . 288
Interior . . . . . . . . . . . . . . . . . . . . . . . . 292
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 319
Assistance Systems for Parking and Backing . . . . . . . . . . 205
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 42
Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Headlamp System . . . . . . . . . . . . 142
Transmission . . . . . . . . . . . . . . . . . 182
Page 342 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

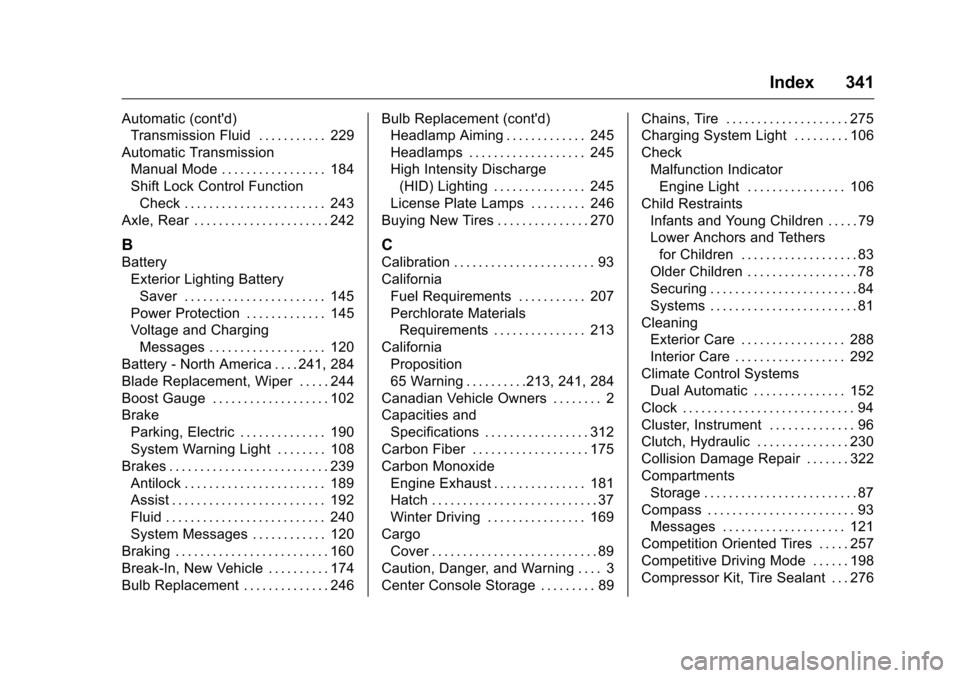

Index 341
Automatic (cont'd)Transmission Fluid . . . . . . . . . . . 229
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 184
Shift Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 243
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 242
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 145
Power Protection . . . . . . . . . . . . . 145
Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . 120
Battery - North America . . . . 241, 284
Blade Replacement, Wiper . . . . . 244
Boost Gauge . . . . . . . . . . . . . . . . . . . 102
Brake Parking, Electric . . . . . . . . . . . . . . 190
System Warning Light . . . . . . . . 108
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 239 Antilock . . . . . . . . . . . . . . . . . . . . . . . 189
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 192
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 240
System Messages . . . . . . . . . . . . 120
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 160
Break-In, New Vehicle . . . . . . . . . . 174
Bulb Replacement . . . . . . . . . . . . . . 246 Bulb Replacement (cont'd)
Headlamp Aiming . . . . . . . . . . . . . 245
Headlamps . . . . . . . . . . . . . . . . . . . 245
High Intensity Discharge
(HID) Lighting . . . . . . . . . . . . . . . 245
License Plate Lamps . . . . . . . . . 246
Buying New Tires . . . . . . . . . . . . . . . 270
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . 93
California Fuel Requirements . . . . . . . . . . . 207
Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 213
California Proposition
65 Warning . . . . . . . . . .213, 241, 284
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 312
Carbon Fiber . . . . . . . . . . . . . . . . . . . 175
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 181
Hatch . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Winter Driving . . . . . . . . . . . . . . . . 169
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Caution, Danger, and Warning . . . . 3
Center Console Storage . . . . . . . . . 89 Chains, Tire . . . . . . . . . . . . . . . . . . . . 275
Charging System Light . . . . . . . . . 106
Check
Malfunction IndicatorEngine Light . . . . . . . . . . . . . . . . 106
Child Restraints Infants and Young Children . . . . . 79
Lower Anchors and Tethers
for Children . . . . . . . . . . . . . . . . . . . 83
Older Children . . . . . . . . . . . . . . . . . . 78
Securing . . . . . . . . . . . . . . . . . . . . . . . . 84
Systems . . . . . . . . . . . . . . . . . . . . . . . . 81
Cleaning Exterior Care . . . . . . . . . . . . . . . . . 288
Interior Care . . . . . . . . . . . . . . . . . . 292
Climate Control Systems
Dual Automatic . . . . . . . . . . . . . . . 152
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Cluster, Instrument . . . . . . . . . . . . . . 96
Clutch, Hydraulic . . . . . . . . . . . . . . . 230
Collision Damage Repair . . . . . . . 322
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . 87
Compass . . . . . . . . . . . . . . . . . . . . . . . . 93 Messages . . . . . . . . . . . . . . . . . . . . 121
Competition Oriented Tires . . . . . 257
Competitive Driving Mode . . . . . . 198
Compressor Kit, Tire Sealant . . . 276
Page 344 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

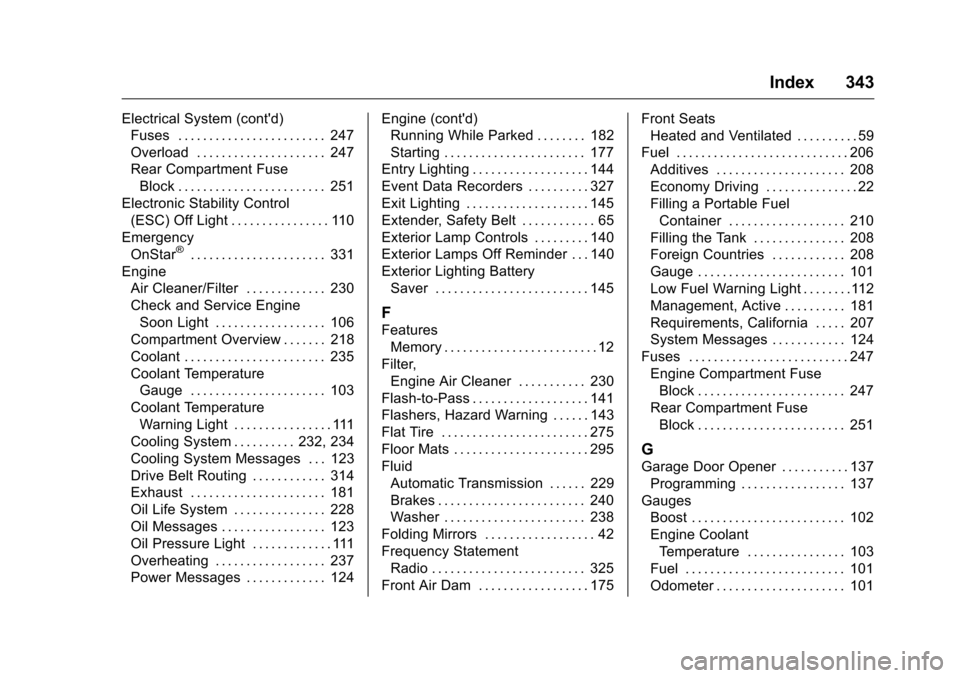

Index 343
Electrical System (cont'd)Fuses . . . . . . . . . . . . . . . . . . . . . . . . 247
Overload . . . . . . . . . . . . . . . . . . . . . 247
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 251
Electronic Stability Control (ESC) Off Light . . . . . . . . . . . . . . . . 110
Emergency OnStar
®. . . . . . . . . . . . . . . . . . . . . . 331
Engine Air Cleaner/Filter . . . . . . . . . . . . . 230
Check and Service EngineSoon Light . . . . . . . . . . . . . . . . . . 106
Compartment Overview . . . . . . . 218
Coolant . . . . . . . . . . . . . . . . . . . . . . . 235
Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 103
Coolant Temperature
Warning Light . . . . . . . . . . . . . . . . 111
Cooling System . . . . . . . . . . 232, 234
Cooling System Messages . . . 123
Drive Belt Routing . . . . . . . . . . . . 314
Exhaust . . . . . . . . . . . . . . . . . . . . . . 181
Oil Life System . . . . . . . . . . . . . . . 228
Oil Messages . . . . . . . . . . . . . . . . . 123
Oil Pressure Light . . . . . . . . . . . . . 111
Overheating . . . . . . . . . . . . . . . . . . 237
Power Messages . . . . . . . . . . . . . 124 Engine (cont'd)
Running While Parked . . . . . . . . 182
Starting . . . . . . . . . . . . . . . . . . . . . . . 177
Entry Lighting . . . . . . . . . . . . . . . . . . . 144
Event Data Recorders . . . . . . . . . . 327
Exit Lighting . . . . . . . . . . . . . . . . . . . . 145
Extender, Safety Belt . . . . . . . . . . . . 65
Exterior Lamp Controls . . . . . . . . . 140
Exterior Lamps Off Reminder . . . 140
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . . . 145
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 12
Filter, Engine Air Cleaner . . . . . . . . . . . 230
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 141
Flashers, Hazard Warning . . . . . . 143
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 275
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 295
Fluid Automatic Transmission . . . . . . 229
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 240
Washer . . . . . . . . . . . . . . . . . . . . . . . 238
Folding Mirrors . . . . . . . . . . . . . . . . . . 42
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 325
Front Air Dam . . . . . . . . . . . . . . . . . . 175 Front Seats
Heated and Ventilated . . . . . . . . . . 59
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206 Additives . . . . . . . . . . . . . . . . . . . . . 208
Economy Driving . . . . . . . . . . . . . . . 22
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 210
Filling the Tank . . . . . . . . . . . . . . . 208
Foreign Countries . . . . . . . . . . . . 208
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 101
Low Fuel Warning Light . . . . . . . .112
Management, Active . . . . . . . . . . 181
Requirements, California . . . . . 207
System Messages . . . . . . . . . . . . 124
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . 247 Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 247
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 251
G
Garage Door Opener . . . . . . . . . . . 137Programming . . . . . . . . . . . . . . . . . 137
Gauges Boost . . . . . . . . . . . . . . . . . . . . . . . . . 102
Engine CoolantTemperature . . . . . . . . . . . . . . . . 103
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Odometer . . . . . . . . . . . . . . . . . . . . . 101
Page 347 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15

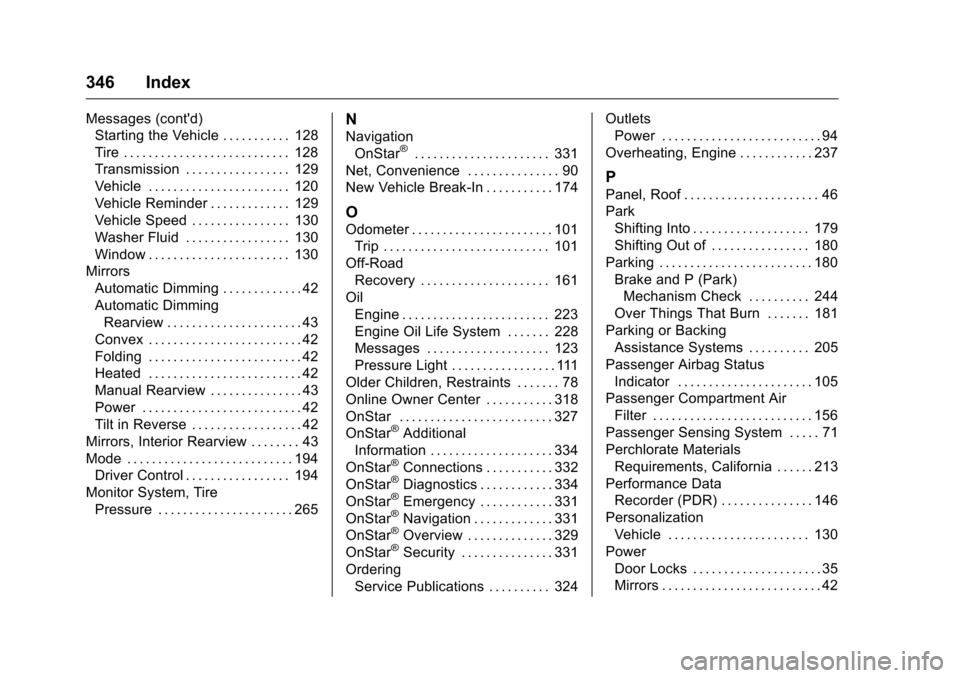

346 Index
Messages (cont'd)Starting the Vehicle . . . . . . . . . . . 128
Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Transmission . . . . . . . . . . . . . . . . . 129
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 120
Vehicle Reminder . . . . . . . . . . . . . 129
Vehicle Speed . . . . . . . . . . . . . . . . 130
Washer Fluid . . . . . . . . . . . . . . . . . 130
Window . . . . . . . . . . . . . . . . . . . . . . . 130
Mirrors Automatic Dimming . . . . . . . . . . . . . 42
Automatic DimmingRearview . . . . . . . . . . . . . . . . . . . . . . 43
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 42
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 42
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 42
Manual Rearview . . . . . . . . . . . . . . . 43
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Tilt in Reverse . . . . . . . . . . . . . . . . . . 42
Mirrors, Interior Rearview . . . . . . . . 43
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 194 Driver Control . . . . . . . . . . . . . . . . . 194
Monitor System, Tire
Pressure . . . . . . . . . . . . . . . . . . . . . . 265N
NavigationOnStar®. . . . . . . . . . . . . . . . . . . . . . 331
Net, Convenience . . . . . . . . . . . . . . . 90
New Vehicle Break-In . . . . . . . . . . . 174
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 101 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 161
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . 223
Engine Oil Life System . . . . . . . 228
Messages . . . . . . . . . . . . . . . . . . . . 123
Pressure Light . . . . . . . . . . . . . . . . . 111
Older Children, Restraints . . . . . . . 78
Online Owner Center . . . . . . . . . . . 318
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 327
OnStar
®Additional
Information . . . . . . . . . . . . . . . . . . . . 334
OnStar
®Connections . . . . . . . . . . . 332
OnStar®Diagnostics . . . . . . . . . . . . 334
OnStar®Emergency . . . . . . . . . . . . 331
OnStar®Navigation . . . . . . . . . . . . . 331
OnStar®Overview . . . . . . . . . . . . . . 329
OnStar®Security . . . . . . . . . . . . . . . 331
Ordering Service Publications . . . . . . . . . . 324 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Overheating, Engine . . . . . . . . . . . . 237
P
Panel, Roof . . . . . . . . . . . . . . . . . . . . . . 46
Park Shifting Into . . . . . . . . . . . . . . . . . . . 179
Shifting Out of . . . . . . . . . . . . . . . . 180
Parking . . . . . . . . . . . . . . . . . . . . . . . . . 180 Brake and P (Park)Mechanism Check . . . . . . . . . . 244
Over Things That Burn . . . . . . . 181
Parking or Backing Assistance Systems . . . . . . . . . . 205
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . 105
Passenger Compartment Air Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Passenger Sensing System . . . . . 71
Perchlorate Materials Requirements, California . . . . . . 213
Performance Data Recorder (PDR) . . . . . . . . . . . . . . . 146
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . 130
Power Door Locks . . . . . . . . . . . . . . . . . . . . . 35
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Page 349 of 351
Chevrolet Corvette Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
9085364) - 2016 - crc - 9/15/15
348 Index
Seats (cont'd)Power Adjustment, Front . . . . . . . 56
Reclining Seatbacks . . . . . . . . . . . . 57
Securing Child Restraints . . . . . . . . 84
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Messages . . . . . . . . . . . . . . . . . . . . 127
OnStar
®. . . . . . . . . . . . . . . . . . . . . . 331
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 39
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 39
Service Accessories andModifications . . . . . . . . . . . . . . . . 213
Doing Your Own Work . . . . . . . . 216
Engine Soon Light . . . . . . . . . . . . 106
Maintenance Records . . . . . . . . 310
Maintenance, General Information . . . . . . . . . . . . . . . . . . 297
Parts Identification Label . . . . . .311
Publications Ordering Information . . . . . . . . . . . . . . . . . . 324
Scheduling Appointments . . . . . 321
Vehicle Messages . . . . . . . . . . . . 127
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . 109
Services Special Application . . . . . . . . . . . 303
Servicing the Airbag . . . . . . . . . . . . . 76 Shift Lock Control Function
Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 243
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 179
Out of Park . . . . . . . . . . . . . . . . . . . 180
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 143
Special Application Services . . . . 303
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 312
Speedometer . . . . . . . . . . . . . . . . . . . 101
Start Assist, Hills . . . . . . . . . . . . . . . 192
Start Vehicle, Remote . . . . . . . . . . . 31
Starter Switch Check . . . . . . . . . . . 243
Starting the Engine . . . . . . . . . . . . . 177
Starting the Vehicle Messages . . . . . . . . . . . . . . . . . . . . . 128
Steering . . . . . . . . . . . . . . . . . . . . . . . . 160 Wheel Adjustment . . . . . . . . . . . . . . 92
Wheel Controls . . . . . . . . . . . . . . . . . 92
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Storage Areas Cargo Cover . . . . . . . . . . . . . . . . . . . . 89
Center Console . . . . . . . . . . . . . . . . . 89
Convenience Net . . . . . . . . . . . . . . . 90
Glove Box . . . . . . . . . . . . . . . . . . . . . . 87 Storage Areas (cont'd)
Instrument Panel . . . . . . . . . . . . . . . 87
Storage Compartments . . . . . . . . . . 87
Storing the Tire Sealant and Compressor Kit . . . . . . . . . . . . . . . 283
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 170
Summer Tires . . . . . . . . . . . . . . . . . . 258
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 45
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Infotainment . . . . . . . . . . . . . 146, 328
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 101
Text Telephone (TTY) Users . . . . 318
Theft-Deterrent Systems . . . . . . . . . 41Immobilizer . . . . . . . . . . . . . . . . . . . . . 40
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254 Buying New Tires . . . . . . . . . . . . . 270
Chains . . . . . . . . . . . . . . . . . . . . . . . . 275
Competition Oriented . . . . . . . . . 257
Designations . . . . . . . . . . . . . . . . . 259
Different Size . . . . . . . . . . . . . . . . . 271
If a Tire Goes Flat . . . . . . . . . . . . 275
Inspection . . . . . . . . . . . . . . . . . . . . 268
Lifting the Vehicle . . . . . . . . . . . . . 214
Low Profile . . . . . . . . . . . . . . . . . . . 256
Messages . . . . . . . . . . . . . . . . . . . . 128
