2016 BUICK REGAL Get To Know Guide

1
Review this Quick Reference Guide for an overview of some important features in your Buick Regal. More detailed information can be found in your Owner Manual. Some optional equipment described in this guide may not be included in your vehicle. For easy reference, keep this guide with your Owner Manual in your glove box. www.buick.com
2016 Regal
Getting to Know Your

2
Exterior Lamps Control/Instrument Panel Illumination ControlTurn Signal Lever
Power Mirror Controls/Power Locks Button

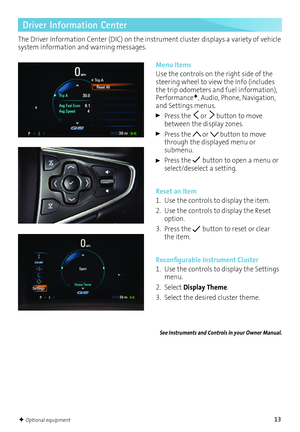

Driver Information Center
Tilt/Telescopic Steering Wheel Lever
Adaptive Cruise ControlF/ Forward Collision AlertF/Heated Steering WheelF/Voice Recognition Buttons
Audio Steering Wheel Controls/Driver Information Center Controls
Windshield Wipers Lever
Hood Release Lever
Trunk ReleaseStorage/Fuse Panel Access
Instrument Panel
Symbols
Oil Pressure
Airbag Readiness
StabiliTrak/Traction Control Warning
Security
Charging System
Door Ajar
Safety Belt Reminder
Brake System Warning
Electric Parking Brake Service
Lights On
Low Tire Pressure
Antilock Brake System Warning

3
Refer to your Owner Manual to learn about the information being relayed by the lights, gauges and indicators on the instrument cluster.
See In Brief in your Owner Manual.
GS ButtonF
Accessory Power Outlet (in storage compartment)
Climate ControlsElectric Parking Brake
Climate Controls/Passenger’s Heated Seat ControlF
Infotainment SystemF
Traction Control/ StabiliTrak Button
Hazard Warning Flashers Button
Climate Controls/Driver’s Heated Seat ControlF
Rear Parking Assist ButtonF
Lane Departure Warning ButtonFSport ButtonF
Check Engine
Traction Control Off
StabiliTrak/Traction Control Off
Fog Lamps
Cruise Control
Lane Departure Warning
F Optional equipment

4

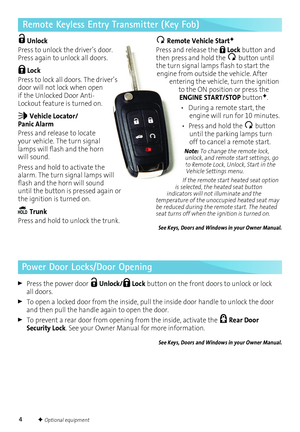

Remote Keyless Entry Transmitter (Key Fob)
Unlock
Press to unlock the driver’s door. Press again to unlock all doors.
Lock
Press to lock all doors. The driver’s door will not lock when open if the Unlocked Door Anti-Lockout feature is turned on.
Vehicle Locator/ Panic Alarm
Press and release to locate your vehicle. The turn signal lamps will flash and the horn will sound.
Press and hold to activate the alarm. The turn signal lamps will flash and the horn will sound until the button is pressed again or the ignition is turned on.
Trunk
Press and hold to unlock the trunk.

Press the power door Unlock/ Lock button on the front doors to unlock or lock all doors.
To open a locked door from the inside, pull the inside door handle to unlock the door and then pull the handle again to open the door.
To prevent a rear door from opening from the inside, activate the Rear Door Security Lock. See your Owner Manual for more information.
See Keys, Doors and Windows in your Owner Manual.
Remote Vehicle StartF
Press and release the Lock button and then press and hold the button until the turn signal lamps flash to start the engine from outside the vehicle. After entering the vehicle, turn the ignition to the ON position or press the ENGINE START/STOP buttonF.
• During a remote start, the engine will run for 10 minutes.
• Press and hold the button until the parking lamps turn off to cancel a remote start.
Note: To change the remote lock, unlock, and remote start settings, go to Remote Lock, Unlock, Start in the Vehicle Settings menu.
If the remote start heated seat option is selected, the heated seat button indicators will not illuminate and the temperature of the unoccupied heated seat may be reduced during the remote start. The heated seat turns off when the ignition is turned on.
See Keys, Doors and Windows in your Owner Manual.
F Optional equipment
Power Door Locks/Door Opening

5
Power Seat Adjustment
A. Seat Adjustment
Move the horizontal control to move the seat forward or rearward and to tilt, raise or lower the seat.
B. Seatback Recline Adjustment
Move the vertical control to recline or raise the seatback.
C. Lumbar Adjustment
Press the control pad to adjust the lumbar support.
D. Memory Seat ButtonsF
With the driver’s seat in the desired position, press and hold the MEM
button and button 1 or 2 to set the memory position. Press and hold button 1 or 2 to recall the stored position.
Head Restraint Adjustment
Press the release button on the left side of the head restraint to raise or lower the head restraint.
Folding Rear Seats
1. Make sure the safety belt is in the retainer clip (A).
2. Pull the lever (B) on top of the
seatback. When the red marking is
visible, the seatback is unlatched.
3. Fold down the seatback.
Seats
See Seats and Restraints in your Owner Manual.
F Optional equipment
ABC
D
BA

6
Lighting
Exterior Lights Off/On
AUTO Automatic Headlamp System
Automatically activates the Daytime Running Lamps (DRLs) or the headlamps and other exterior lamps depending on
outside light conditions.
Parking Lamps
Headlamps
Fog LampsF
Press to turn the fog lamps on or off.
Instrument Brightness Control
Rotate and hold the thumbwheel to adjust the instrument panel lighting.
See Lighting in your Owner Manual.
Instrument Panel Lighting
HI Fast Wipes
LO Slow Wipes
INT Intermittent
Rotate the band up for more frequent wipes or down for less frequent wipes.
OFF
1x Mist
Single wipe.
Washer Fluid
Pull the lever toward you to spray washer fluid on the windshield.
See Instruments and Controls in your Owner Manual.
Windshield Wipers and Washer
F Optional equipment

7

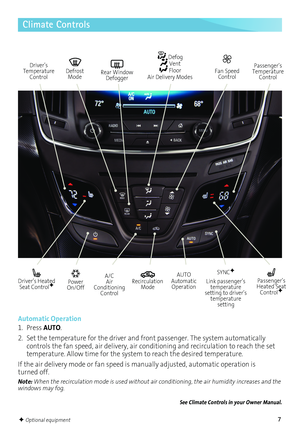

Climate Controls
A/C Air Conditioning Control
Power On/Off
Driver’s Temperature Control
Driver’s Heated Seat ControlF
Recirculation Mode

Fan Speed Control
AUTO Automatic Operation
Defrost Mode
SYNCF
Link passenger’s temperature setting to driver’s temperature setting
Rear Window Defogger
Automatic Operation
1. Press AUTO.
2. Set the temperature for the driver and front passenger. The system automatically
controls the fan speed, air delivery, air conditioning and recirculation to reach the set temperature. Allow time for the system to reach the desired temperature.
If the air delivery mode or fan speed is manually adjusted, automatic operation is turned off.
Note: When the recirculation mode is used without air conditioning, the air humidity increases and the windows may fog.
Passenger’s Heated Seat ControlF
Passenger’s Temperature Control
See Climate Controls in your Owner Manual.
Defog Vent Floor Air Delivery Modes
F Optional equipment

8
Infotainment System
Refer to your Owner Manual for important safety information about using the infotainment system while driving.
The infotainment system controls include the audio system buttons, touch screen,
steering wheel controls and voice recognition.
Power/ Volume
RADIO: Select AM, FM, XMF
Applications: Touch the screen icon to access the application
Home screen
Interaction Selector: Display the favorites list
Additional Pages: Touch to view additional pages of applications (if available)
Eject CD Previous or next radio station, track or file
◄BACK: Move back one level in the menus
MENU: Tune radio stations/Open and select menus
MEDIA: Select the media source
See your Infotainment System Owner Manual.
F Optional equipment
