2016 BMW M5 SEDAN Owners Manual

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 954 339 - II/15

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
All around the steering wheel
1Seating comfort featuresSeat, mirror, steering wheel
memory   59Active seat   552Roller sunblinds   493Rear window safety switch   494Power windows  485Exterior mirror operation   606Driver assistance systemsActive Blind Spot Detec‐
tion   122Intelligent Safety   112Lane departure warning   121Night Vision  118Head-up Display   97Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 954 339 - II/15

7LightsParking lights  100Low beams  100Automatic headlight con‐
trol   101
Daytime running lights   101
Adaptive Light Control   101
High-beam Assistant   102Instrument lighting  1038Steering column stalk, leftTurn signal  74High beams, head‐
light flasher   74High-beam Assistant   102Roadside parking lights   101On-board computer  939Shift paddles  7910Steering wheel buttons, leftM Drive 1 activation   128M Drive 2 activation  128Store speed  133Resume speed   134Cruise control on/off, interrupt‐
ing   133Cruise control rocker switch   13411Instrument cluster  8312Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  26Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   9313Steering column stalk, rightWiper  74Rain sensor   75Clean the windshields and head‐
lights   7414Start/stop the engine and switch
the ignition on/off   69Auto Start/Stop function   7015Horn, total area16Steering wheel heating  6317Adjust the steering wheel   6218Open the trunk lid  40Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 954 339 - II/15

19Unlocking the hood
All around the center console
1Control Display  182Glove compartment   1603Ventilation  1474Hazard warning system   210Central locking system  405Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication6Automatic climate control   1447Controller with buttons  188PDC Park Distance Control   135
Top View   141
Rearview camera   137Side View  1409Parking brake   7210Drivelogic  7911DSC Dynamic Stability Con‐
trol   129Engine Dynamics   81Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 954 339 - II/15

Dynamic Damping Control  131Servotronic  13112Transmission selector lever

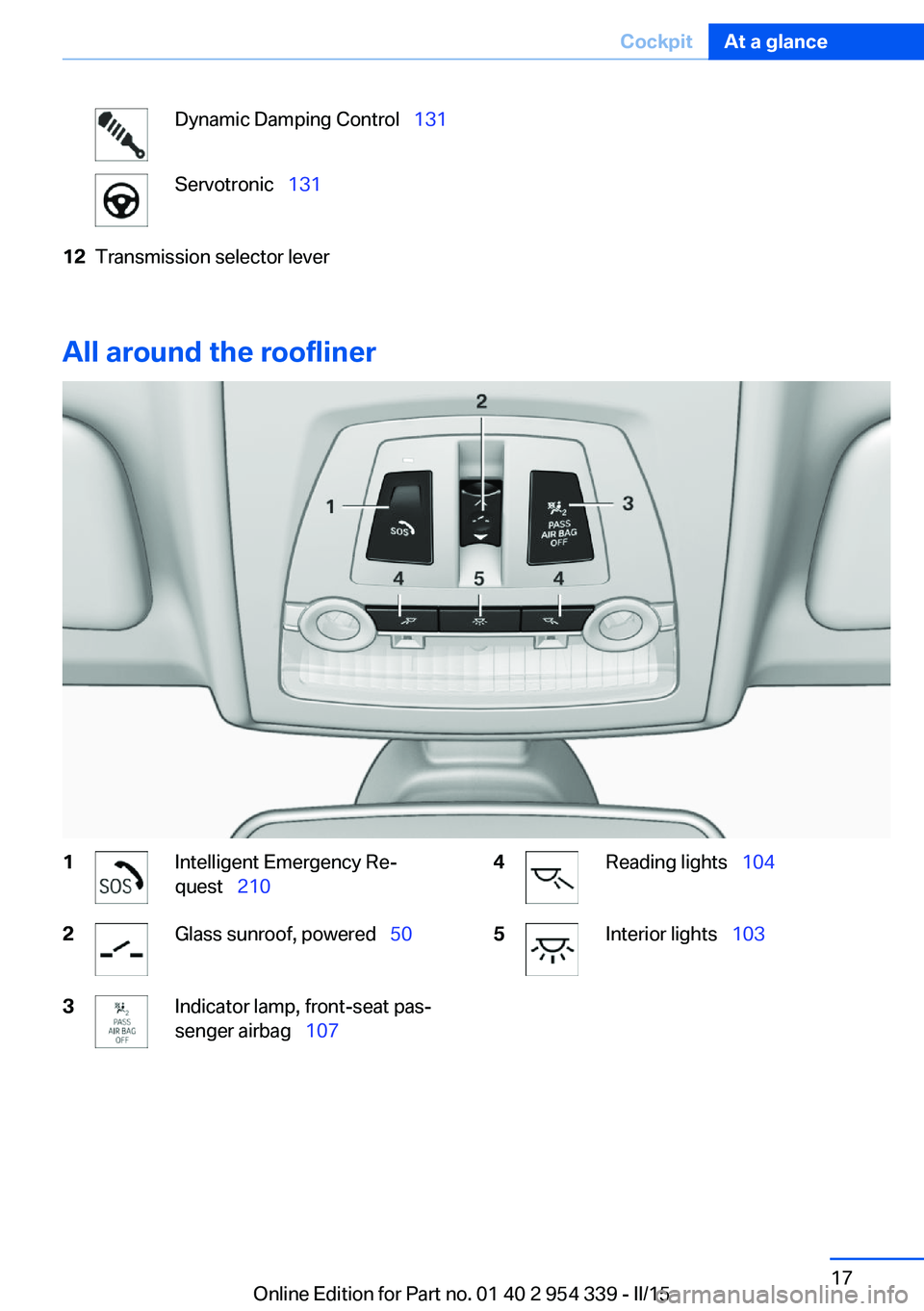

All around the roofliner
1Intelligent Emergency Re‐
quest   2102Glass sunroof, powered   503Indicator lamp, front-seat pas‐
senger airbag   1074Reading lights   1045Interior lights  103Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 954 339 - II/15

iDriveVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
The concept
The iDrive combines the functions of many
switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other traffic, never attempt
to use the controls or enter information unless
traffic and road conditions allow it.◀
Control elements at a glanceControl elements1Control Display2Controller with buttons and, depending on
the equipment version, with touchpadControl Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.▷In the case of very high temperatures on
the Control Display, e.g. due to intense so‐
lar radiation, the brightness may be re‐
duced down to complete deactivation.
Once the temperature is reduced, e.g.
through shadow or climate control system,
the normal functions are re-established.
Switching on
1.Switch on the ignition.2.Press the controller.
Switch off
1. Press button.2."Turn off control display"
Controller
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
Some iDrive functions can be operated using
the touchpad on the controller.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 954 339 - II/15

1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press buttonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the Multimedia menu.NAVOpens the Navigation menu.TELOpens the phone menu.Press buttonFunctionBACKDisplays the previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Highlighted menu items can be selected.
1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 954 339 - II/15

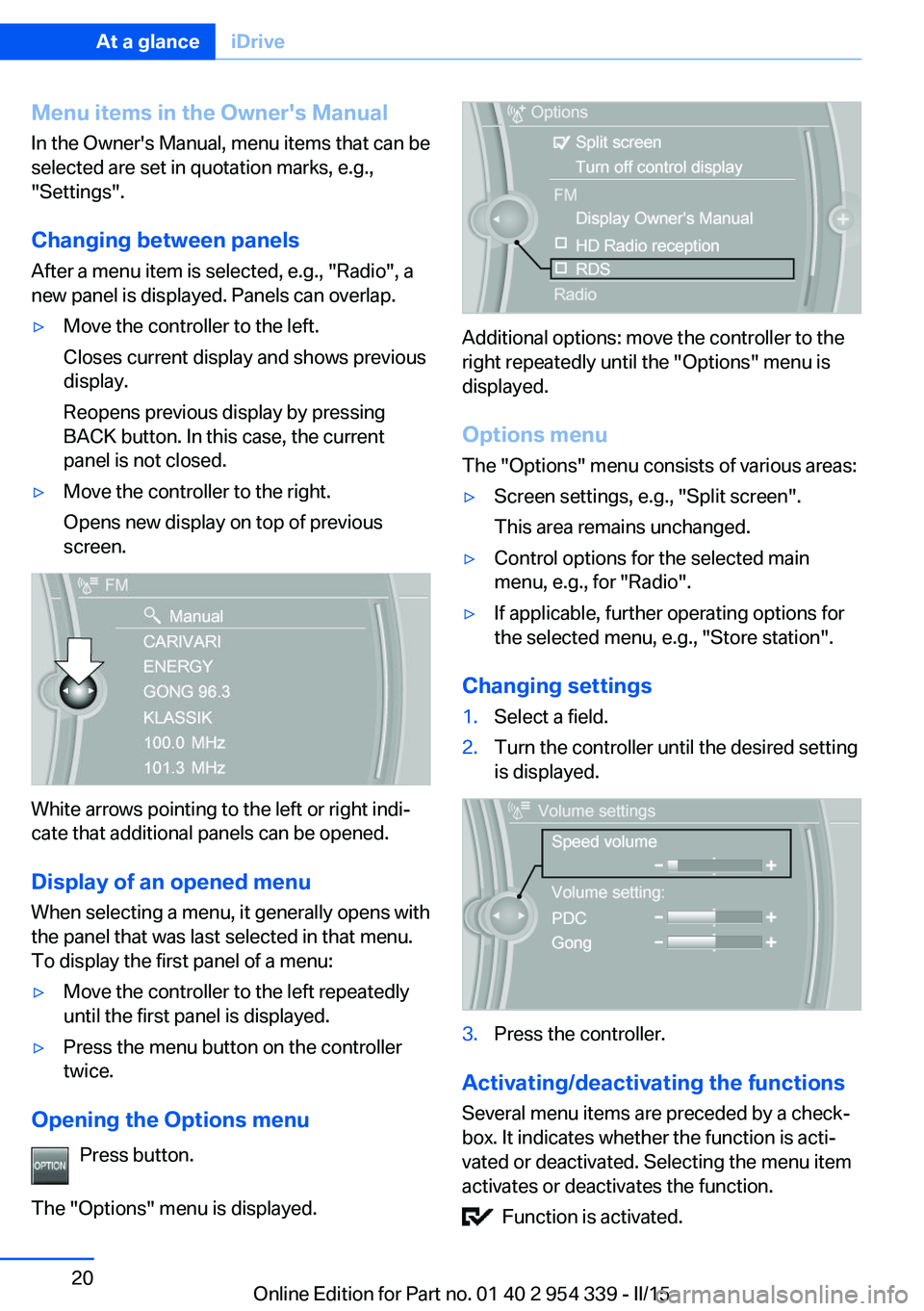

Menu items in the Owner's ManualIn the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.▷Move the controller to the left.
Closes current display and shows previous
display.
Reopens previous display by pressing
BACK button. In this case, the current
panel is not closed.▷Move the controller to the right.
Opens new display on top of previous
screen.
White arrows pointing to the left or right indi‐
cate that additional panels can be opened.
Display of an opened menu
When selecting a menu, it generally opens with
the panel that was last selected in that menu.
To display the first panel of a menu:
▷Move the controller to the left repeatedly
until the first panel is displayed.▷Press the menu button on the controller
twice.
Opening the Options menu
Press button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu is
displayed.
Options menu The "Options" menu consists of various areas:
▷Screen settings, e.g., "Split screen".
This area remains unchanged.▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, e.g., "Store station".
Changing settings
1.Select a field.2.Turn the controller until the desired setting
is displayed.3.Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function.
Function is activated.
Seite 20At a glanceiDrive20
