Example: setting the clockSetting the clock
On the Control Display:1. Press button. The main menu is dis‐
played.2.Turn the controller until "Settings" is high‐
lighted, and then press the controller.3.If necessary, move the controller to the left
to display "Time/Date".4.Turn the controller until "Time/Date" is
highlighted, and then press the controller.5.Turn the controller until "Time:" is high‐
lighted, and then press the controller.6.Turn the controller to set the hours and
press the controller.7.Turn the controller to set the minutes and
press the controller.
Status information
Status field The following information is displayed in the
status field at the top right:
▷Time.▷Current entertainment source.▷Sound output, on/off.▷Wireless network reception strength.▷Phone status.▷Traffic bulletin reception.
Status field symbols
The symbols are grouped as follows.
Radio symbols
SymbolMeaning HD Radio station is being received. Satellite radio is switched on.
Telephone symbols
SymbolMeaning Incoming or outgoing call. Missed call. Wireless network reception
strength.
Symbol flashes: network search. Wireless network is not available. Bluetooth is switched on. Roaming is active.Seite 22At a glanceiDrive22
Online Edition for Part no. 01 40 2 963 694 - VI/15

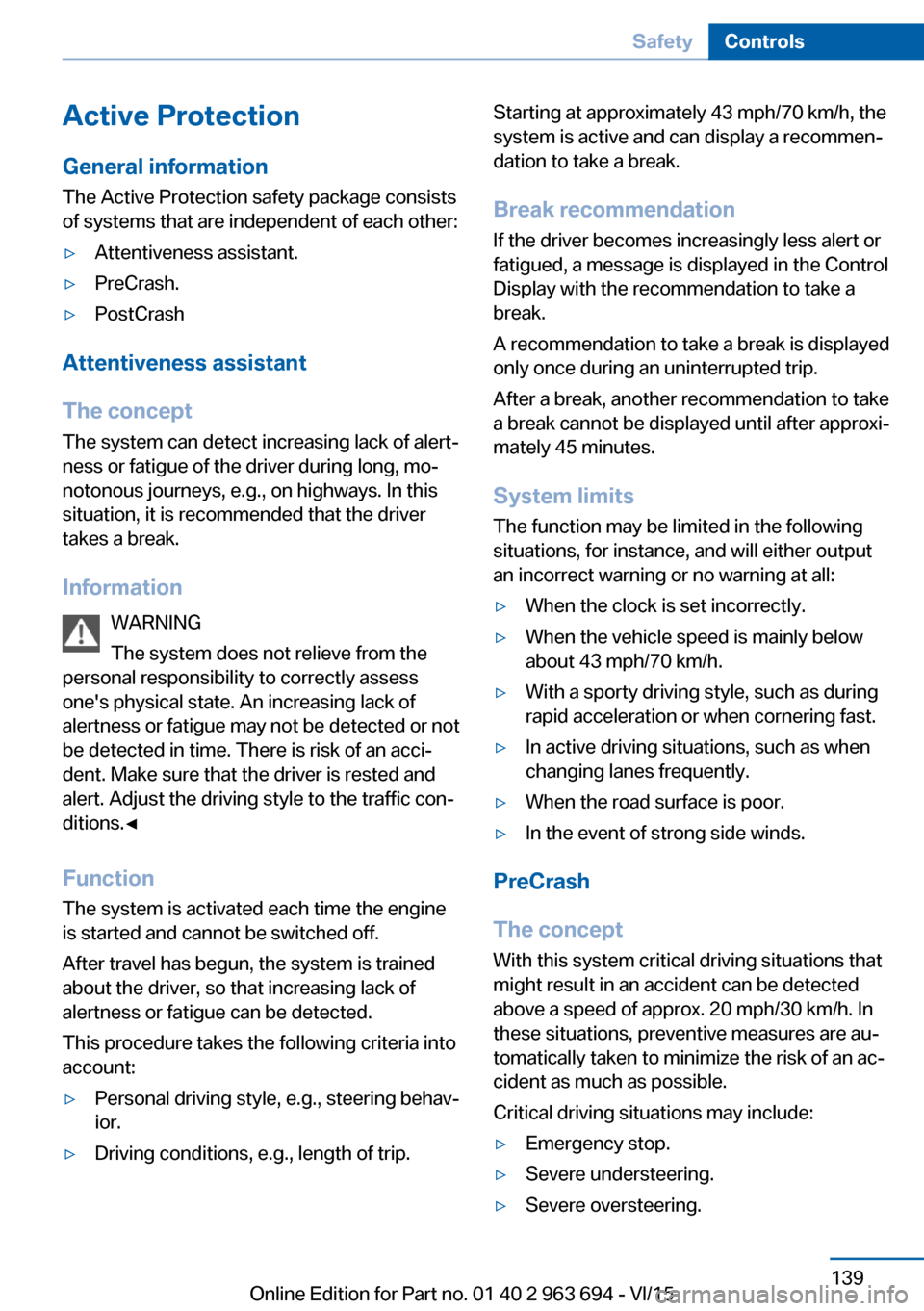

Active ProtectionGeneral information
The Active Protection safety package consists
of systems that are independent of each other:▷Attentiveness assistant.▷PreCrash.▷PostCrash
Attentiveness assistant
The concept The system can detect increasing lack of alert‐
ness or fatigue of the driver during long, mo‐
notonous journeys, e.g., on highways. In this situation, it is recommended that the driver
takes a break.
Information WARNING
The system does not relieve from the
personal responsibility to correctly assess
one's physical state. An increasing lack of
alertness or fatigue may not be detected or not
be detected in time. There is risk of an acci‐
dent. Make sure that the driver is rested and
alert. Adjust the driving style to the traffic con‐
ditions.◀
Function
The system is activated each time the engine
is started and cannot be switched off.
After travel has begun, the system is trained
about the driver, so that increasing lack of
alertness or fatigue can be detected.
This procedure takes the following criteria into
account:
▷Personal driving style, e.g., steering behav‐
ior.▷Driving conditions, e.g., length of trip.Starting at approximately 43 mph/70 km/h, the
system is active and can display a recommen‐
dation to take a break.
Break recommendation
If the driver becomes increasingly less alert or
fatigued, a message is displayed in the Control
Display with the recommendation to take a
break.
A recommendation to take a break is displayed
only once during an uninterrupted trip.
After a break, another recommendation to take
a break cannot be displayed until after approxi‐
mately 45 minutes.
System limits
The function may be limited in the following
situations, for instance, and will either output
an incorrect warning or no warning at all:▷When the clock is set incorrectly.▷When the vehicle speed is mainly below
about 43 mph/70 km/h.▷With a sporty driving style, such as during
rapid acceleration or when cornering fast.▷In active driving situations, such as when
changing lanes frequently.▷When the road surface is poor.▷In the event of strong side winds.
PreCrash
The concept With this system critical driving situations that
might result in an accident can be detected
above a speed of approx. 20 mph/30 km/h. In these situations, preventive measures are au‐
tomatically taken to minimize the risk of an ac‐
cident as much as possible.
Critical driving situations may include:
▷Emergency stop.▷Severe understeering.▷Severe oversteering.Seite 139SafetyControls139
Online Edition for Part no. 01 40 2 963 694 - VI/15
Combination switch, see Turnsignals 82
Combustion engine, start‐ ing 77
COMFORT+ program, Driving Dynamics Control 144
Comfort Access 47
COMFORT program, Driving Dynamics Control 144
Compressor 212
Condensation on win‐ dows 170
Condensation under the vehi‐ cle 192
Condition Based Service CBS 225
Confirmation signal 51
ConnectedDrive, see user's manual for Navigation, En‐
tertainment and Communi‐
cation
ConnectedDrive Services
Contact with water, hybrid system 34
Continued driving with a flat tire 119 , 122
Control Display 18
Control Display, settings 104
Controller 19
Control systems, driving sta‐ bility 141
Convenient opening with the remote control 42
Coolant 223
Coolant level 223
Coolant temperature 97
Cooling function 168
Cooling, maximum 168
Cooling system 223
Cornering light 110
Corrosion on brake discs 192
Cosmetic mirror 177
Courtesy lamps during un‐ locking 41
Courtesy lamps with the vehi‐ cle locked 42 Cruise control 152
Cruise control, active with Stop & Go 146
Cruise Control, refer to Active Cruise Control 146
Cruising range 98
Cupholder 183
D
Damage, tires 210
Damping control, dy‐ namic 143
Data, technical 248
Date 98
Daytime running lights 110
Deactivating drive readi‐ ness 77
Defrosting, see Windows, de‐ frosting 170
Dehumidifying, air 168
Deleting personal data 24
Deletion of personal data 24
Destination distance 103
Digital clock 98
Dimensions 248
Dimmable exterior mirrors 69
Dimmable interior rearview mirror 69
Direction indicator, see Turn signals 82
Display, electronic, instru‐ ment cluster 90
Display in windshield 105
Display lighting, see Instru‐ ment lighting 112
Displays, cleaning 244
Displays, hybrid system 91
Disposal, coolant 224
Disposal, vehicle battery 233
Distance control, see PDC 154
Distance to destination 103
Divided screen view, split screen 23
Door lock 43 Door lock, see Remote con‐
trol 38
Doors, Automatic Soft Clos‐ ing 44
DRIVE, driving with combus‐ tion engine 79
Drive mode 143
Drive-off assistant 141
Drive-off assistant, see DSC 141
Driver assistance, refer to In‐ telligent Safety 123
Drive readiness in detail 76
Drive readiness states 75
Drive readuness, deacti‐ vate 77
Driving Assistant, refer to In‐ telligent Safety 123
Driving Dynamics Con‐ trol 143
Driving instructions, break- in 188
Driving instructions, hybrid system 188
Driving notes, general 190
Driving stability control sys‐ tems 141
Driving tips 190
Driving with combustion en‐ gine, DRIVE 79
DSC Dynamic Stability Con‐ trol 141
DTC Dynamic Traction Con‐ trol 142
Dynamic Damping Con‐ trol 143
Dynamic Stability Control DSC 141
Dynamic Traction Control DTC 142
E eBOOST, assistance for the combustion engine 79
ECO PRO 197 Seite 254ReferenceEverything from A to Z254
