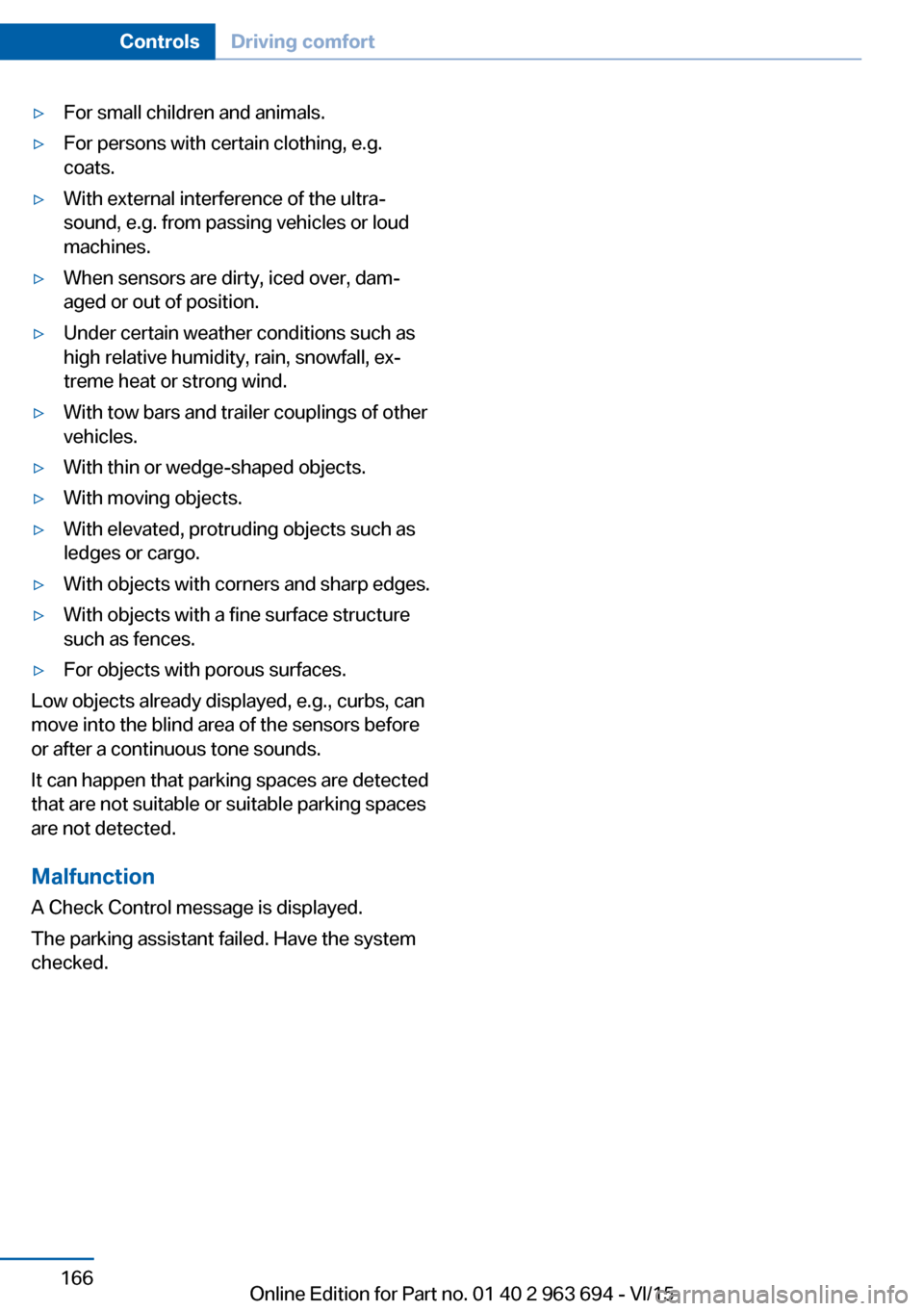

▷For small children and animals.▷For persons with certain clothing, e.g.
coats.▷With external interference of the ultra‐
sound, e.g. from passing vehicles or loud
machines.▷When sensors are dirty, iced over, dam‐
aged or out of position.▷Under certain weather conditions such as
high relative humidity, rain, snowfall, ex‐
treme heat or strong wind.▷With tow bars and trailer couplings of other
vehicles.▷With thin or wedge-shaped objects.▷With moving objects.▷With elevated, protruding objects such as
ledges or cargo.▷With objects with corners and sharp edges.▷With objects with a fine surface structure
such as fences.▷For objects with porous surfaces.
Low objects already displayed, e.g., curbs, can
move into the blind area of the sensors before
or after a continuous tone sounds.
It can happen that parking spaces are detected
that are not suitable or suitable parking spaces
are not detected.
Malfunction
A Check Control message is displayed.
The parking assistant failed. Have the system
checked.
Seite 166ControlsDriving comfort166
Online Edition for Part no. 01 40 2 963 694 - VI/15

Climate control functions in detail
Switching the system on/off
Switching on
Press any button except:▷Rear window defroster.▷Left side of Air volume button.▷Seat heating.▷Seat ventilation.▷If necessary, SYNC program.
Switch off
▷Complete system: Press and hold the left button on
the driver's side until the control
clicks off.▷On the front passenger side:
Press and hold the left button on
the front passenger side.
Temperature
Turn the ring to set the desired
temperature.
The automatic climate control achieves this
temperature as quickly as possible, if needed
by using the maximum cooling or heating ca‐
pacity, and then keeps it constant.
Do not rapidly switch between different tem‐
perature settings. Otherwise, the automatic cli‐
mate control will not have sufficient time to ad‐
just the set temperature.
Cooling function
The car's interior can be cooled with the en‐
gine running or switched off.
Press button.
The air will be cooled and dehumidified and,
depending on the temperature setting,
warmed again.
Depending on the weather, the windshield and
side windows may fog up briefly when the en‐
gine is started.
The cooling function is switched on automati‐
cally with the AUTO program.
When using the automatic climate control,
condensation water, refer to page 192, devel‐
ops that exits underneath the vehicle.
Maximum cooling Press button.
The system is set to the lowest tem‐
perature, optimum air flow and air circulation mode.
Air flows out of the vents to the upper body re‐
gion. The vents need to be open for this.
The function is available above an external
temperature of approx. 32 ℉/0 ℃ and with the
engine running or when electrical drive readi‐ ness is indicated is indicated.
Adjust air flow with the program active.
AUTO program Press button.
Air flow, air distribution and tempera‐
ture are controlled automatically.
Depending on the selected temperature,
AUTO intensity program and outside influen‐
ces, the air is directed to the windshield, side
windows, upper body, and into the footwell.
The cooling function, refer to page 168, is
switched on automatically with the AUTO pro‐
gram.
At the same time, a condensation sensor con‐
trols the program so as to prevent window
condensation as much as possible.Seite 168ControlsClimate control168
Online Edition for Part no. 01 40 2 963 694 - VI/15

Intensity of the AUTO program
With the AUTO program activated, the auto‐
matic intensity control can be changed.
Press the left or right side of the but‐
ton: decrease or increase the inten‐
sity.
The selected intensity is shown on the display
of the automatic climate control.
Automatic recirculated-air control/
recirculated-air mode
You may respond to unpleasant odors or pollu‐
tants in the immediate environment by tempo‐
rarily suspending the supply of outside air. The
system then recirculates the air currently
within the vehicle.
Press button repeatedly to select an
operating mode:▷LEDs off: outside air flows in continuously.▷Left LED on, automatic recirculated-air
control: a sensor detects pollutants in the
outside air and shuts off automatically.▷Right LED on, recirculated-air mode: the
supply of outside air into the vehicle is per‐
manently blocked.
With constant recirculated-air mode, the air
quality in the car's interior deteriorates and the
fogging of the windows increases.
If the windows are fogged over, switch off the
recirculated-air mode and press the AUTO
button on the driver's side to utilize the con‐
densation sensor. Make sure that air can flow
to the windshield.
Air flow, manual To manually adjust air flow turn off AUTO pro‐
gram first.
Press the left or right side of the but‐
ton: decrease or increase air flow.
The selected air flow is shown on the display of
the automatic climate control.
The air flow of the automatic climate control
may be reduced automatically to save battery
power.
Manual air distribution Press button repeatedly to select a
program:▷Upper body region.▷Upper body region and footwell.▷Footwell.▷Windows and footwell.▷Windows, upper body region, and footwell.▷Windows: driver's side only.▷Windows and upper body region.
If the windows are fogged over, press the
AUTO button on the driver's side to utilize the
condensation sensor.
SYNC program The current settings on the driver's
side for temperature, air flow, air distri‐
bution, and AUTO program are transferred to the front passenger side and to the left and
right rear.
The program is switched off if the settings on
the front passenger side or in the rear are
changed.
Residual heat The heat stored in the engine is used to heat
the interior.
Functional requirement
▷Up to 15 minutes after switching off the
engine.▷Warm engine.▷The battery is sufficiently charged.▷External temperature below 59 ℉/15 ℃.
The availability of the function is shown on the
display of the automatic climate control.
Seite 169Climate controlControls169
Online Edition for Part no. 01 40 2 963 694 - VI/15

MaintenanceVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
BMW maintenance system The maintenance system indicates required
maintenance measures, and thereby provides
support in maintaining road safety and the op‐
erational reliability of the vehicle.
In some cases scopes and intervals may vary
according to the country-specific version. Re‐
placement work, spare parts, fuels and lubri‐
cants and wear materials are calculated sepa‐
rately. Further information is available from a
dealer’s service center or another qualified
service center or repair shop.
Condition Based ServiceCBS
Sensors and special algorithms take into ac‐
count the driving conditions of your vehicle.
Based on this, Condition Based Service recog‐
nizes the maintenance requirements.
The system makes it possible to adapt the
amount of maintenance corresponding to your
user profile.
Detailed information on service requirements,
refer to page 99, can be displayed on the Con‐
trol Display.Service data in the remote control
Information on the required maintenance is
continuously stored in the remote control. The dealer’s service center can read this data out
and suggest an optimized maintenance scope
for your vehicle.
Therefore, hand the service advisor the remote
control with which the vehicle was driven most
recently.
Storage periods Storage periods during which the vehicle bat‐
tery was disconnected are not taken into ac‐
count.
If this occurs, have a dealer's service center or
another qualified service center or repair shop
update the time-dependent maintenance pro‐
cedures, such as checking brake fluid and, if
necessary, changing the engine oil and the mi‐
crofilter/activated-charcoal filter.
Service and WarrantyInformation Booklet for US
models and Warranty and
Service Guide Booklet for
Canadian models
Please consult your Service and Warranty In‐
formation Booklet for US models and Warranty
and Service Guide Booklet for Canadian mod‐
els for additional information on service re‐
quirements.
The manufacturer of your vehicle recommends
that maintenance and repair be performed by a
dealer’s service center or another qualified
service center or repair shop. Records of regu‐
lar maintenance and repair work should be re‐
tained.Seite 225MaintenanceMobility225
Online Edition for Part no. 01 40 2 963 694 - VI/15

CareVehicle features and optionsThis chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
Car washes General information
Regularly remove foreign objects such as
leaves in the area below the windshield when
the hood is raised.
Wash your vehicle frequently, particularly in
winter. Intense soiling and road salt can dam‐
age the vehicle.
Steam blaster and high-pressure
washer
Information CAUTION
When cleaning with high-pressure wash‐
ers, components can be damaged due to the
pressure or temperatures being too high.
There is risk of property damage. Maintain suf‐
ficient distance and do not spray too long con‐
tinuously. Follow the user's manual for the
high-pressure washer.◀
Distances and temperature▷Maximum temperature: 140 ℉/60 ℃.▷Minimum distance from sensors, cameras,
seals: 12 in/30 cm.▷Minimum distance from glass sunroof:
31.5 inches/80 cm.
Automatic car washes
Information Note the following:
▷Give preference to cloth car washes or
those that use soft brushes in order to
avoid paint damage.▷Make sure that the wheels and tires are not
damaged by the transport mechanisms.▷Fold in the exterior mirrors; otherwise, they
may be damaged, depending on the width
of the vehicle.▷Deactivate the rain sensor, refer to
page 84, to avoid unintentional wiper acti‐
vation.▷In some cases, an unintentional alarm can
be triggered by the interior motion sensor
of the alarm system. Follow the instruc‐
tions on avoiding an unintentional alarm,
refer to page 52.
CAUTION
Too high guide rails in car washes can
damage body parts. There is risk of property
damage. Avoid car washes with guide rails
higher than 4 in/10 cm.◀
Before driving into a car wash In order to ensure that the vehicle can roll in a
car wash, take the following steps:
1.Drive into the car wash.2.Engage selector lever position N.3.Deactivating Automatic Hold, refer to
page 81.4.Release the parking brake.5.Switch the engine off.Seite 241CareMobility241
Online Edition for Part no. 01 40 2 963 694 - VI/15

WARNING
Chemical cleansers can destroy the
safety belt webbing. Missing protective effect
of the safety belts. There is risk of injuries or
danger to life. Use only a mild soapy solution
for cleaning the safety belts.◀
Use only a mild soapy solution, with the safety
belts clipped into their buckles.
Do not allow the switchs to retract the safety
belts until they are dry.
Carpets and floor mats WARNING
Objects in the driver's floor area can limit
the pedal distance or block a depressed pedal.
There is risk of an accident. Stow objects in
the vehicle such that they are secured and
cannot enter into the driver's floor area. Use
floor mats that are suitable for the vehicle and
can be safely attached to the floor. Do not use
loose floor mats and do not layer several floor
mats. Make sure that there is sufficient clear‐
ance for the pedals. Ensure that the floor mats
are securely fastened again after they were re‐
moved, e.g. for cleaning.◀
Floor mats can be removed from the car's inte‐
rior for cleaning.
If the floor carpets are very dirty, clean with a
microfiber cloth and water or a textile cleaner.
To prevent matting of the carpet, rub back and
forth in the direction of travel only.
Sensor/camera lenses
To clean sensors and camera lenses, use a
cloth moistened with a small amount of glass
detergent.Displays/Screens/protective glass of
the Head-up Display
CAUTION
Chemical cleansers, moisture or fluids of
any kind can damage the surface of displays
and screens. There is risk of property damage.
Clean with a clean, antistatic microfiber cloth.◀
CAUTION
The surface of displays can be damaged
with improper cleaning. There is risk of prop‐
erty damage. Avoid pressure that is too high
and do not use any scratching materials.◀
Clean with a clean, antistatic microfiber cloth.
Clean the protective glass of the Head-up Dis‐
play using a microfiber cloth and commercially
available dish-washing soap.
Long-term
For idle phases that last several weeks, park
the vehicle with a fully charged battery if possi‐
ble. Your dealer's service center or another
qualified service center or repair shop can ad‐
vise you on what to consider when storing the
vehicle for longer than six weeks.
CAUTION
The high-voltage battery can be dam‐
aged by excessive discharge. There is risk of
property damage. Before storing the vehicle
for an extended period, ensure that the high-
voltage battery is fully charged. If necessary,
charge the high-voltage battery by driving the
vehicle. Regularly check the charging state. Do
not allow the vehicle to sit idle for longer than
four weeks with a charging state below approx.
80 %.◀
Information Follow the instructions for discharging thehigh-voltage battery, refer to page 189.Seite 244MobilityCare244
Online Edition for Part no. 01 40 2 963 694 - VI/15

Hand-held transmitter, alter‐nating code 176
Hazard warning flashers 235
Head airbags 114
Headlight control, auto‐ matic 109
Headlight courtesy delay fea‐ ture 109
Headlight courtesy delay fea‐ ture, remote control 51
Headlight courtesy delay fea‐ ture via remote control 42
Headlight flasher 83
Headlight glass 228
Headlights 228
Headlights, care 242
Head restraints 58
Head restraints, front 64
Head restraints, rear 65
Head-up Display 105
Head-up Display, care 244
Heavy cargo, stowing 194
Height, vehicle 248
High-beam Assistant 110
High beams 83
High beams/low beams, see High-beam Assistant 110
High-voltage battery, charge indicator 91
High-voltage battery, dis‐ charge 189
High-voltage system, safety 34
Hills 191
Hill start assistant, see Drive- off assistant 141
Holder for beverages 183
Homepage 6
Hood 217
Horn 14
Hotel function, trunk lid 47
Hot exhaust system 190
HUD Head-up Display 105
Hybrid system, adapting to the course of the road 93
Hybrid system, at a glance 31 Hybrid system, automatic de‐
activation 34
Hybrid system, contact with water 34
Hybrid system, displays 91
Hydroplaning 191
I Ice warning, see External temperature warning 98
Icy roads, see External tem‐ perature warning 98
Identification marks, tires 208
Identification number, see ve‐ hicle identification num‐
ber 10
iDrive 18
Ignition key, see Remote con‐ trol 38
Ignition off 75
Ignition on 75
Indication of a flat tire 118 , 121
Indicator and alarm lamps, see Check Control 93
Indicator lamp, see Check Control 93
Individual air distribution 169
Individual settings, see Per‐ sonal Profile 39
Inflation pressure, tires 206
Inflation pressure warning FTM, tires 121
Info display, refer to On- Board computer 102
Information 6
Initialize, Tire Pressure Moni‐ tor TPM 118
Initializing, Flat Tire Monitor FTM 121
Instrument cluster 90
Instrument cluster, electronic displays 90
Instrument lighting 112
Integrated key 38 Integrated Owner's Manual in
the vehicle 29
Intelligent Emergency Re‐ quest 235
Intelligent Safety 123
Intensity, AUTO pro‐ gram 169
Interior equipment 175
Interior lights 112
Interior lights during unlock‐ ing 41
Interior lights with the vehicle locked 42
Interior motion sensor 52
Interior rearview mirror, auto‐ matic dimming feature 69
Interior rearview mirror, man‐ ually dimmable 69
Internet page 6
Interval display, service re‐ quirements 99
Interval mode 84
J
Jacking points for the vehicle jack 232
Joystick, Steptronic transmis‐ sion 87
Jump-starting 236
K
Key/remote control 38
Keyless Go, see Comfort Ac‐ cess 47
Key Memory, see Personal Profile 39
Kickdown, Steptronic trans‐ mission 86
Knee airbag 115
L Label on recommended tires 211 Seite 256ReferenceEverything from A to Z256
Online Edition for Part no. 01 40 2 963 694 - VI/15

Night Vision 132
Night Vision device, see Night Vision 132
Nylon rope for tow-starting/ towing 238
O OBD Onboard Diagnosis 226
OBD, see OBD Onboard Di‐ agnosis 226
Object detection, see Night Vision 132
Obstacle marking, rearview camera 159
Octane rating, see Recom‐ mended fuel grade 204
Odometer 98
Office, see user's manual for Navigation, Entertainment
and Communication
Officially use hybrid sys‐ tem 188
Oil 219
Oil, adding 220
Oil additives 221
Oil change 221
Oil change interval, service requirements 99
Oil filler neck 220
Oil types, alternative 221
Oil types, suitable 221
Old batteries, disposal 233
On-board computer 102
On-board computer, refer to On-board computer 102
Onboard monitor, see Control Display 18
Onboard vehicle tool kit 227
Opening/closing via door lock 43
Opening and closing 38
Opening and closing, without remote control 43
Opening and closing, with re‐ mote control 41 Opening the trunk lid with no-
touch activation 49
Operating concept, iDrive 18
Optional equipment, standard equipment 7
Outside air, refer to Auto‐ matic recirculated-air con‐
trol 169
Overheating of engine, see Coolant temperature 97
Own Safety 7
P Paint, vehicle 242
Parallel parking assistant 163
Park Distance Control PDC 154
Parked-car ventilation 173
Parked vehicle, condensa‐ tion 192
Parking aid, see PDC 154
Parking assistant 163
Parking brake 80
Parking lights 108
Parking with Automatic Hold 81
Parts and accessories 8
Passenger side mirror, tilting downward 68
Pathway lines, rearview cam‐ era 158
PDC Park Distance Con‐ trol 154
Pedestrian detection, see Night Vision 132
Pedestrian warning with city braking function 130
Personal Profile 39
Personal Profile, exporting profiles 41
Pinch protection system, glass sunroof 56
Pinch protection system, win‐ dows 54
Plastic, care 243 Power failure 233
Power sunroof, glass 55
Power windows 53
Prescribed engine oil types 221
Pressure, tire air pres‐ sure 206
Pressure warning FTM, tires 121
Profile, see Personal Pro‐ file 39
Programmable memory but‐ tons, iDrive 23
Protective function, glass sunroof 56
Protective function, win‐ dows 54
Push-and-turn switch, see Controller 19
R Radiator fluid 223
Radio-operated key, see Re‐ mote control 38
Radio ready state 75
Radio, see user's manual for Navigation, Entertainment
and Communication
Rain sensor 84
Rear automatic climate con‐ trol 171
Rear lights 231
Rear socket 179
Rearview camera 157
Rearview mirror 67
Rear window defroster 170
Recirculated-air mode 169
Recommended fuel grade 204
Recommended tire brands 211
Refueling 202
Remaining range 98
Remote control/key 38 Seite 258ReferenceEverything from A to Z258
Online Edition for Part no. 01 40 2 963 694 - VI/15
