2016 BMW 535D SEDAN Owners Manual

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 954 312 - II/15

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
All around the steering wheel
1Seating comfort featuresSeat, mirror, steering wheel
memory   61Active seat   562Roller sunblinds   493Rear window safety switch   494Power windows  485Exterior mirror operation   626Driver assistance systemsActive Blind Spot Detec‐
tion   131Intelligent Safety   117Lane departure warning   129Night Vision  126Head-up Display   101Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 954 312 - II/15

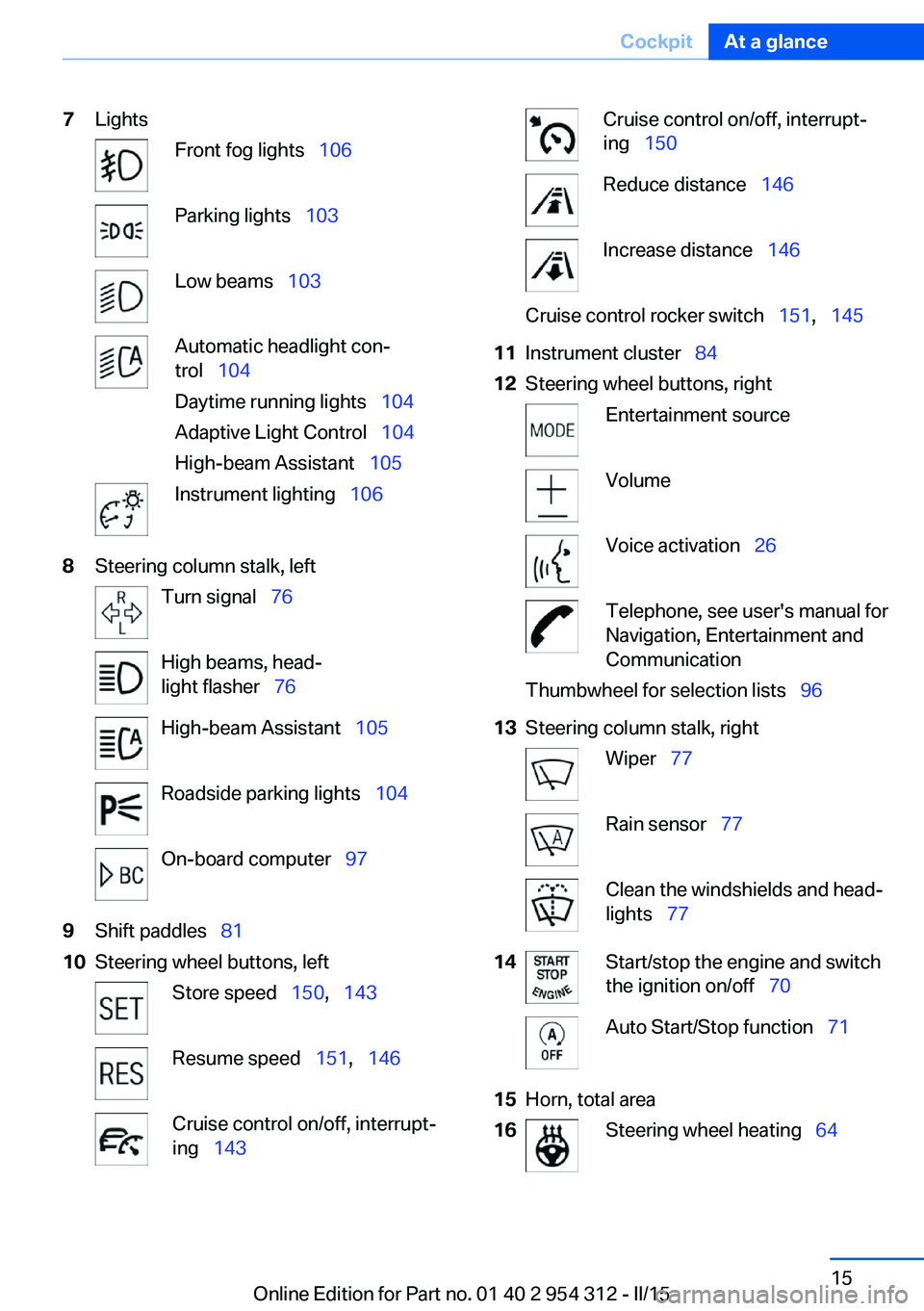

7LightsFront fog lights  106Parking lights  103Low beams  103Automatic headlight con‐
trol   104
Daytime running lights   104
Adaptive Light Control   104
High-beam Assistant   105Instrument lighting  1068Steering column stalk, leftTurn signal  76High beams, head‐
light flasher   76High-beam Assistant   105Roadside parking lights   104On-board computer  979Shift paddles  8110Steering wheel buttons, leftStore speed  150,  143Resume speed   151,  146Cruise control on/off, interrupt‐
ing   143Cruise control on/off, interrupt‐
ing   150Reduce distance   146Increase distance   146Cruise control rocker switch   151,  14511Instrument cluster   8412Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  26Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   9613Steering column stalk, rightWiper  77Rain sensor   77Clean the windshields and head‐
lights   7714Start/stop the engine and switch
the ignition on/off   70Auto Start/Stop function   7115Horn, total area16Steering wheel heating  64Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 954 312 - II/15

17Adjust the steering wheel  6418Open the trunk lid  4019Unlocking the hood
All around the center console
1Control Display  182Glove compartment   1813Ventilation  1684Hazard warning system   245Central locking system  405Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication6Automatic climate control   1657Controller with buttons  188Parking brake  73Auto Hold  749PDC Park Distance Control   152
Top View   158
Rearview camera   154
Parking assistant   160Side View  157HDC Hill Descent Control   137Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 954 312 - II/15

10Driving Dynamics Control  139DSC Dynamic Stability Con‐
trol   13511Transmission selector lever

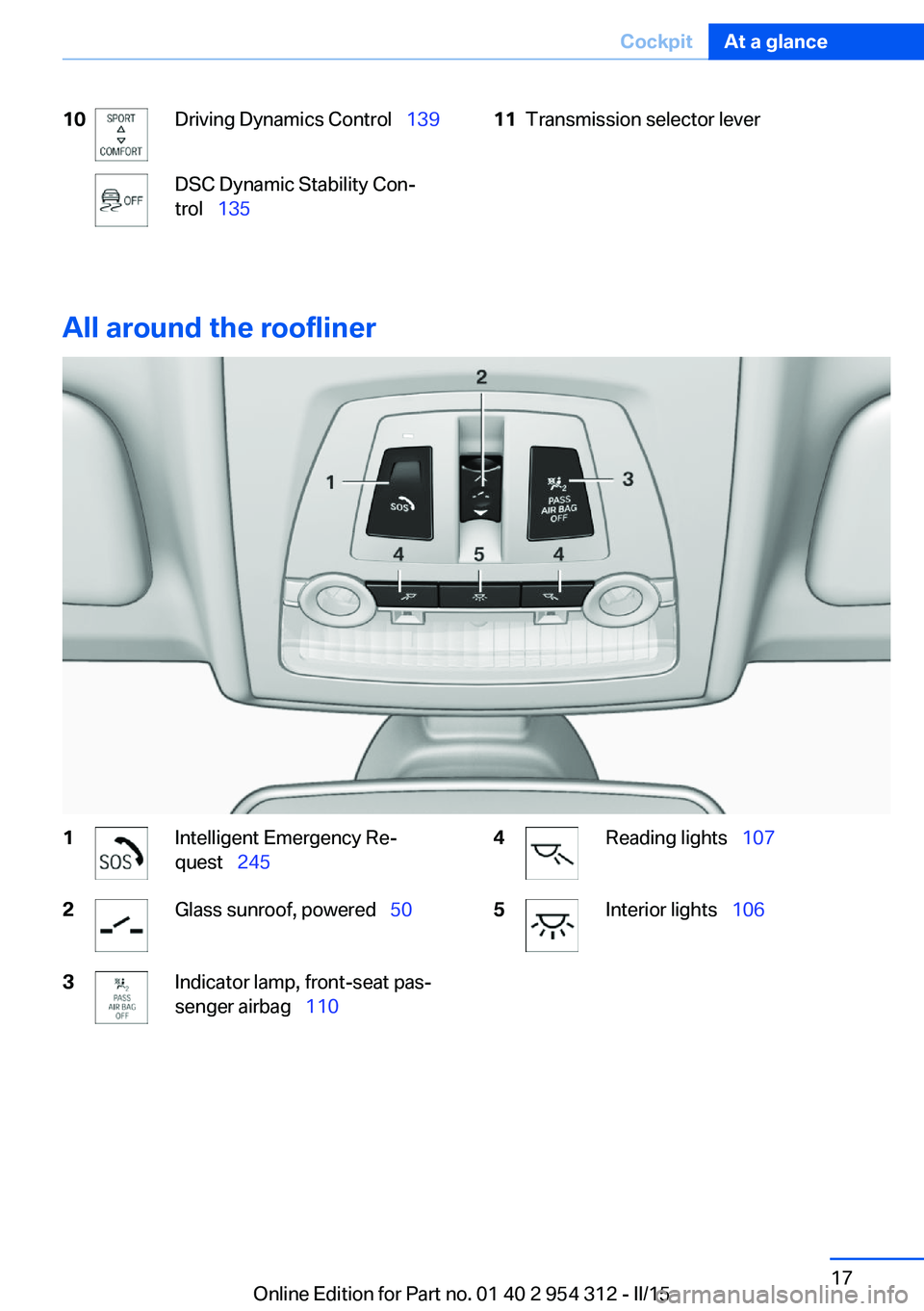

All around the roofliner
1Intelligent Emergency Re‐
quest   2452Glass sunroof, powered   503Indicator lamp, front-seat pas‐
senger airbag   1104Reading lights   1075Interior lights  106Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 954 312 - II/15

iDriveVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
The concept
The iDrive combines the functions of many
switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other traffic, never attempt
to use the controls or enter information unless
traffic and road conditions allow it.◀
Control elements at a glanceControl elements1Control Display2Controller with buttons and, depending on
the equipment version, with touchpadControl Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.▷In the case of very high temperatures on
the Control Display, e.g. due to intense so‐
lar radiation, the brightness may be re‐
duced down to complete deactivation.
Once the temperature is reduced, e.g.
through shadow or climate control system,
the normal functions are re-established.
Switching on
1.Switch on the ignition.2.Press the controller.
Switch off
1. Press button.2."Turn off control display"
Controller
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
Some iDrive functions can be operated using
the touchpad on the controller.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 954 312 - II/15

1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press buttonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the Multimedia menu.NAVOpens the Navigation menu.TELOpens the phone menu.Press buttonFunctionBACKDisplays the previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Highlighted menu items can be selected.
1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 954 312 - II/15

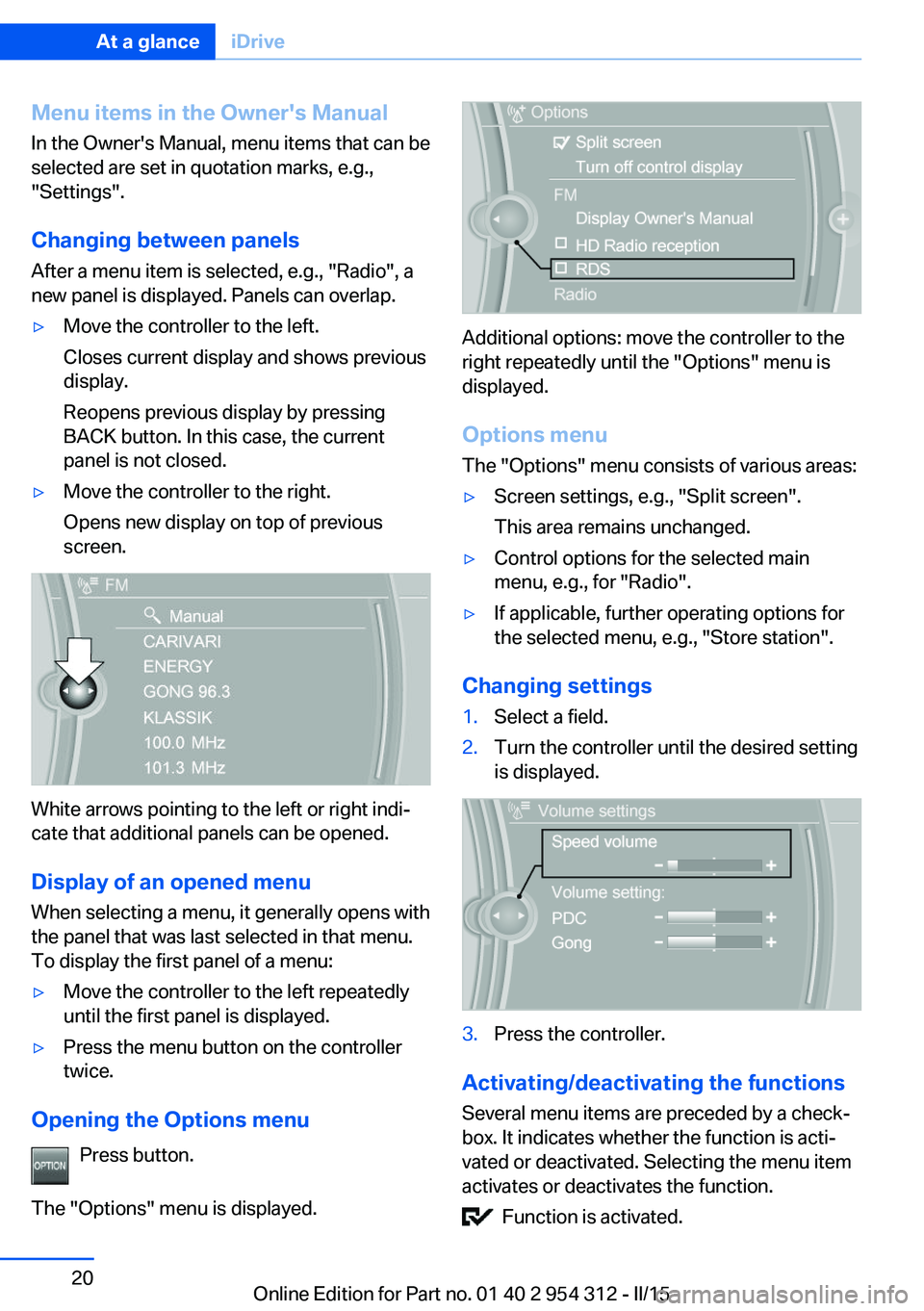

Menu items in the Owner's ManualIn the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.▷Move the controller to the left.
Closes current display and shows previous
display.
Reopens previous display by pressing
BACK button. In this case, the current
panel is not closed.▷Move the controller to the right.
Opens new display on top of previous
screen.
White arrows pointing to the left or right indi‐
cate that additional panels can be opened.
Display of an opened menu
When selecting a menu, it generally opens with
the panel that was last selected in that menu.
To display the first panel of a menu:
▷Move the controller to the left repeatedly
until the first panel is displayed.▷Press the menu button on the controller
twice.
Opening the Options menu
Press button.
The "Options" menu is displayed.
Additional options: move the controller to the
right repeatedly until the "Options" menu is
displayed.
Options menu The "Options" menu consists of various areas:
▷Screen settings, e.g., "Split screen".
This area remains unchanged.▷Control options for the selected main
menu, e.g., for "Radio".▷If applicable, further operating options for
the selected menu, e.g., "Store station".
Changing settings
1.Select a field.2.Turn the controller until the desired setting
is displayed.3.Press the controller.
Activating/deactivating the functions
Several menu items are preceded by a check‐
box. It indicates whether the function is acti‐
vated or deactivated. Selecting the menu item
activates or deactivates the function.
Function is activated.
Seite 20At a glanceiDrive20
Online Edition for Part no. 01 40 2 954 312 - II/15
