2016 BMW 5 SERIES Owners Manual

Parked-vehicle
ventilationConcept
The parked-vehicle ventilation ventilates the
vehicle interior and lowers its temperature, if needed.
General
information The parked-vehicle ventilation system is operj
ated via iDrive.
Functional
requirements
Parked-car
ventilation'yUsing the preset activation time or when operated directly: any external temperaj
ture.'yBattery is sufficiently charged.
If parked-car ventilation is switched on, the vehicle battery will be discharged. Thus,
limit the maximum activation time to save
the vehicle battery. The system will be available again after engine starting and/ora short trip.'yMake sure that the vehicle's date and time
are set correctly.
Open the vents to allow air to flow out.
Switching
on/off
directly
On the Control Display:
1."Settings"2."Climate"3."Activate comf. ventilation"
The symbol on the automatic climate conj
trol flashes if the system is switched on.
The system continues to run for some time afj
ter being switched off.
Preselecting
the
switch-on
time
On the Control Display:1."Settings"2."Climate"3."Timer 1:" or "Timer 2:"4.Set the desired time.
Activating
the
activation
time On the Control Display:
1."Settings"2."Climate"3."Activate timer 1" or "Activate timer 2"
The symbol on the automatic climate conj
trol lights up when the switch-on time is actij
vated.
The symbol on the automatic climate conj
trol flashes when the system has been switched on.
The system will only be switched on within the
next 24 hours. After that, it needs to be reactij vated.
Seite 177Climate
controlControls177
Online Edition for Part no. 01 40 2 972 586 - VI/16

Interior
equipmentVehicle
features
and
optionsThis chapter describes all standard, country-specific and optional features offered with theseries. It also describes features that are notnecessarily available in your vehicle, e. g., due
to the selected options or country versions.
This also applies to safety-related functions
and systems. When using these functions and systems, the applicable country provisions
must be observed.
Universal
Integrated
Remote
Control
Concept
The Universal Integrated Remote Control can
operate up to 3 functions of remote-controlled
systems such as garage door drives or lighting
systems. The Universal Integrated Remote
Control replaces up to 3 different hand-held
transmitters. To operate the remote control,
the buttons on the interior mirror must be proj
grammed with the desired functions. The
hand-held transmitter for the particular system
is required in order to program the remote conj
trol.
Before selling the vehicle, delete the stored
functions for the sake of security.
Safety
information WARNING
Body parts can be jammed when operatj
ing remote-controlled systems, e.g., the gaj
rage door, using the integrated universal rej mote control. There is a risk of injury or risk ofproperty damage. Make sure that the area ofmovement of the respective system is clear
during programming and operation. Also followthe safety instructions of the hand-held transj
mitter.'

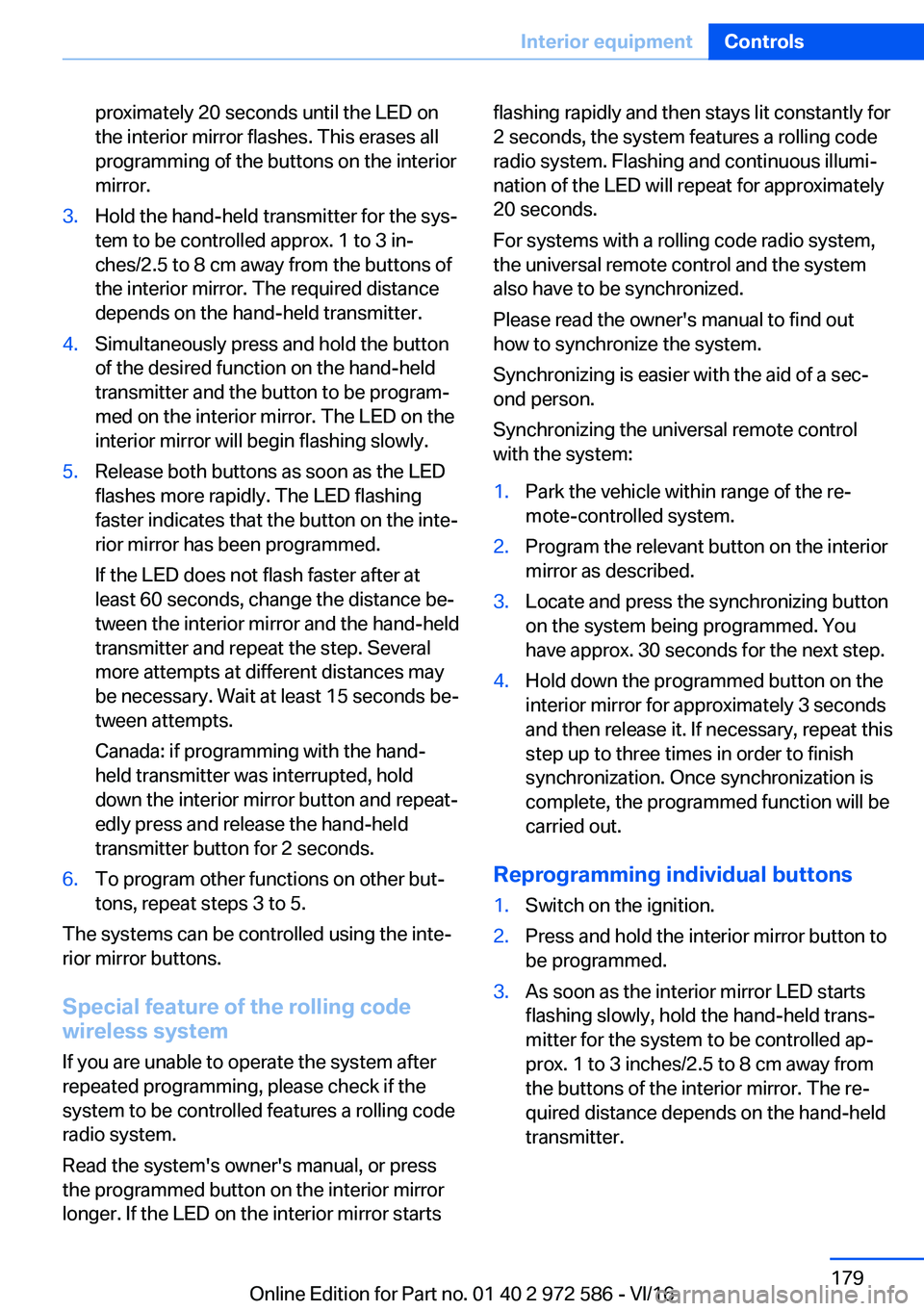

proximately 20 seconds until the LED on
the interior mirror flashes. This erases all
programming of the buttons on the interior mirror.3.Hold the hand-held transmitter for the sysjtem to be controlled approx. 1 to 3 inj
ches/2.5 to 8 cm away from the buttons of
the interior mirror. The required distance
depends on the hand-held transmitter.4.Simultaneously press and hold the button
of the desired function on the hand-held transmitter and the button to be programj
med on the interior mirror. The LED on the
interior mirror will begin flashing slowly.5.Release both buttons as soon as the LED flashes more rapidly. The LED flashing
faster indicates that the button on the intej
rior mirror has been programmed.
If the LED does not flash faster after at
least 60 seconds, change the distance bej
tween the interior mirror and the hand-held transmitter and repeat the step. Several
more attempts at different distances may be necessary. Wait at least 15 seconds bej
tween attempts.
Canada: if programming with the hand- held transmitter was interrupted, hold
down the interior mirror button and repeatj
edly press and release the hand-held
transmitter button for 2 seconds.6.To program other functions on other butj
tons, repeat steps 3 to 5.
The systems can be controlled using the intej
rior mirror buttons.
Special
feature
of
the
rolling
code
wireless
system
If you are unable to operate the system after
repeated programming, please check if the system to be controlled features a rolling coderadio system.
Read the system's owner's manual, or press the programmed button on the interior mirror longer. If the LED on the interior mirror starts
flashing rapidly and then stays lit constantly for
2 seconds, the system features a rolling code
radio system. Flashing and continuous illumij
nation of the LED will repeat for approximately
20 seconds.
For systems with a rolling code radio system,
the universal remote control and the system also have to be synchronized.
Please read the owner's manual to find out
how to synchronize the system.
Synchronizing is easier with the aid of a secj
ond person.
Synchronizing the universal remote control
with the system:1.Park the vehicle within range of the rej mote-controlled system.2.Program the relevant button on the interior
mirror as described.3.Locate and press the synchronizing button
on the system being programmed. You
have approx. 30 seconds for the next step.4.Hold down the programmed button on the
interior mirror for approximately 3 seconds
and then release it. If necessary, repeat this step up to three times in order to finish
synchronization. Once synchronization is
complete, the programmed function will be carried out.
Reprogramming
individual
buttons
1.Switch on the ignition.2.Press and hold the interior mirror button tobe programmed.3.As soon as the interior mirror LED starts
flashing slowly, hold the hand-held transj
mitter for the system to be controlled apj prox. 1 to 3 inches/2.5 to 8 cm away from
the buttons of the interior mirror. The rej
quired distance depends on the hand-held transmitter.Seite 179Interior
equipmentControls179
Online Edition for Part no. 01 40 2 972 586 - VI/16

4.Likewise, press and hold the button of the
desired function on the hand-held transj mitter.5.Release both buttons as soon as the intej
rior mirror LED flashes more rapidly. The LED flashing faster indicates that the butj
ton on the interior mirror has been proj
grammed. The system can then be conj
trolled by the button on the interior mirror.
If the LED does not flash faster after at
least 60 seconds, change the distance and
repeat the step. Several more attempts at different distances may be necessary. Wait
at least 15 seconds between attempts.
Canada: if programming with the hand-
held transmitter was interrupted, hold
down the interior mirror button and repeatj
edly press and release the hand-held
transmitter button for 2 seconds.
Operation
WARNING
Body parts can be jammed when operatj
ing remote-controlled systems, e.g., the gaj
rage door, using the integrated universal rej
mote control. There is a risk of injury or risk of
property damage. Make sure that the area of movement of the respective system is clear
during programming and operation. Also follow
the safety instructions of the hand-held transj
mitter.'

WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause burns. Flammable materials can ignite if thecigarette lighter falls down or is held against
the respective objects. There is a risk of fire
and injuries. Hold the cigarette lighter by its
handle. Make sure that children do not use the cigarette lighter and do not burn themselves,
e.g., by carrying the remote control with you
when exiting the vehicle.'

Rear
Lighter
Push in the lighter.
The lighter can be removed as soon as it pops back out.
WARNING
Contact with hot heating elements or the
hot socket of the cigarette lighter can cause
burns. Flammable materials can ignite if the cigarette lighter falls down or is held against
the respective objects. There is a risk of fire
and injuries. Hold the cigarette lighter by its
handle. Make sure that children do not use the
cigarette lighter and do not burn themselves,
e.g., by carrying the remote control with you
when exiting the vehicle.'

Front
center
console:
manual
transmission
Press on the cover.
Remove the cover or cigarette lighter.
Front
center
console:
Steptronic
transmission
Press on the cover.
Remove the cover or cigarette lighter.
Center
armrest
Remove the cover.
Rear
center
console
Remove the cover or cigarette lighter.
In
the
front
passenger
floor
area
Socket is located below the glove compartj ment.
To access the socket: fold open the cover.
In
the
cargo
area The socket is located in the cover of the loadj
ing lip.
To access the socket: fold open the cover.
USB
interface/AUX-IN
port
Concept Mobile devices with USB port can be conj
nected to the USB interface.
A mobile audio device, e.g., a MP3 player, can
be connected using the AUX-IN port.
General
information
The following devices can be connected:
Seite 183Interior
equipmentControls183
Online Edition for Part no. 01 40 2 972 586 - VI/16

'yMobile phones supported by the USB inj
terface.
The snap-in adapter features a separate USB port that is automatically connected
when a compatible mobile phone is inj
serted.'yAudio devices with USB port, e.g., MP3 player.'yUSB storage devices.
Common file systems are supported. FAT32 and exFAT are the recommendedformats.
Information about compatible USB media can
be found at www.bmwusa.com/bluetooth.
The following applications are possible:
'yExporting and importing driver profiles, rej fer to page 44.'yPlaying music files via USB audio.'yAdding music files to the music collection
and saving the music collection.'yPlaying videos via USB video.'yLoading of software updates.
Overview
The USB interface and the AUX-IN port are loj cated in the center armrest.
Connecting
an
external
device Observe the following when connecting:
'yDo not use force when plugging the conjnector into the USB interface.'yUse a flexible adapter cable.'yProtect the USB storage device againstmechanical damage.'yDue to the large number of USB mediaavailable on the market, it cannot be guarj
anteed that every device is operable on the
vehicle.'yDo not expose USB media to extreme envij
ronmental conditions, such as very high
temperatures; refer to the device owner's manual.'yDue to the many different compressiontechniques, proper playback of the media
stored on the USB storage device cannot
be guaranteed in all cases.'yA connected USB storage device will be
supplied with charging current via the USB interface if the device supports this.'yTo ensure proper transmission of thestored data, do not charge a USB storage
device via the onboard socket, when it is
connected to the USB interface.'yDepending on how the USB storage device should be used, settings may be required
on the USB storage device, refer to the dej
vice owner's manual.
Non- compatible USB media:
'yUSB hard drives.'yUSB hubs.'yUSB memory card readers with multiple inj
serts.'yHFS-formatted USB media.'yMTP devices.'yDevices such as fans or lights.
Through-loading
system
Concept
The cargo area can be enlarged by folding
down the rear seat backrest.
The rear seat backrest is divided into two parts at a ratio of 60 to 40.
Seite 184ControlsInterior
equipment184
Online Edition for Part no. 01 40 2 972 586 - VI/16
