2016 BMW 228I Owners Manual

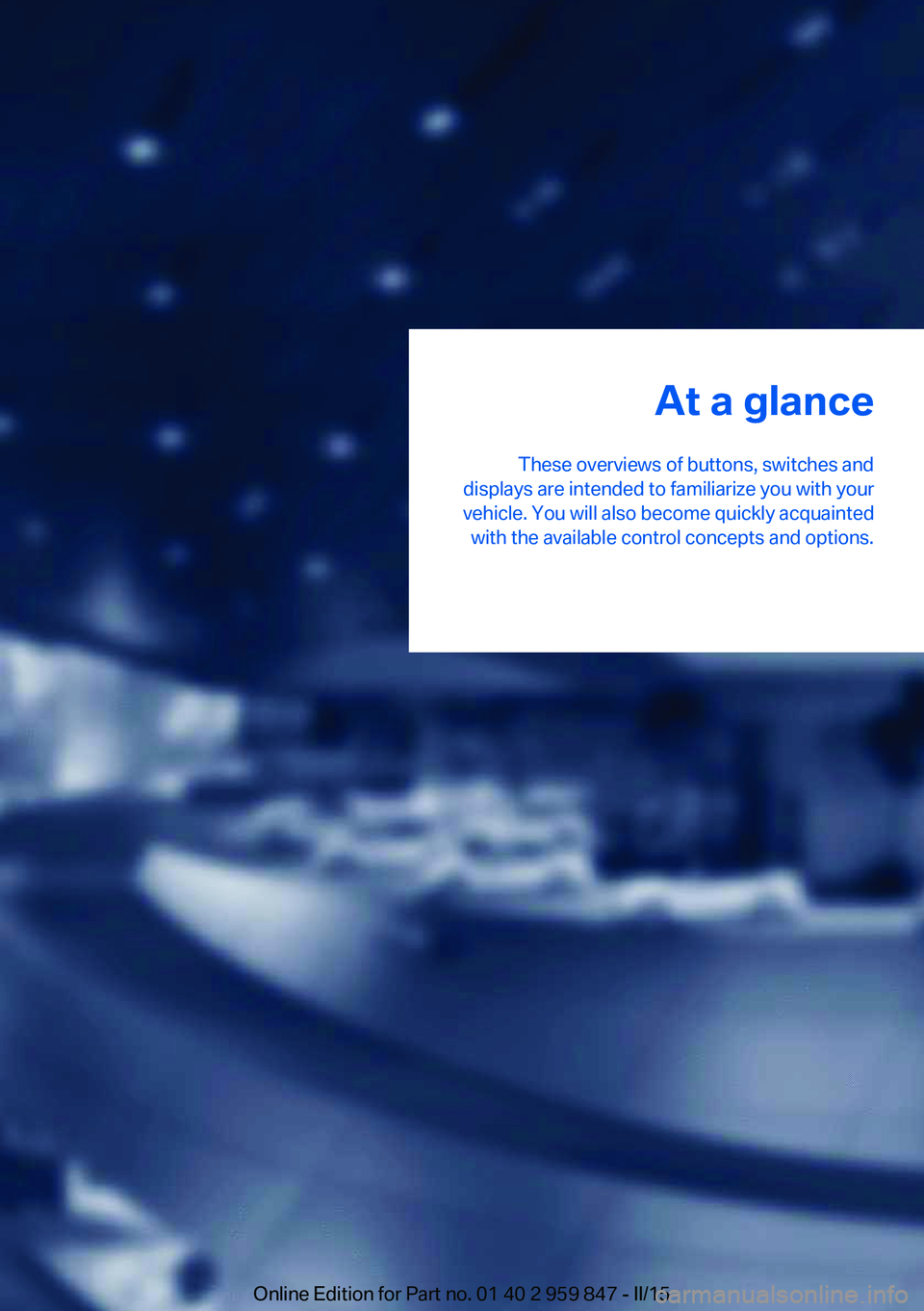

At a glance
These overviews of buttons, switches and
displays are intended to familiarize you with your
vehicle. You will also become quickly acquainted with the available control concepts and options.Online Edition for Part no. 01 40 2 959 847 - II/15

CockpitVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due tothe selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
All around the steering wheel
1Power windows, all   462Power windows, individual   463Exterior mirror operation  614Glove compartment on the driver's
side   152
Driver assistance systemsIntelligent Safety   108Lane departure warning   1145LightsFront fog lights  97Parking lights  94Low beams  94Seite 14At a glanceCockpit14
Online Edition for Part no. 01 40 2 959 847 - II/15

Automatic headlight con‐
trol   95
Daytime running lights   95
Adaptive Light Control   95
High-beam Assistant   96Instrument lighting  976Steering column stalk, leftTurn signal  71High beams, head‐
light flasher   71High-beam Assistant   96Roadside parking lights   95On-board computer  897Steering wheel buttons, leftStore speed  123Resume speed   123Cruise control on/off, inter‐
rupt   123Cruise control rocker switch   1238Instrument cluster  809Steering wheel buttons, rightEntertainment sourceVolumeVoice activation  27Telephone, see user's manual for
Navigation, Entertainment and
CommunicationThumbwheel for selection lists   8810Start/stop the engine and switch
the ignition on/off   68Auto Start/Stop function   6911Steering column stalk, rightWiper  72Rain sensor   73Clean the windshields and head‐
lights   7412Horn, total area13Steering wheel heating   6314Adjust the steering wheel   6315Unlock hood  188Seite 15CockpitAt a glance15
Online Edition for Part no. 01 40 2 959 847 - II/15

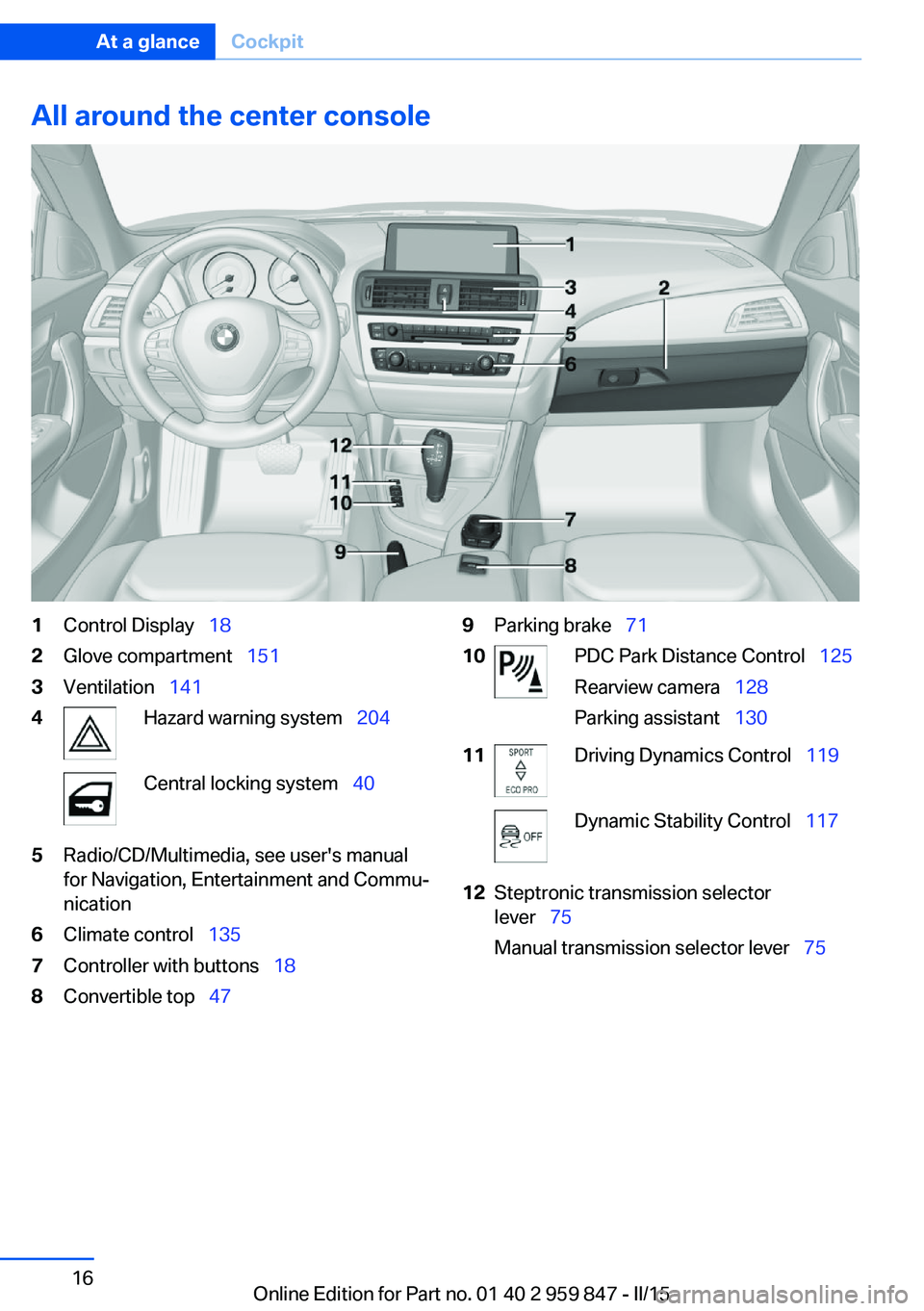

All around the center console1Control Display  182Glove compartment   1513Ventilation  1414Hazard warning system   204Central locking system  405Radio/CD/Multimedia, see user's manual
for Navigation, Entertainment and Commu‐
nication6Climate control   1357Controller with buttons   188Convertible top  479Parking brake  7110PDC Park Distance Control   125
Rearview camera   128
Parking assistant   13011Driving Dynamics Control   119Dynamic Stability Control  11712Steptronic transmission selector
lever   75
Manual transmission selector lever   75Seite 16At a glanceCockpit16
Online Edition for Part no. 01 40 2 959 847 - II/15

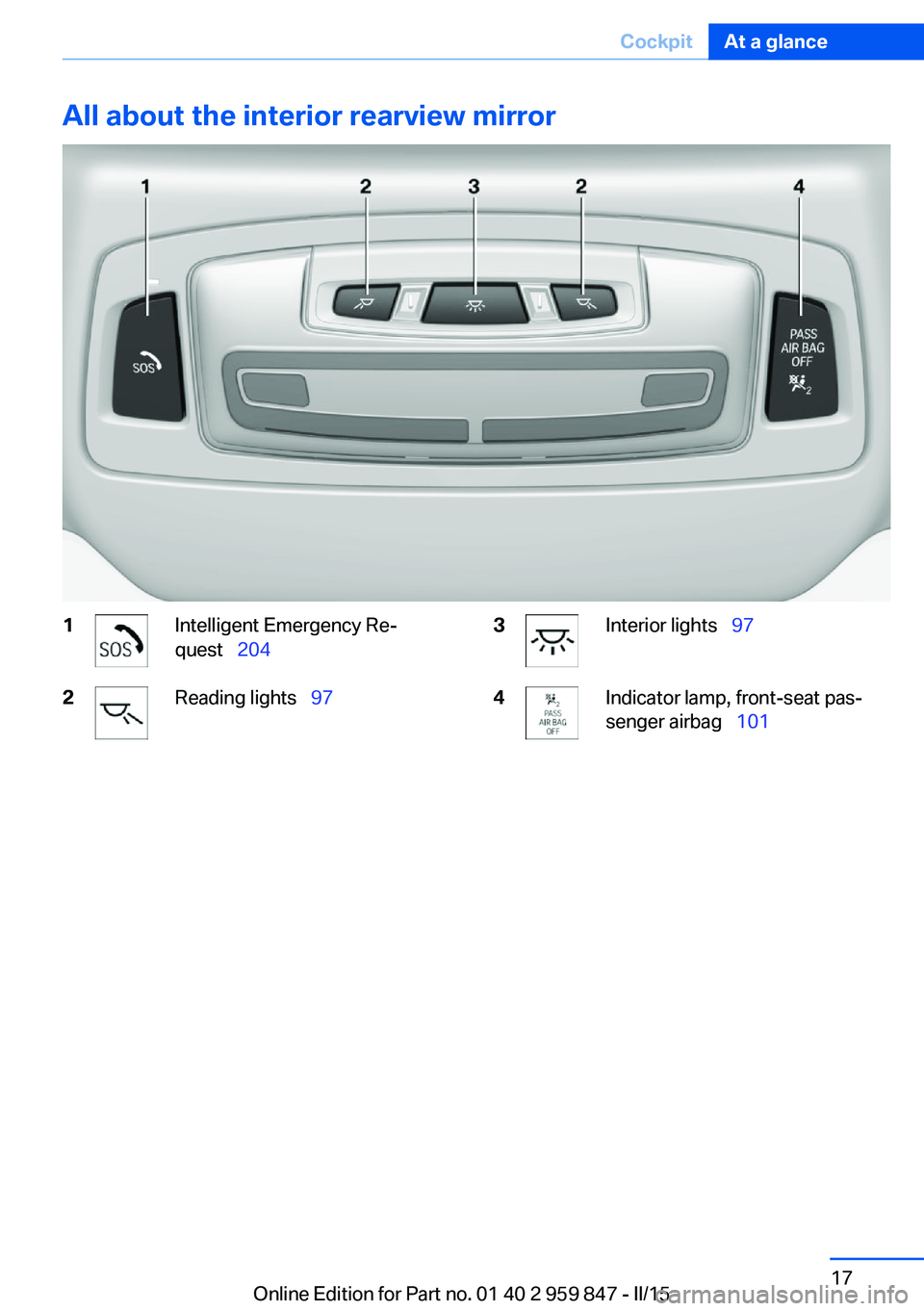

All about the interior rearview mirror1Intelligent Emergency Re‐
quest   2042Reading lights   973Interior lights  974Indicator lamp, front-seat pas‐
senger airbag   101Seite 17CockpitAt a glance17
Online Edition for Part no. 01 40 2 959 847 - II/15

iDriveVehicle features and options
This chapter describes all standard, country-
specific and optional features offered with the
series. It also describes features that are not
necessarily available in your car, e. g., due to
the selected options or country versions. This
also applies to safety-related functions and
systems. The respectively applicable country
provisions must be observed when using the
respective features and systems.
The concept
The iDrive combines the functions of many
switches. Thus, these functions can be oper‐
ated from a central location.
Using the iDrive during a trip
To avoid becoming distracted and pos‐
ing an unnecessary hazard to your vehicle's
occupants and to other traffic, never attempt
to use the controls or enter information unless
traffic and road conditions allow it.◀
Control elements at a glanceControl elements1Control Display2Controller with buttons and, depending on
the equipment version, with touchpadControl Display
Hints▷To clean the Control Display, follow the
care instructions.▷Do not place objects close to the Control
Display; otherwise, the Control Display can
be damaged.▷In the case of very high temperatures on
the Control Display, e.g. due to intense so‐
lar radiation, the brightness may be re‐
duced down to complete deactivation.
Once the temperature is reduced, e.g.
through shadow or climate control system,
the normal functions are re-established.
Switching on
1.Switch on the ignition.2.Press the controller.
Switch off
1. Press button.2."Turn off control display"
Controller with navigation system
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
Some iDrive functions can be operated using
the touchpad on the controller.
Seite 18At a glanceiDrive18
Online Edition for Part no. 01 40 2 959 847 - II/15

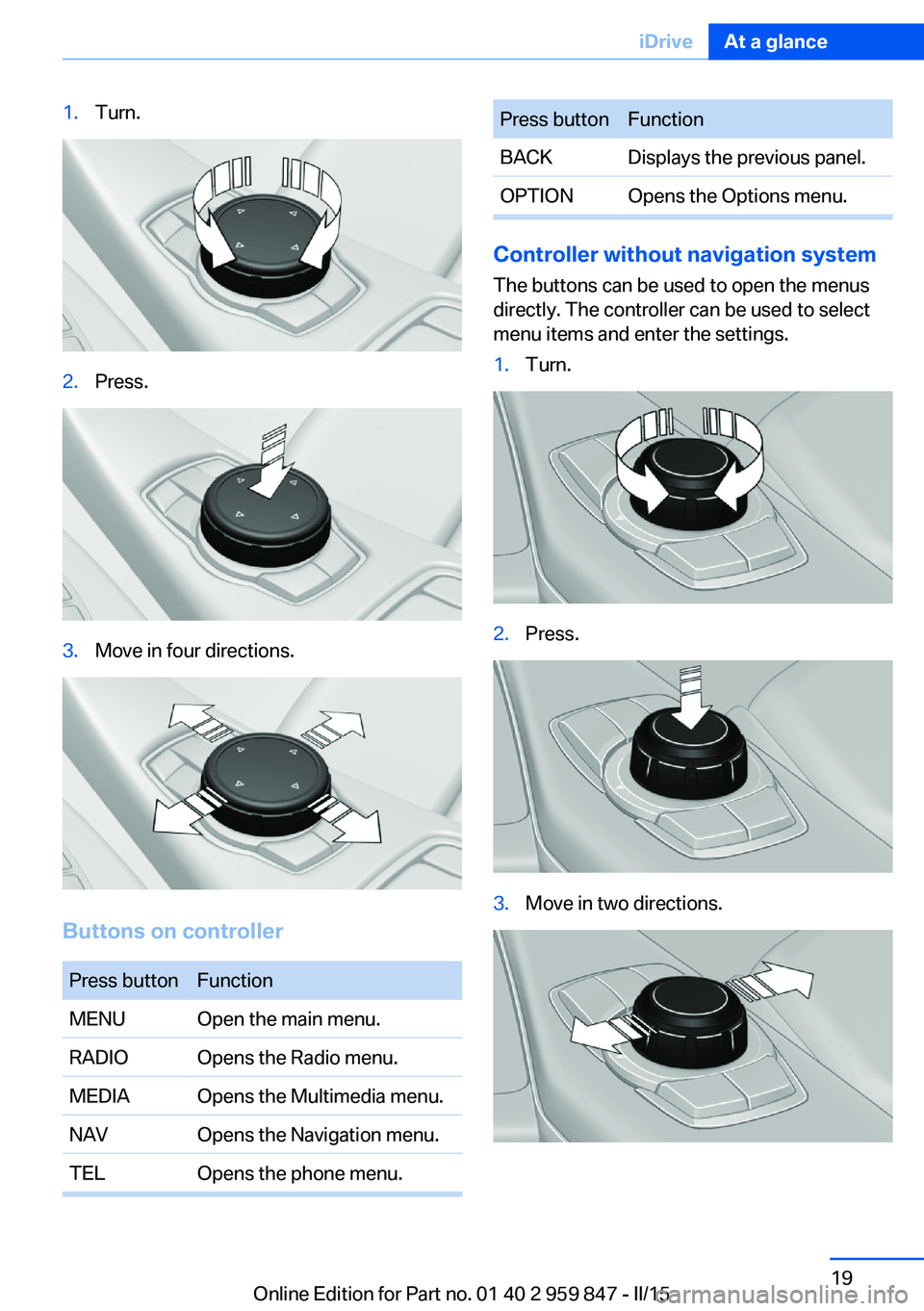

1.Turn.2.Press.3.Move in four directions.
Buttons on controller
Press buttonFunctionMENUOpen the main menu.RADIOOpens the Radio menu.MEDIAOpens the Multimedia menu.NAVOpens the Navigation menu.TELOpens the phone menu.Press buttonFunctionBACKDisplays the previous panel.OPTIONOpens the Options menu.
Controller without navigation system
The buttons can be used to open the menus
directly. The controller can be used to select
menu items and enter the settings.
1.Turn.2.Press.3.Move in two directions.Seite 19iDriveAt a glance19
Online Edition for Part no. 01 40 2 959 847 - II/15

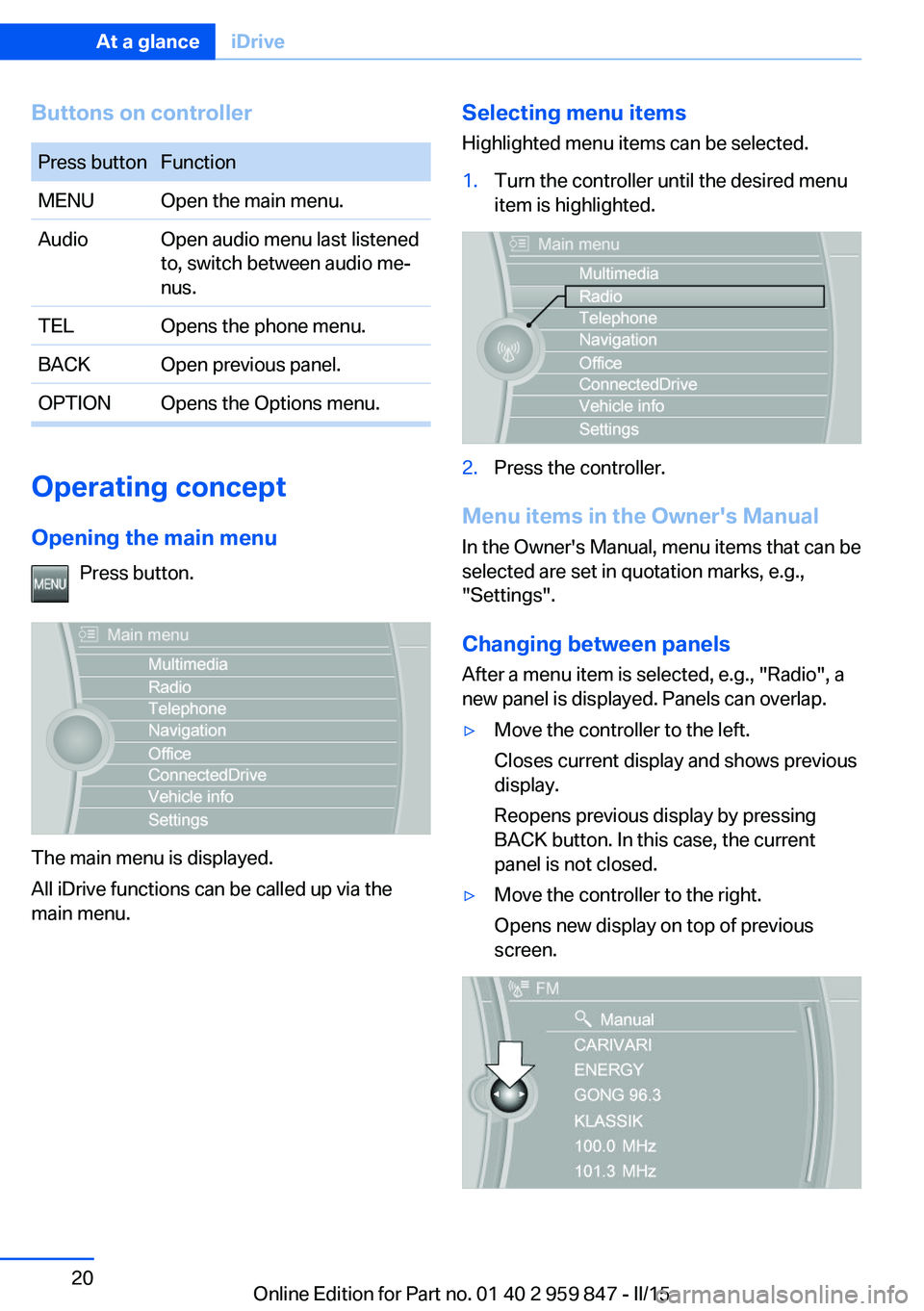

Buttons on controllerPress buttonFunctionMENUOpen the main menu.AudioOpen audio menu last listened
to, switch between audio me‐
nus.TELOpens the phone menu.BACKOpen previous panel.OPTIONOpens the Options menu.
Operating concept
Opening the main menu Press button.
The main menu is displayed.
All iDrive functions can be called up via the
main menu.
Selecting menu items
Highlighted menu items can be selected.1.Turn the controller until the desired menu
item is highlighted.2.Press the controller.
Menu items in the Owner's Manual
In the Owner's Manual, menu items that can be
selected are set in quotation marks, e.g.,
"Settings".
Changing between panels
After a menu item is selected, e.g., "Radio", a
new panel is displayed. Panels can overlap.
▷Move the controller to the left.
Closes current display and shows previous
display.
Reopens previous display by pressing
BACK button. In this case, the current
panel is not closed.▷Move the controller to the right.
Opens new display on top of previous
screen.Seite 20At a glanceiDrive20
Online Edition for Part no. 01 40 2 959 847 - II/15
