Downloaded from www.Manualslib.com manuals search engine Emergency assistance
car to keep your balance and take care not
to slip.

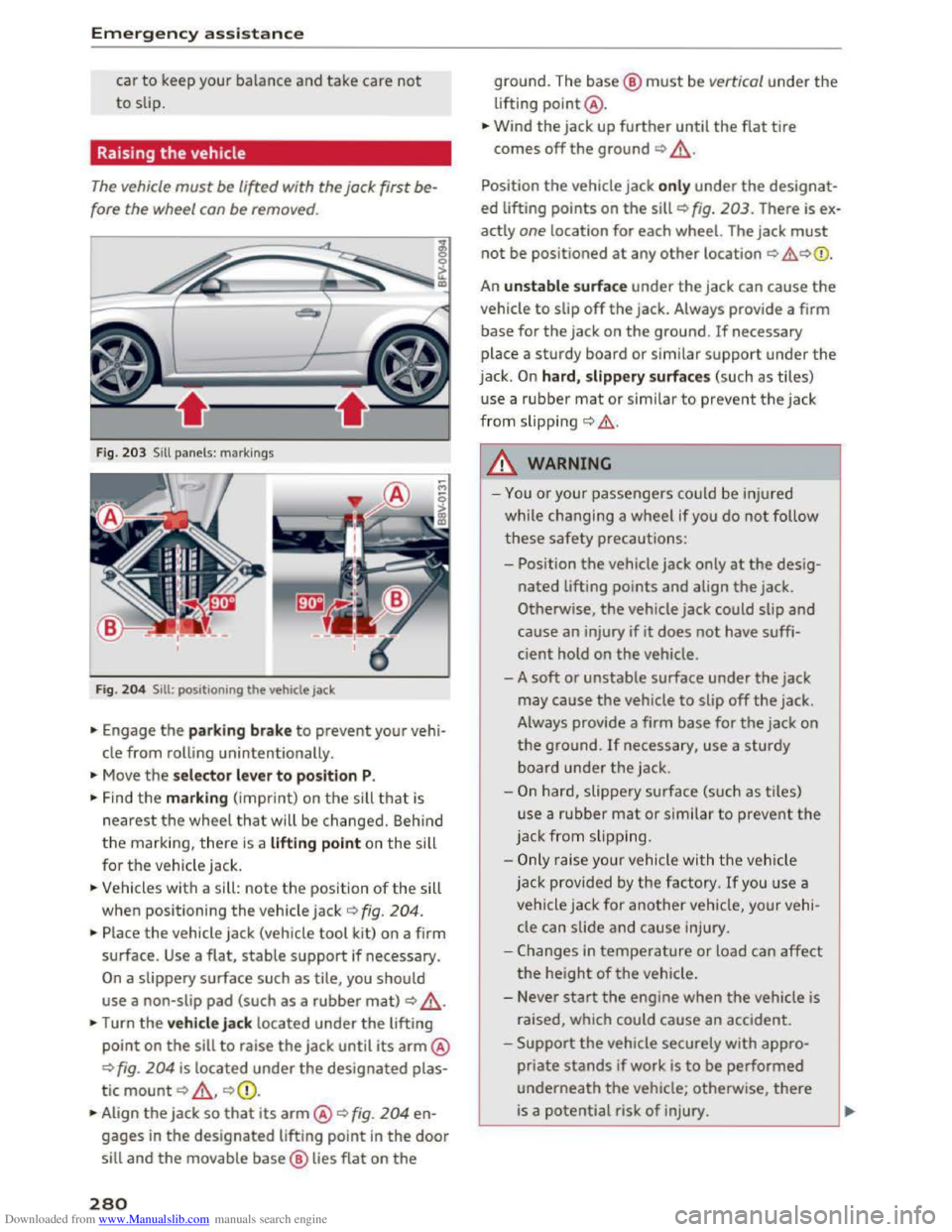

Raising the vehicle
The vehicle must be li~ed w ith the jock first be­
fore the wheel can be removed.
-fi·--
Fig. 203 Sill panels: markings
Fig.
204 Sill : po sitioning th e ve hicl e jack
... Engage the parking brake to prevent your vehi­
cle from rolling unintentionally.
... Move the selector lever to position P.
... Find the marking (imprint) on the sill that is
nearest the wheel that will be changed. Behind
the marking, there is a lifting point on the sill
for
the vehicle jack.
... Vehicles with a sill: note the position of the sill
when positioning
the vehicle jack o fig. 204.
... Place the vehicle jack (vehicle tool kit) on a firm
surface.
Use a flat, stable support if necessary.
On a slippery surface such as tile, you should
use a non-slip pad (such as a rubber mat) o _&.
... Turn the vehicle jack located under the lifting
point on the sill to raise the jack until its arm@
c:> fig. 204 is located under the designated plas­
tic
mount c:> _&, c:>Q).
... Align the jack so that its arm@o fig. 204 en­
gages in the designated lifting point in the door
sill and the movable base@ lies flat on the
280
ground. The base@ must be vertical under the
lifting point@ .
... Wind the jack up further until the flat tire
comes off the ground c:> _&.
Position the vehicle jack only under the designat­
ed lifting points on the sill c:> fig. 203. There is ex­
actly
one location for each wheel. The jack must
not be positioned at any other location c:> .&,c:>Q).
An unstable surface under the jack can cause the
vehicle to slip off the jack. Always provide a firm
base for the jack on the ground. If necessary
place a
sturdy board or similar support under the
jack. On hard, slippery surfaces (such as tiles)
u
se a rubber mat or similar to prevent the jack
from slipping c:> .&..
A WARNING
- I
-You or your passengers could be injured
while changing a
wheel if you do not follow
these safety precautions:
- Position
the vehicle jack only at the desig­
nated lifting points and align the jack.
Otherwise,
the vehicle jack could slip and
cause an injury if it does not have suffi­
cient hold on the vehicle.
- A
soft or unstable surface under the jack
may cause the vehicle to slip off the jack .
Always provide a firm
base for the jack on
the ground. If necessary, use a sturdy
board under the jack .
-
On hard, slippery surface (such as tiles)
use a
rubber mat or similar to prevent the
jack
from s lipp ing.
-
Only rais e your vehicle with the vehicle
jack provided by
the factory. If you use a
vehicle jack for
another vehicle, your vehi­
cle can slide
and cause injury .
- Changes
in temperature or load can affect
the height of the vehicle.
- Never
start the engine when the vehicle is
raised, which could
cause an accident .
-
Support the vehicle securely with appro­
priate stands if work is to be performed
underneath the vehicle; otherwise, there
is a potential risk of injury.

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
-To help prevent injury to yourself and your
passengers:
-Do not raise the vehicle until you are sure
the jack is securely engaged.
-Passengers must not remain in the vehicle
when it is jacked up.
- Make
sure that passengers wait in a safe
place away from the vehicle and well away
from
the road and traffic.
- Make
sure jack position is correct, adjust
as necessary and then continue to raise
the jack.
- Changes
in temperature or load can affect
the height of the vehicle.
CD Note
Do not lift the vehicle by the sill. Position the
vehicle jack only at the designated lifting
points on the sill. Otherwise, your vehicle will
be damaged.
Taking the wheel off/installing the spare
Follow these instructions step-by-step for chang­
ing the wheel.
Fig. 205 Chang ing a wheel: using the screwdr ive r handle
(with
the b lade remo ved) to turn the bolts
Fig. 206 Changing a wheel: alignme nt pin inside the top
hole
Emergency assistance
After you have loosened all wheel bolts and
raised
the vehicle off the ground, remove and re­
place
the wheel as follows:
Removing the wheel
.... Use the hexagonal socket in the screwdriver
handle
to completely remove the topmost
wheel bolt and set it aside on a clean surface
¢fig. 205.
.... Screw the threaded end of the alignment pin
from the tool kit hand-tight into the empty bolt
hole ¢fig. 206.
.,. Then remove the other wheel bolts as described
above .
.,. Take off the wheel leaving the alignment pin in
the bolt hole ~CD.
Putting on the compact spare wheel
... Lift the spare wheel and carefully slide it over
the alignment pin to guide it in place ¢(0.
... Use the hexagonal socket in the screwdriver
handle to screw in and tighten all wheel bolts
slightly .
.,. Remove the alignment pin and insert and tight­
en the remaining wheel bolt slightly like the
rest .
.... Turn the jack handle counter-clockwise to lower
the vehicle until the jack is fully released .
.... Use the wheel bolt wrench to tighten all wheel
bolts firmly ¢ page 2 79. Tighten them cross­
wise,
from one bolt to the (approximately) op­
posite one, to keep the wheel centered.
CD Note
When removing or installing the wheel, the
rim could hit the brake rotor and damage the
rotor. Work carefully and have a second per­
son help you.
@ Tips
Never use the hexagonal socket in the handle
of the screwdriver to loosen or tighten the
wheel bolts.
-Pull the reversible blade from the screwdriv­
er before you use the hexagonal socket in
the handle to turn the wheel bolts.
281

Downloaded from www.Manualslib.com manuals search engine Emergency situations
Raising the vehicle
Lifting with workshop hoist and with floor
jack
The vehicle may only be li~ed at the lifting
points illustrated.
Fig. 220 Front lifting point
Fig.
221 Rear lifting point
.,. Read and heed WARNING¢_&,
.,. locate lifting points ¢ fig. 220 and¢ fig. 221.
.,. Adjust lifting arms of workshop hoist or floor
jack
to match vehicle lifting points.
.,. Insert a rubber pad between the floor jack/
workshop hoist and the lifting points.
The vehicle jack mode*
must be activated so that
the automatic adjustment of the Adaptive Air
Suspension*
does not make it more d ifficult to
raise the vehicle with the floor jack.
If you must lift your vehicle with a f loor jack to
work underneath, be s ure the ve hicle is safely
s
upported on stands i ntended for this purpos e .
Front lifting point
The lifting point is located on the floor pan rein­
forcement about at the same level as the jack
mounting point¢ fig. 220. Do not lift the vehi­
cle at the vertical sill reinfor cement.
292
Rear lifting point
The lifting point is located on the vertical rein­
forcement of the lower sill for the on-board jack
¢fig. 221.
Lifting with vehicle jack
Refer
to¢ page 280 .
..&. WARNING
-To reduce the r isk of serious injury and vehi­
cle damage.
-Always lift the vehicle only at the special
workshop
hoist and floor jack lift points il­
lustrated ¢fig. 220 and ¢fig. 221.
-Failure to lift the vehicle at these points
could cause
the vehicle to tilt or f all from
a lift ifthere is a change in vehicle weigh t
distribution
and balance. This might hap­
pen, for example, when heavy compo­
nents such as the engine block or trans­
mission are removed.
-
When removing heavy components like
these, anchor vehicle to hoist or add corre­
sponding weights to maintain the center of
gravity. Otherwise, the vehicle might tilt or
slip off the hoist, causing serious personal
injury .
CD Note
-Be aware of the following points before lift­
ing the vehicle:
- The vehicle
should never be lifted or
jacked up from underneath the engine oil
pan, the transmission housing, the front
or rear axle or the body side members.
This could lead to serious damage.
-To avoid damage to the underbody or
chassis frame, a rubber pad must be in­
serted between the floor jack and the lift
points.
- Before driving over a work shop hoist,
check that the vehicle weight does not
exceed the permissible lifting capacity of
the hoist. ..,.
