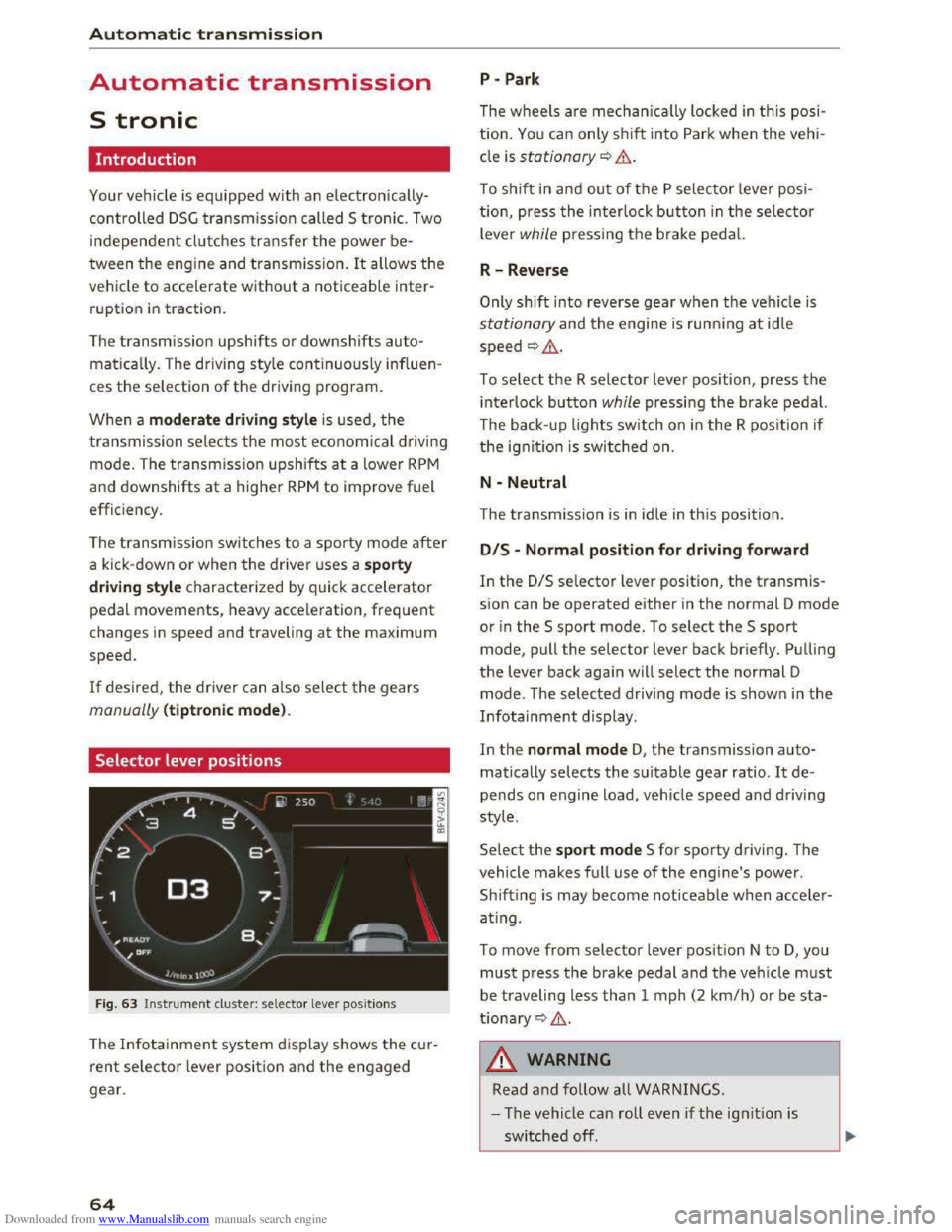

Automatic transmission
S tronic
Introduction
Your vehicle is equipped with an electronically­
controlled DSG transmission called S tronic. Two
independent clutches transfer the power be­
tween the engine and transmission. It allows the
vehicle to accelerate without a noticeable inter­
ruption in traction.
The transmission upshifts or downshifts auto­
matically. The driving style continuously influen­
ces the selection of the driving program.
When a moderate driving style is used, the
transmission selects the most economical driving
mode. The transmission upshifts at a lower RPM
and downshifts at a higher RPM to improve fuel
efficiency.
The
transmi ssion switches to a sporty mode after
a kick-down or when the driver uses a sporty
driving style
characterized by quick accelerator
pedal movements, heavy acceleration, frequent
changes in speed and traveling at the maximum
speed.
If desired, the driver can also select the gears
manually (tiptronic mode).
Selector lever positions
Fig. 63 Instrument cluster: selector lever positions
The Infotainment system d isplay shows the cur­
rent selector lever position and the engaged
gear.
64
P -Park
The wheels are mechanica lly locked in this posi ­
tion. You can only shift into Park when the vehi­
cle is stationary¢&.
To shift in and out of the P selector lever posi­
tion, press the interlock button in the selector
lever while pressing the brake pedal.
R-Reverse
Only shift into reverse gear when the vehicle is
stationary and the engine is running at idle
speed ¢,6.
To select the R selector lever position, press the
interlock button while pressing the brake pedal.
The back- up
lights switch on in the R position if
the ignition is switched on.
N -Neutral
The transmission is in idle in this position.
DIS -Normal position for driving forward
In the D/S selector lever position, the transmis­
sion can be operated either in the normal D mode
or in the S sport mode. To select the S sport
mode, pull the selector lever back briefly. Pulling
the lever back again will select the normal D
mode. The selected driving mode is shown in the
Infotainment display.
In
the normal mode D, the transmission auto­
matically selects the suitable gear ratio. It de­
pends on engine load, vehicle speed and driving
style.
Select the sport mode S for sporty driving. The
vehicle
makes full use of the engine's power.
Sh i
fting is may become noticeable when acce ler­
ating.
To move from selector lever position N to D, you
must press the brake pedal and the vehicle must
be traveling less than 1 mph (2 km/h) or be sta­
tionary ¢,6.
A WARNING
Read and follow all WARNINGS.
- The vehicle can roll
even if the ignition is
switched off.

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....
If the indicator light turns on, the steering wheel
may be more difficult to move or more sensitive
than usual. The steering wheel may also be at an
angle when driving straight.
Drive slow ly to an authorized Audi dealer or au­
thorized Audi Service Facility to have the mal­
function corrected.
@ Tips
If the. or '~ij indicator light only stays on
for a short time, you may continue driving.
ALL wheel drive (quattro)
In all wheel drive, all four wheels ore powered.
General information
In all wheel drive, the driving power is divided be­
tween all four wheels. This happens automatical­
ly depending on your driving behavior as well as
the current road conditions. c::> page 87, Electron­
ic
stabilization control (ESC).
The all wheel drive concept is designed for high
engine power. Your vehicle is exceptionally pow­
erful and has excellent driving characteristics
both under normal driving conditions and on
snow and ice. Always read and follow safety pre­
cautions c::> &..
Winter tires
By using all wheel drive, your vehicle has good
forward motion with standard tires in winter con­
ditions. However,
in winter we recommend using
winter or all season tires on all four wheels, be­
cause this will improve the broking effect.
Snow chains
If there are snow chain laws, snow chains must
also be used on vehicles with all wheel drive
c::> page 265, Snow chains.
Replacing tires
For vehicles with all wheel drive, only wheels with
the same rolling circumference should be used.
Avoid
wheels with different tread depths
c::> page 257, New tires or wheels.
Intelligent Technology
Offroad vehicle?
Your Audi is not an offroad vehicle -there is not
enough ground clearance. For this reason, avoid
difficult
terrain.
&,,!!_ARNING
-I
-Also, in vehicles with all wheel drive, adapt
your driving style to the current road and
traffic conditions. Do not let the increased
safety provided tempt you into taking risks,
because this increases the risk of an acc i­
dent.
- The braking ability
of your vehicle is limited
to the traction of the wheels. In this way, it
is not different from a two wheel drive vehi­
cle.
Do not be tempted to accelerate to a
h
igh speed when the road is slippery this in­
creases the risk of an accident.
- Note
that on wet streets, the front wheels
can "hydrop lane" if driving at speeds that
are too high. Unlike front wheel drive
veh icl
es, the engine does not rev higher sud­
denly when the vehicle begins hydroplaning .
For
this reason, pay attention to the road
conditions
regard less of your speed.
Rear spoiler
The extendoble rear spoiler increases driving sta­
bility.
Fig. 89 Center console: button for the rear spoiler
The rear spoiler retracts and extends. It can be
activated in various operating modes (manual
mode or automatic mode) .
91

Downloaded from www.Manualslib.com manuals search engine ~Only use winter tires that are approved for your
vehicle.
~Please note that the maximum permitted
speed may be lower with winter tires q ,&.. An
authorized Audi dealer or authorized Audi Serv­
ice Facility
can inform you about the maximum
permitted speed for your tires.
~Check the tire pressure after installing wheels
qpage260.
The effectiveness of winter tires is reduced great­
ly when
the tread is worn down to a depth of
0.157 in (4 mm). The characteristics of winter
tires also decrease greatly as the tire ages, re­
gardless
of the remaining tread.
A WARNING
1-=---Never drive faster than the maximum per-
mitted speed for your tires. This could cause
the tires to heat up too much. This increases
the risk
of an accident because it can cause
the
tire to burst.
- Always
adapt your driving to the road and
traffic conditions. Drive carefully and reduce
your speed on icy or slippery roads.
Even
winter tires can lose traction on black ice.
@ For the sake of the environment
Reinstall summer tires at the appropriate
time, because they provide better handling
when roads are free
of snow and ice. Summer
tires cause
Less road noise, tire wear and fuel
consumption.
(j) Tips
You can also use all season tires instead of
winter tires. Please note that in some coun­
tries where
winter tires are required, only
winter tires with the & symbol may be per­
mitted.
Snow chains
Snow chains not only improve the driving in win­
ter road conditions, but also the braking.
~Only install snow chains on the front wheels.
This applies also
to vehicles with all wheel
drive*.
Wheels
~Check and correct the seating of the snow
chains
after driving a few feet, if necessary. Fol­
low
the instructions from the manufacturer.
~Note the maximum speed of 30 mph (50 km/
h). Note the Local regulations.
Use of snow chains is only permitted with certain
rim/tire combinations due to technical reasons.
Check with an authori zed Audi dealer or author­
ized Audi Service Facility
to see if you may use
snow chains .
You must remove the snow chains on roads with­
out snow . Otherwise, you could impair driving
ability and damage the tires.
A WARNING
Using incorrect snow chains or installing snow
chains incorrectly
can result in loss of vehicle
control, which increases
the risk of an acci­
dent.
CD Note
- Snow chains can damage the rims/wheel
covers* if the chains come into direct con·
tact with them. Remove the wheel covers*
first. Use coated snow chains.
-
Using snow chains that add more than 0.53
in (0.53 in) of height can severely damage
the wheel housings and
other vehicle com­
ponents.
(D Tips
When using snow chains, it may be useful to
switch on sport mode ~page 88.
Low aspect ratio tires
Your Audi is factory-equipped with low aspect ra­
tio tires. These tires have been thoroughly tested
and been selected specifically
for your model for
their superb performance, road feel and handling
under a variety
of driving conditions. Ask your au­
thorized Audi dealer
for more details .
The
Low aspect ratio of these tires is indicated by
a numeral
of SS or less in the tire's size designa­
tion. The numeral represents the ratio of the
tire's sidewall height in relation to its tread width..,.
265

Downloaded from www.Manualslib.com manuals search engine ...... N
> u. CX> ...... u:>
"' ...... u:> ......
ability to stop on wet pavement as measured un­
der controlled conditions on specified govern­
ment test surfaces of asphalt and concrete. A tire
marked
C may have poor traction performance
c) .&..
Tempera ture
The temperature grades are A (the highest), B,
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory
test wheel.
Sustained high temperature can cause
the mate­
r ial of
the tire to degenerate and reduce tire life,
and excess i
ve temperature can lead to sudden
tire failur e
c) .&..
The grade C corresponds to a leve l of perform ­
ance which all passenger car tires
must meet un­
der
the Federal Motor Vehicle Safety Standard
No. 109. Grades Band A represent higher levels
of performance on
the laboratory test wheel than
the minimum required by law.
A WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor­
nering, hydroplaning or peak traction charac­
teristics.
&_WARNING
-1
The temperature grade for this tire is estab-
lished for a t
ire that is properly inflated and
not overloaded. Excessive speed, underinfla­
tion, or excessive loading, either separately or
in combination, can cause heat buildup and
possible t
ire failure.
&_WARNING
Temperature grades apply to tires that are
properly inflated and not over or under inflat­
ed.
Wheel s
Tire pressure monitoring
system
CD General notes
Each tire, including the spare (if provided),
should be checked monthly when cold and inflat ­
ed to
the inflation pressure recommended by the
vehicle manufacturer on the vehicle placard or
tire inflation pressure label. (If your vehicle has
tires
of a different size than the size indicated on
the vehicle placard or tire inflation pressure la­
bel, you shou ld determine
the proper tire infla­
tion pressure for those tires).
As an added safety feature, your vehicle has been
equipped with a tire pressure monitoring system
(TPMS) that illuminates a low tire pressure tell­
tale when one or more of your tires
is significant­
ly under-inflated. Accordingly, when the low tire
pressure telltale illuminates, you should stop and
check your tires as soon as possible, and inflate
them
to the proper pressure. Driving on a signifi ­
cantly under-inflated tire causes
the tire to over­
heat and can lead to tire failure . Under-inflation
also reduces fuel efficiency and tire tread life,
and may affect
the vehicle's handling and stop­
ping ability .
Please note that the TPMS is not a substitute for
proper tire maintenance, and it
is the driver's re­
spo nsibility
to maintain correct tire pressure,
even if under-inflation has
not reached the level
to trigger
illumination of the TPMS low tire pres­
sure telltale.
Your vehicle has also been equipped with a TPMS
malfunction indicator to indicate when the sys­
tem is not operating properly. The TPMS mal­
function
indicator is combined with the low tire
pressure telltale. When the system detects a
malfunction,
the telltale will flash for approxi­
mately one minute and then remain continuously
illuminated. This sequence
will continue upon
subsequent vehicle start-ups as long as the mal­
function exists.
When
the malfunction indicator is illuminated,
the system may not be able to detect or signal
low tire pressure as intended.
TPMS malfunctions
may occur for a variety of reasons, including
the ""'
267
