2016 AUDI TT COUPE dimensions

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
Battery replacement
The new battery must have the same specifica­
tions and dimensions as the original equipment
battery .
Intelligent energy management in your vehicle is
responsible for distributing the electrical energy
throughout your vehicle Q page 92. The intelli­
gent energy management system will keep the
engine battery charged better than vehicles with­
out this system. To make sure the additional
electrical energy is available once again after you
have
changed the battery, we recommend that
you install batteries of the same type and manu­
facture only (the same as those insta lled at the
time your vehicle was delivered). Specificat ions
are listed on the battery housing. Your author­
ized dealer must code the battery in the energy
management system to enable you to use the en­
ergy management functions correctly after re­
placing the battery.
The new
battery must have the same capacity,
voltage (12-volts) , amperage, construction and
plug sealing.
When installing the battery, make sure the igni­
tion and all electrical consumers are switched
off.
CD Note
Make
sure the ventilation hose on the side of
the battery is connected, otherwise fumes or
battery acid can leak out.
@ For the sake of the environment
Because
of the problem of proper disposal of
a battery, we recommend your authorized
Audi dealer change the battery for you. Bat­
teries contain sulfuric acid and lead and must
always be disposed of properly in compliance
with all
environmental regulations. Disposing
of vehicle batteries improperly is very danger­
ous to the environment.
248
Windshield washer
system
Fig. 190 Eng ine compartment: washer flu id reservo ir cap
The windshield washer reservoir W contains the
cleaning solution for the windsh ield and the
headlight washer system* Q page 238, fig. 184.
The reservoir capacity is found in Q page 299.
To reduce the risk of lime scale deposits on the
spray nozzles, use clean water with low amounts
of calcium. Always add window cleaner to the wa­
ter. When the outside temperatures are cold, an
anti-freezing
agent should be added to the water
so that it does not freeze .
CD Note
- The
concentration of anti-freezing agent
must be adjusted to the vehicle operating
conditions in the respective climate. A con­
centration that is too high can lead to vehi­
cle damage.
-Never add radiator anti-freeze or other addi­
tives to the washer fluid.
-
Do not use a glass cleaner that contains
paint solvents, because this can damage the
paint.

Downloaded from www.Manualslib.com manuals search engine Vehicle capacity weight
The vehicle capacity weight (max. load) is listed
either on the driver's side B-pillar or inside the
fuel filler flap.
& WARNING
- The
actual Gross Axle Weight Rating at the
front and rear axles should not exceed the
permissible weights, and their combination
must not exceed the Gross Vehicle Weight
Rating .
- Exceeding
permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury .
Dimensions
The dimensions can vary depending on the model
and equipment.
Length
Width
Width
across the mirrors
Height at curb weight
When driving on poor roads, by curbs and on
steep ramps, make sure that low-lying compo­
nents such as the spoiler and exhaust system do
Capacities
Fuel tank
Windshield and headlight washer system*
Technical data
@ Note
- The vehicle capacity
weight figures apply
when the load is distributed evenly in the
vehicle (passengers and luggage). When
transporting a heavy load in the luggage
compartment, carry the load as near to the
rear axle as possible so that the vehicle's
handling is not impaired.
-Do not exceed the maximum permissible
axle loads or the maximum gross vehicle
weight. Always remember that the vehicle's
handling will be affected by the extra load.
Therefore, adjust your speed accordingly.
- Always
observe local regulations.
in (mm) 164.7 (4,184)
in (mm) 72.l (1832)
in (mm) 77.4 (1966)
in (mm) 53.3 (1353)
not come into contact with these or they could be
damaged. This applies especially when the vehi­
cle is fully loaded.
gal (l) approx. 14.5 (55)
gal (l) approx. 2.4 (9.0)
299

Downloaded from www.Manualslib.com manuals search engine Daytime running light . . . . . . . . . . . . . . . . . . 36
Declarat ion of compliance
Audi side assist . . . . . . . . . . . . . . . . . . . . . 297
Cell phone package . . . . . . . . . . . . . . . . . . 297
Convenience key . . . . . . . . . . . . . . . . . . . . . 297
Electronic immobilizer. . . . . . . . . . . . . . . . 297
Garage door opener (Home link) . . . . . . . . 297
Remote control key . . . . . . . . . . . . . . . . . . 297
Defrosting the windshie ld . . . . . . . . . . . . . . . 54
Defrosting (windows) . . . . . . . . . . . . . . . . . . . 54
DEF (instrument cluster) . . . . . . . . . . . . . . . . 23
Deleting
Bluetooth device . . . . . . . . . . . . . . . . . . . .
119
Call list . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Contact.... ................... ..... 119
Favorites ... ................... . 114, 137
Home address . . . . . . . . . . . . . . . . . . . . . . 136
Deluxe automatic climate control
refer to Climate control system (automatic) .53
Demo mode
refer to Presentation mode . . . . . . . . . . . . 137
Destination on the map . . . . . . . . . . . . . . . . 133
Determining correct load limit . . . . . . . . . . 263
Digital compass . . . . . . . . . . . . . . . . . . . . . . . 42
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 299
Dimming the rearview mirror . . . . . . . . . . . . 40
Directory .... .. ................. . 117, 133
Connection settings . . . . . . . . . . . . . . . . . . 167
Free text search .......... .. .. .. ..... 117
Memory capacity . . . . . . . . . . . . . . . . . . . . 119
Navigation destination . . . . . . . . . . . . . . . 133
Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Sort order . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Storing a destination . . . . . . . . . . . . . . . . . 13 7
Symbo ls . . . . . . . . . . . . . . . . . . . . . . . . . . .
133
Directory entry
refer to Contact . . . . . . . . . . . . . . . . . . . . . 118
Display
Multifunction steering wheel . . . . . . . .
20, 22
Navigation map . . . . . . . . . . . . . . . . . . . . . 139
Traffic information . . . . . . . . . . . . . . . . . . 143
also refer to Infotainment system display 166
Distance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Door/rear lid warning . . . . . . . . . . . . . . . . . . . 19
Driver information system . . . . . . . . . . . . . . . 22
CD/radio display . . . . . . . . . . . . . . . . . . . . . . 19
Door/rear lid warning . . . . . . . . . . . . . . . . . 19
Index
Exterior temperature display . . . . . . . . . . . 19
Indicator lights . . . . . . . . . . . . . . . . . . . . . . . 9
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
On-board
computer . . . . . . . . . . . . . . . . . . . 23
Service interval display . . . . . . . . . . . . . . . 249
Switching displays . . . . . . . . . . . . . . . . . 20, 22
Drives
refer to Media drives . . . . . . . . . . . . . . . . . 149
Drive select . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Driving economically . . . . . . . . . . . . . . . . . . . 57
Driving safely . . . . . . . . . . . . . . . . . . . . . . . . 171
Driving through water . . . . . . . . . . . . . . . . . . 56
Driving time . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Dust filter
refer to Pollutant filter . . . . . . . . . . . . . . . . 52
DVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Parental control . . . . . . . . . . . . . . . . . . . . . 162
Voice recognit ion system . . . . . . . . . . . . . 108
Dynamic volume
refer to Entertainment volume . . . . . . . . . 169
E
E-mail 115
Economy route . . . . . . . . . . . . . . . . . . . . . . . 138
Electromechanical parking brake
refer to Parking brake . . . . . . . . . . . . . . . . . 61
Electromechanical steering . . . . . . . . . . . . . . 90
Electronic differentia l lock . . . . . . . . . . . . . . . 87
Electronic immobilizer . . . . . . . . . . . . . . . . . . 25
Electronic speed limiter . . . . . . . . . . . . . . . . . 72
Electronic stabilization control (ESC) . . . . . . 87
Automatic post-collision braking system . . 87
Ind icator light . . . . . . . . . . . . . . . . . . . . . . . 14
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . . 88
Emergency assistance . . . . . . . . . . . . . . . . . 275
Emergency call (911) . . . . . . . . . . . . . . . . . . 117
Emergency flasher . . . . . . . . . . . . . . . . . . . . . 38
Emergency fueling . . . . . . . . . . . . . . . . . . . . 234
Emergency locking the doo rs . . . . . . . . . . . . . 30
Emergency locking the front passenger door 30
Emergency operation
Doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30
Emergency braking function . . . . . . . . . . . . 62
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . 235
Luggage compartment lid . . . . . . . . . . . . . . 31
305

Downloaded from www.Manualslib.com manuals search engine .....

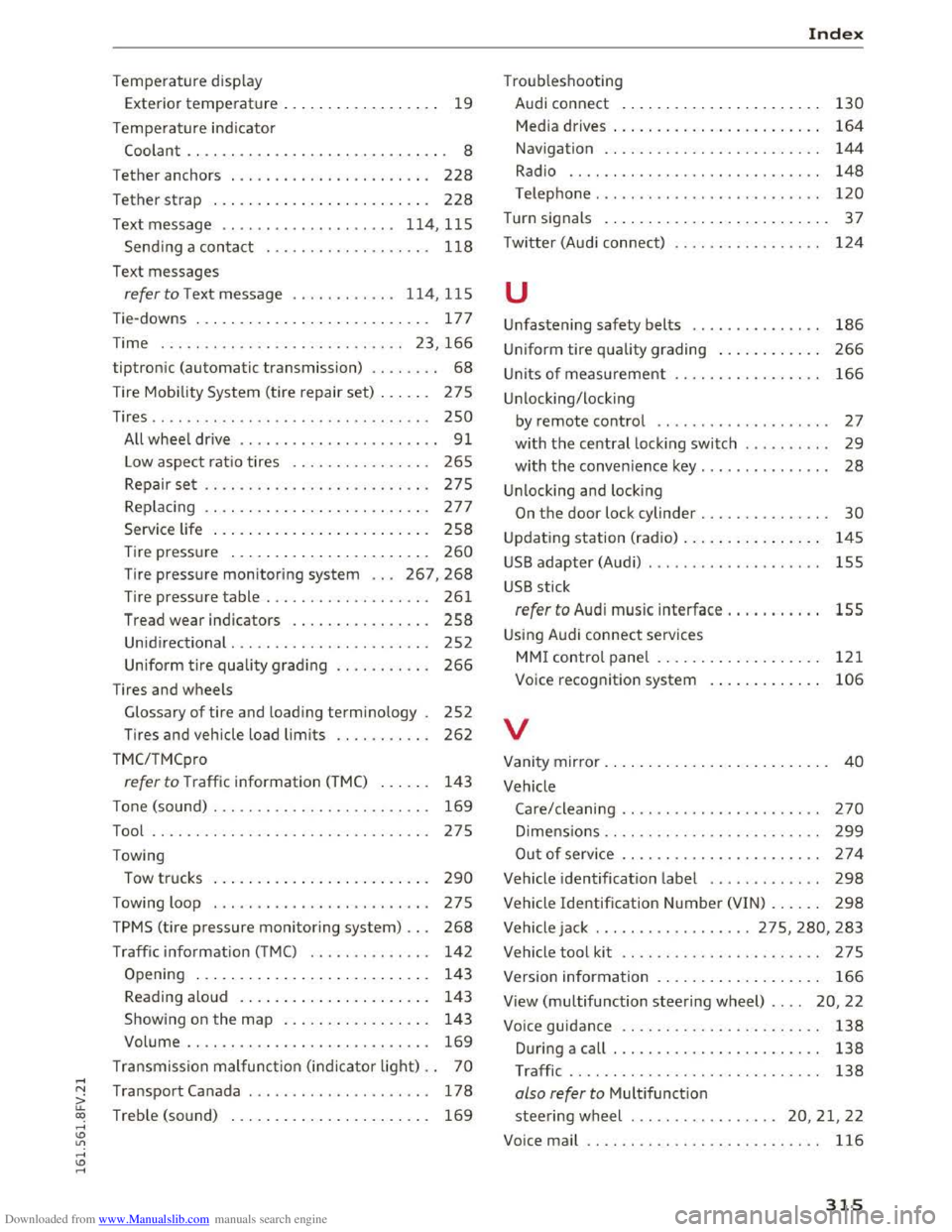

Temperature display
Exterior
temperature . . . . . . . . . . . . . . . . . . 19
Temperature indicator
Coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
T ether anchors . . . . . . . . . . . . . . . . . . . . . . .
228
Tether strap . . . . . . . . . . . . . . . . . . . . . . . . . 228
Text message .. .................. 114, 115
Sending a contact . . . . . . . . . . . . . . . . . . . 118
Text messages
refer to Text message . . . . . . . . . . . . 1 14, 115
Tie-downs . . . . . . . . . . . . . . . . . . . . . . . . . . .
177
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 , 166
tiptronic (automatic transmission) . . . . . . . . 68
Tire Mobility System (tire repair set) . . . . . . 275
Tires .. .. .. .. .. ................. .. .. . 250
A ll wheel drive . . . . . . . . . . . . . . . . . . . . . . . 91
L ow aspect ratio tires . . . . . . . . . . . . . . . .
265
Repair set .. .. ................. .... . 275
Replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 277
Service life . . . . . . . . . . . . . . . . . . . . . . . . . 258
Tire pressure . . . . . . . . . . . . . . . . . . . . . . . 260
Tire pressure monitoring system . . . 26 7, 268
Tire pressure ta ble . . . . . . . . . . . . . . . . . . . 261
Tread wear indicators . . . . . . . . . . . . . . . .
258
Unidirectional . . . . . . . . . . . . . . . . . . . . . . . 252
Uniform
tire quality grading . . . . . . . . . . . 266
T ires and wheels
Glossary
of tire and loading terminology . 252
Tires and vehicle load limits . . . . . . . . . . . 262
TMC/TMCpro
re fer to Traffic information (TMC) . . . . . . 143
Tone (sound) . . . . . . . . . . . . . . . . . . . . . . . . . 169
Tool .... .. .. .. .. ............. .. .. .. . 275
Towing
Tow trucks . . . . . . . . . . . . . . . . . . . . . . . . .
290
Towing loop . . . . . . . . . . . . . . . . . . . . . . . . . 275
TPMS (tire pressure monitoring system) . . . 268
Traffic information (TMC) . . . . . . . . . . . . . . 142
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Reading aloud . . . . . . . . . . . . . . . . . . . . . .
143
Showing on the map . . . . . . . . . . . . . . . . . 143
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . .
169
Transmission malfunction (indicator light) . . 70
r.1 Transport Canada . . . . . . . . . . . . . . . . . . . . . 178
a: co Treb le (sound) . . . . . . . . . . . . . . . . . . . . . . . 169 ..... ..... Index
Troub leshooting
Audi connect . . . . . . . . . . . . . . . . . . . . . . .
130
Media drives . . . . . . . . . . . . . . . . . . . . . . . . 164
Navigation . . . . . . . . . . . . . . . . . . . . . . . . . 144
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148
Telephone . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Turn signals . . . . . . . . . . . . . . . . . . . . . . . . . . 37
T w i
tter (Aud i connect) . . . . . . . . . . . . . . . . . 124
u
Unfastening safety belts . . . . . . . . . . . . . . . 186
Uniform tire quality grading . . . . . . . . . . . . 266
Units of measurement
Unlocking/locking 166
by remote control . . . . . . . . . . . . . . . . . . . . 27
with the central locking switch . . . . . . . . . . 29
with the convenience key. . . . . . . . . . . . . . . 28
Unlocking and locking
On the door lock cylinder . . . . . . . . . . . . . . . 30
Updating station (radio) . . . . . . . . . . . . . . . . 145
USB adapter (Audi) . . . . . . . . . . . . . . . . . . . . 155
USB stick
refer to Audi music interface . . . . . . . . . . . 155
Using Audi connect services
MMI control panel . . . . . . . . . . . . . . . . . . . 121
Voice recognition system 106
v
Vanity mirror . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Vehicle
Care/cleaning . . . . . . . . . . . . . . . . . . . . . . .
270
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . 299
Out of serv ice . . . . . . . . . . . . . . . . . . . . . . . 274
Vehicle identification label . . . . . . . . . . . . . 298
V ehicl e Identification Number (VIN) . . . . . . 298
Vehicle jack ... .. .. ........... 275, 280, 283
Vehicle
tool kit . . . . . . . . . . . . . . . . . . . . . . . 275
Version information . . . . . . . . . . . . . . . . . . . 166
View (multifunction steering wheel) . . . . 20, 22
Voice guidance . . . . . . . . . . . . . . . . . . . . . . .
138
During a call . . . . . . . . . . . . . . . . . . . . . . . . 138
T raffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
also refer to Multifunction
steering wheel .
................ 20, 21, 22
Voice
mail . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
315
