.&. WARNING
Before you check anything in the engine com­
partment, always read and heed all WARN­
INGS¢ page 236.
CD Note
Driving with an insufficient oil level is likely to
cause severe damage to the engine.
{!) Tips
-The oil pressure warning display. is not
an indicator of the oil level. Do not rely on
it. Instead, check the oil level in your en­
gine at regular intervals, preferably each
time you refuel , and always before going
on a long trip.
-If you have the impression your engi ne con­
sumes excessive amounts of oil, we recom­
mend that you consult an authorized Audi
dealer to have the cause of your concern
properly diagnosed. Keep
in mind that the
accurate measurement of oil consumption
requires great care and may take some
time. An authorized Audi dealer has instruc­
tions about how to measure oil consump­
tion accurately.
Checking the engine oil level
Fig. 185 Guide for determining levels on the oil dipstick
Determining the oil level
.. Park your vehicle on a level surface.
.. Let the engine run in idle briefly while it is at
operating temperature and then shut the en­
gine off .
.. Wait approximately two minutes.
240
.. Remove the oil dipstick. Wipe off the oil dip­
stick with a clean cloth and insert it all the way
in again.
.. Remove the dipstick again and then read the oil
level¢ fig. 185. Add engine oil if necessary
¢page240.
0 You must add oil. After adding oil, the level
should be
in the@area.
@ You may add oil. After adding oil, the level
should be
in the@area.
@
Do not add any oil.
The engine o
il consumption may be up to
0.5 quart per 600 m iles (0.5 liter/1,000 km), de­
p ending on driving style and operating cond i­
tions. Consumption may be higher during the
first 3,000 miles (S,000 km). Because of this, the
engine oil level must be checked regularly. It
would be best to check each time you refue l your
vehicle
and before long drives.
Adding engine oil 't:::?:
Fig. 186 Engine compartment: engine oil filler opening
cove r
•Turn th e engine off .
.. Unscrew the eng ine oil filler opening cap~
q fig. 186, ¢page 238, fig. 184 .
0 N
-N
" ~
.. Carefully add 0.5 quart (0.5 liter) of the correct
oil¢ page 239.
•Check the oil level again after two minutes
¢page 240, Checking the engine oil level.
•Add more oil if necessary .
.. Close the engine oil filler cap and push the dip-
stick all
the way in. IJI>

Downloaded from www.Manualslib.com manuals search engine A WARNING
1-
-When adding oil, do not let oil drip onto hot
engine components. Th ere could be risk of a
fire.
-
You must secure the cap on the oil filler
opening correctly so that oil does not leak
out onto the hot engine and exhaust system
when the engine is r unning, because this is
a fire
hazard.
- Always clean skin thoroughly if it comes into
co ntact with engine oil.
«I) Note
-The oil level must not be above the@
range, because this can cause damage to
the catalytic converter or the engi ne. Con­
tact an authorized Audi dealer or authorized
A udi Service Facility to have excess oil ex­
tracted if necessary.
-
Do no t mix any additional lu bricants into
the engine oil. Damage cause by such addi­
tives is not covered by the warranty.
@ For the sake of the environment
-Oil should never enter the sewer system or
come into contact with the ground.
-
Pay attention to legal requirements when
disposi ng of empty oi l containers.
Changing the engine oil
We recommend that have your oil changed by an
authorized Audi dealer or a qualified service
sta­
tion.
Before you check anything in the engine compart­
ment, alwa y s read and heed all WARNINGS
~page236.
The engine oil must be changed accord ing to the
intervals specified i n your Warranty & Mainte­
nance booklet. This is very important be cause the
lubricati ng properties of o il d iminish gradually
dur ing normal vehi cle use.
Unde r some circumstances the engine oil should
be changed more frequently. Change oil more of­
ten if yo u drive mostly short dis tances, opera te
the vehicle in dusty areas or u nder predominantly
Checking and Filling
stop-and-go traffi c conditions, or have your vehi­
cle where temperatures remain be low freezing
for extended periods.
Dete r
gent additives in the oi l w ill make fresh oil
l
ook dark after the engine has been r u nning for a
short time. This is normal and is not a reason to
change the oil more often than recommended.
Beca u
se of the problem of proper disposal, along
with the special tools and necessary expertise re­
quired, we strongly recommend that you have
you r o
il changed by an authorized Audi dealer or
a q ualified service station.
If you choose to change your oil yourself, please
note the following important information:
A WARNING
~ -
To reduce the risk of personal injury if you
must change the engine oil in you r vehicle
yourself:
-
Wear eye protection.
- To reduce the risk of burns from hot engine
oil, let th e engine cool down to the touch.
-When removing the oil drain plug with your
fingers,
stay as far away as possible. Always
keep your forearm parallel to the ground to
help prevent hot oil from running down your
arm.
-Drain the oil into a container designed for
this purpose, one large enough to hold at
least the total amount of oil in your engine.
-Engine oil is poisonous. Keep it well out of
the reach of children.
-
Continuous contact with used engine oil is
harmful to your skin. Always protect your
skin by washing oil off thoroughly with soap
and water.
CD Note
Never mix oil additives with your engine oil.
These additives can damage your engine and
adversely affect yo ur Audi Limited New Vehi­
cle Warranty.
241

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
@) For the sake of the environment
-Before changing your oil, first make sure
you know where you can properly dispose of
the used oil.
- Always
dispose of used engine oil properly.
Do not dump it on garden soil, wooded
areas, into open streams or down sewage
drains.
- Recycle
used engine oil by taking it to a used
engine oil collection facility in your area, or
contact a service station.
Coo Ling system
Coolant
The engine coolant performs two functions: it
keeps
the engine from overheating and it pro­
tects the engine from freezing in the winter.
The cooling system is sealed and generally re­
q uires
little attention.
The cooling
system has been filled at the factory
with a
permanent coolant which does not need to
be changed. The coolant consists of a mixture of
specially conditioned water and the manufactur­
er's glycol-based coolant additive G13 antifreeze
with anticorrosion additives (50% for USA mod­
els; 60% for Canadian models). This mixture
both assures the necessary frost protection and
protects metal components in the engine's cool­
ing
system from corrosion and scaling. It also
raises
the boiling point of the coolant.
Do not reduce the concentrat ion of the coolant in
the summer by addi ng p la in water. The propor­
tion of coolant additive must be at least 50°/o
but not more than 60°/o to maintain antifreeze
protection and cooling efficiency. If the coolant
frost protection is too low, the coolant could
freeze and damage the vehicle heating and en­
gine cooling system.
For year-round driving,
antifreeze is added at the
factory for temperatures down to:
- -
31 °F ( -35 °C) USA
- -40 °F ( -40 °C) Canada.
242
If you must add coolant, use a mixture of water
and coolant additive. Mixing the coolant additive
with distilled
water is recommended.
A WARNING
~ h . Before you check anything in t e engine com-
partment, always read and heed all WARN­
INGS C)page 236.
CD Note
-Before winter sets in, have the coo lant
checked to see if the coolant additive in you r
vehicle is
sufficient to meet the climate con­
d itions. This is especia l
ly important if you
live
in a regio n where the winter is extre m e­
ly cold . If necessary, increase the proportion
o f coo la
nt ad ditive to 60o/o.
-When add ing coolant additive to your cool­
ing
system, remember:
-We recommend using only coolant addi­
tive G12++
or G13 (check the label) for
your vehicle. This coolant additive is avail­
able at authorized Audi dealers. Other
types of antifreeze can significantly re­
duce corrosion protection. The resulting
corrosion can cause a loss of coolant and
serious engine damage.
-Do not add any type of radiator leak sealant
to your vehicle's engine coolant. Adding ra­
dia to r repair fluid may adversely
affect the
func tion and performance of your cooling
system and could result in damage not cov ­
ered by your New Veh icle Limited W arranty .
Adding coolant
Fig. 187 Engine compartment : coolant expansion tank
cover

Downloaded from www.Manualslib.com manuals search engine ...... N
> u. CX> ...... u:>
"' ...... u:> ......
Read and follow the WARNINGS before check­
ing anything
in the engine compartment
Qpage236.
Checking the engine coolant level
""Park your vehicle on a level surface.
"" switch the ignition off.
.. Read the coolant level on the coolant expansion
tank
Q page 238, fig. 184. The coolant level
must be between the markings when the en­
gine
in cold. When the engine is warm it can be
slightly above
the upper marking.
Adding coolant
Requirement: there must be a res idual amount of
coo l
ant in the expans io n tank c:?(i) .
""Let the engine cool down.
.. Place a cloth over the coolant expansion tank
cap and unscrew
the cap counterclockwise
c:?,8..
""Add coolant mixed in the correct ratio
i:?page 242 up to the upper marking.
""Make sure that the fluid level remains stable.
Add more coolant if necessary.
"" Close the cap securely .
A coolant loss suggests a leak. Immediately drive
your vehicle
to an authorized Audi dealer or au­
thorized
Audi Service Facility and have the cool­
ing system inspected.
If the cooling system is not
leaking, a loss can come from
the coolant boiling
through overheating and being pushed
out of the
cooling system.
.&. WARNING
-The cooling system is pressurized and can be-
come very hot.
To reduce the risk of burns
from hot coolant:
-
Do not open the coolant expansion tank cap
w ith
the engine hot. There is a risk of burns .
- Stop
the engine and allow it to cool.
-
Protect your face, hands and arms from es-
caping coolant and
steam by covering the
coolant tank cap with a large, thick cloth.
- Turn
the coolant tank cap counterclockwise
slowly and keep light pressure on
the cap.
-
To reduce the risk of burns, do not allow any
antifreeze or coolant to dr
ip onto the ex-
Checking and Filling
ha ust system or hot engine components.
The ethylene glycol in engine coolant can
catch fire under certain circumstances.
- The coolant additive and the coolant can be
dangerous to your health.
For this reason,
keep
the coolant in the original container
away from children. There is a
risk of poi­
soning.
-When working in the engine compartment,
remember
that the radiator fan can switch
on even if
the ignition is switched off, which
increases
the risk of personal injury.
CD Note
Do not add coolant if the expans ion tank is
empty . Air could enter the cooling system and
damage
the eng ine. If this is the case, do not
continu e driving. See an authorized
Audi dea l­
er or authorized
Audi Service Facility for assis­
tance.
Radiator fan
The radiator fan switches on automatically by it­
self.
An auxiliary electric radiator fan switches on and
off depending on coolant temperature and other
vehicle operating conditions.
After you switch
the engine off, the auxiliary fan
can continue running for
up to 10 minutes -even
with
the ignit ion off. It can even switch on again
later by itself c:? & . if
- the temperature of
the engine coolant rises due
to
the heat build-up from the engine in the en­
gine compartment, or
-
the engi ne compartment heats up because the
vehicle is parked in intense sunlight.
.&. WARNING
-To reduce the risk of personal injury never
touch
the radiator fan.
- The auxiliary electric fan
is temperature
controlled and can switch on suddenly even
when
the engine is not running.
243

Downloaded from www.Manualslib.com manuals search engine Checking and Filling
-The auxiliary radiator fan switches on auto­
matically when the engine coolant reaches a
certain temperature and will continue to run
until the coolant temperature drops.
Brake fluid
Checking brake fluid level

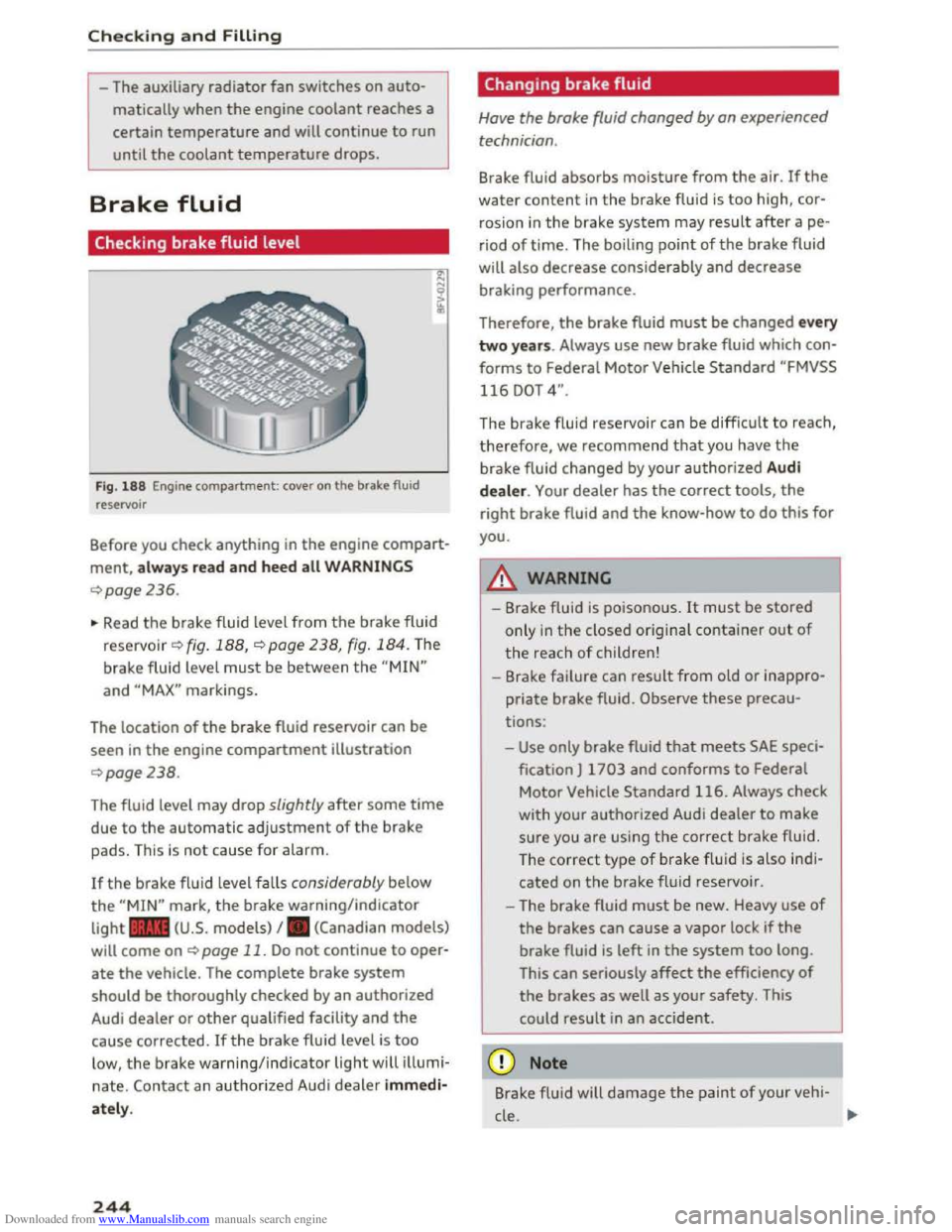

Fig. 188 Engine compartment: cover on the brake fluid
reservoir
Before you check anything in the engine compart­
ment, always read and heed all WARNINGS
¢page 236.
~ Read the brake fluid level from the brake fluid
reservo ir ¢ fig. 188, ¢page 238, fig. 184. The
brake fluid level must be between the "MIN"
and "MAX" markings.
The location
of the brake fluid reservoir can be
seen in the engine compartment illustration
¢page238.
The fluid level may drop slightly after some time
due to the automatic adjustment of the brake
pads. This is not cause for alarm.
If the brake fluid level falls considerably below
the "MIN" mark, the brake warning/indicator
light .. (U.S. models) I. (Canadian models)
will come on ¢ page 11. Do not continue to oper­
ate the vehicle. The complete brake system
should be thoroughly checked by an authorized
Audi dealer or other qualified facility and the
cause corrected. Ifthe brake fluid level is too
low, the brake warning/indicator light will illumi­
nate. Contact an authorized Audi dealer immedi­
ately.
244
Changing brake fluid
Have the brake fluid changed by an experienced
technician .
Brake fluid absorbs moisture from the air. If the
water content in the brake fluid is too high, cor­
rosion in
the brake system may result after ape­
riod of time. The boiling point of the brake fluid
will
also decrease considerably and decrease
braking performance.
Therefore, the brake fluid must be changed every
two years. Always use new brake fluid which con­
forms to Federal Motor Vehicle Standard "FMVSS
116 DOT 4".
The brake fluid reservoir can be difficult to reach,
therefore, we recommend that you have the
brake fluid changed by your authorized Audi
dealer. Your dealer has the correct tools, the
right brake fluid and the know-how to do this for
you.
8._ WARNING
- Brake fluid is poisonous. It must be stored
only in the closed original container out of
the reach of children!
-Brake failure can result from old or inappro­
priate brake fluid. Observe these precau­
tions:
-Use only brake fluid that meets SAE speci­
fication
J 1703 and conforms to Federal
Motor Vehicle Standard 116. Always check
with
your authorized Audi dealer to make
sure you are using the correct brake fluid.
The
correct type of brake f lui d is also ind i­
cated on the brake fluid reservoir .
- The
brake fluid must be new. Heavy use of
the brakes can cause a vapor lock if the
brake fluid is left in the system too long.
This
can seriously affect the efficiency of
the brakes as well as your safety. This
could
result in an accident.
CD Note
Brake flu id will damage the paint of your veh i-
cle .
JIJ.

Downloaded from www.Manualslib.com manuals search engine ~ For the sake of the environment
Because of the problem of proper disposal of
brake fluid as well as the special tools re­
quired
and the ne cessary expertise, we rec­
ommend that you have the brake fluid
changed by your authorized Audi dealer.
Battery
General information
The battery in your Audi does not need any main­
tenance under normal operating conditions. Audi
recommends having the electrolyte level check
by an
authorized Audi dealer or authorized Audi
Service Facility
when there are high outside tem­
peratures or when driving all day. The electrolyte
level should also be checked each time the bat­
tery is charged ~page 247.
Have the battery checked when you bring your ve­
hicle
in for an inspection . It is a good idea to re­
place
the battery if it is more than S years old.
Sometimes when the airbags deploy, the battery
will be disconnected from the vehicle electrical
system for safety reasons ~.&in Repair, care
and disposal
of the airbags on page 203.
Disconnecting the battery
The battery should not be disconnected. Several
vehicle functions (power windows, for
example)
will be lost when the battery is disconnected. The
functions must be reprogrammed after connect­
ing the battery. To avo id this, the battery should
only be disconnected from the vehicle electrica l
system when it is absolutely necessary.
Not running the vehicle for long periods of
time
If you do not drive your vehicle for several days or
weeks, electrical consumers are gradually scaled
back
or switched off. This reduces energy use and
ensures the vehicle will be able to start after long
periods of time~ page 92. Some convenience
functions, su ch
as interior lighting or power seat
adjustment, may not be available under certain
circumstances. These convenience functions will
be available again once you switch
the ignition on
and start the engine.
Checking and Filling
Winter operation
A lot of stress is placed on the battery during
cold weather, which results in reduced starting
ability. Have the battery checked and recharged if
necessary
before the cold weather begins.
A WARNING
- Work on the battery requires expert know l­
edge. Contact an authorized Audi dealer or
authorized Audi Service Facility for informa­
tion regarding the vehicle battery. There is a
risk for chemical
burns or explosions.
- Never
open the vehicle battery. Do not try to
change the battery electrolyte level. Other­
wise explosive
gas will escape from the bat­
tery and increase the risk of an exp losion. ___ ....J
Working on the battery
Be especially careful when working on or near
the battery.
The battery is located in the luggage compart­
ment under the floor . Before you check anything
in the luggage compartment, read and heed all
WARNINGS~_&.
Always heed the safety warnings , when working
on
the vehicle battery or the vehicle electrical
system to prevent injury.
The following WARNINGS are very important
when working on the battery:
Always heed the following WARNING SYM-
BOLS and safety precautions when working on
the battery.
®
Always wear eye protection.
&
Battery acid contain s sulfuric acid. Al-
ways wear gloves and
eye protection .
@
No
- sparks
- flames
- smoking.
245

Downloaded from www.Manualslib.com manuals search engine Checking and F illing
~
When a b attery is char ged, it pro duces
hyd rogen gas whi ch i s e xplo sive and
could
cau se pers onal injury.
®
Always kee p the battery well out of
re ach of childre n.
A WARNING
Whenever working on the ba ttery or on the
electrical system, there is the risk of injury,
accident and even fire. Read and heed the fol­
lowing
WARNINGS:
- Always wear eye protection. Do not let bat­
tery acid or any lead particles get on your
skin or clothing . Shield your eyes. Explosive
gases can cause blindness or other injury.
-
Battery acid contains sul furic acid. Sulfuric
acid
can cause blindness and severe burns.
- Always
wear gloves and eye protection. Do
not tilt the battery because acid could leak
out of the ventilation openi ngs.
- If you
get battery acid in your eyes or on
your skin, immediately rinse with cold wa­
ter for several minutes and get medical at­
tention.
-
If you should ingest any battery acid, seek
medical attention immediately.
-
Do not expose the battery to an open flame,
electric sparks or an open light.
-
Do not smoke.
-Do not interchange the positive and nega-
tive
cables.
-When working on the battery, be sure not to
short-circuit the terminals with tools or oth­
er metal objects. This would cause the bat­
tery to heat up very quickly, which could
lead to damage or explosion and personal
injury.
-
When a battery is charged, it produces hy­
drogen gas which is explosive and could
cause personal injury .
- Always keep
the battery well out of the
reach of children.
- Before work is
done on the electrical sys­
tem, disconnect the negative ground cable.
- Before
performing any work on the electri­
cal
system, switch off the engi ne and igni­
t i
on as well as any electrical equipment. The
246
-
negative cabl e on the battery m ust be dis­
connected. If you are just going to replace a
light bulb,
then it is enough to switch off
the lights.
- Before di
sconnecting the battery, switch off
the anti-theft alarm system! Otherwise you
w ill
set off the alarm.
-
When disconnecting the battery, first dis­
connect the negative cabl e and then the
positive cable.
- Before
reconnecting the battery, make sure
all electrical consumers are switched off.
Reconnect
the positive cable first and then
the negative cable. Never interchange the
cables -this could start a fire!
- Never
charge a frozen or a thawed-out bat­
tery. It cou ld explode! If a battery has fro ­
zen,
then i t must be replaced. A discharged
b attery can freeze ove r at 32 °F (O °C).
-Make sure the vent hose is always attached
to the opening on the side of the battery .
- Never
use batteries which are damaged.
There is th e danger of an exp losion! Always
replace a da maged battery .
A WARNING
Cali fornia Proposition 65 Warning:
-
Batter y posts, ter m inals and related acces­
sories contain lead a nd lead compounds,
chemicals known to the State of California
to cause cancer and reproductive problems.
Wash
hands after handling .
CD Note
-Do not disconnect the vehicle battery when
the ignition is on or when the engine is run­
ning,
otherwise, you will damage electronic
components in the e lectrical system.
-If your veh icle is going to stand for a long
period of time without being driven, protect
the battery from "freezing" , otherwise it
will be damaged and will then have to be re­
placed .

Downloaded from www.Manualslib.com manuals search engine Charging the battery
Battery charging connections are located in the
engine comportment.
Fig . 189 Engine compartment: connectors for a charger
and jump start cables
• Read the warnings ~,&.in Working on the bat­
tery on page 246 and ~ ,&..
•Switch off the ignition and all electrical equip­
ment.
• Open the hood ~page 23 7.
• Open the red cover on the positive terminal
~fig. 189.
•Clamp the charger terminal clamps to the jump
start pins according to the instructions. (pin
under the red cover= "positive", pin with hex­
agonal head= "negative").
•
Now insert the power cable for the charging de­
vice into the socket and switch the device on.
•At the end of the charging process, switch the
charger off and pull the power cable out of the
socket.
•Now remove the charging device terminal
clamps.
• Close the red cover on the positive terminal.
•Close the hood ~page 23 7.
A drained
battery can freeze at temperatures
around 32 QF (0 QC). A frozen or thawed out bat­
tery must no longer be used. The battery housing
could be cracked by
the formation of ice, which
could cause
battery acid to leak out¢& .
Battery charging (Maximum charging rate of
30 amps I 14.8 Volt)
When charging at low voltages (e.g. with a trick­
le charger ), the battery cables do not have to be
disconnected first. The battery caps should not
be opened when charging a battery.
Checking and Filling
It is not necessary to remove the battery from
the luggage compartment, and it is also not nec­
essary to disconnect the cables.
Fast charg ing the battery ( charging rate
above
14. 8 Volts)
For technical reasons do not use a battery charg­
er that uses voltage greater than 14.8 Volts to
charge your vehicle's battery.
A WARNING
!-='"
Charging a battery can be dangerous.
-Always follow the operating instructions
provided by
the battery charger manufactur­
er when charging your battery.
-Never charge a froze n battery. It may ex­
plode because of gas trapped in the ice. Al­
low a frozen battery to thaw out first.
-
Do not reuse batteries which were frozen.
The
battery housing may have cracked and
weakened
when the battery froze.
-
Charge the battery in a well ventilated area.
Keep away
from open flame or electrical
spark.
Do not smoke. Hydrogen gas generat­
ed by the battery is explosive.
-
To reduce the danger of explosion, never
connect or disconnect charger cables while
the charger is operating.
-Fast charging a battery is dangerous and
should only be attempted by a competent
technician with the proper equipment.
-Batte ry ac id that may spill during charging
should be washed
off with a so lution of
warm water and baking soda to neutralize
t
he acid.
CD Note
Never use a fast charger as a booster to start
the engine. This will seriously damage sensi­
tive electronic components, such as control
units, relays, radio,
etc., as well as the battery
charger.
Tips
Only charge the battery through the connec­
tions in the engine compartment.
247
