2016 AUDI TT COUPE sensor

Downloaded from www.Manualslib.com manuals search engine Airbag system
combinations not approved by Audi, lowering the
vehicle, changing the stiffness of the suspension,
including the springs, suspension struts, shock
absorbers etc. can change the forces that are
measured by the airbag sensors and sent to the
electronic control unit. Some suspension changes
can, for example, increase the force levels meas­
ured by the sensors and make the airbag system
deploy in crashes in which it would not deploy if
the changes had not been made. Other kinds of
changes may reduce the force levels measured by
the sensors and prevent the airbag from deploy­
ing when it should.
_&. WARNING
Changing the vehicle's suspension including
use
of unapproved tire-rim combinations can
change Advanced Airbag performance and in­
crease the risk of serious personal injury in a
crash.
-Never install suspension components that
do not have the same performance charac­
teristics as the components originally instal­
led on your vehicle.
- Never use tire-rim
combinations that have
not been approved by Audi.
Knee airbags
Description of knee airbags
The knee airbag system can provide supplemen­
tal protection to properly restrained front
seat
occupants.
Fig. 159 Driver's knee airbag
The driver knee airbag is in the instrument panel
underneath the steering wheel Q fig. 159, the
airbag for the passenger is at about the same
204
height in the instrument panel underneath the
glove compartment.
The knee airbag offers additional protection to
the driver's and passenger's knees and upper and
lower thigh areas and supplements the protec­
tion provided by the safety belts.
If the front airbags deploy, the knee airbags also
deploy
in frontal collisions when the deployment
threshold stored in the control unit is met
Qpage 197, More important things to know
about front airbags.
In addition to their normal safety function, safe­
ty belts help keep the driver or front passenger in
position in a frontal collision so that the airbags
can provide
supplemental protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly. This is why you should
always wear your safety belt, not just be ca use
t h e law requires you
to do so~ page 180, Gener­
al notes .
Remember too, airbags will deploy only once and
only in certain kinds of accidents -your safety
belts are always there to offer protection in those
accidents in which airbags are not supposed to
deploy or when they have already deployed, for
example when your vehicle strikes or is struck by
another after the first collision.
This
is just one of the reasons why an airbag is
not a substitute for the safety belt. The airbag
system works most effectively when used with
the safety belts. Therefore, always wear your
safety belts correctly.
It is important to remember that while the sup­
plemental knee airbag system is designed to re­
duce the likelihood of serious injuries, other inju­
ries, for example, swelling, bruising and minor
abrasions and friction burns can also occur when
an airbag inflates.
The knee airbag system basically consists of:
-The electronic control module .,.

Downloaded from www.Manualslib.com manuals search engine Airbag system
-at least 10 in (25 cm) between the chest
and the steering wheel/instrument panel.
-
at least 4 in (10 cm) between the knees
and the lower part of the instrument pan­
el.
- The risk
of personal injury increases if you
lean forward
or to the side, or if the seat is
improperly positioned and you are not wear­
ing your safety belt. The risk increases even
more should the airbag deploy.
- Always
make sure that the knee airbag can
inflate without interference. Objects be­
tween you and the airbag can increase the
risk of injury in an accident by interfering
with
the way the airbag deploys or by being
pushed into you as the airbag deploys.
- Never
let anybody, especially children or
animals ride in the footwell in front of the
passenger seat. If the airbag deploys, this
can result in serious or fatal injuries.
- Never carry
objects of any kind in the foot­
well area in front of the driver's or pas­
senger's seat. Bulky objects (shopping
bags, for example) can interfere with or
prevent proper deployment of the airbag.
Small objects can be thrown through the
vehicle if the airbag deploys and injure you
or your passengers.
-Make sure there are no cracks, deep scratch­
es or other damage in the area of the instru­
ment panel where the knee airbags are lo­
cated.
-If children are incorrectly seated, their risk
of injury increases in a collision
~page 212, Child safety.
206
Side airbags
Description of side airbags
The airbag system can provide supplemental
protection to properly restrained front
seat occu­
pants .
Fig . 161 Side airbag location in the driver's seat
The side airbags are located in the sides of the
front seat backrests Q fig. 161 facing the doors.
They
are identified by the word "AIRBAG".
The side airbags installed for the front seating
positions have been designed and certified to
help reduce the risk of injury that can be caused
by airbags when they inflate, particularly when
the occupant sitting next to it is not seated prop­
erly. The
side airbag for the front passenger seat
can be used with properly installed child re­
straints. Please be sure to read the important in­
formation and warnings whenever using a child
restraint in a vehicle: Safety belts Q page 180,
Airbag system Q page 188, Child safety
¢page 212.
The side airbag syste m b asica lly consist s o f:
-
the electronic control module and external side
impact sensors
-the two side airbags Located in the sides of the
front backrests
-the airbag warning light in the overhead con­
sole.
The airbag system is monitored electronically to
make certain that it is functioning properly at all
times. Each time you turn on the ignition, the air­
bag system indicator light will come on for a few
seconds (self diagnostics). Iii>

Downloaded from www.Manualslib.com manuals search engine ..... N
G'. co ..... ID VI ..... ID .....
The side airbag system supplements the safety
belts and can help to reduce the risk of injury to
the driver's and front passenger's upper torso on
the side of the vehicle that is struck in a side col­
lision. The
airbag deploys in side impacts and on­
ly when the vehicle acceleration registered by the
control unit is high enough. If this rate is below
the reference value programmed into the control
unit, the side airbags will not be triggered, even
though the car may be badly damaged as a result
of the collision. It is not possible to define an air­
bag
triggering range that will cover every possi­
ble
angle of impact, since the circumstances will
vary considerably
between one collision and an­
other. Important factors include, for example,
the nature (hard or soft) of the impacting object,
the angle of impact, vehicle speed, etc.
Q page 208, Important safety instructions on
the side airbag system.
Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in position in the event of a side collision
so that the side airbags can provide protection.
The airbag system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the side airbag system can only
help
to protect you if you are wearing your safety
belt and wearing it properly. This is another rea­
son why you should always wear your safety
belts, not just because the law requires you to do
so Qpage 180, General notes.
It is important to remember that while the sup­
plemental side a irbag system is designed to re­
duce the lik eli hood of serious injuries, other inju­
ries, for
example, swelling, bruising, friction
burns and minor abrasions can also be associated
with deployed side airbags. Remember too, side
airbags will deploy only once and only in certain
kinds of accidents -your safety belts are always
there to offer protection.
Vehicle damage, repair costs or even the lack of
vehicle damage are not necessarily an indication
of over-sensitive or failed airbag activation. In
some collisions, both front and side airbags may
inflate .
Remember too, that airbags will deploy
only once
and only in certain kinds of collisions -
Airbag system
your safety belts are always there to offer protec­
tion
in those accidents in which airbags are not
supposed to deploy or when they have already
deployed.
The side airbag system will not deploy:
-when the ignition is switched off
-in side collisions when the acceleration meas-
ured by
the sensor is too low
-
in front-end collisions
- in rear-end collisions
-
in rollovers.
In
some types of accidents the front a irbags, side
curtain airbags and side airbags may be triggered
together.
A WARNING
--Safety belts and the airbag system will only
provide protection
when occupants are in
the proper seating position Q page 208.
-If the airbag indicator light Q page 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How supplemental side airbags work
Side airbags deploy instantly and can help re­
duce the risk
of upper torso injuries for occu­
pants who are properly restrained.
Fig. 162 Inflated side airbags on left side of vehicle
When the system is triggered, the airbag is filled
with propellant gas and breaks through a seam in
the seat surface area marked "AIRBAG". It ex-
pands between the side trim panel and the ..,..
207

Downloaded from www.Manualslib.com manuals search engine ..... N
G: CX)
.....
"' U"I
.....
"' .....

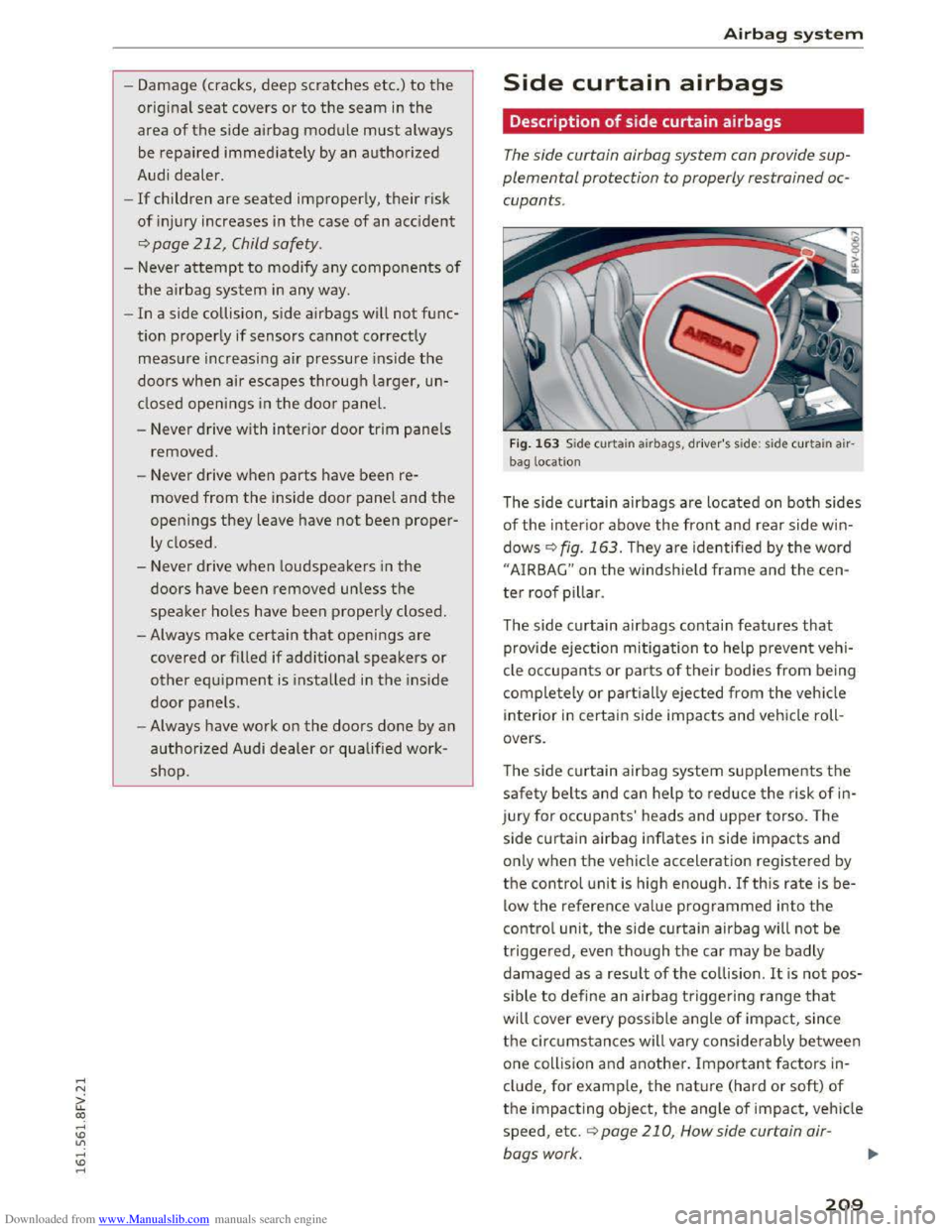

-Damage (cracks, deep scratches etc.) to the
original seat covers or to the seam in the
area of the side airbag module must always
be repaired immediately by an authorized
Audi dealer.
-If children are seated improperly, their risk
of injury increases in the case of an accident
¢page 212, Child safety.
-Never attempt to modify any components of
the airbag system in any way.
-
In a side collision, side airbags will not func­
tion properly if sensors cannot correctly
measure increasing air pressure inside the
doors when air escapes through larger, un­
closed openings in the door panel.
-Never drive with interior door trim panels
removed.
-Never drive when parts have been re­
moved from the inside door panel and the
openings they leave have not been proper­
ly closed.
- Never drive
when loudspeakers in the
doors have been removed unless the
speaker holes have been properly closed.
- Always
make certain that openings are
covered or filled if additional speakers or
other equipment is installed in the inside
door panels.
-Always have work on the doors done by an
authorized Audi dealer or qualified work­
shop.
Airbag system
Side curtain airbags
Description of side curtain airbags
The side curtain airbag system can provide sup­
plemental protection to properly restrained oc­
cupants.
Fig. 163 Side curtain airbags, driver's side: side curtain air­
bag locat ion
The side curtain airbags are located on both sides
of the interior above the front and rear side win­
dows~ fig. 163. They are identified by the word
"AIRBAG" on the windshield frame and the cen­
ter roof pillar .
The
side curtain airbags contain features that
provide ejection mitigation to help prevent vehi­
cle occupants or parts of their bodies from being
completely or partially ejected from the vehicle
interior in certain side impacts and vehicle roll­
overs.
The
side curtain airbag system supplements the
safety belts and can help to reduce the risk of in­
jury for occupants' heads and upper torso. The
side
curtain airbag inflates in side impacts and
only when the vehicle acceleration registered by
the control unit is high enough. If this rate is be­
low the reference value programmed into the
control unit, the side curtain airbag will not be
triggered, even though the car may be badly
damaged as a resu lt of the collision. It is not pos­
sible to define an airbag triggering range that
will cover every possible angle of impact, since
the circumstances will vary considerably between
one collis ion and another. Important factors in­
clude, for example, the nature (hard or soft) of
the impacting object, the angle of impact, vehicle
speed, etc. ~page 210, How side curtain air­
bags work .
209

Downloaded from www.Manualslib.com manuals search engine Airbag sy stem

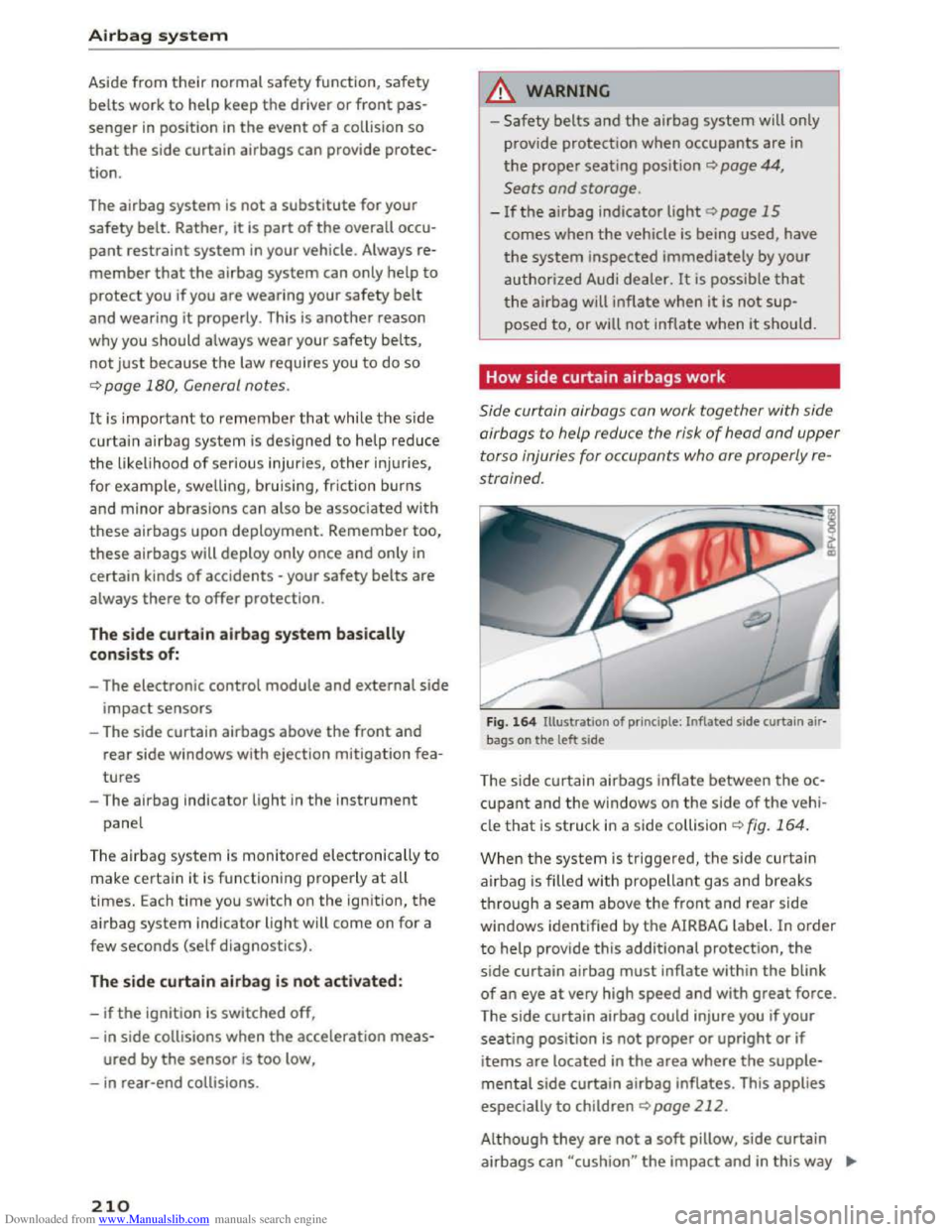

Aside from their normal safety function, safety
belts work to help keep the driver or front pas­
senger in position in the event of a collision so
that the side curtain airbags can provide protec­
tion .
The airbag
system is not a substitute for your
safety belt. Rather, it is part of the overall occu­
pant restraint system in your vehicle. Always re­
member that the airbag system can only help to
protect you if you are wearing your safety belt
and wearing it properly . This is another reason
why you
should always wear your safety belts,
not just because the law requires you to do so
~page 180, General notes.
It is important to remember that while the side
curtain a irbag system is designed to help reduce
the likelihood of serious injuries, other injuries,
for
example, swelling, bruising, friction burns
and minor abrasions can also be associated with
these airbags upon deployment. Remember too,
these airbags will deploy only once and only in
certain kinds of accidents -your safety belts are
always there to offer protection.
The side curta in airbag sy stem basically
consists
of:
-The electronic control module and external side
impact sensors
-The side curtain airbags above the front and
rear side windows with ejection mitigation fea­
tures
-The airbag indicator light in the instrument
panel
The airbag system is monitored electronically to
make certain it is function ing properly at all
times. Each time you switch on the ignition, the
airbag system indicator light will come on for a
few seconds (self diag nasties).
The side curtain airbag is not activated:
-if the ignition is switched off,
-
in side collisions when the acceleration meas-
ured by the sensor is too low,
- in
rear-end collisions .
210
A WARNING
-Safety belts and the airbag system will only
provide
protection when occupants are in
the proper seating position Q page 44,
Seats and storage.
-If the airbag indicator light Q page 15
comes when the vehicle is being used, have
the system inspected immediately by your
authorized Audi dealer. It is possible that
the airbag will inflate when it is not sup­
posed to, or will not inflate when it should.
How side curtain airbags work
Side curtain airbags can work together with side
airbags to help reduce
the risk of head and upper
t orso injuries for occupants who are properly re­
strained.
Fig. 164 Illustration of principle: Inflated side curtain air­
bags on
the left side
The side curtain airbags inflate between the oc­
cupant and the windows on the side of the vehi­
cle
that is struck in a side collision Q fig. 164.
When the system is triggered, the s ide curtai n
airbag
is filled with propellant gas and breaks
th rough a seam above the front and rear side
windows identified by the AIRBAG label. In order
to help provide this additional protection, the
side curtain airbag must inflate within the blink
of an eye at very high speed and with great force .
The
side curtain airbag could injure you if your
seating position is not proper or upright or if
items are located in the area where the supple­
mental side curtain airbag inflates. This applies
especially to children Qpage 212.
Although they are not a soft pillow, side curtain
airbags can "cushion" the impact and in this way .,..

Downloaded from www.Manualslib.com manuals search engine Wheels
installation of replacement or alternate tires or
wheels on the vehicle that prevent the TPM S
from functioning properly. Always check the
TPMS malfunction telltale after replacing one or
more ti
res or whee ls on your veh icle to ensure
that the replacement or alternate tires and
wheels
allow the TPMS to conti nue to functi on
p roper ly .
If the Tire Pressure Monitoring System
indicator appears
The tire pressure indicator in the instrument
cluster informs you if the tire pressure is too low
or
if there is a system malfunction.
Using the ABS sensors, th e tire p ressure monitor­
i n g
system compares the tire tread circumfer­
ence and vibra tion char
acteristi cs of the individ u­
al tires.
If the pressure changes in one or more
tires,
this i s indicated in the Infotainment system
d isp lay
with an ind icator light RI and a message .
If only one tire is affected , the location of that
tire will be ind icated.
The tire pressures must be stored in the Infotain­
ment system again each time the pressu res
change (switching between partial and full load
pressure) or
after changing or replacing a tire on
your veh icle ¢ page 269. The tire pressure moni­
toring system only monitors the tire pressure you
have stored. Refe r
to the tire pressure label for
the recommended tire pressure for your veh icl e
¢page260, fig.195.
Tire tread circumference and vibration character­
istics
can change and cause a tire pressure warn­
i n g if:
-
the tire p ressure in one or more tires is too low.
-
the tire has structural damage .
-
the tire was replaced or the tire pressure was
changed and
it was not stored¢ page 269.
-the spare tire* is installed .
Indicator lights
RI-Loss of pressure in at l east one tire ¢,&.
Check
t h e tires and rep lace or r epair if necessary.
Check/correct
the p ressures of all four tires and
store
the pressure again in the Infotainment sys­
tem ¢ page 269.
268
ffim (T ire Pressure Mon itoring System) Tire
pressure: malfunction!
See owner's manual -if
m appears after switching on the ignition or
while driving and then the RI indicator light in
the instrument cluster also starts to blink for
about one minute and then stays on permanent­
ly, there
is a system malfunction . T ry to store the
cor rect tire p ressures ¢ page 269. If the indica­
tor light does turn off or turns on again after a
sho
rt per iod of time, d rive to an authori zed Aud i
dealer or
authorized Audi Servi ce Facility immedi ­
ate ly
to have the ma lfunction corrected .
.&. WARNING
-If the tire pressure indicator appears in the
display, reduce your speed immediately and
avoid any hard steering or brak ing maneu­
vers.
Stop as soon as poss ible and check the
tires and
their pressure .
- The driver is responsible
for maintain ing the
correct tire pressures . You must check the
tire pressures regularly .
-
Under certain condit ions (such as a sporty
driving style, wi
nter condit ions or unpaved
roads), the pressure
monitor indica tor may
be delayed.
-
Do not use run-flat tires on your vehicle . Us­
ing them when not perm itted can lead to
veh icle damage or accidents.
(D Tips
- The tire pressure monitoring system can al­
so stop working when there
is an ESC mal­
func tion.
-
Usi ng snow chains may result in a system
ma lfunction .
- The
tires wit h the identification "AO" or
"RO" ¢ page 2 5 7 have been matched with
your Audi tire pressu re monitor ing system .
We rec om mend that you use these tires.

Downloaded from www.Manualslib.com manuals search engine -To reduce the risk of cuts, protect yourself
from sharp metal components when wash­
ing th e underbody or the inside of the wheel
housings.
- After
washing the vehicle, the brak ing effect
may be delayed due to moisture on the
brake rotors or ice in the w inter. The brakes
must be dried first w ith a few careful brake
applications.
CD Note
-If you wash the vehicle in an automatic car
wash, yo u must retract the extendable rear
spoiler* if necessary, and fold the exterior
mirrors in to red uce the risk of damage.
Power folding exterior mirrors* must on ly
be fol
ded in and ou t u sing the power folding
function.
-
To p reve nt paint d amage, d o not wash th e
vehicle in dir
ect sunlight.
Care and cleaning
- To red uce the risk of damage to the surface,
do
not use insect removing sponges, kitchen
sponges or s imilar items.
-
Matte finish painted veh icle components:
-To reduce the risk of damage to the sur-
face, do not use polishing agents or hard
wax.
- Never u
se protective wax. It can destroy
the matte finish effect.
-
Do not place any stickers or magnetic
signs on vehicle parts painted with matte
finish paint. The paint could be damaged
when the stickers or magnets are re­
moved .
@ For the sake of the environment
Only wash the vehicle in facilities sp ec ia ll y de­
signed for that pu rpose. This will reduce the
risk of dirty water contamina ted with oil from
entering the sewer sys tem.
Cleaning and care information
When cleaning and ca ring for individua l vehicle
components, refer to the follow ing tables. The
information contained there is simply recom ­
mendations. For q uestions or for components
that are not listed, consult an authoriz e d Audi
de a
ler or authorized Audi Service Facility. Also
f o ll
ow the informa tion found in~.&..
Ext erior cleaning
Component Situation Solution
Windshield wiper Deposits ~poge42
blades
Headlights /
Deposits Soft sponge with
a mild soap solutiona)
Tail lights
Sensors
Deposits soft cloth with solvent-free clean ing solution
Snow/ice Hand brush/solvent
-free de-icing spray
Wheels Road salt Water
Brake dust Acid-free special cleaning sol u tion
E x haust tail p ipes Road salt Water, clean ing solution suitable for stainless steel, if nee -
essary
Decorative parts/ Deposits Mild soap solution a>, a cleaning solution suitable for stain-
trim less steel, if necessary
271

Downloaded from www.Manualslib.com manuals search engine Fuses and bulbs
Interior fuse assignment
Fig. 211 Vehicle interior: fuse assignment
No. Equipment
Fl Powe r top control module (Roadster)
F2
Power top control module (Roadster)
F3 ESC control module
F4 Central computer processor (MIB-2)
FS Gateway
F6
Anti-theft alarm system
Climate control system, selector lever (au-
F7 tomatic transmission), parking heater,
rear window heater relay coil
Diagnosis,
electr ical parking brake switch,
F8
light switch, rain/light sensor, inter ior
lighting
F9
Steering column switch module
FlO Display
Fll Haldex clutch
F12 MMI area
Fl3 Adaptive dampers control module
F14 Climate control system blower
FlS Electronic steering column l ock
Fl6
MMI components, safety belt microphone
(Roadster)
286
No . Equipment
Fl7 Instrument cluster
Fl8 Rearview camera
F19 Convenience key system control module
F20 Power lumbar support adjustment
F22
Front passenger's side upper cabin heating
(Roadster)
F23 Right
exterior lighting, on-board computer
(right)
F25 Door/driver's
side doors (for example pow-
er windows)
F26 Seat heating
F28 AMI High media port
F29 On-board computer
F31 Left on-board computer
F32
Driver assistance systems
F33
Airbag
Socket relay, interior sound, back-up light
F34 switch, temperature sensor, oil level sen-
sor
Diagnosis, headlight range control system,
F35 air quality sensor, automatic dimming
rearview mirror
F36 Right cornering light I right LED-headlight
F37 Left
cornering light I left LED-headlight
F38
Engine control module, ESC control mod-
ule
F39
Door/front passenger's side doors (for ex-
ample, power windows)
F40 Cigarette lighter, sockets
F41 SCR relay and delivery unit
F42 Central locking area
F43 On-board computer
F45 Power adjustable driver's side seat
F46
Driver's side upper cabin heating (Road-
ster)
F49 Starter, clutch sensor
FSO ESC valves
FS3 Rear window defogger
The
power seats* are protected via circuit break­
ers that automatically switch on after a few sec­
onds after the overload has been reduced.
