0 I­co .... .... -Make sure that passengers wait in a safe
place away from the vehicle and well away
from the road and traffic.
- To help prevent the vehicle from moving
suddenly and possibly slipping off the jack,
always fully set the parking brake and block
the wheel diagonally opposite the wheel be ­
ing changed with the folding chocks or oth­
er objects. When one front wheel is lifted
off the g round, plac ing the Automatic
T ransmission in "P" (Park) will
not prevent
the vehicle from moving .
- Before you change a wheel, be su re t he
ground is level and firm. If necessary, use a
stu rdy board under the jack.
- Always sto re the veh icle tool k it, the jac k*
and the replaced tire in the luggage com­
partment ¢
page 118 .
(1) Note
If you are cha nging the whee l on a steep in­
cline, use a rock or similar objec t to block the
opposi te whee l to prevent the veh icle from
moving.
@ Tips
Obey all laws .
Changing a wheel
When you change a wheel, follow the sequence
described below step-by-step and in exactly that
order.
1. Remove the deco rative wheel cover * or the
whe el bolt cap s*. For more deta ils see also
¢ page 228, Decorative wheel covers or
¢ page 228, Wh eels with wh eel bolt caps.
2. Loosen the wheel bol ts ¢ page 228.
3 . Locate the proper mounting point for the
jack and align the jack below that point
¢ page 229.
4. Lift the car with the jack¢ page 229.
5 . Remove the
whe el with the flat tir e and then
insta ll the
s pare tire ¢ page 230 .
6. Tighten all wheel bo lts lightly.
7 .
Low er th e ve hicle w it h the ja ck .
Em ergenc y ass is tanc e
8. Use the wheel bolt wrench and firmly tighten
all wheel bo lts in a crisscross pattern
¢ page 228.
9. Replace the deco rati ve w heel co ver* or the
wheel bolt caps* .
A WARNING
Always read and follow all WARNINGS and in­
fo rmation
¢ .&. in Raising the vehicle on
page229and ¢page 231.
After changing a wheel
A wheel change is not complete without the do ­
ing the following .
.,. Always store the vehicle too l kit, the jack*, and
the replaced tire in the luggage compartment
¢ page 118 .
.,. Check the tire pres sure of the spare tire as soon
as poss ible.
.,. As soon as poss ib le, have the
tigh tening tor ­
qu es
on a ll wheel bolts checked with a torque
w rench. The correct tightening torque is
90 ft
lbs.
(120 Nm) .
.,. Hav e the flat tire
repl aced as soon as possible .
(D Tips
-If you notice that the wheel bo lts are co r­
roded and difficult to turn while changing a
tire, they shou ld be replaced before you
check the tightening torque.
- Drive at reduced speed unti l yo u have the
tightening torques checked.
227

.... N

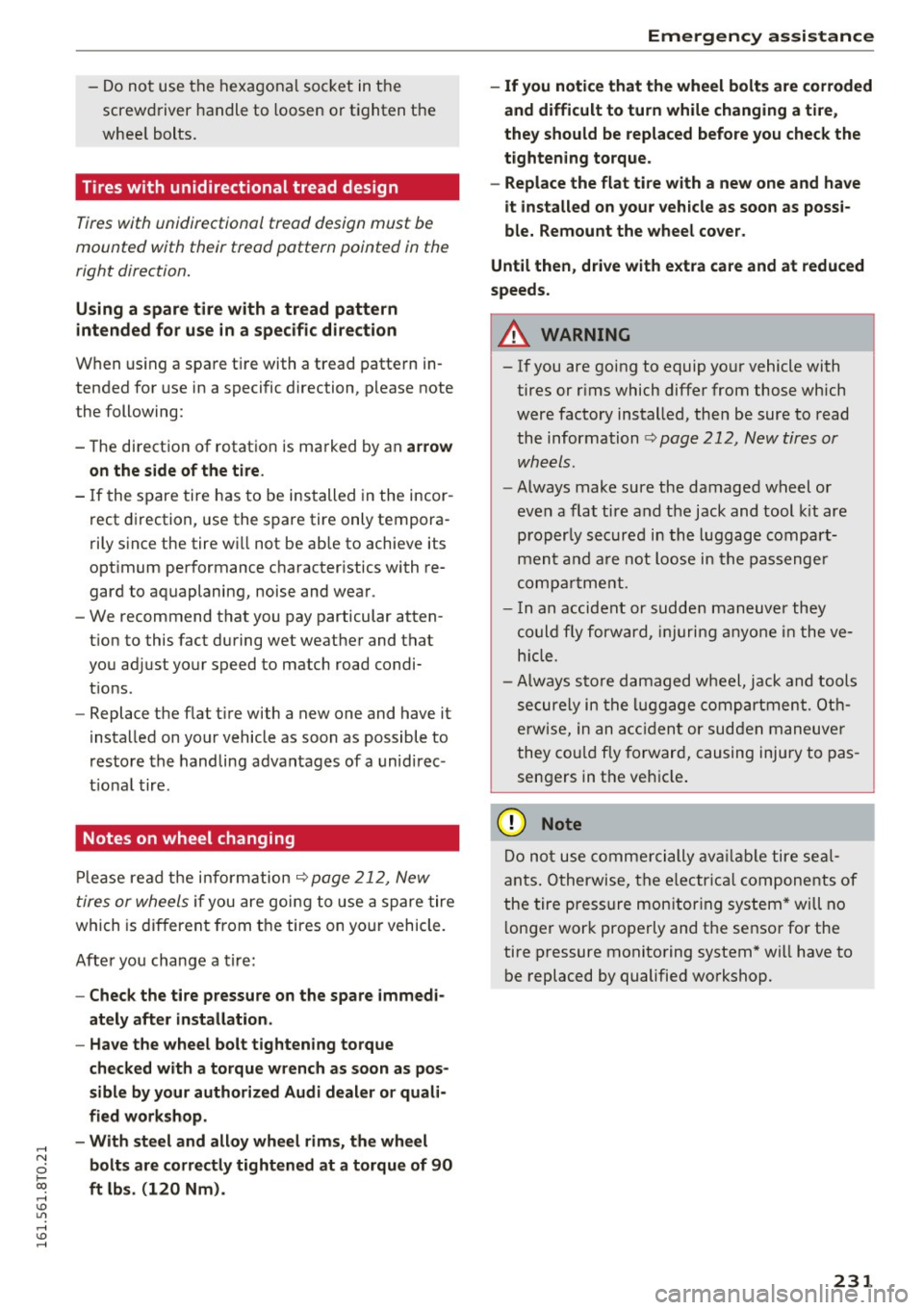

0 I-­co .... .... -Do not use the hexagonal socket in the
screwdriver handle to loosen or tighten the
wheel bolts.
Tires with unidirectional tread design
Tires with unidirectional tread design must be
mounted with their tread pattern pointed in the
right direction.
Using a spare tire with a tread pattern
intended for use in a specific direction
When using a spare tire with a tread pattern in ­
tended for use in a specific direction, please note
the following:
- The direction of rotation is marked by an
arrow
on the side of the tire.
-If the spare tire has to be installed in the incor­
rect direction, use the spare tire only tempora­
rily since the tire w ill not be ab le to achieve its
opt imum performance character istics with re­
gard to aquaplaning, noise and wear.
- We recommend that you pay particular atten­
t ion to this fact during wet weather and that
you adjust your speed to match road condi­
t ions.
- Replace the f lat t ire with a new one and have it
installed on your vehicle as soon as possible to
restore the hand ling advantages of a unidirec­
t iona l tire.
Notes on wheel changing
Pl ease read the informat ion ~page 212, New
tires or wheels
if you are going to use a spare tire
which is different from the tires on your vehicle.
After you change a tire :
-Check the tire pressure on the spare immedi­
ately after installation.
- Have the wheel bolt tightening torque
checked with a torque wrench as soon as pos­
sible by your authorized Audi dealer or quali­
fied workshop.
- With steel and alloy wheel rims, the wheel
bolts are correctly tightened at a torque of 90
ft lbs . (120 Nm) .
Emergency assistance
-If you notice that the wheel bolts are corroded
and difficult to turn while changing a tire,
they should be replaced before you check the
tightening torque.
- Replace the flat tire with a new one and have
it installed on your vehicle as soon as possi ­
ble. Remount the wheel cover.
Until then , drive with extra care and at reduced
speeds.
A WARNING
-
- If you are going to equip your vehicle with
tires or rims which differ from those which
were factory installed, then be sure to read
the information
¢ page 212, New tires or
wheels.
- Always make sure the damaged wheel or
even a flat tire and the jack and tool kit are
proper ly secured in the luggage compart­
ment and are not loose in the passenger
compa rtment .
- In an accident or sudden maneuver they
could fly forward, injuring anyone in the ve­
hicle.
- Always store damaged wheel, jack and tools
securely in the luggage compartment. Oth­
erwise, in an acc ident or sudden maneuver
they could fly forward, causing injury to pas­
sengers in the veh icle.
(D Note
Do not use commerc ially available tire seal­
ants. Otherwise, the electr ical components of
the tire press ure monitoring system * will no
l onger work properly and the sensor for the
tire pressure monitoring system* wi ll have to
be replaced by qualified workshop.
