2016 AUDI A3 ESP

,..,
N
0 > co ,.., Care and cleaning
Component Situation Solution
T ex til es
Deposits adhering to Vacuum cleaner
art ificial l eather, the surface
A lcan tara Water-based deposits Absorbent
cloth and mild soap solutiona>
such as coffee, tea,
b lood, etc.
Oil -based deposits Apply a m ild soap solution
a), blot away the dissolved o il or
such as oil, make-up, dye, treat afterward with water, if necessary
etc.
Special deposits such Special stain
remover, blot with absorbent material, treat
as ink, nail polish, la- afterward with mild soap solution, if necessary
a)
tex paint, shoe pol-
ish, etc.
Natu ral le ath er Fresh stains Wool cloth with a mild soap solution a)
Water-based deposits Fresh stains: absorbent cloth
such as coffee, tea, Dried stains : stain
remover suitable fo r leather
b lood , etc.
Oi [-based deposits Fresh stains: absorbent cloth and stain
remover suitable
such as oil, make-up, for leather
etc. Dried stains : grease dissolving spray
Special deposits such Spot remove r suitab le for leather
as ink, nai l polish, la-
tex paint, shoe pol-
ish, etc.
Care Regularly apply condit ion ing c ream that protects from
lig ht and penet rates into the material. Use specia lly-co l-
ored conditioning cream, if necessary .
Carbon part s Deposits clean the same way as plast ic parts
a) Mi ld soap solution: maximum two tablespoons of neutral soap in 1 q uart (1 liter) of water
.8, WARNING
The windshield may not be trea ted with wa­
ter-repelling windshield coating agents. Un ­
favorable cond itions such as wetness, dark­
ness, or low sun can result in increased glare.
Wiper blade chatter is also possible.
A WARNING
- Audi e -tron charg ing sy stem *
- Never immerse the charging system and
connectors in water.
- The charging system m ust only be cleaned
when the control unit is completely d is­
connected from the powe r su pply system
and from the vehicle.
-
({I) Note
- Hea dlight s/tail lights
- Never clean headlights or tail lights w ith a
d ry cloth or sponge.
- Do not use any cle aning product that con­
tains alcoho l, because they could ca use
cracks to form.
-Whe els
- Never use any pa int polish or other abra-
sive materials.
- Damage to the protect ive layer on the
rims such as stone chips or scratches must
be repaired immediately .
-Sensor s/came ra le nses Ill-
277

Emerg ency assis ta nce
Emergency assistance
Trunk escape latch
Applies to veh icles: with trunk escape latch
In case of an emergency, the rear lid can be
opened from the inside using the trunk escape
latch.
Fig. 207 luggage compartment: Trunk escape latch
.,. Push the latch in the direction of the arrow un­
ti l the lock releases.
The trunk escape latch inside the rear lid is made
of fluo rescent mater ial to g low in the dark.
_& WARNING
The trunk escape latch is to be used only in an
emergency .
General information
.,. Park the vehicle as far as poss ible from moving
t raff ic in the event of a flat tire. In the event of
a f lat t ire, park the vehicle on a level surface. It
you are on a steep incline, be especia lly careful.
.,. Set the parking brake.
.,. Place the selector lever in the P pos ition .
.,. Switch the emergency flashers on.
.,. Put on a reflective vest, if available .
.,. Set up the warn ing triangle, if available .
.,. Have the passengers exit the vehicle. They
should move to a safe place, for example be­
hind a guard rail.
_& WARNING
Pay attention to the steps above. They a re for
your protection and the for the safety of other
drivers.
280
Equipment
Vehicle tool kit
Applies to vehicles: with vehicle tool kit
Fig. 208 luggage compartment (example): vehicle tool kit,
t ire mobility kit and vehicle jack* placement
Fig. 209 luggage compartment: cargo floor fo lded up (A3
Spo rtback top, A3 sedan bottom)
Plug-in hybrid drive*: the placement var ies
<>page 107 .
The vehicle tool kit, tire mobility kit* and the
compressor* are located in the luggage compart­
ment. Part of it is sto red in the s ide tr im pan­
el @ * or @ and another part is under the cargo
floor cover ©¢
fig. 208.
C argo floor cove r
.,. A3 Sportback: lift up the cargo floor with the
plastic handle © until it is clamped behind

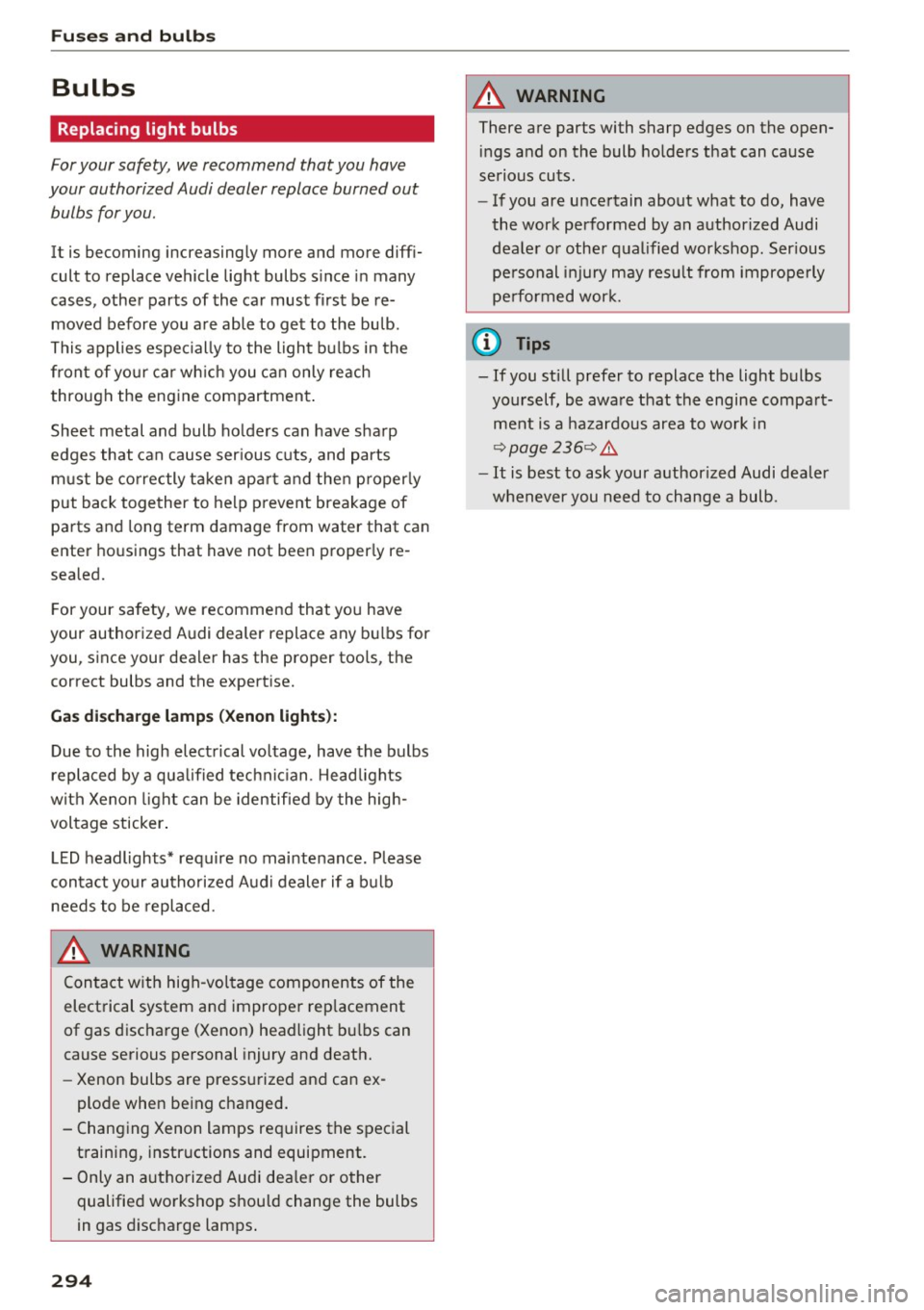

Fuses a nd bul bs
Bulbs
Replacing light bulbs
For your safety, we recommend that you have
your authorized Audi dealer replace burned out
bulbs for you.
It is becoming increasingly more and more diffi­
cult to replace vehicle light bulbs since in many
cases, other parts of the car must first be re­
moved before you are able to get to the bu lb .
This applies espec ially to the light bulbs in the
front of your car wh ich you can only reach
through the engine compartment .
Sheet metal and bulb holders can have sharp
edges that can cause ser ious cuts, and parts
m ust be correctly taken apa rt and then p roperly
put back together to help prevent breakage of
parts and long term damage from water that can
enter housings that have not been properly re­
sealed.
For your safety, we recommend that you have
your authorized Audi dealer replace any bu lbs for
you, since your dealer has the proper tools, the correct bulbs and the expertise.
G as di sc harg e l am ps (Xe non li ghts):
Due to the high electrical voltage, have the bulbs
replaced by a qua lified technic ian . Headlights
with Xenon light can be identified by the high­
voltage sticker.
LED headlights* require no maintenance. Please
contact your authorized Aud i dealer if a bulb
needs to be replaced.
A WARNING
Contact w ith high-voltage components of the
electrical system and improper rep lacement
of gas discharge (Xenon) headlight bulbs can
cause serious personal injury and death.
- Xenon bulbs are pressurized and can ex­
plode when being changed.
- Changing Xenon lamps requires the special training, instructions and equipment.
- Only an a uthorized Audi dea ler or other
qualified workshop should change the bulbs
in gas discharge lamps .
294
A WARNING
-
There are parts with sharp edges on the open-
ings and on the bulb holders that can cause
serious cuts.
- If you are uncertain about what to do, have
the work performed by an authorized Audi
dealer or other qualified workshop. Ser ious
pe rsonal injury may resu lt from improperly
pe rformed wor k.
@ Tips
- If you still prefer to replace the light bulbs
yourself, be aware that the engine compart­ ment is a hazardous area to work in
9 page 2369 .&.
-It is best to ask your authorized Audi dealer
whenever you need to change a bulb.

Tech nical data
Gross Axle Weight Rating
The G ross Ax le We ight Rating is the max imum
load that can be applied at each axle of the vehi ­
cle¢ &.
Vehicle capacity weight
The vehicle capacity we ight (max. load) is l isted
eithe r on the dr iver's side 8-pilla r or inside the
fue l filler f lap.
A WARNING
- The ac tual Gross Axle Weight Rating at the
front and rear axles shou ld not exceed the
permissible weights, and their comb inat ion
must not exceed the Gross Veh icle Weight
Rating.
Dimensions
The dimens ions can vary depending on the model
and eq uipment.
When driving on poor roads, by curbs and on
steep ramps, make su re that low-lying compo-
A3 Sed an
Leng th
Width
Wid th (across m irrors)
He ight (un loaded)al
•> T h e he ight of the veh icle depends on the tires and suspe nsion.
53 Sedan
Length
Width
Width (across mirrors)
He ight (un loaded)al
•> The he ight of the vehicle depends on the tires and suspe nsion.
A3 Sportback / A3 Sportback e-tron
Length
Width
302
- Exceed ing permissible weight ratings can
result in vehicle damage, accidents and per­
sonal injury.
(D Note
- The vehicle capacity weight figures apply
when the load is d istr ibuted evenly in the
vehicle (passengers and luggage). When
t ransporting a heavy load in the luggage
compartment, carry the load as near to the
rea r axle as possib le so that the vehicle's
hand ling is not impaired.
- Do not exceed the max imum perm iss ible
axle loads or the maxim um gross vehicle
we ight. Always remember that the ve hicle's
han dling will be affe cted by the extra load.
T herefore, a djust your spee d ac co rd ingly.
- Always observe lo cal regulations.
nents such as the spoiler and exhaust system do
not come into contact w ith these o r they co uld be
d am aged. This applies especially when the vehi ­
cl e is f ully loaded.
i n (mm)
175.3 (4 456)
in (mm) 70.7 (1796)
in (mm) 77.1 (1960)
in (mm) 55 .7 (1416)
in (mm) 1 75.8 (4469)
in (mm) 70 .7 (1796)
in (mm) 77.1 (1960)
i n (mm) 54.8 (1392)
in (mm) 169.6 (4312)1)
in (mm) 70.2 (1785)1
)

Consumer information
Consumer information
Warranty coverages
Your Audi is covered by the following warran­
ties:
- New Vehicle Limited Warranty
- Limited Warranty Against Corrosion Perfora-
tion
- Emissions Control System Warranty
- Emissions Performance Warranty
- California Emissions Control Warranty (USA
vehicles only)
- California Emissions Performance Warranty
(USA vehicles only)
Detailed information regarding your warranties
can be found in your
Warranty & Maintenance
booklet .
Operating your vehicle
outside the U.S.A. or
Canada
Government regulati ons in the United States and
Canada require that automobi les meet specific
emission regulations and safety standards.
Therefore, vehicles built for the U.S.A. and Cana ­
da differ from vehicles sold in other countries.
If you plan to take your vehicle outside the conti­
nenta l limits of the United States or Canada,
there is the poss ibility that:
- un leaded fue ls for vehicles with catalytic con­
verter may not be available;
- fuel may have a considerably lower octane rat­
ing . Improper fuel may cause engine damage;
- service may be inadequate due to lack of proper
service facilities, tools or testing equipment;
- r eplacement parts may not be readily available.
- Nav igation systems for veh icles built for the
U.S .A . and Canada will not necessarily work in
Europe, and may not work in other countries
outside North America.
306
(D Note
Audi cannot be responsib le for mechanical
damage that could result from inadequate
fuel, service or parts ava ilability.
Audi Service Repair
Manuals and Literature
Audi Official Factory Service Manuals and Litera ­
ture are published as soon as poss ible after mod­
el introduction . Service manuals and literature
are available to order from the Audi Technical Lit ­
erature Ordering Center at :
www.audi.techliterature .com
Maintenance
General '
Your vehicle has been designed to help keep
maintenance requirements to a minimum. How­
ever, a certain amount of regular maintenance is
still necessary to assure your vehicle's safety,
economy and reliability . For detailed vehicle
maintenance consult your Warranty & Mainte­
nance booklet .
Under difficult operating conditions, for exam ­
ple at extremely low outside temperatures, in
very dusty regions, when towing a trailer very fre­
quently, etc., some service work should be per­
formed between the intervals specified. This ap­
plies particularly to:
- oil changes, and
- cleaning or replac ing the a ir filter .
'
@) For the sake of the environment
By regularly maintain ing your vehicle, you
help make sure that em iss ion standards are
maintained, thus minimizing adverse effects
on the environment .
Important considerations for you and your
vehicle
The increasing use of electronics, sophisticated
fuel injection and emission control systems, and
the generally increas ing technica l complexity of ..,_

today's automobiles, have steadily reduced the
scope of maintenance and repairs which can be
carried out by vehicle owners.
Also, safety and
environmental
concerns place very strict limits
on the n ature of repairs and adjustments to en­
gine and transmission parts which an owner can perform .
Maintenance, adjustments and repairs usually re­
quire special tools, testing devices and o ther
equipment available to specially trained work ­
shop personnel in order to assure proper per­
formance, reliability and safety of the vehicle and
its many systems.
Improper maintenance, adjustments and repairs
can impair the operation and reliability of your
vehicle and even void your vehicle warranty .
Therefore, proof of servicing in accordance with
the maintenance schedule may be a condition for upholding a possible warranty claim made within
the warranty period.
Above all , operational safety can be adversely af­
fected, creating unnecessary risks for you and
your passengers.
If in doubt about any servicing, have it done by
your authorized Audi dealer or any other properly equipped and qualified workshop. We strongly urge you to give your authorized Audi dealer the
opportunity to perform all scheduled mainte­ nanc e and necessary repairs. Your dealer has the
facilities, original parts and trained specialists to keep your vehicle running properly .
Performing limited maintenance yourself
The following pages describe a limited number of
procedures which can be performed on your vehi­
cle with ordinary tools, should the need arise and
trained personnel be unavailable. Before per­
forming any of these procedures, always thor­
oughly read all of the applicable text and careful­ ly follow the instructions given . Always rigorously
observe the
WARNINGS provided .
Before you check anything in the engine com-
,.., partment, always read and heed all WARNINGS
N
~ c::> .&. and c::> page 236.
co ,...., Consumer information
A WARNING
-Serious personal injury may occur as a result
of improperly performed maintenance, ad ­
justments or repairs .
- Always be extremely careful when working
on the vehicle. Always follow commonly ac ­
cepted safety practices and general com­ mon sense. Never risk personal injury.
- Do not attempt any of the maintenance,
checks or repairs described on the following pages if you are not fully familiar with these
or other procedures with respect to the ve­ hicle, or are uncertain how to proceed.
- Do not do any work without the proper tools
and equipment. Have the necessary work
done by your authorized Audi dealer or an­
other properly equipped and qualified work­
shop.
- The engine compartment of any motor vehi­ cle is a potentially hazardous area. Never
reach into the area around or touch the radi­
ator fan.
It is temperature controlled and
can switch on suddenly - even when the en­
gine is off . The radiator fan switches on au ­
tomatically when the coolant reaches a cer­
tain temperature and will continue to run
until the coolant temperature drops.
- Always switch off the ignition before anyone
gets under the vehicle .
-Always support your vehicle with safety
stands if it is necessary to work underneath
the vehicle . The jack supplied with the vehi­
cle is not adequate for this purpose and
could collapse causing serious personal in­
jury.
- If you must work underneath the vehicle
with the wheels on the ground, always make
sure the vehicle is on level ground, that the
wheels are always securely blocked and that
the engine cannot be started.
- Always make sure the transmission selector
lever (automatic transmission) is in P (Park
position) and the park brake is applied .
II>
307

,....,
N
0 > co ,...., means that you risk both a substant ia l reduction
in the operationa l safety of your vehicle and an
increased wear of vehicle parts¢
A.
Author ized Audi dealers w ill per form this wor k in
a professional and competent manner or, in spe­
cial cases, refer you to a professional company
that spec ializes in such modifications.
A WARNING
Improper repairs and mod ificat ions can
change the way veh icle systems work and
cause damage to the veh icle and ser ious per­
sonal injury.
If emergency repa irs must be pe rformed else­
where, have the vehicle examined by an au­ thorized A udi dealer as soon as possib le .
Declaration of
Compliance, Telecom­ munication and
Electronic Systems
Radio Frequency Devices and Radio Communica­
tion Equipment User Manual Notice.
T he manufacturer is not respons ible for any radio
or TV interference caused by unauthor ized modi ­
fications to this equ ipment .
Devices
The fo llow ing devices each comp ly w ith FCC Part
15.19, FCC 15.21 and RSS-Gen Issue
1:
- Adaptive cruise control*
- Audi s ide ass ist*
- Cell p ho ne pac kage*
- Convenience k ey*
- E lectron ic immobilizer
- Homelink universal remote contro l"
- Remote contro l key
FCC Part 15.19
This devi ce comp lies with p art 15 of the FCC
Ru les. Ope ra tion is subject to the following two
conditions :
Consumer inf ormation
(1) This dev ice may not ca use ha rmf ul inter fer ­
ence, and
( 2 ) th is d evice m us t ac cep t any inte rference re­
c e ived, in clu ding in terference tha t may c ause un ­
desired ope ra tion.
FCC Part 15.21
CAU TION:
Changes or mod ificat ions not express ly approved
by the party responsible for compliance cou ld
vo id the user's a uth ori ty to ope rate t he equ ip­
me nt.
RSS-Gen Issue 1
Operat ion is subject to the following two cond i­
t ions:
(1) this device may not cause inte rfe rence, and
( 2 ) this devi ce m us t a cc ep t any inte rference, in­
cl udi ng interference tha t may cause undes ired
operation of the device .
309

,....,
N
0 > co ,...., Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . 240
adding . ... .. ............... .. .... . 242
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Checking the oil level . . . . . . . . . . . . . . . . . 242
Dipstick .. .. .. .............. 239,240,242
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 20
o ·l · 1 consumption . . . . . . . . . . . . . . . . . . . . . 241
Specification and viscosity . . . . . . . . . . . . . 240
Temperature indicator . . . . . . . . . . . . . . . . . 32
Use . .. .. .. .. .... .. .. ....... .. .. .. . 242
Engine preheater . . . . . . . . . . . . . . . . . . . . . . 7 S
Engine speed limitation (indicator light) . . .
24
Environment
Break-in period . . . . . . . . . . . . . . . . . . . . . . . 77
Catalytic converter . . . . . . . . . . . . . . . . . . .
232
Diesel particulate filter . . . . . . . . . . . . . . . 233
Disposing of your vehicle battery . . . . . . . 250
Driving at high speeds . . . . . . . . . . . . . . . . . 78
Letting the vehicle stand and warm up . . . . 7 8
Proper disposal of drained brake fluid . . . 246
Proper disposal of drained engine oil . . . . 243
Unleaded gasoline . . . . . . . . . . . . . . . . . . . 228
What should I do with an old battery? . . . 250
EPC (engine control) . . . . . . . . . . . . . . . . . . . . 23
ESC
Automatic post-collision braking system .
159
Electronic stabilization control . . . . . . . . . 159
Sport mode . . . . . . . . . . . . . . . . . . . . . . . . 160
also refer to Electronic Stabilization Control
(ESC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
159
ESP
refer to Electronic Stabilization
Control (ESC) . . . . . . . . . . . . . . . . . . . . . . .
159
Event Data Recorder (EDR) . . . . . . . . . . . . . 158
Exterior lighting . . . . . . . . . . . . . . . . . . . . . . . 46
Exterior mirrors
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . . . SO
D' . 1mming ... .. ................ ..... .. 51
folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SO
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . SO
F
Fastening
Booster seats . . . . . . . . . . . . . . . . . . . . . . .
218
Convertible child safety seats . . . . . . . . . . 216
Infant seats .. .... .... ..... ... ... .. . 215
Filling AdBlue
with bottle
Index
235
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Fog lights/rear fog light(s) . . . . . . . . . . . . . . 46
Folding the exterior mirrors
Center locking . . . . . . . . . . . . . . . . . . . . . . .
39
Folding the rear seats . . . . . . . . . . . . . . . . . . . 65
Foot pedals . . . . . . . . . . . . . . . . . . . . . . . . . .
171
Footwell lighting . . . . . . . . . . . . . . . . . . . . . . 49
For the sake of the env ironment
Environmentally-friendly driving . . . . . . . . 77
Fueling . . . . . . . . . . . . . . . . . . . . . . . . . . . .
230
Leaks. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237
Rear w indow defogger...... ...... .. .. . 74
Front airbags Description . . . . . . . . . . . . . . . . . . . . . . . . .
188
How they work . . . . . . . . . . . . . . . . . . . . . . 194
Frontal collisions and the laws of physics . . 177
Front armrest . . . . . . . . . . . . . . . . . . . . . . . . . 59
Front passenger's door emergency locking . . 41
Front seats
Adjusting . . . . . . . . . . . . . . . . . . . . . . . . . .
168
Child res traints in the front seat . . . . . . . . 185
also refer to Seats 57,64
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . .
228
Blended gasoline . . . . . . . . . . . . . . . . . . . . 228
Current consumption . . . . . . . . . . . . . . . . . . 29
Fuel filler neck . . . . . . . . . . . . . . . . . . . . . . 230
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . 10, 12
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 303
Gasoline . . . . . . . . . . . . . . . . . . . . . . . . . . . 228
Gasoline additives . . . . . . . . . . . . . . . . . . . 229
Indicator light . . . . . . . . . . . . . . . . . . . . . . . 24
Saving fuel .. .. .. .. .............. 77, 148
Fuel economy messages (efficiency program) 3.1
Fueling
Fuel filler door eme rgency release . . . . . .
232
Fuel gauge . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Fuel tank capacity . . . . . . . . . . . . . . . . . . . 303
Open ing the fuel filler door . . . . . . . . . . . . 230
Fuses
Assignment . . . . . . . . . . . . . . . . . . . . . . . .
292
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
replacing . . . . . . . . . . . . . . . . . . . . . . . . . . 29 1
315
