2016 Alfa Romeo 4C technical specifications

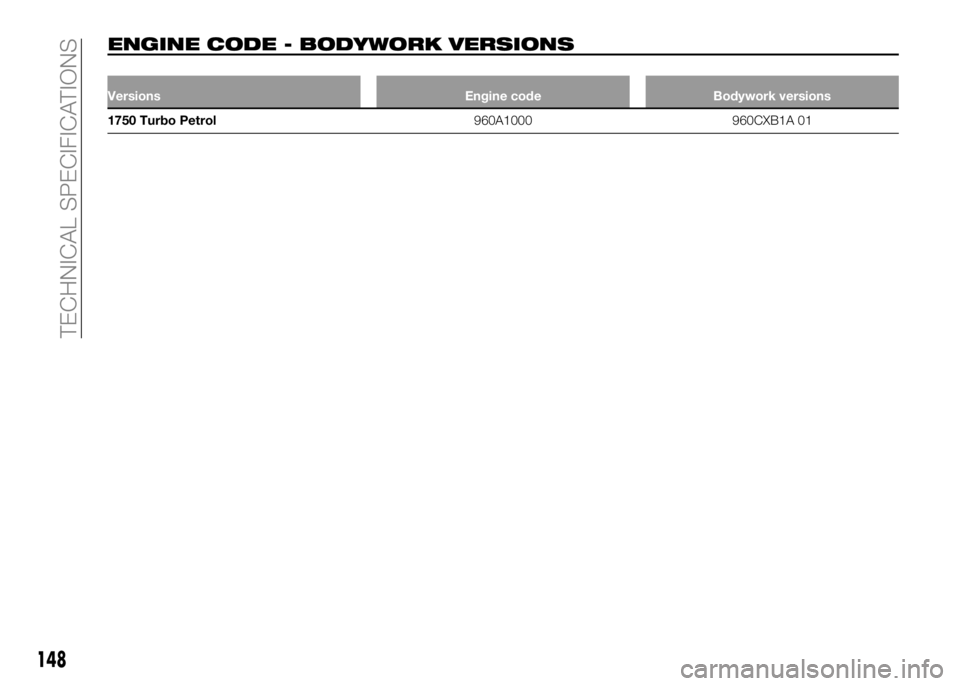

ENGINE CODE - BODYWORK VERSIONS
Versions Engine code Bodywork versions
1750 Turbo Petrol960A1000 960CXB1A 01
148
TECHNICAL SPECIFICATIONS

FUEL SUPPLY
VersionsFuel supply
1750 Turbo Petrol140)Electronically controlled direct injection with turbocharger and
intercooler
WARNING
140)Modifications or repairs to the supply system that are not carried out correctly or do not take the system technical specifications into
account can cause malfunctions leading to the risk of fire.
150
TECHNICAL SPECIFICATIONS

BRAKES
Versions Front brakes Rear brakes Parking brake
1750 Turbo PetrolSelf-ventilating discs Self-ventilating discsControlled by hand lever, acting
on the rear brakes
152
TECHNICAL SPECIFICATIONS

STEERING
Versions Turning circle, kerb to kerb (m) Type
1750 Turbo Petrol11 Rack and pinion
154
TECHNICAL SPECIFICATIONS

H2shape and number of humps
(circumference measurement which
keeps the bead of tubeless tyres in
position on the rim).
ET 33wheel compensation (distance
between the disc/rim support
plane and the wheel rim centre
line).
156
TECHNICAL SPECIFICATIONS

COLD TYRE INFLATION PRESSURE (bar)
Tyres provided Inflation pressure (bar)
Front tyres205/45 R17 88Y XL 1.8
205/40 R18 86Y XL 1.8
Rear tyres235/40 R18 95Y XL 2.0
235/35 R19 91Y XL 2.0
When the tires are warm, the inflation pressure should be + 0.3 bar in relation to the recommended figure. However, recheck
that the value is correct with the tyre cold.
With snow tyres, add +0.2 bar to the pressure value prescribed for standard tyres.
If it is necessary to raise the vehicle, refer to the "Raising the vehicle" paragraph in the "In an emergency" chapter.
158
TECHNICAL SPECIFICATIONS

PERFORMANCE
Versions Top speed (km/h)Acceleration from 0-100 km/h
(sec)
1750 Turbo Petrol258 4,5
160
TECHNICAL SPECIFICATIONS

REFUELLING
1750 Turbo Petrol
Prescribed fuels / Original fluids and
lubricants
litres kg
Fuel tank 40 -
Unleaded petrol not less than 95 RON (EN
228 specification)
including a reserve of 4 - 5 -
Engine cooling system 10.6 9.4Mixture of distilled water and PARAFLU
fluid
UP
50%(*)
Engine sump 5.4 4.6
SELENIA SPORT POWER
Engine sump and filter 5.8 5.0
Gearbox casing/differential: 1.88 1.6 TUTELA TRANSMISSION GEARTECH
Transmission hydraulic activation system 1.45 1.2 TUTELA CS SPEED
Hydraulic brake circuit with ABS (Anti-lock
braking system)0.52 0.56 TUTELA TOP 4
Windscreen washer fluid reservoir 1.9 1.7Mixture of water and TUTELA
PROFESSIONAL SC 35
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a 60-40 mixture of PARAFLUUPand demineralised water.
162
TECHNICAL SPECIFICATIONS
