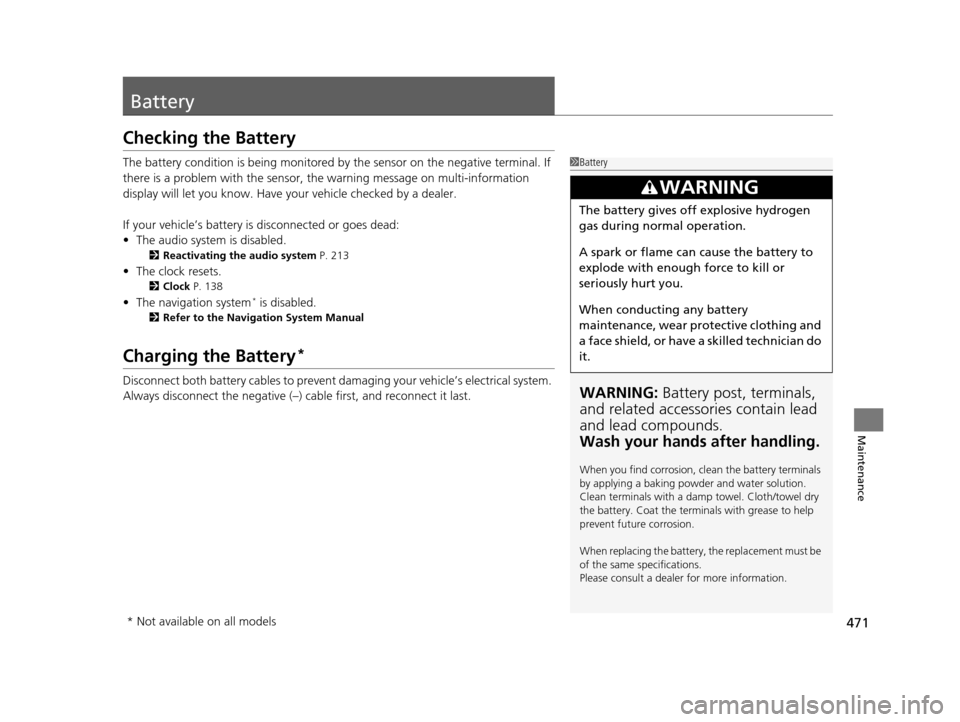

Maintenance
Battery
Checking the Battery
The battery condition is being monitored by the sensor on the negative terminal. If
there is a problem with the sensor, the warning message on multi-information
display will let you know. Have your vehicle checked by a dealer.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 213
•The clock resets.
2 Clock P. 138
•The navigation system* is disabled.
2 Refer to the Navigation System Manual
Charging the Battery*
Disconnect both battery cables to prevent damaging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean terminals with a damp towel. Cloth/towel dry
the battery. Coat the terminals with grease to help
prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Please consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
* Not available on all models
16 ACURA TLX-31TZ36100.book 471 ページ ２０１５年８月２６日　水曜日　午後１時５４分

501
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
2. Remove the spacer cone from the wing
bolt, flip it over, and insert it back on the
bolt. Secure the flat tire with the wing bolt.
3. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After dr iving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-information display, but this is normal.
If you replace the tire with a full-siz e tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
Spacer
Cone Wing Bolt
For
compact
spare tire
For
full-size
tire
■TPMS and the Spare Tire1
TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
16 ACURA TLX-31TZ36100.book 501 ページ ２０１５年８月２６日　水曜日　午後１時５４分

502
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 503
uMake sure the keyless access remo te is in its operating range.
2ENGINE START/STOP Button Operating Range P. 161
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 471●If the interior lights come on normally 2 Fuses P. 517
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 324
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 155
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 117
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 521
If the problem continues:
2Emergency Towing P. 522
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 505
16 ACURA TLX-31TZ36100.book 502 ページ ２０１５年８月２６日　水曜日　午後１時５４分

544
Index
Creeping (Dual Clutch Transmission)....... 332
Cross Traffic Monitor ................................ 422
Cruise Control ........................................... 350
Indicator .................................................... 84
Cup Holders ............................................... 192
Customized Features ........................ 126, 259
D
Daytime Running Lights ........................... 168
Dead Battery ............................................. 505
Defrosting the Windshield and Windows .................................................. 206
Devices that Emit Radio Waves ................ 533
Dimming Headlights ............................................... 165
Rearview Mirror ....................................... 177
Dipstick (Engine Oil) ................................. 444
Directional Signals (Turn Signal) .............. 164
Door Mirrors ............................................. 178
Doors ......................................................... 139
Auto Door Locking .................................. 151
Auto Door Unlocking ............................... 151
Door Open Indicator ............................ 31, 81
Door Open Message ................................ 102
Keys ........................................................ 139
Locking/Unlocking the Doors from the Inside ............................................... 13, 148
Locking/Unlocking the Doors from the Outside .................................................. 142
Lockout Prevention System ...................... 146 DOT Tire Quality Grading
........................ 465
Driver’s Knee Airbag .................................. 46
Driving ...................................................... 317
Automatic Transmission .......................... 332
Braking ................................................... 401
Cruise Control ......................................... 350
Dual Clutch Transmission ........................ 332
Shifting Gear ................................... 333, 340
Starting the Engine.................................. 324
Driving Position Memory System ............ 174
Dual Clutch Transmission ......................... 332
Creeping ................................................. 332
Fluid ........................................................ 451
Kickdown ................................................ 332
Operating the Shift Lever................... 20, 341
Shift Lever Does Not Move ...................... 509
Shifting ................................................... 340
Dust and Pollen Filter ............................... 475
E
ECON (Econ mode) Indicator ..................... 88
Elapsed Time ............................................. 124
Electric Parking Brake
Indicator.................................................... 71
Electric Parking Brake System Indicator............................................ 71, 514
Electric Power Steering (EPS) System Indicator............................................ 80, 514
Electronic Stability Control (ESC) ............. 391
Emergency ................................................ 522 Emissions Testing
(Readiness Codes) ...... 535
Engine ....................................................... 532
Coolant .................................................. 449
Jump Starting ......................................... 505
Oil .......................................................... 443
Remote Engine Start ............................... 327
Starting................................................... 324
Engine Coolant ........................................ 449
Adding to the Radiator ........................... 450
Adding to the Reserve Tank .................... 449
Overheating ............................................ 510
Temperature Gauge ................................ 117
Engine Oil ................................................. 443
Adding ................................................... 446
Checking ................................................ 444
Displaying Oil Life ................................... 436
Low Oil Pressure Indicator ................. 70, 512
Recommended Engine Oil ....................... 443
ENGINE START/STOP Button .................... 161
e-pretensioners .......................................... 34
EPS (Electric Power Steering) System ........ 80
Exhaust Gas Hazard (Carbon Monoxide) .. 66
Expanded View Driver’s Mirror ............... 179
Exterior Care (Cleaning) .......................... 478
Exterior Mirrors ........................................ 178
F
FCW (Forward Collision Warning) .......... 368
Features .................................................... 209
16 ACURA TLX-31TZ36100.book 544 ページ ２０１５年８月２６日　水曜日　午後１時５４分

545
Index
FiltersDust and Pollen....................................... 475
Oil .......................................................... 447
Flat Tire ..................................................... 483
Floor Mats ................................................ 477
Fluids Automatic Transmission .......................... 451
Brake ...................................................... 452
Dual Clutch Transmission ........................ 451
Engine Coolant ....................................... 449
Windshield Washer ................................. 452
Fog Lights ................................................. 168
Foot Brake ................................................ 404
Forward Collision Warning (FCW) with
Pedestrian Detection ............................. 368
Front Airbags (SRS) .................................... 42
Front Seat Heaters and Ventilation ........ 197
Front Seats ................................................ 180
Adjusting ................................................ 180
Front Sensor Camera ............................... 353
Fuel ..................................................... 21, 426
Economy................................................. 429
Gauge .................................................... 117
Instant Fuel Economy .............................. 124
Low Fuel Indicator..................................... 79
Range ..................................................... 124
Recommendation.................... 426, 528, 530
Refueling ................................................ 426
Fuel Economy ........................................... 429
Fuel Fill Door ...................................... 21, 427 Fuses
.......................................................... 517
Inspecting and Changing ......................... 521
Locations ......................... 517, 518, 519, 520
G
Gasoline (Fuel)
Economy ................................................. 429
Gauge ..................................................... 117
Information ............................................. 426
Instant Fuel Economy ............................... 124
Low Fuel Indicator ..................................... 79
Refueling ................................................. 426
Gauges ...................................................... 117
Gear Position Indicator ...................... 75, 334
Gear Shift Lever Positions
Dual Clutch Transmission ......................... 340
Gear Shift Positions
Automatic Transmission ........................... 333
Glass (care) ........................................ 476, 479
Glove Box .................................................. 189
H
Handling the Unexpected ........................ 481
HandsFreeLink ® (HFL) ............................... 280
Auto Answer ........................................... 295
Automatic Import of Cellular Phonebook
and Call History ..................................... 297
Automatic Transferring ............................ 295
Displaying Messages ................................ 310 HFL Buttons............................................. 280
HFL Menus .............................................. 282
HFL Status Display ................................... 281
Limitations for Manual Operation ............ 281
Making a Call .......................................... 301
Options During a Call .............................. 307
Phone Setup............................................ 287
Receiving a Call ....................................... 306
Receiving a Text/E-m
ail Message.............. 308
Ring Tone................................................ 296
Selecting a Mail Account ......................... 309
Speed Dial ............................................... 298
To Create a Security PIN .......................... 294
To Set Up a Text/E-mail Message
Option................................................... 292
Use Contact Photo .................................. 296
Hazard Warning Button .............................. 4
Head Restraints ........................................ 182
Headlight Washers ................................... 171
Headlights ................................................. 165
Aiming .................................................... 453
Automatic Operation............................... 166
Dimming ......................................... 165, 168
Operating................................................ 165
Heated Steering Wheel ............................ 196
Heated Windshield Button ...................... 173
Heaters (Seat) ................................... 197, 198
HFL (HandsFreeLink ®)............................... 280
High Beam Indicator .................................. 83
Hill Start Assist System ............................. 330
HomeLink ® Universal Transceiver ............ 277
16 ACURA TLX-31TZ36100.book 545 ページ ２０１５年８月２６日　水曜日　午後１時５４分

547
Index
L
Lane Departure Warning (LDW)............. 374
Lane Keeping Assist System (LKAS) ........ 383
Language (HFL) ........................................ 281
LATCH (Child Seats) ................................... 59
LDW (Lane Departure Warning) ............. 374
Lights ................................................ 165, 453
Automatic............................................... 166
Bulb Replacement ................................... 453
Daytime Running Lights .......................... 168
Fog Lights ............................................... 168
High Beam Indicator ................................. 83
Interior.................................................... 187
Light Switches......................................... 165
Lights On Indicator.................................... 83
Turn Signals ............................................ 164
Load Limits ............................................... 321
Locking/Unlocking ................................... 139
Auto Door Locking/Unlocking ................. 151
Childproof Door Locks ............................ 150
From Inside ............................................. 148
From Outside .......................................... 142
Keys........................................................ 139
Using a Key............................................. 146
Lockout Prevention System ..................... 146
Low Battery Charge ................................. 512
Low Fuel Indicator ..................................... 79
Low Keyless Access Remote Signal
Strength .................................................. 141
Low Oil Pressure Indicator ................. 70, 512
Lower Anchors ........................................... 59 Lubricant Specifications Chart
......... 529, 531
Luggage (Maximum Load Limit) ............. 321
Lumbar Support ........................................ 180
M
Maintenance............................................. 431
Battery .................................................... 471
Brake Fluid .............................................. 452
Cleaning .................................................. 476
Climate Control System ........................... 475
Coolant ................................................... 449
Maintenance Minder
TM............................ 435
Oil ........................................................... 444
Precautions .............................................. 432
Radiator .................................................. 450
Remote Transmitter ......................... 473, 474
Replacing Light Bulbs ............................... 453
Safety ...................................................... 433
Service Items ........................................... 438
Tires ........................................................ 462
Transmission Fluid ................................... 451
Under the Hood .............................. 440, 441
Malfunction Indicator Lamp .............. 74, 513
Map Lights ................................................ 188
Maximum Load Limit ............................... 321
Meters, Gauges ......................................... 117
Mirrors ....................................................... 177
Adjusting ................................................. 177
Door........................................................ 178
Exterior .................................................... 178 Interior Rearview ..................................... 177
Modifications (and Accessories) .............. 430
Moonroof ................................................. 160
MP3 ................................................... 235, 245
Multi-Information Display ....................... 118
Multi-View Rear Camera .......................... 425
N
Numbers (Identification).......................... 532
O
Odometer................................................. 123
Oil (Engine) ............................... 443, 529, 531
Adding .................................................... 446
Checking................................................. 444
Displaying Oil Life .................................... 436
Low Oil Pressure Indicator ................. 70, 512
Recommended Engine Oil ....... 443, 529, 531
Viscosity .................................. 443, 529, 531
On Demand Multi-Use Display
TM............. 216
Opening
Trunk ...................................................... 524
Opening/Closing Hood....................................................... 442
Moonroof ............................................... 160
Power Windows ...................................... 158
Trunk ...................................................... 152
Operating the Switches Around the Steering Wheel ....................................... 161
16 ACURA TLX-31TZ36100.book 547 ページ ２０１５年８月２６日　水曜日　午後１時５４分
