2016 Acura MDX tow

512
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the MID.
●If the To Start, Hold Remote Near Start Button message appears
2If the Keyless Access Remote Battery is Weak P. 513
uMake sure the keyless access remo te is in its operating range.
2ENGINE START/STOP Button Operating Range P. 155
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 478●If the interior lights come on normally 2 Fuses P. 523
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and resp ond accordingly. Review the engine start procedure.
Follow its instructions, and try to start the engine again.
2
Starting the Engine P. 340
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 149
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 110
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 530
If the problem continues:
2Emergency Towing P. 531
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle to jump start it.
2 Jump Starting P. 515
16 ACURA MDX-31TZ56200.book 512 ページ ２０１５年３月４日　水曜日　午後２時５９分

515Continued
Handling the Unexpected
Jump Starting
Turn off the power to electric devices, such as audio and lights. Turn off the engine,
then open the hood. 1.Pull up on the engine cover, remove it from
the pins.
u Start on the passenger side and lift the
outermost edge of the cover.
u Move towards the driver side while
applying uniform upward pressure.
2. Connect the first jumper cable to your
vehicle’s battery + terminal.
3. Connect the other end of the first jumper
cable to the booster battery + terminal.
u Use a 12-volt booster battery only.
u When using an automotive battery
charger to boost your 12-volt battery,
select a lower charging voltage than 15
volts. Check the ch arger manual for the
proper setting.
4. Connect the second jumper cable to the
booster battery - terminal.
■Jump Starting Procedure1Jump Starting
Securely attach the jumper cables clips so that they
do not come off when the e ngine vibrates. Also be
careful not to tangle the ju mper cables or allow the
cable ends to touch each other while attaching or
detaching the jumper cables.
Battery performance degrades in cold conditions and
may prevent the engi ne from starting.
3WARNING
A battery can explode if you do not follow
the correct procedure, seriously injuring
anyone nearby.
Keep all sparks, open flames, and smoking
materials away from the battery.
Engine CoverPin
Booster Battery
16 ACURA MDX-31TZ56200.book 515 ページ ２０１５年３月４日　水曜日　午後２時５９分

522
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected
If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver side doorjamb.
■What to do when the indicator blinks
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
If the Transmission Indicator Blinks along with the
Warning Message
■Reasons for the indicator to blink
There is a problem with the transmission.
■What to do when the indicator blinks
• Immediately have your vehi cle inspected by a dealer.
• Select
(N after starting the engine.
u Check if the
(N position in the instrume nt panel and the indicator
on the
(N button light/blink.
u The engine cannot be turned on unless the parking brake is set.
2 Starting the Engine P. 340
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
TPMS Fill Assist provides visual and audible assistance
during tire pressure adjustment. With the power
mode in ON, while you adjust tire pressure up or
down, the system alerts you as follows:
Below recommended pressure: The beeper
sounds and exterior lights flash once every five
seconds.
At recommended pressure: The beeper sounds
and exterior lights flash ra pidly for ~ five seconds.
Above recommended pressure: The beeper
sounds and lights flash twice every three seconds.
1 If the Transmission Indicator Blinks along with the Warning
Message
You may not be able to start the engine.
Make sure to set the pa rking brake when parking
your vehicle.
Call a professional towing service if you need to tow
your vehicle.
2 Emergency Towing P. 531
* Not available on all models
16 ACURA MDX-31TZ56200.book 522 ページ ２０１５年３月４日　水曜日　午後２時５９分

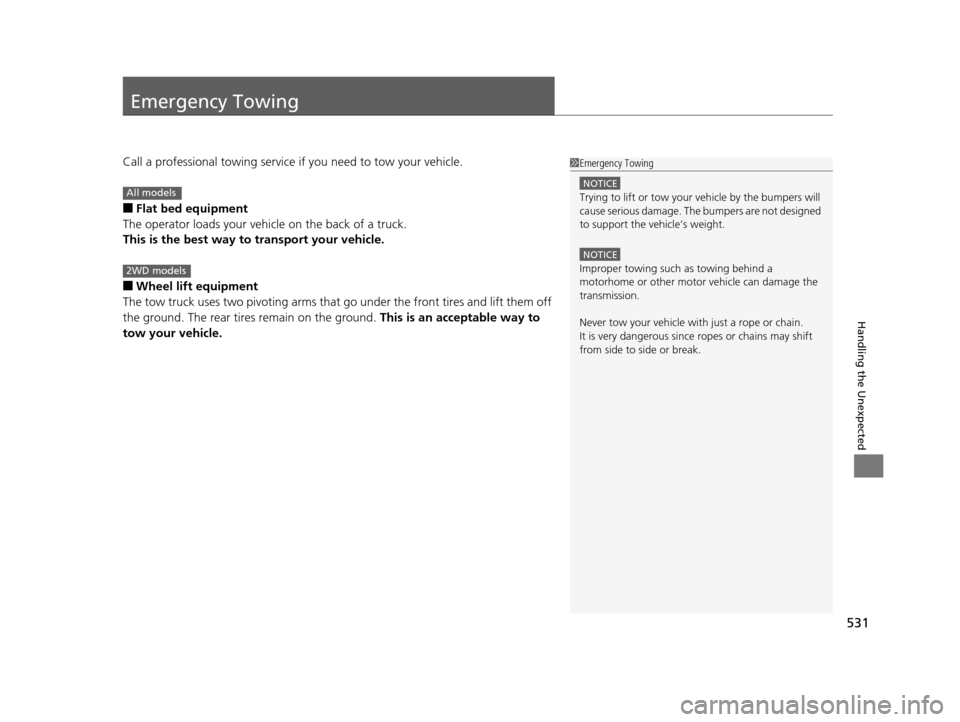

531
Handling the Unexpected
Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
All models
2WD models
16 ACURA MDX-31TZ56200.book 531 ページ ２０１５年３月４日　水曜日　午後２時５９分

532
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Lift the cargo floor lid by the handle in the
center.
3. Remove the cargo floor box and set it aside.
4. Wrap a cloth around the flat-tip
screwdriver. Put it in to the cover slot as
shown in the image, and remove the cover.
5. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1What to Do When Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Release Lever
16 ACURA MDX-31TZ56200.book 532 ページ ２０１５年３月４日　水曜日　午後２時５９分

554
Index
Setting the Clock...................................... 128
SH-AWD ® (Super Handling-All Wheel
Drive
TM) .................................................... 407
SH-AWD ® Torque Distribution Monitor .. 115
Shift Button......................................... 18, 347
Shifting (Transmission) ....................... 18, 347
Shoulder Anchor ......................................... 37
Side Airbags ................................................ 50
Side Curtain Airbags ................................... 52
SiriusXM ® Radio ........................................ 235
Snow Tires ................................................. 477
Spare Tire .......................................... 493, 537
Spark Plugs ................................................ 536
Specifications ............................................ 536
Specified Fuel .................................... 435, 536
Speedometer ............................................. 110
Speed-sensitive Electric Power Steering (EPS)
SystemIndicator ............................................ 79, 521
SRS Airbags (Airbags) ................................. 44
Starting Assist Brake Function ................. 358
Starting the Engine .................................. 340
Does Not Start ......................................... 512
Jump Starting .......................................... 515
Remote Engine Start ................................ 342
Steering Wheel ......................................... 171
Adjusting ................................................. 171
Heater ..................................................... 196
Stopping .................................................... 425
Summer Tires ............................................ 477
Sunglasses Holder ..................................... 196 Super Handling-All Wheel Drive
TM
(SH-AWD® ).............................................. 407
Indicator.................................................... 82
Supplemental Restraint System (SRS) ........ 44
Switches (Around the Steering
Wheel) ............................................. 4, 5, 155
Synchronized Mode ................................. 204
System Message Indicator .......................... 81
T
Tachometer............................................... 110
Tailgate ..................................................... 142
Unable to Open....................................... 533
Temperature Gauge ..................................................... 110
Outside Temperature Display ................... 113
Temperature Gauge ................................. 110
Temperature Sensor ......................... 113, 212
Temporary Tire Repair Kit ....................... 501
Third Row Seat (Folding Down) .............. 184
Third Row Seat Access .............................. 182
Tie-down Anchors .................................... 195
Time (Setting) ........................................... 128
Tire Fill Assist .................................... 408, 522
Tire Pressure Monitoring System (TPMS) ..................................................... 408
Indicator............................................ 79, 522
Tire Fill Assist ................................... 408, 522
Tire Repair Kit ........................................... 500 Tires
.......................................................... 469
Air Pressure..................................... 470, 537
Checking and Maintaining ...................... 469
Inspection ............................................... 469
Labeling .................................................. 470
Puncture (Flat Tire) .......................... 493, 500
Regulations ............................................. 472
Rotation.................................................. 476
Spare Tire ....................................... 493, 537
Summer .................................................. 477
Temporary Tire Repair Kit ........................ 501
Tire Chains.............................................. 477
Tire Repair Kit ......................................... 500
Wear Indicators....................................... 474
Winter .................................................... 477
Tools ......................................................... 492
Towing a Trailer ....................................... 327
Equipment and Accessories ..................... 331
Load Limits ............................................. 327
Towing Your Vehicle ............................... 337
Emergency .............................................. 531
TPMS (Tire Pressure Monitoring
System) .................................................... 408
Indicator ........................................... 79, 522
Trailer Stability Assist ............................... 335
Transmission ....................................... 18, 347
Automatic......................................... 18, 347
Fluid ....................................................... 457
Gear Position Indicator ...................... 74, 349
Number .................................................. 538
Sequential Mode..................................... 353
16 ACURA MDX-31TZ56200.book 554 ページ ２０１５年３月４日　水曜日　午後２時５９分

555
Index
TRIP Button.............................................. 112
Trip Meter ................................................ 113
Troubleshooting ...................................... 491
Blown Fuse ..................... 523, 526, 528, 529
Brake Pedal Vibrates ................................. 23
Buzzer Sounds When Opening Door ......... 24
Emergency Towing ................................. 531
Engine Won’t Start ................................. 512
Noise When Braking ................................. 25
Overheating ............................................ 517
Puncture/Flat Tire ............................ 493, 500
Rear Door Won’t Open ..................... 23, 140
Warning Indicators.................................... 72
Turn Signals .............................................. 158
Indicators (Instrume nt Panel) ..................... 79
Turn-by-Turn Directions .......................... 115
Two-way Keyless Access Remote ............ 129
U
Under-floor Storage Area....................... 190
Unlocking the Doors ................................ 131
Unlocking the Fron t Doors from the
Inside ................................................. 13, 138
USB Flash Drives ....................................... 262
USB Port .................................................... 215
V
Vanity Mirrors .............................................. 7
Vehicle Identification Number ................ 538Vehicle Stability Assist (VSA®
).................. 402
Off Button ............................................... 403
Off Indicator .............................................. 78
System Indicator ................................ 78, 402
Viscosity (Oil) .................................... 450, 537
VSA ® (Vehicle Stability Assist) .................. 402
W
Warning and Information Messages ......... 92
Warning Indicator On/Blinking ............... 519
Warning Labels ........................................... 69
Warranties (Warranty Manual provided
separately) ............................................... 543
Watts ......................................................... 536
Wear Indicators (Tire) ............................... 474
Wheel Nut Wrench (Jack Handle) ........... 497
Window Washers ...................................... 163
Adding/Refilling Fluid ............................... 458
Switch ..................................................... 163
Windows (Opening and Closing) ............. 152
Windshield ................................................ 163
Cleaning .................................................. 488
Defrosting/Defogging .............................. 207
Washer Fluid ........................................... 458
Wiper Blades ........................................... 465
Wipers and Washers ................................ 163
Winter Tires .............................................. 477
Snow Tires ............................................... 477
Tire Chains .............................................. 477 Wipers and Washers
................................. 163
Automatic Intermittent Wipers ................ 164
Checking and Replacing Wiper Blades ..... 465
Front ....................................................... 163
Rear ........................................................ 165
WMA ................................................. 238, 248
Worn Tires ................................................ 469
16 ACURA MDX-31TZ56200.book 555 ページ ２０１５年３月４日　水曜日　午後２時５９分
