Maintenance Minder Service Codes
These codes indicate what services are due on your vehicle.
*1 :I f a message SERVICE does not appear more than 12 months after the display is reset, change
the engine oil every year.
#: See information on maintenance and emissions warranty.
CODEMaintenance Main Items
AReplace engine oil*1
BReplace engine oil*1 and oil flter
Inspect front and rear brakes
Check parking brake adjustmen t
Check expiry date for tire repair kit bottle (if
equipped)
Inspect tie rod ends, steering gearbox, and boot s
Inspect suspension components
Inspect driveshaft boots
Inspect brake hoses and lines (Including ABS/VSA)
Inspect all fuid levels and condition of fuids
Inspect exhaust system#
Inspect fuel lines and connections#
*2:I f yo u drive in dusty conditions, replace the air cleaner element every 15, 000 miles (24,000 km).
*3 :I f you driv e primarily in urban areas that have high concentrations of soot in the air from
industry and di esel-powered vehicles, replace the dust and pollen flter every 15,000 mile s
(24, 000 km).
*4 :D riving in mountainous areas at very low vehicle speeds results in higher transmission
temperature. This requires transm ission fuid changes more frequently than recommende d
by the Maintenance Minder. If you regularly drive your vehicle under these conditions, have
the transmission fuid changed at 40,000 miles (64,000 km), then eve\
ry 30,000 miles (48,000 km).
CODEMaintenance Sub Item s
1
Rotate tires
2Replace air cleaner element*2
Replace dust and pollen flte r*3
Inspect drive belt
3
Replace transmission fuid*4
4Replace spark plug s
Inspect valve clearance
5
Replace engine coolan t
Under the Hood
Engine oil fill cap Engine oil dipstick
(orange)
Washer fluid
(blue cap) Brake fluid
(black cap)
Engine coolant
reserve tank cap
Radiator cap Battery

Opening the Hood
1. Park the vehicle on a level surface, and apply
the parking brake.
2. Pull the hood release handle under the lower
left corner of the dashboard.
3. Slide the hood latch lever in the center of the
hood to release the lock mechanism. Open the
hood.
4. Remove the support rod from the clamp using
the grip. Mount the support rod in the hood.

When closing the hood, remove the support
rod, and stow it in the clamp, then gently lower
the hood. Remove your hand at a height of
approximately 12 inches (30 cm) and let the
hood close.
Do not open the hood when the wiper arms are raised. The hood will strike the
wipers, and may damage either the hood or the wipers.
NOTICE
Hood release handle
Pull
Lever
Clamp
Support rod
Grip

124 || 125
MAINTENANCE
MAINTENANCE
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Engine Oil
Park the vehicle on level ground, and wait approximately three minutes after
turning the engine off before you check the oil.
Checking the Oil
1. Open the hood (see page 123). Remove the
dipstick (orange loop).
2. Wipe the dipstick with a clean cloth or paper
towel.
3. Insert the dipstick all the way back into its hole.
4. Remove the dipstick again, and check the level. It
should be between the upper and lower marks.
Add oil if necessary.
Upper mark
Lower mark
Recommended Engine Oil
•  Genuine Acura Motor Oil
•  Premium-grade 0W-20 detergent oil with an API Certification Seal on the
container
This seal indicates the oil is energy conserving and
that it meets the American Petroleum Institute’s
latest requirements.
Use Genuine Acura Motor Oil or another
commercial engine oil of suitable viscosity for the
ambient temperature as shown.
You may also use synthetic motor oil if it is
labeled with the API Certification Seal and is of the
specified viscosity grade.
Ambient temperatur e
Do not fill the engine oil above the upper mark. Overfilling the engine oil can
result in leaks and engine damage.
NOTICE
Adding Oil
1. Unscrew and remove the engine oil fill cap.
2. Add oil slowly.
3. Reinstall the engine oil fill cap, and tighten it
securely.
4. Wait for three minutes and recheck the engine
oil dipstick.
Resetting the Engine Oil Life
If you change or replace the vehicle’s engine oil yourself, you must reset the
engine oil life. Use the Info and SEL/RESET buttons on the steering wheel to make
selections in the MID.
1. Scroll to Vehicle Settings, and select it.
2. Scroll to Maintenance Info, and select it. The oil life
reset mode is displayed.
3. Select Reset. The maintenance items disappear, and
the engine oil life display returns to 100%.
Failure to reset the engine oil life after a maintenance service results in the
system showing incorrect maintenance intervals, which can lead to serious
mechanical problems.
NOTICE
Engine oil fill cap

126 || 127
MAINTENANCE
MAINTENANCE
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Engine Coolant
Park the vehicle on level ground. Check the reserve tank and the coolant level in the
radiator. We recommend Acura Long Life Antifreeze/Coolant Type 2.
Checking the Reserve Tank
1. Open the hood (see page 123). Check the
amount of coolant in the reserve tank.
2. If the coolant level is below the MIN mark, add
the specified coolant until it reaches the MAX
mark.
3. Inspect the cooling system for leaks.
Adding Coolant
1. Make sure the engine and radiator are cool.
2. Turn the radiator cap counterclockwise and
relieve any pressure in the coolant system. Do
not push the cap down when turning.
3. Push down and turn the radiator cap
counterclockwise to remove it.
4. The coolant level should be up to the base of the
filler neck. Add coolant if it is low.
5. Put the radiator cap back on, and tighten it fully.
6. Pour coolant into the reserve tank until it
reaches the MAX mark. Put the cap back on the
reserve tank.
Removing the radiator cap while the engine is hot can cause the coolant to
spray out, seriously scalding you.
Always let the engine and radiator cool down before removing the radiator
cap.
WARNING
If temperatures consistently below −22°F (−30°C) are expected, the coolant
mixture should be changed to a higher concentration. Consult a dealer for
more information.
NOTICE
Radiator cap
MAX
MIN
Reserve
tank
Pour the fluid slowly and carefully so you do not spill any. Clean up any spills
immediately; they can damage components in the engine compartment.
NOTICE
Do not use engine antifreeze or a vinegar/water solution in the windshield
washer reservoir. Antifreeze can damage your vehicle’s paint. A vinegar/water
solution can damage the windshield washer pump.
NOTICE
Window Washer Fluid
Check the amount of window washer fluid by looking
at the reservoir. Fill if it is low. Pour the washer fluid
carefully. Do not overflow the reservoir.

Canadian models
If the washer fluid is low, a message appears on the
multi-information display.
Checking the
Battery
The battery condition is monitored by the sensor on the negative terminal. If there
is a problem with the sensor, a message appears on multi-information display. Have
your vehicle checked by a dealer.
For jump starting the battery, see page 108.
WARNING: Battery posts, terminals, and related accessories contain lead and lead
compounds. Wash your hands after handling.The battery gives off explosive hydrogen gas during normal operation.
A spark or flame can cause the battery to explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance, wear protective clothing and a
face shield, or have a skilled technician do it.
WARNING

140 || 141
VOICE COMMAND INDEX
VOICE COMMAND INDEX
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Learn about all available voice commands to help you operate the vehicle. Press the
Talk button each time you want to say a command.
To view a list of available commands in the vehicle, press INFO and use the
interface dial to select Voice Info. Select a category to hear the commands read
aloud.
V OICE COMMAND INDEX
General Commands
The system accepts these commands on any screen.
Navigation CommandsThe system accepts these commands on the map/guidance screen.
Map Display Commands
•
Display voice portal
• Voice help
• Display map
• Display menu
• Display setting
• Display navigation
• Display information
• Display audio •
Display phone
• Back
• Cancel
• Messages
• What is today’s date?
• What time is it?
• Go home
Route Commands
The system accepts these commands when a route is set.
• How long to the destination?
• How far to the destination?
• Display destination map
• Display entire route
• Cancel route
• Repeat guidance
•
Display current location
• Display north up/heading up/3D
map
• Display zoom in/zoom out
• Display/Hide (specify icon type):
AT M
gas station
restaurant
post office
grocery store
lodging (hotel, motel)
parking garage
parking lot
school
hospital
freeway exit information
traffic
traffic speeds
traffic icons
traffic incidents
Navigation Commands (continued)
Find Place Commands
Find nearest (specify place):
Fuel and auto
Acura dealer
Gas station
Auto parts & electronics
Auto repair & maintenance
Car wash & detailing
Motorcycle dealers
Other car dealers
Roadside assistance
ATM and bank
AT M
Bank
Check cashing
Currency exchange
Community
Business
City hall
Civic center
Convention center
Court house
Higher education
Library
Post office
School
Emergency room
Hospital
Police station
Veterinarian
Lodging
Bed & breakfast
Hotel
Resort
Recreation
Amusement park
Golf course
Historical monument
Marina
Movie theater
Museum
Park
Performing arts Sports complex
Tourist attraction
Restaurant
American restaurant
Californian restaurant
Chinese restaurant
Coffee shop
Continental restaurant
Fast food
French restaurant
German restaurant
Greek restaurant
Indian restaurant
Italian restaurant
Japanese restaurant
Korean restaurant
Mexican restaurant
Pizza
Seafood restaurant
Thai restaurant
Vegetarian restaurant
Vietnamese restaurant
Other restaurant
Shopping
Shopping area
Accessory store
Book store
Clothing store
Grocery store
Home improvement store
Mall
Office supply store
Pharmacy
Pet food store
Sewing store
Shoe store
Sporting goods store
Toy store
Travel center
Airport
Automobile club

144 || 145

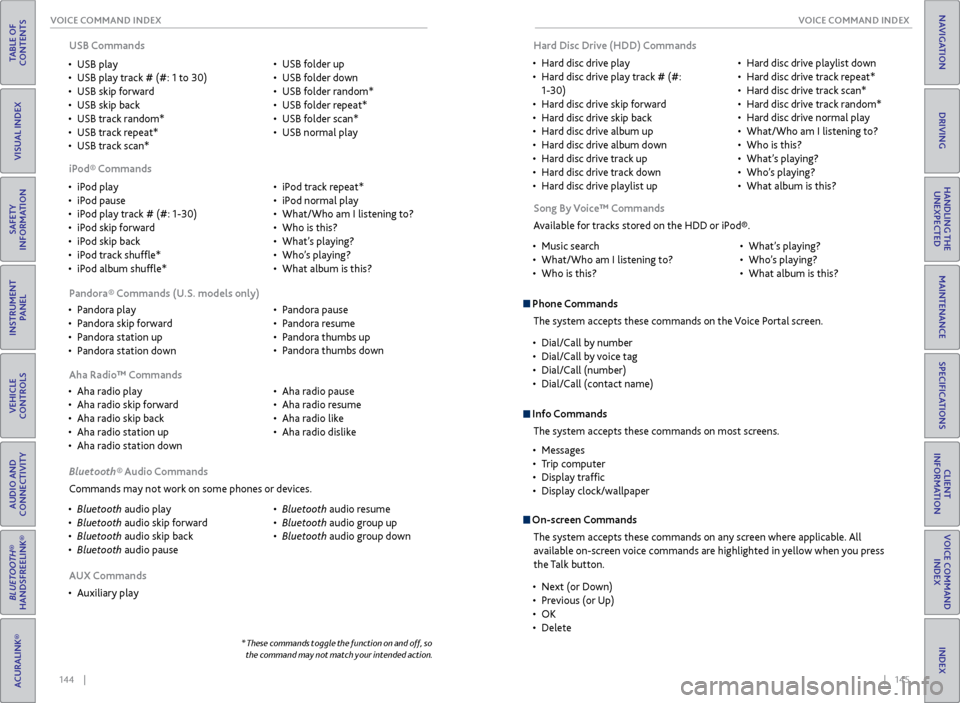

VOICE COMMAND INDEX
VOICE COMMAND INDEX
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
• iPod play
• iPod pause
• iPod play track # (#: 1-30)
• iPod skip forward
• iPod skip back
• iPod track shuffle*
• iPod album shuffle* •
iPod track repeat*
• iPod normal play
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?
USB Commands
• USB play
• USB play track # (#: 1 to 30)
• USB skip forward
• USB skip back
• USB track random*
• USB track repeat*
• USB track scan* •
USB folder up
• USB folder down
• USB folder random*
• USB folder repeat*
• USB folder scan*
• USB normal play
iPod® Commands
• Pandora play
• Pandora skip forward
• Pandora station up
• Pandora station down •
Pandora pause
• Pandora resume
• Pandora thumbs up
• Pandora thumbs down
Pandora® Commands (U.S. models only)
• Aha radio play
• Aha radio skip forward
• Aha radio skip back
• Aha radio station up
• Aha radio station down •
Aha radio pause
• Aha radio resume
• Aha radio like
• Aha radio dislike
Aha Radio™ Commands
Bluetooth® Audio Commands
Commands may not work on some phones or devices.
•  Bluetooth audio play
•  Bluetooth audio skip forward
•  Bluetooth audio skip back
•  Bluetooth audio pause • 
Bluetooth audio resume
•  Bluetooth audio group up
•  Bluetooth audio group down
* These commands toggle the function on and off, so
the command may not match your intended action.
AUX Commands
• Auxiliary play Song By Voice™ Commands
Available for tracks stored on the HDD or iPod®.
• Music search
• What/Who am I listening to?
• Who is this? •
What’s playing?
• Who’s playing?
• What album is this?
Phone Commands
The system accepts these commands on the Voice Portal screen.
• Dial/Call by number
• Dial/Call by voice tag
• Dial/Call (number)
• Dial/Call (contact name)
On-screen Commands
The system accepts these commands on any screen where applicable. All
available on-screen voice commands are highlighted in yellow when you press
the Talk button.
Info CommandsThe system accepts these commands on most screens.
• Messages
• Trip computer
• Display traffic
• Display clock/wallpaper
• Next (or Down)
• Previous (or Up)
• OK
• Delete
Hard Disc Drive (HDD) Commands
• Hard disc drive play
• Hard disc drive play track # (#:
1-30)
• Hard disc drive skip forward
• Hard disc drive skip back
• Hard disc drive album up
• Hard disc drive album down
• Hard disc drive track up
• Hard disc drive track down
• Hard disc drive playlist up •
Hard disc drive playlist down
• Hard disc drive track repeat*
• Hard disc drive track scan*
• Hard disc drive track random*
• Hard disc drive normal play
• What/Who am I listening to?
• Who is this?
• What’s playing?
• Who’s playing?
• What album is this?

146 || 147
INDEX
INDEX
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
INDEX
ABS indicator ............................................... 23
Accessory Power Socket ........................... 48
ACC indicator ....................................... 23, 25
AcuraLink® ................................................... 77
ASSIST button ......................................... 78
Emergency Assistance ............................ 78
LINK button ............................................. 78
Messages .................................................. 77
Operator Assistance ............................... 78
Security Features .................................... 78
Subscription Features .............................78
AcuraLink featuring Aha™ ....................... 64
AcuraLink Real-Time Traffic™ .................. 85
Acura Total Luxury Care Roadside Assistance ................................... 139
Adaptive Cruise Control (ACC) ... 23, 25, 97
Aha Radio™ ................................................ 64
Aha Radio™ Commands ......................... 144
Airbags .......................................................... 8
Advanced Airbags ..................................... 8
Airbag Care ............................................... 13
Airbag System Components ................. 12
Airbag System Indicators ...................... 10
Front Airbags (SRS) ................................... 8
Side Airbags ................................................ 9
Side Curtain Airbags ................................. 9
Anti-Lock Brake System (ABS) .......... 23, 95
APP button .................................................. 86
ASSIST button ............................................. 78
Audio Commands .................................... 143
Audio Operation ......................................... 47
Accessory Power Socket ....................... 48
Aha™ ....................................................... 64
Auxiliary Input Jack ................................. 47
Bluetooth® Audio .............................54, 62
Color Information Display ................... 50
Compact Disc ................................... 52, 59
FM/AM Radio ..................................... 51, 57
Hard Disc Drive (HDD) Audio .............. 60
HDMI Port ................................................ 47
iPod® ................................................. 53, 61
On-Demand Multi-Use Display (ODMD) ....................................... 56
Pandora® ........................................... 55, 63
SiriusXM® Radio..................................... 58
Sound ....................................................... 49
Steering Wheel Controls ...................... 48
USB Connection ...................................... 47
USB Flash Drive ................................ 52, 59
AUTO button .............................................. 45
Automatic Dimming Rearview Mirror .....41
Automatic Rain-Sensing Wipers .............. 35AUX Commands
....................................... 144
Auxiliary Input Jack ..................................... 47
Battery ...................................................... 127
Blind Spot Information (BSI) ........... 23, 101
Bluetooth® Audio ................................ 54, 62
Bluetooth® Audio Commands ............... 144
Bluetooth® HandsFreeLink® .................... 65
Call History .............................................. 74
Dialing a Number .............................. 67, 72
Displays and Controls ..................... 65, 69
E-Mail ........................................................ 75
Making a Call ........................ 67, 72, 73, 74
Pairing a Phone ................................. 66, 71
Phonebook ......................................... 67, 73
Phone Commands .................................145
Siri™ Eyes Free ........................................ 76
SMS Text Messaging ........................ 68, 75
Speed Dial ............................ 67, 68, 73, 74
Talk Button Tips ....................................... 70
Brake Assist System .................................... 95
Brake system ........................................ 22, 23
Braking ........................................................ 95
Brightness Control ..................................... 33
Call History .................................................. 74
Carbon Monoxide Gas ................................. 4
Change a Setting ........................................ 42
Changing a Flat Tire .................................. 114
Changing Fuses ......................................... 119
Changing Wiper Blades ............................ 128
Charging system indicator ........................ 22
Checking the Battery ............................... 127
Childproof Door Locks .............................. 30
Child Safety ................................................. 14
Child Seat ..................................................... 16
Adding Security with a Tether .............. 19
Installing a Child Seat ...................... 17, 18
LATCH-Compatible Child Seat ............. 17
Selecting a Child Seat ............................ 16
Client Information .................................... 137
Climate Control Commands ................... 142
Climate Control System ........................... 45
Clock ....................................................... 43
Collision Mitigation Braking System™ (CMBS™) ...................... 23, 25, 102
Color Information Display ....................... 50
Compact Disc ....................................... 52, 59
Compact Disc Commands ...................... 143
Contact Us ................................................ 138
Cross Traffic Monitor ................................ 105
Cruise Control ...................................... 25, 96
Customized Features .................................42
Dashboard and Ceiling Controls ................ 2Destination .................................................
82
Detour ....................................................... 85
Dialing a Number .................................. 67, 72
Door Mirrors ................................................ 41
Doors ................................................. 29, 30
DOT Tire Quality Grading ....................... 133
Driver’s Side Interior Fuse Boxes ............ 118
Driving ....................................................... 88
Adaptive Cruise Control (ACC) ............ 97
Blind Spot Information (BSI) .............. 101
Braking ...................................................... 95
Collision Mitigation Braking System™ (CMBS™) .................................... 102
Cruise Control ........................................ 96
Lane Keeping Assist System (LKAS) ... 100
Maximum Load Limit ............................ 89
Multi-View Rear Camera .................... 104
Power Mode ............................................. 92
Rear Cross Traffic Monitor ................... 105
Refueling ................................................ 106
Remote Engine Start .............................. 91
Road Departure Mitigation (RDM) ..... 99
Shifting .................................................... 93
Driving Position Memory System ........... 40
Electric Power Steering indicator .............23
Electronic Stability Control (ESC)........... 93
E-Mail ........................................................ 75
Emergency Assistance ................................78
Emergency Engine Stop ........................... 110
Emergency Towing ....................................
110
Engine and Fuel ......................................... 136
Engine Compartment Fuse Boxes .......... 117
Engine Coolant .......................................... 126
Engine Oil ................................................... 124
Engine Start/Stop Button .......................... 92
Exterior Lights ...................................... 25, 33
Fastening a Seat Belt .................................... 7
Find Nearest Place ..................................... 83
Find Place Commands .............................. 141
Flat Tire ...................................................... 114
Floor Mats ................................................... 39
Fluids ...................................................... 136
FM/AM Radio ......................................... 51, 57
FM/AM Radio Commands ...................... 143
Fog lights indicator ..................................... 25
Foot Brake .................................................... 95
Frequently Asked Questions ................... 137
Front Airbags (SRS) ....................................... 8
Front Door Inner Handle .......................... 30
Front Seats .................................................. 36
Fuel Information ...................................... 106
Fuse Locations ........................................... 117
Garage Opener ........................................... 44
Hang-Up button .................................. 65, 69
Hard Disc Drive (HDD) Audio .................. 60Hard Disc Drive (HDD) Commands .......
145
HDMI Port .................................................... 47
Headlight-Wiper Integration .................... 35
Head Restraints .......................................... 38
HFL ....................................................... 65
High beams indicator ................................. 25
Home Address ............................................ 82
HomeLink® ................................................. 44
Hood ...................................................... 123
Immobilizer indicator ................................. 24
Info buttons ................................................ 26
Info Commands ......................................... 145
Instrument Panel ........................................ 22
Condition Indicators ............................... 24
Malfunction Indicators .......................... 22
On/Off Indicators ................................... 25
Interface Dial Feedback ............................. 81
Interior Fuse Box ....................................... 118
Interior Lights ............................................. 33
Intermittent Wipers ................................... 35
iPod® ................................................. 53, 61
iPod® Commands .................................... 144
Jump Starting ........................................... 108
Keyless Access System ........................ 23, 29
Lane Keeping Assist System (LKAS) ........................................ 23, 25, 100
Lap/Shoulder Seat Belts .............................. 5
LATCH-Compatible Child Seat ................. 17
Light Bulbs .................................................. 136
Lights ................................................. 25, 33
LINK button ................................................. 78
Locking the Doors ....................................... 29
Lock Tab ....................................................... 30
Low fuel indicator ....................................... 24
Low oil pressure indicator ......................... 22
Low tire pressure indicator ........................24
Maintenance .............................................. 120
Maintenance Minder ............................ 121
Opening the Hood ................................ 123
Safety Precautions ................................ 120
Service Codes ......................................... 122
Under the Hood .................................... 123
Making a Call ............................ 67, 72, 73, 74
Malfunction indicator lamp ...................... 22
Map Display Commands ........................ 140
Map Legend ................................................. 84
Map Lights ................................................... 34
Master Door Lock Switch ......................... 30
Maximum Load Limit ................................ 89
Mirrors ........................................................ 41
Moonroof ..................................................... 32
Multi-Information Display ....................... 26
Multi-View Rear Camera ........................ 104
Navigation ................................................... 79
AcuraLink Real-Time Traffic™ .............. 85

148 || 149
INDEX
INDEX
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Detour ...................................................... 85
Display and Controls ............................. 80
Entering a Destination .......................... 82
Find Nearest Place ................................. 83
Home Address ........................................ 82
Interface Dial Feedback ......................... 81
Map Legend ............................................. 84
Place Category ....................................... 83
Routing .................................................... 84
Shortcuts ................................................. 83
Smartphone Navi App ...........................86
Steering Wheel Controls ....................... 79
Street Address ........................................ 82
System Guidance Volume ..................... 81
Talk Button Tips ....................................... 79
Traffic ....................................................... 85
Turn-by-turn directions ........................ 84
Voice Prompt ........................................... 81
Navigation Commands ........................... 140
On-Demand Multi-Use Display (ODMD) ....................................... 56
One-Touch Turn Signal ............................. 34
Opening the Hood .................................... 123
Opening the Trunk ...................................... 29
Operator Assistance ................................... 78
Overheating .............................................. 109
Pairing a Phone ..................................... 66, 71
Pandora® ............................................... 55, 63
Pandora® Commands ............................. 144
Parking brake ........................................ 24, 95
Passenger Airbag Off indicator .................11
Phone ................................................. 66, 71
Phonebook ............................................. 67, 73
PHONE button ..................................... 65, 69
Phone Commands .................................... 145
Pick-Up button ..................................... 65, 69
Place Category ........................................... 83
Power Door Mirrors .................................... 41
Power Mode ................................................. 92
Power Moonroof ......................................... 32
Power Windows .......................................... 31
Rain-Sensing Wipers .................................. 35
Readiness Codes ........................................ 135
Rear Camera ............................................. 104
Rear Cross Traffic Monitor ....................... 105
Rear Seats .................................................... 39
Rearview Mirror ........................................... 41
Refueling .................................................... 106
Remote Battery Strength ........................ 107
Remote Engine Start .................................. 91
Remote Transmitter ................................. 28
Reporting Safety Defects .......................... 21
Road Departure Mitigation (RDM) ... 23, 99
Roadside Assistance ................................. 139
Route Commands .................................... 140Routing
....................................................... 84
Safety Information ....................................... 3
Carbon Monoxide Gas ............................. 4
Child Safety .............................................. 14
Reporting Safety Defects ...................... 21
Safety Label Locations .......................... 20
Safety Messages ........................................ 3
Seat Belts ....................................................... 5
Adjusting the Shoulder Anchor .............. 7
Fastening a Seat Belt ................................ 7
Lap/Shoulder Seat Belts .......................... 5
Seat Belt Inspection ................................. 6
Seat belt reminder indicator ................. 24
Seat Heaters ............................................... 46
Seats ....................................................... 36
Front Seats .............................................. 36
Head Restraints ...................................... 38
Rear Seats ................................................ 39
SEL/RESET button ...................................... 26
Sequential Shift Mode .............................. 94
Service Codes ............................................ 122
Settings ....................................................... 42
Setting the Clock ....................................... 43
Shifting ....................................................... 93
Shift Lever Does Not Move ..................... 107
Shortcuts ..................................................... 83
Shoulder Anchor ........................................... 7
Side Airbags ................................................... 9
Side Curtain Airbags ..................................... 9
Siri™ Eyes Free ............................................ 76
SiriusXM® Radio ........................................ 58
SiriusXM® Radio Commands ................. 143
Smartphone Navi App .............................. 86
SMS Text Messaging ............................ 68, 75
Song By Voice™ Commands ................... 145
Sound ....................................................... 49
Specifications ............................................ 136
Speed Dial ................................ 67, 68, 73, 74
Steering Wheel ........................................... 40
Steering Wheel and Nearby Controls ....... 1
Steering Wheel Controls .................... 48, 79
Street Address ............................................ 82
Supplemental Restraint System indicator ................................. 10, 23
SYNC button .............................................. 45
System Guidance Volume ......................... 81
System message indicator ........................ 24
Talk button ..................................... 65, 69, 79
Talk Button Tips ................................... 70, 79
Text Messaging ..................................... 68, 75
Tire Information ........................................ 129
DOT Tire Quality Grading ................... 133
Inflation Guidelines .............................. 129
Inspection Guidelines ........................... 129
Tire and Loading Information Label ... 130Tire and Wheel Replacement.............
130
Tire Chains .............................................. 131
Tire Identification Number (TIN) ....... 132
Tire Labeling ........................................... 132
Tire Service Life ..................................... 131
Tire Terminology ................................... 132
Wear Indicators ..................................... 129
Winter Tires ............................................ 131
Tire Pressure Monitoring System (TPMS)........................... 23, 111, 112
Tire Repair Kit ............................................ 113
Tires ...................................................... 136
Towing ...................................................... 110
Traffic ....................................................... 85
Troubleshooting ........................................ 137
Trunk ........................................................ 29
Trunk Release Button ................................ 30
Turn-by-turn directions ............................ 84
Turn Signal ............................................ 25, 34
Under the Hood ........................................ 123
Unlocking the Doors .................................. 29
USB Commands ....................................... 144
USB Connection .......................................... 47
USB Flash Drive .................................... 52, 59
Vehicle Controls
......................................... 28
Vehicle Settings ........................................... 27
Vehicle Specifications .............................. 136
Vehicle Stability Assist (VSA®) ... 23, 25, 93
Visual Index ................................................... 1
Voice Command Index ............................ 140
Voice Prompt ............................................... 81
Warranty Coverages ................................. 139
Wear Indicators ......................................... 129
Window Washer Fluid .............................. 127
Windows ....................................................... 31
Winter Tires ................................................ 131
Wiper Blades .............................................. 128
Wipers ....................................................... 34
