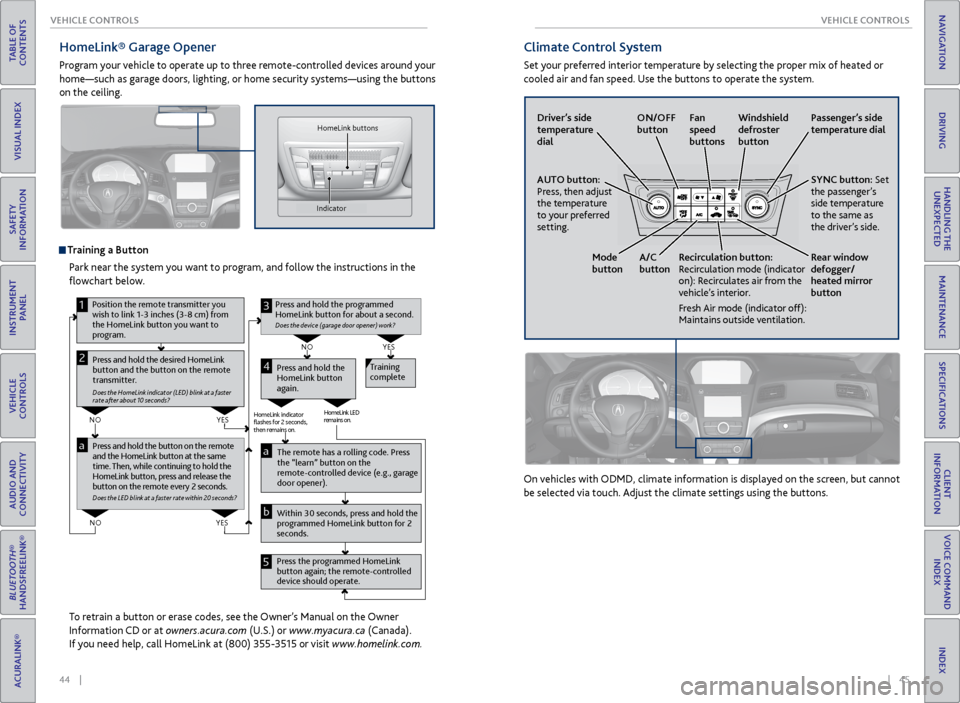

HomeLink® Garage Opener
Program your vehicle to operate up to three remote-controlled devices around your
home—such as garage doors, lighting, or home security systems—using the buttons
on the ceiling.
Training a Button
Park near the system you want to program, and follow the instructions in the
flowchart below.
To retrain a button or erase codes, see the Owner’s Manual on the Owner
Information CD or at owners.acura.com (U.S.) or www.myacura.ca (Canada).
If you need help, call HomeLink at (800) 355-3515 or visit www.homelink.com.
Pr ess and hold the button on the r emote
and the HomeLink button at the same
time. Then, while continuing to hold the
HomeLink button, pr ess and release the
button on the r emote every 2 seconds.
Does the LED blink at a f ast er ra te within 20 seconds ?
Press and hold the
HomeLink button
again. T
raining
complete
YES
NO
HomeLink indicator
ashes for 2 seconds,
then rem ains on. HomeLink LED
r
emains on.YES
NO
YES
NO
1
Pr ess and hold the desir ed HomeLink
button and the button on the r emote
transmitter .
Does the HomeLink indicat or (LED) blink at a f ast er
rate after about 10 seconds ?
2
aThe remote has a ro lling code. Press
the “learn” button on the
r emote-contr olled device (e.g., garage
door opener).
Pr ess the pr ogrammed HomeLink
button again; the remote-contr olled
device should operate.
Within 30 seconds, pr
ess and hold the
pr ogrammed HomeLink button for 2
seconds.a
Pr ess and hold the programmed
HomeLink button for about a second.
Does the devic e (garage door opener) work?
3
b
4
5
Position the remote transmitter you
wish to link 1-3 inches (3-8 cm) from
the HomeLink button you want to
pr ogram.
IndicatorHomeLink buttons
Climate Control System
Set your preferred interior temperature by selecting the proper mix of heated or
cooled air and fan speed. Use the buttons to operate the system.
On vehicles with ODMD, climate information is displayed on the screen, but cannot
be selected via touch. Adjust the climate settings using the buttons.
Windshield
defroster
button
Driver’s side
temperature
dialON/OFF
button
AUTO button:
Press, then adjust
the temperature
to your preferred
setting. Rear window
defogger/
heated mirror
button Passenger’s side
temperature dialFan
speed
buttons
A/C
button SYNC button:
Set
the passenger’s
side temperature
to the same as
the driver’s side.
Recirculation button:
Recirculation mode (indicator
on): Recirculates air from the
vehicle’s interior.
Fresh Air mode (indicator off):
Maintains outside ventilation.
Mode
button

46 || 47
AUDIO AND CONNECTIVITY
VEHICLE CONTROLS
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Seat Heaters*
Quickly warm the seats when the vehicle is on.
Press the seat heater switch in the front console to
the LO or HI position. An indicator appears for the
selected setting.
LO: Slowly warm the seat, or to maintain continuous
heating.
HI: Quickly warm the seat. If left in HI, the heater
cycles on and off.
Return the switch to the middle position to turn off.
*if equipped
AUDIO AND CONNECTIVITY
Learn how to operate the vehicle’s audio system.
Basic Audio Operation
Connect audio devices and operate buttons and displays for the audio system.
USB Connection
Connect a USB flash drive or other audio device, such as an iPod® or iPhone®.
USB adapter cable*
1. Open the front pocket. Unclip the USB adapter
cable.
2. Install the flash drive or cable connector to the
USB adapter cable.
USB port*
1. Open the center console. Open the USB port
cover.
2. Connect the device to the USB port.
HDMI Port*
Connect an HDMI cable.
1. Open the center console. Open the HDMI port
cover.
2. Insert an HDMI cable to the HDMI port.
Auxiliary Input Jack*
Connect standard audio devices with a 1/8-inch (3.5 mm) stereo miniplug.
1. Open the center console. Open the AUX cover.
2. Connect the device to the input jack. Use the
device to control the audio.
Heat-induced burns are possible when using seat heaters.
Persons with a diminished ability to sense temperature (e.g., persons with
diabetes, lower-limb nerve damage, or paralysis) or with sensitive skin should
not use the seat heaters.
WARNING
iPod and iPhone are trademarks of Apple, Inc.
Additional cables and connectors sold separately.

50 || 51
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Color Information Display
Use the buttons to control the display and audio system.
Models with one display
FM/AM Radio
Play FM or AM radio stations.
Models with one display
Selector knob: Rotate
to scroll through
options, and press to
enter a selection.
DISPLAY button:
Choose the audio,
wallpaper, or blank
display mode.
SETUP button:
Select various audio
mode options,
sound settings, and
clock adjustment.
BACK button: Go back
to the previous display.
button: Change
screen brightness. Use
the selector knob to
make adjustments.
Power/volume knob:
Press the turn the
audio system on or
off. Rotate to adjust
volume.
Color information display
FM display
FM/AM buttons:
Select a band. Preset
buttons (1-6):
Press and hold a preset
button to store the
current station. Press a
preset button to select
a previously stored
station.
SKIP bar: Search the
selected band for a
station with a strong
signal.
A.SEL (auto select)
button: Press to scan
bands and store the
strongest stations in
each preset. Press again
to turn off scan and
restore your original
presets.
FOLDER bar: Display
and select an RDS
category.
SCAN button: Press to
hear a 10-second sample
of each strong station on
the selected band. Press
again to turn off scan.
Selector knob: Press
and rotate to tune radio
frequency.
SETUP button: Choose
RDS options to display
station text if available.

52 || 53
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Compact Disc (CD) or USB Flash Drive
Insert a CD to begin playing. The audio system supports audio CDs, CD-Rs, and CD-
RWs in MP3, WMA, or AAC formats.
Connect your USB flash drive using the USB adapter cable (see page 47). The
audio system supports MP3, WMA, or AAC files.
Models with one display
iPod®
Connect your device using the USB adapter cable (see page 47).
Models with one display
Searching for Music
Use the selector knob to search for tracks stored on the iPod.
1. From the audio screen, press the selector knob
to enter the iPod menu.
2. Select a search type (artist, album, track, etc.).
3. Select the song you want to play.
iPod is a trademark of Apple, Inc.
Do not use CDs with adhesive labels or insert a damaged CD. Inserting these types
of CDs may cause them to get stuck or damage the audio unit.
NOTICE
CD display
CD eject button CD slot
CD button: Play
a CD.
SKIP bar: Change
tracks, or rewind or
fast forward within
a track.
SETUP button:
Choose various
play modes, such as
repeat and random.
FOLDER bar: Skip
to the next folder or
the beginning of the
previous folder.
SCAN button:
Press to
hear a 10-second sample
of each song. Press again
to turn off scan.
Selector knob: Rotate to
change tracks. Press and
rotate to display folders.
AUX button:
Play a USB drive.
Searching for Music
Use the selector knob to search for tracks stored on the CD or USB drive.
1. Press the selector knob to enter the folder menu.
2. Select a folder or file.
3. Select the song you want to play.
iPod display
SKIP bar: Change
tracks, or rewind or fast
forward within a track.
SETUP button:
Choose various play
modes, such as repeat,
random, and shuffle. AUX button: Play iPod.
Selector knob: Rotate to
change tracks. Press to
display the iPod search
menu, and rotate and
press to select items.

54 || 55
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Bluetooth® Audio
Play streaming or stored audio from your compatible phone when it is paired to
Bluetooth® HandsFreeLink® (see page 66). Visit www.acura.com/handsfreelink
(U.S.) or www.handsfreelink.ca (Canada) to check phone compatibility. Standard
data rates may apply.
Models with one display
Notes:
• Make sure the volume on your phone is properly adjusted.
• You may need to enable additional settings on your phone for playback.
• The resume/pause function and remote audio controls are not supported on all
phones.
State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle. Only launch streaming audio on your phone when it is safe to do so. State or local laws may prohibit the operation of handheld electronic devices while operating a vehicle.
Only launch streaming audio on your phone when it is safe to do so.
Pandora®
Play and operate Pandora from your phone through the vehicle’s audio system. Visit
www.acura.com/handsfreelink to check phone compatiblilty. Standard data rates
apply. Available in the U.S. only.
Models with one display
When the vehicle is stopped, connect the iPhone to the USB adapter cable (see
page 47). A pop-up may appear on your phone requesting you to allow access
for Pandora to be launched.
Bluetooth® Audio display
SKIP bar: Press to
change files.
Selector knob: Display
the device name. Rotate
to change files. AUX button:
Play
Bluetooth® Audio.
Preset 1 button: Pause
or resume audio.
Pandora display
FOLDER bar: Go to the
next or previous station.
SKIP bar: Go to the
next song.
SETUP button:
Choose various
play modes, such as
repeat and random. AUX button: Play
Pandora.
Selector knob: Enter
the Pandora menu.
Select items such as
like, dislike, station list,
and bookmarks.

56 || 57
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
FM/AM Radio
Play FM or AM radio stations.
Models with ODMD
*if equipped
FM display
Audio Source: Select
the FM or AM icon.
Skip/seek bar:
Find a station with
a strong signal. TAG*: Tag songs
from HD Radio and
store to a connected
iPod or iPhone.
Tune bar: Change the
station. Scan: Scan for stations
with a strong signal.
Presets: To store a
station, tune to the
desired station, select
Presets, and select
and hold the desired
preset number. Select
a preset station once
stored. Interface dial
(from the Audio
screen): Select from
the station list or
presets in the upper
display.
On-Demand Multi-Use Display (ODMD)*
Operate the audio system using either the touchscreen or dashboard buttons.
The functions shown here can be used with most audio sources. Refer to
subsequent audio pages for more specific functions. Options that appear depend on
the selected audio source.
Models with ODMD
Power/volume
knob
More: Change
screen and sound
settings, or display
menu options. Shortcuts (Audio
tab): Store or select
up to six AM, FM, or
SiriusXM stations or
HDD tracks.
Audio Source:
Change
the audio source.
Select Edit Order to
arrange audio icons to
your preference.
ODMD controls Sound: Adjust
sound settings.
MENU button:
Display menu
items. AUDIO button:
Display the audio
screen.
BACK button: Return
to the previous display.
Audio buttons
Interface dial (from the audio
screen): Move up, down, left, and
right. Rotate and press ENTER to
make selections in the upper display.
(icon) button: Adjust
the upper screen
brightness.
SETTINGS
button: Choose
Audio Settings.
*if equipped

58 || 59
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
SiriusXM® Radio
Available on a subscription basis only. For more information or to subscribe, contact
your dealer or visit www.siriusxm.com (U.S.) or www.siriusxm.ca (Canada).
Models with ODMD
Available in the U.S. and Canada, except Hawaii, Alaska, and Puerto Rico. XM® is a registered trademark of Sirius XM Radio, Inc.Do not use CDs with adhesive labels or insert a damaged CD. Inserting these types
of CDs may cause them to get stuck inside or damage the audio unit.
NOTICE
SiriusXM® display
Skip/seek bar:
Change the channel.
Audio Source:
Select the XM Icon.
Category bar:
Change the category.
Scan: Scan for channels.
Interface dial
(from the Audio
Screen): Select
from the category
list, channel list, and
presets in the upper
display.
Presets: To store a
station, tune to the
desired station, select
Presets, and select and
hold the desired preset
number. Select a preset
station once stored.
Play/pause TAG*: Tag songs and
store to a connected
iPod or iPhone.
Compact Disc (CD) or USB Flash Drive
Insert a CD to begin playing. The audio system supports audio CDs, CD-Rs, and CD-
RWs in MP3, WMA, or AAC formats.
Connect your USB flash drive using the USB adapter cable (see page 47). The
audio system supports MP3, WMA, or AAC files.
Models with ODMD
CD display
Audio Source:
Select the CD or
USB icon. CD slot CD eject button
Skip/seek bar:
Change the track. Repeat: Repeat the
current track or file.
Scan: Scan tracks
on the CD or USB.
Random: Play tracks or
files in random order. Interface dial (from
the Audio screen):
Select tracks in the
upper display.
Folder: Change the
folder.
Searching for Music
Use the interface dial to search for tracks on the CD or USB.
1. From the audio screen, press MENU.
2. Select Music Search.
3. Select a search type (artist, album, track, etc.) or
folder.
4. Select the song you want to play.
To learn about additional features—such as multi-channel preset, replay, or
SportsFlash—see your Owner’s Manual or Navigation Manual on the Owner
Information CD or visit owners.acura.com (U.S.) or myacura.ca (Canada).

60 || 61
AUDIO AND CONNECTIVITY
AUDIO AND CONNECTIVITY
TABLE OF
CONTENTS
INDEX
VISUAL INDEX
VOICE COMMAND INDEX
SAFETY
INFORMATION
CLIENT
INFORMATION
INSTRUMENT PANEL
SPECIFICATIONS
VEHICLE
CONTROLS
MAINTENANCE
AUDIO AND
CONNECTIVITY
HANDLING THE UNEXPECTED
BLUETOOTH®
HANDSFREELINK®
DRIVING
ACURALINK®
NAVIGATION
Hard Disc Drive (HDD) Audio
When music CDs are inserted, they are automatically recorded by system default
onto the built-in HDD for later playback.
Models with ODMD and navigation
Searching for Music
Use the interface dial to search for tracks using several methods.
1. From the audio screen, press MENU.
2. Select Music Search.
3. Select a search type (artist, album, track, etc.).
4. Select the song you want to play.
You can also search for and play HDD music using Song By Voice™
(see page 145).
iPod®
Connect your device to the USB port (see page 47).
Models with ODMD
Searching for Music Use the interface dial to search for tracks using several methods.
1. From the audio screen, press MENU.
2. Select Music Search.
3. Select a search type (artist, album, track, etc.).
4. Select the song you want to play.
On vehicles with navigation, you can also search for
and play iPod music using Song By Voice™ (see page 145).
iPod is a trademark of Apple, Inc.
iPod® display
Album bar: Change
the album.
Repeat: Repeat the
current track or file.
Skip/seek bar:
Change the track.
Play/pause
Shuffle: Play tracks
or albums in random
order. Audio Source:
Select
the iPod icon.
Interface dial (from
the Audio screen):
Select tracks in the
upper display.
HDD display
Audio Source: Select
the HDD icon.
Scan: Scan all tracks
or the first track on
each album.
Interface dial (from
the Audio screen):
Select tracks in the
upper display. Repeat: Repeat the
artist, album, or
track.Album bar: Change
the album.
Random: Play the
artist, album, or tracks
in random order.
