DIMENSIONS
Dimensions are expressed in mm and refer to the vehicle equipped with its standard-supplied tyres. Height is measured with
vehicle unladen.
BOOT VOLUME: 140 litres
ABCDE F
4,054 (*) / 4,075 (**) 2,310 1,233 1,496 1,740 1,503
(*) Without license plate holder / (**) With license plate holder.
15910000555-122-333AB
183

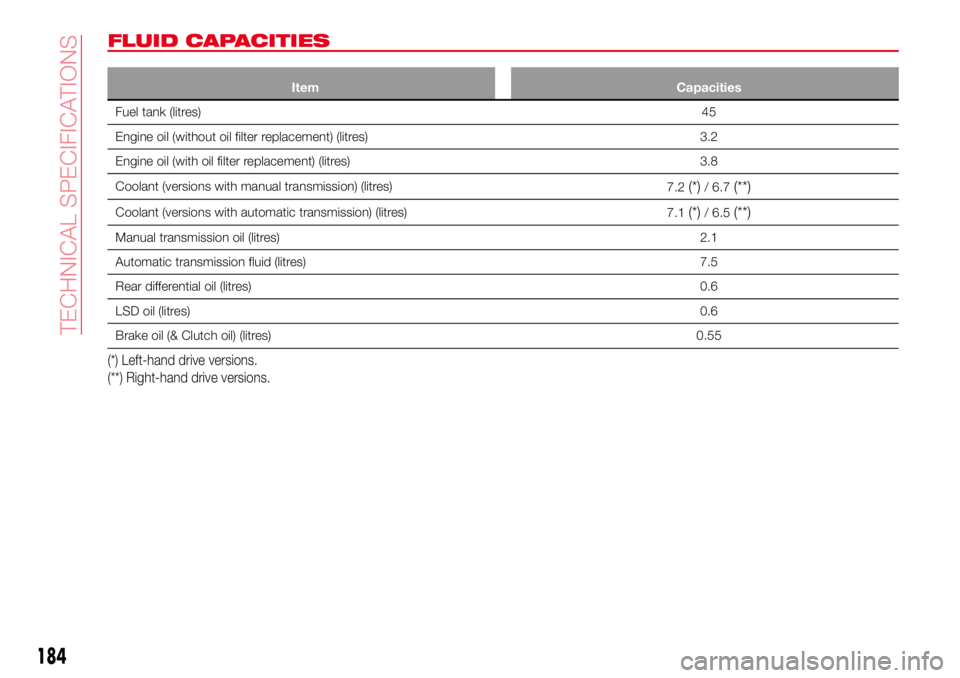

FLUID CAPACITIES
Item Capacities
Fuel tank (litres)45
Engine oil (without oil filter replacement) (litres) 3.2
Engine oil (with oil filter replacement) (litres) 3.8
Coolant (versions with manual transmission) (litres)
7.2
(*)/ 6.7(**)
Coolant (versions with automatic transmission) (litres)
7.1(*)/ 6.5(**)
Manual transmission oil (litres)2.1
Automatic transmission fluid (litres) 7.5
Rear differential oil (litres)0.6
LSD oil (litres)0.6
Brake oil (& Clutch oil) (litres)0.55
(*) Left-hand drive versions.
(**) Right-hand drive versions.
184
TECHNICAL SPECIFICATIONS

FLUIDS AND LUBRICANTS
56)
Your vehicle is equipped with an engine oil that has been thoroughly developed and tested in order to meet the requirements of
the Scheduled Servicing Plan.
Constant use of the prescribed lubricants guarantees the fuel consumption and emission specifications. Lubricant quality is
crucial for engine operation and duration.
Lubricant Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Engine oilSAE 5W-40ACEA C3 /
API SN9.55535-GH2 or
MS-12991SELENIA ABARTH
5W-40
Approval N°0102According to Scheduled
Servicing Plan
Engine coolantRed protective agent
with antifreeze action,
based on inhibited
monoethylene glycol
with organic formula.
Exceeds CUNA NC
956-16, ASTM D
3306 specifications.9.55523 or MS-90032PARAFLU
UP
Contractual Technical
Reference N° F101.M01Cooling circuit usage
percentage: 50% water
50% PARAFLUUP(*)
(*) When the vehicle is used in particularly harsh weather conditions, we recommend using a mixture of 60% PARAFLUUPand 40%
demineralised water.
185

Lubricant Characteristics SpecificationOriginal fluids and
lubricantsReplacement interval
Lubricants and greases
for drive transmissionSAE 75W-90 grade. API
GL4 specification9.55550-MZ11TUTELA
TRANSMISSION
GEAR SYNTH LL
Contractual Technical
Reference N° F004.C16Manual transmission oil
JWS 3309, type T-IV.9.55550-AV1TUTELA
TRANSMISSION GI/V
Contractual Technical
Reference N° F333.I05Automatic transmission
oil
Long Life synthetic fluid,
SAE 80W-90 grade. API
GL5, ZF TE-ML
05C/12C/21C, GTC
LLP-008,
MIL-L-
2105 specifications.9.55550-DA14TUTELA
TRANSMISSION
HYPOIDE LL
Contractual Technical
Reference N° F006.C16Rear axle with limited
sleep differential oil
Brake fluid and clutch
fluidSynthetic fluid for brake
and clutch systems.
Exceeds specifications:
FMVSS no. 116 DOT 4,
ISO 4925 SAE J1704.9.55597 or MS-90039TUTELA TOP 4/S
Contractual Technical
Reference N° F005.F15Hydraulic brakes and
hydraulic clutch controls
Windscreen window
washer fluidMixture of spirits and
surfactants. Exceeds
CUNA NC
956-11 specifications.9.55522 or MS-90043TUTELA
PROFESSIONAL SC
35
Contractual Technical
Reference N° F201.D02To be used diluted or
undiluted in screen
washer/wiper systems
If lubricants compliant with the required specifications are not available, products that comply with the minimum required
characteristics can be used for topping up; in this case optimal performance of the engine is not guaranteed.
186
TECHNICAL SPECIFICATIONS

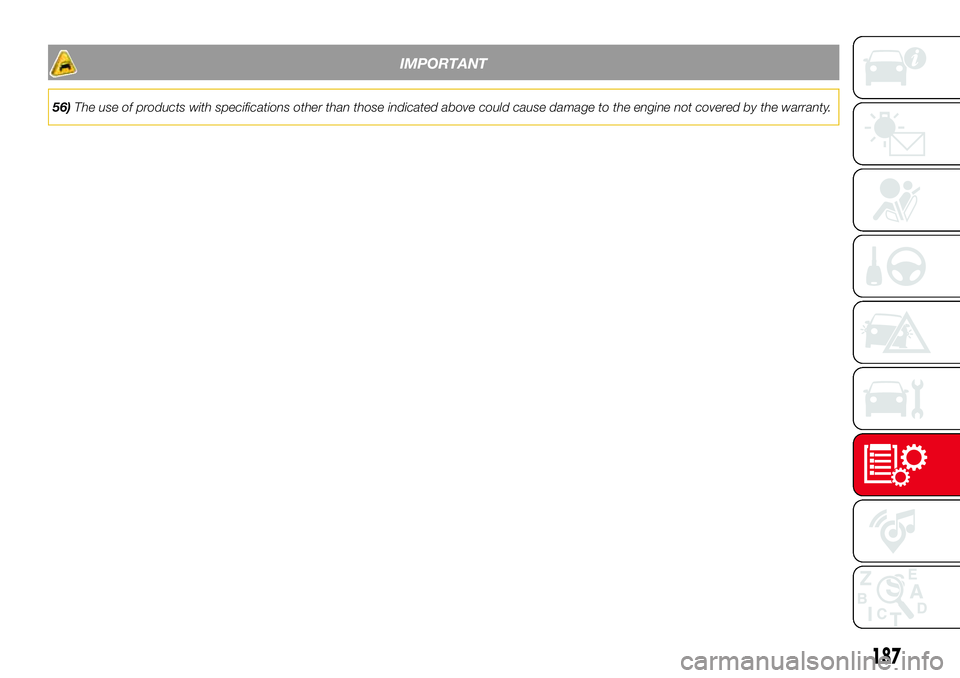

IMPORTANT
56)The use of products with specifications other than those indicated above could cause damage to the engine not covered by the warranty.
187

PERFORMANCE
Top speed after the initial period of usage of the vehicle.
Version km/h
1.4 Turbo Multi Air 170HP232 (*) / 229 (**)
(*) Versions with manual transmission
(**) Versions with automatic transmission
188
TECHNICAL SPECIFICATIONS

FUEL CONSUMPTION
The fuel consumption value given in the table below are determined on the basis of the type-approval tests laid down by
specific European Directives.
IMPORTANT The type of route, traffic conditions, weather conditions, driving style, general condition of the vehicle, trim
level/equipment/accessories, use of the climate control system, vehicle load, presence of roof racks and other situations that
adversely affect the aerodynamics or wind resistance lead to different fuel consumption values than those measured. The fuel
consumption will get more regular only after having driven the first 3000 km.
FUEL CONSUMPTION ACCORDING TO THE CURRENT EUROPEAN DIRECTIVE
(litres/100 km)
Version Urban Extra-urban Combined
1.4 Turbo Multi Air 170HP8.5 (*) / 9.1 (**) 5.1 (*) / 5.2 (**) 6.4 (*) / 6.6 (**)
(*) Versions with manual transmission
(**) Versions with automatic transmission
189

CO2EMISSIONS
The CO2emission level given in the following table refer to combined consumption.
VersionCO2EMISSIONS ACCORDING TO THE EUROPEAN DIRECTIVE
IN FORCE (g/km)
1.4 Turbo Multi Air 170HP148 (*) / 153 (**)
(*) Versions with manual transmission
(**) Versions with automatic transmission
190
TECHNICAL SPECIFICATIONS
