2016.5 VAUXHALL VIVARO cruise control

In brief111Side air vents ...................... 112
2 Ashtray .................................. 79
Cupholder ............................ 67
3 Light switch .......................... 96
Rear fog light ......................... 99
Front fog lights .....................99
Exit lighting .......................... 102
Turn and lane-change
signals ................................... 99
Sidelights .............................. 96
Headlight flash, low beam
and high beam ......................97
4 Instruments .......................... 79
Driver Information Centre
(DIC) ..................................... 90
5 Horn ...................................... 75
Driver airbag ......................... 56
6 Windscreen wiper,
windscreen washer system ..76
Rear window wiper, rear
window washer system ........77
Trip computer ....................... 937Card reader for electronic
key system ............................ 22
8 Steering column controls ......75
9 Centre air vents ................... 112
10 Power outlet .......................... 78
Cigarette lighter ..................... 79
Coin tray, USB slot ................ 66
11 Driver Information Centre
(DIC) ..................................... 90
Trip computer ....................... 93
12 Front passenger airbag .........56
13 Glovebox .............................. 66
14 Heated exterior mirrors .........38
Heated rear window ..............41
Idle speed control ...............118
15 Power outlet .......................... 78
Cigarette lighter ..................... 79
16 Climate control system ........ 103
Electronic climate control
system ................................. 105
17 Ashtray .................................. 79
Cupholder ............................ 6718Hazard warning flashers .......98
Central locking system ..........23
19 Power button for electronic
key system .......................... 116
20 Eco button for fuel
economy mode ...................114
21 Stop-start system ................119
Cruise control and speed
limiter ................................. 133
22 Remote control on
steering wheel ......................75
Cruise control .....................133
23 Ignition switch with
steering wheel lock .............116
24 Steering wheel adjustment ...75
25 Bonnet release lever ...........146
26 Fuse box ............................. 160
27 Ultrasonic parking assist ....136
Electronic Stability
Program (ESP® Plus
)............ 131
Traction Control system
(TC) ..................................... 130

74Instruments and controlsInstruments and
controlsControls ....................................... 75
Steering wheel adjustment ........75
Steering wheel controls .............75
Horn ........................................... 75
Steering column controls ...........75
Windscreen wiper/washer .........76
Rear window wiper/washer .......77
Outside temperature ..................77
Clock ......................................... 77
Power outlets ............................. 78
Cigarette lighter ......................... 79
Ashtrays .................................... 79
Warning lights, gauges and indi‐ cators ........................................... 79
Instrument cluster ......................79
Speedometer ............................. 79
Odometer .................................. 80
Trip odometer ............................ 80
Tachometer ............................... 80
Fuel gauge ................................ 81
Fuel economy gauge .................81
Service display .......................... 81
Control indicators ......................82
Turn signal ................................. 84Seat belt reminder.....................85
Airbag and belt tensioners .........85
Airbag deactivation ....................85
Charging system .......................86
Malfunction indicator light ..........86
Service vehicle soon .................86
Stop engine ............................... 86
Brake system ............................. 86
Antilock brake system (ABS) .....87
Upshift ....................................... 87
Electronic Stability Program ......87
Electronic Stability Program off ............................................. 87
Engine coolant temperature ......87
Preheating ................................. 88
AdBlue ....................................... 88
Tyre pressure monitoring system ...................................... 88
Engine oil pressure ....................88
Fuel economy mode ..................89
Low fuel ..................................... 89
Autostop .................................... 89
Exterior light .............................. 89
High beam ................................. 89
Fog light ..................................... 90
Rear fog light ............................. 90
Cruise control ............................ 90
Tachograph ............................... 90
Door open .................................. 90Information displays.....................90
Driver Information Centre ..........90
Vehicle messages ........................91
Warning chimes .........................92
Engine oil level .......................... 92
Trip computer ............................... 93
Tachograph .................................. 95

Instruments and controls75Controls

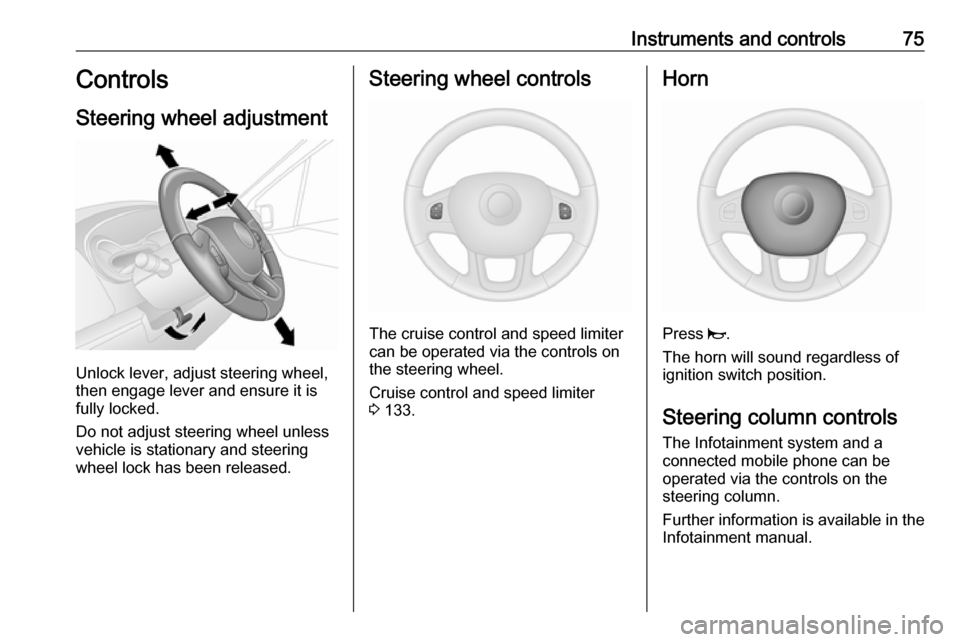

Steering wheel adjustment
Unlock lever, adjust steering wheel,
then engage lever and ensure it is
fully locked.
Do not adjust steering wheel unless
vehicle is stationary and steering
wheel lock has been released.
Steering wheel controls
The cruise control and speed limiter
can be operated via the controls on
the steering wheel.
Cruise control and speed limiter
3 133.
Horn
Press j.
The horn will sound regardless of
ignition switch position.
Steering column controls The Infotainment system and a
connected mobile phone can be
operated via the controls on the
steering column.
Further information is available in the
Infotainment manual.

80Instruments and controlsSpeed limiterMaximum speed may be restricted by
a speed limiter. As a visible indication
of this, a warning label is located on
the instrument panel.
A warning buzzer will sound for
10 seconds every 40 seconds if the vehicle briefly exceeds the set limit.
Notice
Under certain conditions (e.g. steep
inclines), the vehicle speed may
exceed the set limit.
Speed limiter 3 136, cruise control
speed limiter 3 133.Odometer
Displays the recorded distance.
Trip odometer The trip odometer appears below the
odometer in the Driver Information
Centre (DIC) and displays the
distance travelled since the last reset.
To reset, with the trip odometer
displayed, press and hold button on
end of wiper lever for a few seconds
with the ignition on. The display will
flash and the value will reset to zero.
Driver Information Centre (DIC)
3 90.
Tachometer
Displays the engine speed.
Drive in a low engine speed range for each gear as much as possible.
Caution
If the needle is in the yellow
warning zone, the maximum
permitted engine speed is
exceeded. Engine at risk.

84Instruments and controlsControl indicators in the roof
console
Overview
OTurn signal 3 84XSeat belt reminder 3 85vAirbag and belt tensioners
3 85Ó ONAirbag activation 3 85* OFFAirbag deactivation 3 85pCharging system 3 86ZMalfunction indicator light
3 86FService vehicle soon 3 86CStop engine 3 86RBrake system 3 86uAntilock brake system (ABS)
3 87kjUpshift, downshift 3 87RElectronic Stability Program
3 87ØElectronic Stability Program
off 3 87WEngine coolant temperature
3 87!Preheating 3 88YAdBlue 3 88wTyre pressure monitoring
system 3 88IEngine oil pressure 3 88ECOFuel economy mode 3 89YLow fuel 3 89DAutostop 3 89\Autostop inhibited 3 899Exterior light 3 898Exterior light 3 89CHigh beam 3 89>Fog light 3 90øRear fog light 3 90mCruise control 3 90UCruise control speed limiter
3 90&Tachograph 3 90yDoor open 3 90
Turn signal
O flashes green.
Flashes if a turn signal or the hazard
warning flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse.
An audible warning can be heard
when the turn signals are on.
Bulb replacement 3 154.
Fuses 3 159.

90Instruments and controlsFog light> illuminates green.
Illuminated when the front fog lights
are on 3 99.
Rear fog light ø illuminates yellow.
Illuminated when the rear fog light is
on 3 99.
Cruise control m , U illuminates green or yellow.
m illuminates green when a certain
speed is stored.
U illuminates green when the system
is on.
Speed limiter U illuminates yellow.
U illuminates yellow when the
system is on.
Cruise control and speed limiter
3 133.Tachograph
& illuminates when there is a fault
3 95.
Door open y illuminates red.
Illuminates when a door is not fully
closed.
A corresponding message also
appears in the Driver Information
Centre (DIC) 3 90.Information displays
Driver Information Centre
Depending on vehicle configuration,
the following items appear in the
display:
● outside temperature 3 77
● clock 3 77
● odometer 3 80
● trip odometer 3 80
● service display 3 81
● vehicle messages 3 91
● trip computer 3 93

Instruments and controls93Trip computer
The trip computer provides
information on driving data, which is
continually recorded and evaluated electronically.
Depending on vehicle, the following
functions can be selected by pressing button repeatedly on end of wiper
lever:
● odometer 3 80
● fuel used
● average consumption
● instantaneous consumption
● range
● trip odometer
● average speed
● distance before service 3 81
● clock 3 77, outside temperature
3 77
● cruise control and speed limiter stored speed 3 133
● fuel economy rating
● Adblue percentage remaining 3 123
● fault and information messages
Fuel used Displays the amount of fuel
consumed since the last reset.
The measurement can be restarted at any time by pressing and holding the
button.
Average consumption The value is displayed after driving a
distance of 0.25 miles.
Average consumption is displayed, taking into consideration the distance
travelled and the fuel used since the
last reset.The measurement can be restarted at
any time.
Instantaneous consumption
The value is displayed after reaching
a speed of 20 mph.
Range The value is displayed after driving a
distance of 0.25 miles.
The range is calculated from the
current contents of the fuel tank and
the average consumption since the
last reset.
The range will not display if control
indicator Y is illuminated in the
instrument cluster 3 89.
Trip odometer Displays the distance driven since the
last reset.
The measurement can be restarted at
any time.
Trip odometer 3 80.

114Driving and operatingDriving and
operatingDriving hints ............................... 114
Driving economically ...............114
Control of the vehicle ...............115
Steering ................................... 115
Starting and operating ...............116
New vehicle running-in ............116
Ignition switch positions ...........116
Power button ........................... 116
Starting the engine ..................118
Idle speed control ....................118
Vehicle shutdown ....................119
Overrun cut-off ........................ 119
Stop-start system ....................119
Parking .................................... 122
Engine exhaust .......................... 122
Diesel particle filter ..................122
Catalytic converter ...................123
AdBlue ..................................... 123
Manual transmission ..................128
Brakes ........................................ 128
Antilock brake system .............129
Parking brake .......................... 129Brake assist............................. 130
Hill start assist ......................... 130
Ride control systems .................130
Traction Control system ..........130
Electronic stability program .....131
Driver assistance systems .........133
Cruise control .......................... 133
Speed limiter ........................... 136
Parking assist .......................... 136
Rear view camera ...................139
Fuel ............................................ 140
Fuel for diesel engines ............140
Refuelling ................................ 141
Fuel consumption - CO 2-
Emissions .............................. 142
Trailer hitch ................................ 142
General information .................142
Driving characteristics and towing tips .............................. 142
Trailer towing ........................... 143
Trailer stability assist ...............143Driving hints
Driving economically
ECO mode
ECO mode is a function that
optimises fuel consumption. It affects engine power and torque,
acceleration, gear shift indication,
heating, air conditioning and electrical consumers.
Activation
Press ECO. Control indicator ECO
illuminates in the instrument cluster when activated.
