12 and coolant warning light, comes on
when the engine oil pressure is low.
When the key is first turned to ON, en-
gine oil pressure has yet to build, so this
icon will come on and stay on until the
engine has been started.
NOTICE
ECA21210
If the warning light comes on when
the engine is running, stop the en-
gine immediately and check oil level.
If the oil level is below the minimum
level, add sufficient oil of the recom-
mended type to raise it up to the cor-
rect level. If the oil pressure warning
light remains on even if the oil level
is correct, immediately turn the en-
gine off and have a Yamaha dealercheck the vehicle.
Coolant temperature warning “ ”
This icon comes on if the coolant tem-
perature reaches 117
C (242 F) or
higher. Stop the vehicle and turn off the
engine. Allow the engine to cool.NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
Error mode “Err”
When an error is detected, the top por-
tion of the main screen will switch to er-
ror mode. The following error-related
warning icons and error codes will then
be viewable.
SCU trouble warning icon

SCU error code

Engine trouble warning icon

ECU error code SCU trouble warning “ ”
(YZF-R1M)
The SCU trouble warning icon appears
if a problem is detected by the suspen-
sion control unit and an SCU error code
will be shown. Note the number and
have a Yamaha dealer check the vehi-
cle.
Engine trouble warning “ ”
The engine trouble warning icon ap-
pears if a problem is detected by the
engine control unit and an ECU error
code will be shown. Note the number
and have a Yamaha dealer check the
vehicle.
TIPIf the display indicates error code 52, or
if you have trouble starting the engine
with a standard key, this could be
caused by transponder interference. Ifthis occurs, try the following.
1. Make sure there are no other im- mobilizer keys, or other devices
which transmit electrical signals,
close to the main switch.
2. Use the code re-registering key to start the engine.
1. SCU trouble warning “ ”
2. SCU error code
3. Engine trouble warning “ ”
4. ECU error code
5. Error mode warning “Err”·1000 r/min
90
90
E r r
4
12
35
2CR-9-E0_1.book 13 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-14
1
2
345
6
7
8
9
10
11
12
3. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
4. If one or both of the standard keys do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
NOTICE
ECA11591
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoidengine damage.
EAU67631
MENU screenThe MENU screen contains the follow-
ing setting modules. Select a module to
make related setting changes. Al-
though some settings can be changed
or reset via the main screen, the MENU
screen offers access to all display and
control settings. MENU access and operation
The following wheel switch operations
are common operations for accessing,
selecting, and moving within the MENU
screen and its modules.
Long push - press and hold the wheel
switch for one second to access the
MENU screen or exit MENU entirely.
Select - rotate the wheel switch up or
down to highlight the desired module or
setting item and then short push the
wheel switch (briefly press the wheel
switch inward) to confirm the selection.
Triangle mark
- certain setting screens
have an upward pointing triangle mark
Display Description
Display Mode Switch the main screen
display between street and
track modes.
YRC Setting Adjust YRC settings (all
models) and ERS settings
(YZF-R1M).
Lap Time View and reset lap times.
Logging Turn vehicle information
logging function on/off
(CCU-equipped models).
Maintenance View and reset three
maintenance item
intervals.
Unit Set fuel consumption and
distance units.
Wallpaper Set background colors.
Shift Indicator Turn the shift indicator on/
off and adjust tachometer
settings.
Display Setting Set the multi-function
display window items.
Brightness Adjust screen brightness. Clock Adjust the clock.
All Reset Return all settings to
factory default settings.
2CR-9-E0_1.book 14 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-15
1
2
34
5
6
7
8
9
10
11
12 item. Select the triangle mark to exit
that screen and move back one screen
(or long push the wheel switch to exit
MENU entirely).
TIPShould vehicle motion be detected, the
screen will automatically exit MENUand change to the main screen.
“Display Mode”
There are two main screen display
modes, STREET MODE and TRACK
MODE.
To set the main screen display mode1. Long push the wheel switch to en-
ter the MENU screen.
2. Select “Display Mode”. 3. Select STREET MODE or TRACK
MODE (or select the triangle mark
to exit).
4. Long push the wheel switch to exit the MENU screen or use the wheel
switch to select another module.
“YRC Setting”
This module allows you to customize the four YRC modes MODE-A,
MODE-B, MODE-C, MODE-D by ad-
justing the setting levels (or on/off sta-
tus as applicable) of YRC items PWR,
TCS, SCS, LCS, QSS, and LIF. For
YZF-R1M, you can select the ERS
mode to be associated with each YRC
mode, and also adjust the setting levels
of the ERS modes.
TIP
TCS has 9 setting levels and ERS
has 6 modes.

Whenever there are more selec-
tions (setting levels or modes)
available than can be shown on
the screen at one time, a scroll bar
will appear to notify you that addi-
tional selections are available byscrolling.
PWR
Select PWR-1 for the most aggressive
throttle response, PWR-2 and PWR-3
for smoother throttle grip/engine re-
sponse, and use PWR-4 for rainy days
or whenever less engine power is desir-
able.
2CR-9-E0_1.book 15 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-18
1
2
345
6
7
8
9
10
11
12
TIP
When a YRC item is selected, the
current setting level is indicated by
a blue-framed square and the fac-
tory preset level is indicated in a
grey box.

Factory preset levels vary depend-ing on the selected YRC mode.
4. To customize other YRC modes or adjust individual YRC items, re-
peat from step 2. When finished,
select the triangle mark on the far
left to return to the MENU screen;
or for YZF-R1M, select the “ ” mark to fine tune the ERS mode
settings.
ERS (YZF-R1M)
There are three automatic setting
modes; A-1, A-2, and A-3. A-3 is fixed
and cannot be adjusted. A-1 and A-2
can be adjusted to within a -5 to +5 off-
set of their factory preset settings.
There are three manual setting modes;
M-1, M-2, and M-3. When a manual
mode is selected, the SCU does not ac-
tively adjust the suspension compres-
sion and rebound damping forces.
Manual mode suspension settings are
adjustable to 32 levels.
TIP
A-1 and M-1 are preset for track
use with racing slick tires.

A-2 and M-2 are preset for track
use with street tires.

A-3 and M-3 are preset for street
use with street tires.

Spring preload is manually adjust-ed. (See pages 4-39 and 4-41.) To adjust the ERS mode settings
1. Select the “ ” mark located to the
right of ERS.
2. The display will change to the front and rear suspension setting
screen and the ERS mode selec-
tion box “SETTING” is highlighted.
Short push the wheel switch to en-
ter the box and select the ERS
mode A-1, A-2, M-1, M-2, M-3 that
you want to adjust.

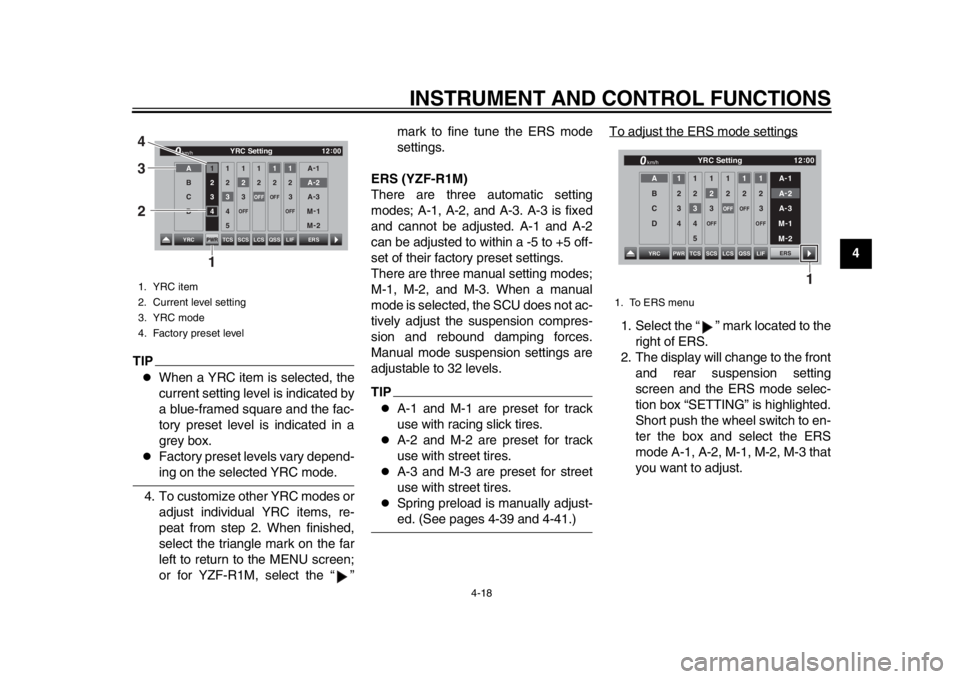

1. YRC item
2. Current level setting
3. YRC mode
4. Factory preset level
D C B
A 1
2
3
41
2
3
41
2
1
2
33
5
OFF
1
2OFF
OFF
1
2OFF
A -
1
A -
2
M -
1
M -
2
A
-
3
YRC
PWRTCS SCS LCS QSS LIF ESC
YRC
PWRTCS SCS LCS QSS LIFERS
12:
00
YRC Setting
km/h
1
3 4
2
1. To ERS menu
D C B A
1
2
3
41
2
3
41
2
1
2
33
5
OFF
1
2OFF
OFF
1
2OFF
A -
1
A -
2
M -
1
M -
2
A
-
3
YRC
PWRTCS SCS LCS QSS LIF
YRC
PWRTCS SCS LCS QSS LIF
12 :
00
YRC Setting
km/h
ERS
1
2CR-9-E0_1.book 18 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-19
1
2
34
5
6
7
8
9
10
11
12 3. Select the suspension item, Fr
COM, Fr REB, Rr COM, Rr REB,
that you want to adjust.
TIP
To decrease the damping force
and soften the suspension, in-
crease the setting level.

To increase the damping force and
harden the suspension, decrease
the setting level.

For A-1 and A-2, a number indicat-
ed in ( ) means how many levels
are changed from its factory preset
level.

When a suspension setting item in
A-1 or A-2 is offset, the same sus-
pension item will be similarly offset
in the other automatic mode (offset
values for the same item are auto-
matically linked).

M-1, M-2, M-3 are not linked andcan be independently set.
4. To adjust other ERS mode sus- pension settings, repeat from step
2. When finished, select the “ ”
mark located on the left to return to
the main “YRC Setting” menu. “Lap Time”
This module allows you to view and de-
lete the lap time record. The fastest lap
and the average lap time stored in the
lap time record are displayed at the top
of the screen. Use the wheel switch to
scroll and see all lap times. The top
three fastest laps will be highlighted in
silver. Up to 40 laps can be stored in
memory. If more than 40 laps are re-
corded, the oldest laps (starting from
lap 1) will be overwritten.
This module has two options.
“Display” allows you to view the lap
time record.
1. ERS mode selection box “SETTING”
2. Front compression damping force
3. Front rebound damping force
4. Rear compression damping force
5. Rear rebound damping force
6. Factory preset level
7. Current level setting
8. Offset level
25
16 22
13
()
()
()
()
-
+
+
+ (- 5)
(+0)
(+0)
(
+0)
A -
2
M -
1
M -
2
M -
3
A
-
3
Fr COM Rr COM
Fr REB Rr REB
SETTING
YRC Setting
km/h
12:00
7
6
8
2345
1
1. To YRC Setting menu
2. Factory preset level
3. Current level setting
16
16 27
13




(+0)
(+3)
(+2)
(+1)
Fr COM Rr COM
Fr REB Rr REB
SETTINGkm/h
12:00
M-
1
M -
2
M -
3
YRC Setting
A -
2
A -
3
2 3
1
2CR-9-E0_1.book 19 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-20
1
2
345
6
7
8
9
10
11
12
“Reset” allows you to delete the lap
time record data.
Use the wheel switch to select “Display”
and view the lap record.
To reset the lap time record data
1. When “Lap Time” is selected, both
“Display” and “Reset” are dis-
played.
2. Select “Reset”.
3. Select YES to delete all lap time data. (Select NO to exit and return
to the previous screen without re-
setting the lap record.) “Logging” (for CCU-equipped mod-
els)
Vehicle and riding information can be
recorded (logged) and this data can be
accessed with a smart device (see
“CCU” on page 4-37).
To start and stop logging
1. From the MENU screen, select
“Logging”.
1. Fastest lap
2. Average lap time
3. Lap time record123
NO
Reset ?Lap Time
YES
km/h
GPGPS
12:
00
2CR-9-E0_1.book 20 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-22
1
2
345
6
7
8
9
10
11
12
TIPMaintenance item names cannot bechanged.
“Unit”
This module allows you to set the fuel
consumption units, and for certain mar-
kets, the display can be switched be-
tween kilometers and miles.
When using kilometers, the fuel con-
sumption units can be changed be-
tween km/L or L/100km. When using
miles, MPG will be available.
To set the distance or fuel consumptionunits1. From the MENU screen, select “Unit”. 2. “km or mile” and “km/L or L/
100km” are displayed.
TIPFor markets with kilometer-based mod-
els, only “km/L or L/100km” is dis-played.
3. Select the distance or consump- tion unit item you want to adjust. 4. Select the units you want to use.
5. Select the triangle symbol to exit.
“Wallpaper”
This module allows you to individually
set the STREET MODE and TRACK
MODE display background colors to
black or white for both day and night
settings. A photo sensor equipped in
INTERVAL 2 OIL
INTERVAL 1
000000 km
123456 km
123456 km
Maintenance
km/h
GPS
12 :
00
km/h
2CR-9-E0_1.book 22 ページ ２０１５年１月５日　月曜日　午前１１時５４分

INSTRUMENT AND CONTROL FUNCTIONS
4-23
1
2
34
5
6
7
8
9
10
11
12 the instrument panel detects lighting
conditions and will automatically
change the display between its day and
night settings. The photo sensor also
controls a subtle automatic brightness
adjustment function within both day
and night modes to suit ambient light
conditions.
To set the wallpaper
1. From the MENU screen, select
“Wallpaper”. 2. Select the mode you want to adjust
(select DAY for daytime display
settings or NIGHT for nighttime
display settings).
3. Select the background color (se- lect BLACK for a black background
or WHITE for a white background).
4. Select the triangle symbol to exit.
5. To set another background color, repeat from step 2 or select the tri-
angle symbol to exit this module.
“Shift indicator”
The shift indicator module contains the
following items.1. Photo sensor
1
Display Description
Shift IND Setting Set the shift indicator
pattern to “ON”, “Flash”,
or “OFF” and adjust at
what r/min the indicator
will come on
and go off.
Shift IND
Brightness Adjust the brightness of
the shift indicator.
Tach IND Setting Set the tachometer color
display to “ON” or “OFF”
and adjust at what r/min
the tachometer will be
green and orange.
Peak Rev IND Setting Set the tachometer peak
rev indicator to “ON” or
“OFF”.
2CR-9-E0_1.book 23 ページ ２０１５年１月５日　月曜日　午前１１時５４分
