PERIODIC MAINTENANCE AND ADJUSTMENT
7-6
1
2
3
4
5
678
9
10
11
12
23 *Rear suspension
relay arm and
connecting arm
pivoting points Check operation.

24 Engine oil Change.
Check oil level and vehicle for oil
leakage. 
25 Engine oil filter
cartridge Replace.

26 *Cooling system Check coolant level and vehicle
for coolant leakage. 
Change coolant. Every 3 years
27 *EXUP system Check operation, cable free play
and pulley position. 
28 *Front and rear brake
switches Check operation.

29 Moving parts and
cables Lubricate.

30 *Throttle grip Check operation.
Check throttle grip free play, and
adjust if necessary.
Lubricate cable and grip housing. 
31 *Lights, signals and
switches Check operation.
Adjust headlight beam.

NO. ITEM CHECK OR MAINTENANCE JOB
ODOMETER READING
ANNUAL
CHECK
1000 km
(600 mi) 10000 km
(6000 mi) 20000 km
(12000 mi) 30000 km
(18000 mi) 40000 km
(24000 mi)
2CR-9-E0_1.book 6 ページ ２０１５年１月５日　月曜日　午前１１時５４分

PERIODIC MAINTENANCE AND ADJUSTMENT
7-33
1
2
3
4
5
67
8
9
10
11
12 connecting the negative
lead.
[ECA16841]
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.NOTICE
ECA16531
Always keep the battery charged.
Storing a discharged battery cancause permanent battery damage.
EAU66591
Replacing the fusesThe main fuse and ABS motor fuse are
located under the rider seat.

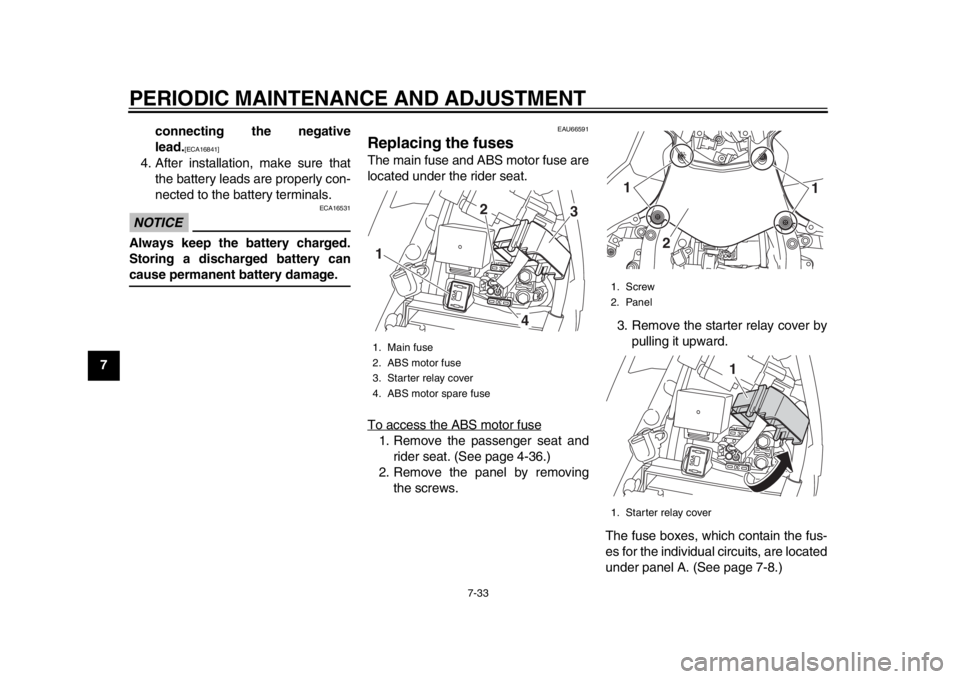

To access the ABS motor fuse1. Remove the passenger seat andrider seat. (See page 4-36.)
