PERIODIC MAINTENANCE AND ADJUSTMENT
6-30
6
EAU58961
Replacing the fusesThe fuse boxes and the ABS motor
fuse are located behind cowling A, and
the main fuse, the cruise control fuse
and the brake light fuse are located be-
hind cowling B. (See page 6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off the electrical circuit in question.
2. Remove the blown fuse, and then install a new fuse of the specified
amperage. WARNING! Do not use a fuse of a hi
gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
1. ABS motor fuse
2. ABS motor spare fuse
3. Main fuse
4. Spare fuse
5. Cruise control fuse
6. Brake light fuse
7. Fuse box123
5
4
67
1. Headlight fuse
2. ABS solenoid fuse
3. Electronic throttle valve fuse
4. Fuel injection system fuse
5. Backup fuse (for clock and immobilizer sys-
tem)
6. Radiator fan motor fuse
7. Ignition fuse
8. Signaling system fuse
9. ABS control unit fuse
10.Auxiliary DC jack fuse
11.Parking lighting fuse
12.O/P (option) fuse
13.Spare fuse
13456
2
7
8
9
10
13
11
12
13
U2BSE1E0.book Page 30 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32

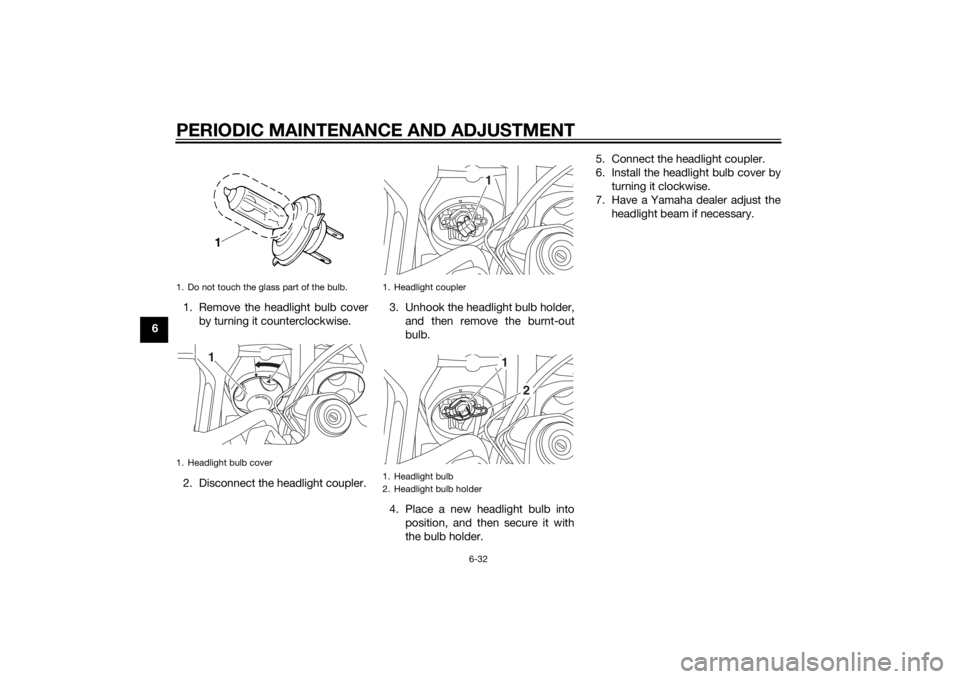

61. Remove the headlight bulb cover
by turning it counterclockwise.
2. Disconnect the headlight coupler. 3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into position, and then secure it with
the bulb holder. 5. Connect the headlight coupler.
6. Install the headlight bulb cover by
turning it clockwise.
7. Have a Yamaha dealer adjust the headlight beam if necessary.
1. Do not touch the glass part of the bulb.
1. Headlight bulb cover
1
1. Headlight coupler
1. Headlight bulb
2. Headlight bulb holder
1
1
2
U2BSE1E0.book Page 32 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-34
66. Remove the auxiliary light bulb
socket (together with the bulb) by
turning the socket counterclock-
wise.
7. Remove the burnt-out bulb by pulling it out. 8. Insert a new bulb into the socket.
9. Install the socket (together with
the bulb) by pushing it in and turn-
ing it clockwise.
10. Install the headlight unit by install- ing the bolts, and then tightening
them to the specified torque.
11. Install the headlight unit cover by installing the bolts.
12. Install the panel by installing the screws and the quick fastener
screw.
13. Install the cover. 14. Install the windshield by installing
the screws, and then tightening
them to the specified torque.
WARNING! A loose win dshiel d
coul d cause an acci dent. Be
sure to ti ghten the screws to the
specifie d torque.
[EWA15511]
1. Headlight lead
1. Auxiliary light bulb socket
1
1
1. Auxiliary light bulbTi ghtenin g torque:
Headlight unit bolt: 7 Nm (0.7 m·kgf, 5.1 ft·lbf)
1
Tightenin g torque:
Windshield screw: 0.5 Nm (0.05 m·kgf, 0.36 ft·lbf)
U2BSE1E0.book Page 34 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-35
6
EAU58590
Turn signal li ght an d tail/ brake
lig htThis model is equipped with LED-type
turn signal lights and an LED-type
tail/brake light.
If a turn signal light or the tail/brake
light does not come on, have a
Yamaha dealer check it.
EAU49722
Replacin g a license plate li ght

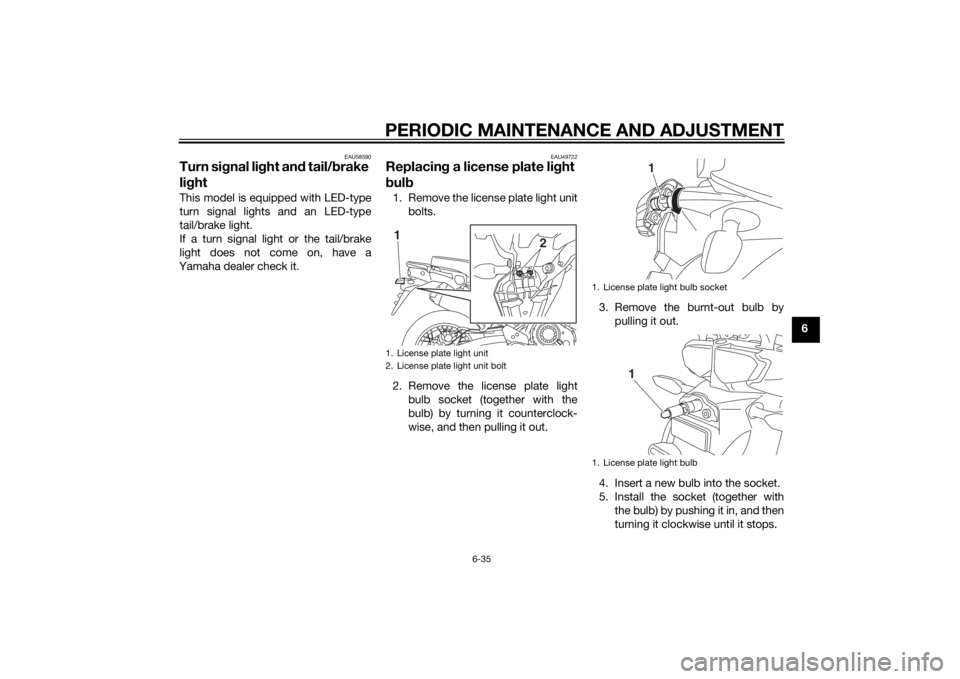

b ul b1. Remove the license plate light unit
bolts.
2. Remove the license plate light bulb socket (together with the
bulb) by turning it counterclock-
wise, and then pulling it out. 3. Remove the burnt-out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with the bulb) by pushing it in, and then
turning it clockwise until it stops.1. License plate light unit
2. License plate light unit bolt
2
1
1. License plate light bulb socket
1. License plate light bulb
1
1
U2BSE1E0.book Page 35 Thursday, July 31, 2014 4:31 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-39
6
En
gine overheatin g
WARNING
EWAT1041
Do not remove the ra diator cap when the en gine an d ra diator are hot. Scal din g hot flui d an d steam may be
b lown out un der pressure, which coul d cause serious injury. Be sure to wait until the en gine has coole d.
 Place a thick ra g, like a towel, over the ra diator cap, an d then slowly rotate the cap counterclockwise to the
d etent to allow any resi dual pressure to escape. When the hissin g soun d has stoppe d, press down on the cap
while turnin g it counterclockwise, an d then remove the cap.TIPIf coolant is not available, tap water can be temporarily used instead, provided that it is changed to the recommended cool-
ant as soon as possible.
Wait until the
engine has cooled.
Check the coolant level in the
reservoir and radiator.
The coolant level
is OK.The coolant level is low.
Check the cooling system
for leakage.
Have a Yamaha dealer checkand repair the cooling system.Add coolant. (See TIP.)
Start the engine. If the engine overheats again,
have a
Yamaha dealer check
and repair the cooling system.
There is
leakage.
There is
no leakage.
