2015 YAMAHA VIKING Owners Manual

8-35
1
2
3
4
5
6
78
9
10
11
12
13
14

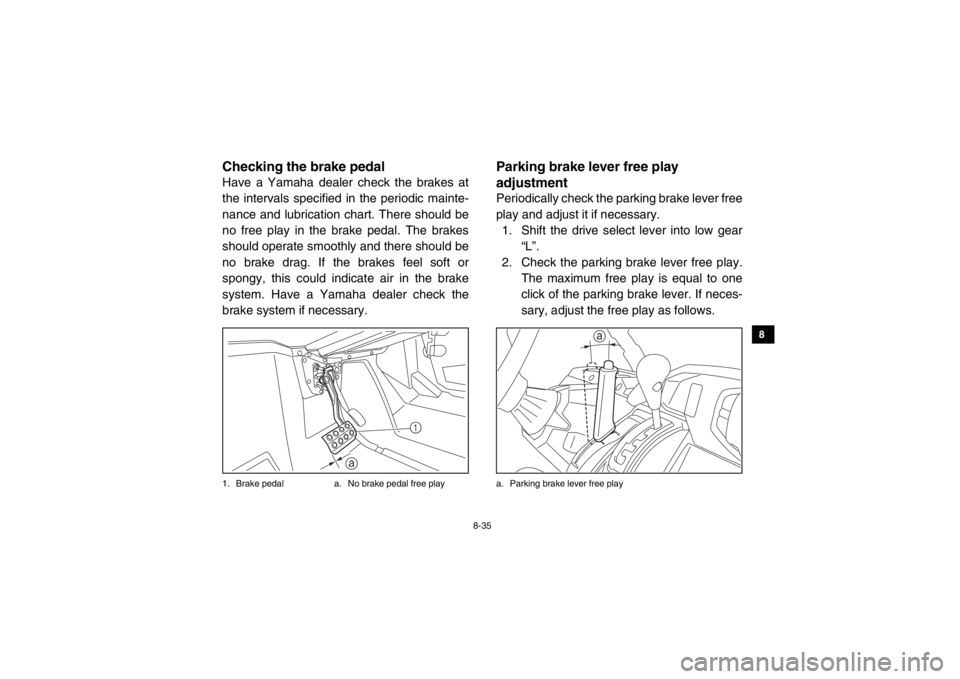

EVU01220Checking the brake pedalHave a Yamaha dealer check the brakes at
the intervals specified in the periodic mainte-
nance and lubrication chart. There should be
no free play in the brake pedal. The brakes
should operate smoothly and there should be
no brake drag. If the brakes feel soft or
spongy, this could indicate air in the brake
system. Have a Yamaha dealer check the
brake system if necessary.1. Brake pedal a. No brake pedal free play
EVU00870Parking brake lever free play
adjustmentPeriodically check the parking brake lever free
play and adjust it if necessary.
1. Shift the drive select lever into low gear “L”.
2. Check the parking brake lever free play. The maximum free play is equal to one
click of the parking brake lever. If neces-
sary, adjust the free play as follows.a. Parking brake lever free play
1
a
a
1XP7C_EE.book Page 35 Monday, June 9, 2014 5:17 PM

8-36
8
9
10
11
12
13
14
3. Release the parking brake lever.
4. Slide the rubber cover back on the park- ing brake cable.
5. Loosen the locknut.1. Rubber cover 2. Adjusting nut 3. Locknut6. Turn the adjusting nut in direction a to
increase the free play or in direction b to
decrease the free play.
7. Tighten the locknut, and then slide the rubber cover to its original position.
EVU00880Brake light switch adjustmentThe brake light switch, which is activated by
the brake pedal, is properly adjusted when the
brake light comes on just before braking takes
effect. If necessary, adjust the brake light
switch as follows.
Turn the adjusting nut while holding the brake
light switch in place. To make the brake light
come on earlier, turn the adjusting nut in
direction a. To make the brake light come on
later, turn the adjusting nut in direction b.1. Brake light switch 2. Adjusting nut
1
ab
2
3
1a
b
2
1XP7C_EE.book Page 36 Monday, June 9, 2014 5:17 PM

8-37
1
2
3
4
5
6
78
9
10
11
12
13
14

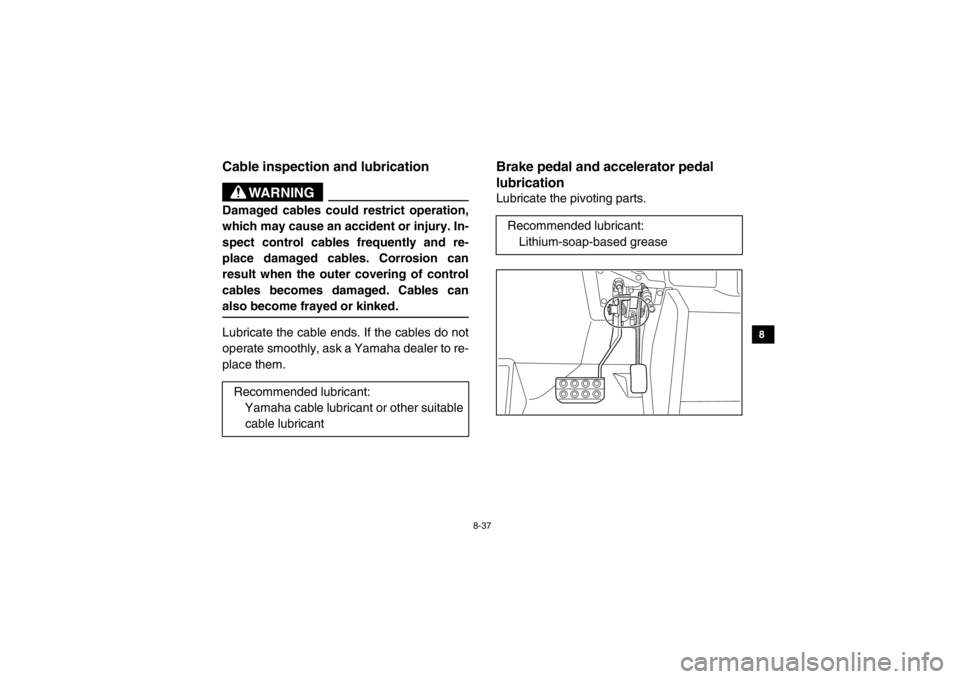

EVU00890Cable inspection and lubrication
WARNING
Damaged cables could restrict operation,
which may cause an accident or injury. In-
spect control cables frequently and re-
place damaged cables. Corrosion can
result when the outer covering of control
cables becomes damaged. Cables can
also become frayed or kinked.Lubricate the cable ends. If the cables do not
operate smoothly, ask a Yamaha dealer to re-
place them.
EVU00900Brake pedal and accelerator pedal
lubricationLubricate the pivoting parts.
Recommended lubricant: Yamaha cable lubricant or other suitable
cable lubricantRecommended lubricant: Lithium-soap-based grease
1XP7C_EE.book Page 37 Monday, June 9, 2014 5:17 PM

8-38
8
9
10
11
12
13
14

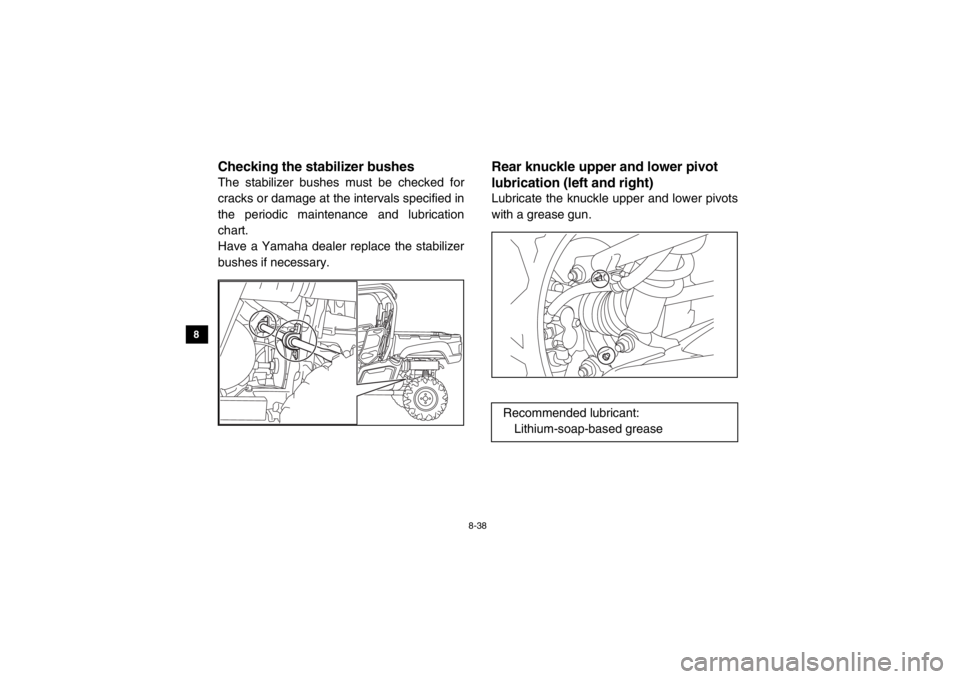

Checking the stabilizer bushesThe stabilizer bushes must be checked for
cracks or damage at the intervals specified in
the periodic maintenance and lubrication
chart.
Have a Yamaha dealer replace the stabilizer
bushes if necessary.
5B410021Rear knuckle upper and lower pivot
lubrication (left and right)Lubricate the knuckle upper and lower pivots
with a grease gun.
Recommended lubricant:
Lithium-soap-based grease
1XP7C_EE.book Page 38 Monday, June 9, 2014 5:17 PM

8-39
1
2
3
4
5
6
78
9
10
11
12
13
14

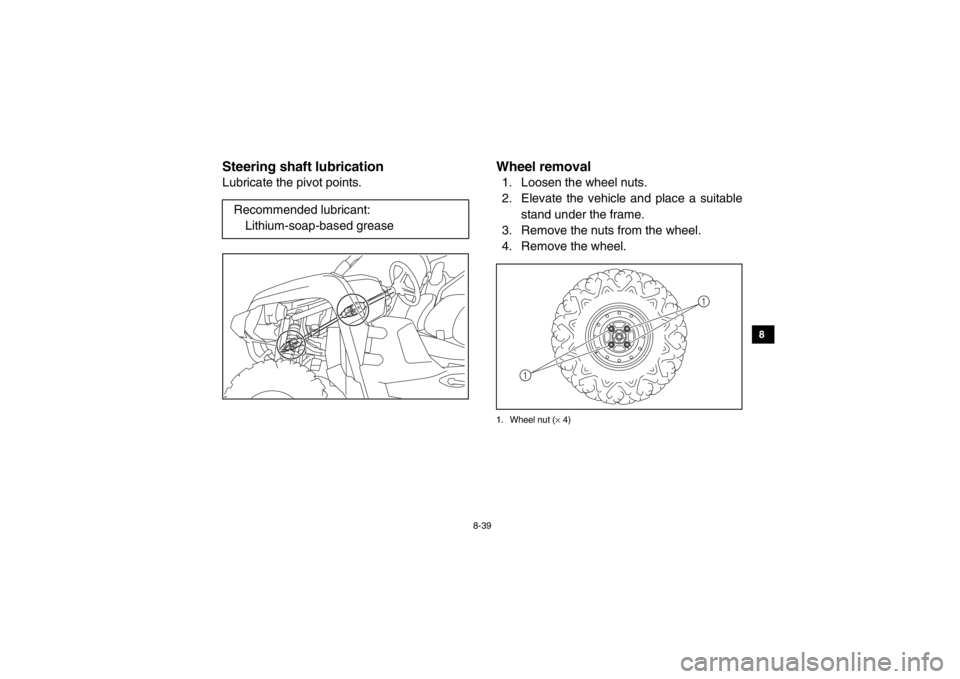

EVU00920Steering shaft lubricationLubricate the pivot points.
EVU00930Wheel removal1. Loosen the wheel nuts.
2. Elevate the vehicle and place a suitablestand under the frame.
3. Remove the nuts from the wheel.
4. Remove the wheel.1. Wheel nut ( × 4)
Recommended lubricant:
Lithium-soap-based grease
1
1
1XP7C_EE.book Page 39 Monday, June 9, 2014 5:17 PM

8-40
8
9
10
11
12
13
14
Tire replacementAlways use the same size and type of tires
recommended in this owner’s manual. The
tires that came with your Yamaha Viking were
designed to match the performance capabili-
ties and to provide the best combination of
handling, braking, and comfort. It is best to re-
place all four tires at the same time. If that is
not possible, you must replace the tires in
pairs (front or rear) with tires of the same size
and type as the originals. Never replace just
one tire.
WARNING
Installing improper tires on your Yamaha
Viking can affect handling and stability.
This can cause a loss of control.
The tires listed below have been approved by
Yamaha Motor Manufacturing Corporation of America for this model.
Front tire:Size: 25 × 8-12NHS
Manufacturer/model:
MAXXIS/MU09
Rear tire: Size:
25 × 10-12NHS
Manufacturer/model: MAXXIS/MU10
1XP7C_EE.book Page 40 Monday, June 9, 2014 5:17 PM

8-41
1
2
3
4
5
6
78
9
10
11
12
13
14
EVU00940Wheel installation1. Install the wheel and the nuts.TIPFor YXM700PF/YXM700PHF: tapered nuts
are used for both the front and rear wheels. In-
stall the nuts with their tapered side towards
the wheel.YXM700PF/YXM700PHF1. Tapered nut2. Lower the vehicle so that the wheel is onthe ground. 3. Tighten the wheel nuts in a crisscross
pattern to the specified torque.
WARNING
Do not reverse the rims on your Yamaha
Viking to widen the track width. Installing wheels improperly increases the risk of
wheel failure and accidents.
1
Tightening torques: Front wheel nut: 75 Nm (7.5 m·kgf, 54 ft·lbf)
Rear wheel nut:
75 Nm (7.5 m·kgf, 54 ft·lbf)
1XP7C_EE.book Page 41 Monday, June 9, 2014 5:17 PM

8-42
8
9
10
11
12
13
14
EVU00950BatteryThe battery is located under the hood. (See
page 8-7 for hood removal and installation
procedures.)
This model is equipped with a VRLA (Valve
Regulated Lead Acid) battery. There is no
need to check the electrolyte or to add distilled
water. However, the battery lead connections
need to be checked and, if necessary, tight-
ened.
WARNING
Avoid battery contact with skin, eyes, or
clothing. Shield eyes when working near
batteries. Keep out of reach of children.
You could be poisoned or severely burned
by the sulfuric acid in battery electrolyte.
In case of accidental contact with battery
electrolyte:
EXTERNAL: Flush with water.
INTERNAL: Drink large quantities of water
or milk. Follow with milk of magnesia,
beaten egg, or vegetable oil. Get prompt
medical attention.
EYES: Flush with water for 15 minutes and
get prompt medical attention.
WARNING
Batteries may produce explosive gases.
Ventilate when charging or using in a
closed space. Keep batteries away from
sparks, flames, cigarettes, or other sourc-
es of ignition.
1XP7C_EE.book Page 42 Monday, June 9, 2014 5:17 PM
