DESCRIPTION
2-2
2
EAU10421
Right view
7 85,6
4 3
2 1
2
1. Storage compartment (page 3-38)
2. Electronically adjustable suspension system (page 3-42)
3. Fuel tank cap (page 3-32)
4. Windshield (page 3-14)
5. Fuses (page 6-31)
6. Battery (page 6-29)
7. Brake pedal (page 3-29)
8. Rear brake fluid reservoir (page 6-23)U1MDE1E0.book Page 2 Monday, July 28, 2014 10:48 AM

INSTRUMENT AND CONTROL FUNCTIONS
3-49
3
EAU39656
Auxiliary DC jack
WARNING
EWA14361
To prevent electrical shock or short-
circuiting, make sure that the cap is
installed when the auxiliary DC jack
is not being used.NOTICE
ECA15432
The accessory connected to the
auxiliary DC jack should not be used
with the engine turned off, and the
load must never exceed 30 W (2.5 A),
otherwise the fuse may blow or the
battery may discharge.This vehicle is equipped with an auxil-
iary DC jack in the accessory box.
A 12-V accessory connected to the
auxiliary jack can be used when the
key is in the “ON” position and should
only be used when the engine is run-
ning.
To use the auxiliary DC jack
1. Open the accessory box lid. (See
page 3-39.)
2. Turn the key to “OFF”.3. Remove the auxiliary DC jack cap.
4. Turn the accessory off.
5. Insert the accessory plug into the
auxiliary DC jack.
6. Turn the key to “ON”, and then
start the engine. (See page 5-1.)
7. Turn the accessory on.
1. Auxiliary DC jack cap
1. Auxiliary DC jack
11
U1MDE1E0.book Page 49 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-9

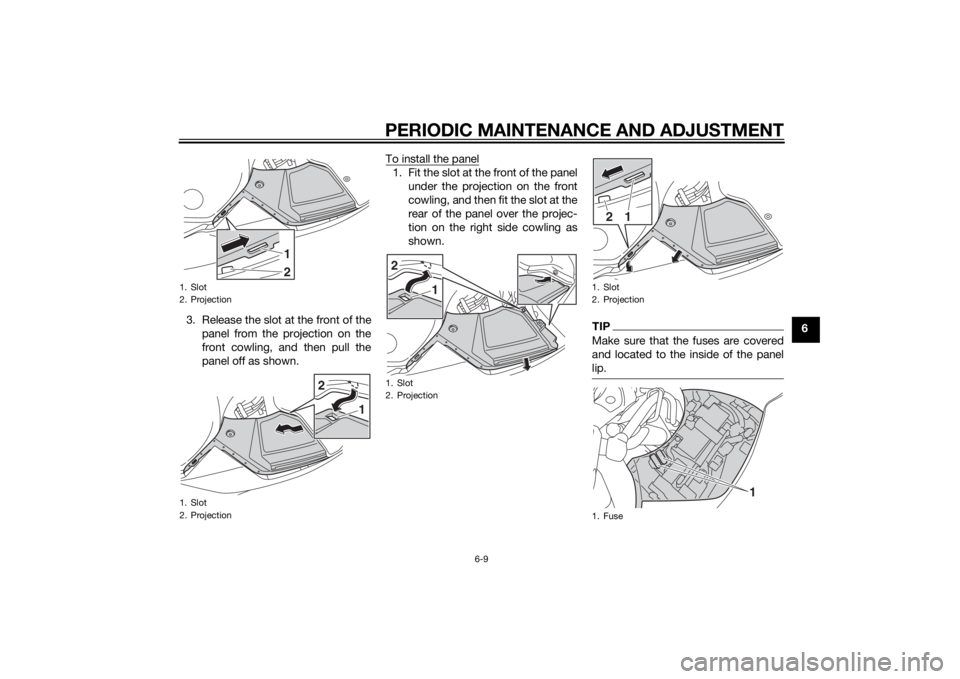

6 3. Release the slot at the front of the
panel from the projection on the
front cowling, and then pull the
panel off as shown.To install the panel
1. Fit the slot at the front of the panel
under the projection on the front
cowling, and then fit the slot at the
rear of the panel over the projec-
tion on the right side cowling as
shown.
TIPMake sure that the fuses are covered
and located to the inside of the panel
lip.
1. Slot
2. Projection
1. Slot
2. Projection
12
2
1
1. Slot
2. Projection2
1
1. Slot
2. Projection
1. Fuse
1
2
1
U1MDE1E0.book Page 9 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-31
6
EAU54513
Replacing the fusesThe fuse boxes and individual fuses
are located under panel A. (See page
6-8.)
If a fuse is blown, replace it as follows.1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a higher amperage
rating than recommended to
avoid causing extensive dam-
age to the electrical system and
possibly a fire.
[EWA15132]
1. Main fuse 1
2. Spare fuse
3. Cruise control fuse
4. Brake light fuse
5. Fuse box
6. Main fuse 2
5
1
3 4
2
5
26
1. ABS motor fuse
2. ABS solenoid fuse
3. Fuel injection system fuse
4. Backup fuse (for clock and immobilizer sys-
tem)
5. Electronic throttle valve fuse
6. Headlight fuse
7. Spare fuse
8. YCC-S motor control fuse
9. Suspension fuse
10.Signaling system fuse
11.Auxiliary DC jack fuse
12.ABS control unit fuse
13.Ignition fuse
14.Right radiator fan motor fuse
15.Left radiator fan motor fuse
16.Hazard fuse
17.Windshield motor fuse
15
7
11
101213
14
7
17
16
8
1
9
2
3456
7
7
Specified fuses:
Main fuse 1:
50.0 A
Main fuse 2:
30.0 A
Headlight fuse:
25.0 A
Brake light fuse:
1.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
20.0 A
Radiator fan motor fuse:
10.0 A × 2
Backup fuse:
7.5 A
Hazard fuse:
7.5 A
Fuel injection system fuse:
15.0 A
U1MDE1E0.book Page 31 Monday, July 28, 2014 10:48 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-32
6
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
EAU40362
Headlight bulbIf a headlight does not come on, have
a Yamaha dealer check its electrical
circuit or replace the bulb.NOTICE
ECA16581
Do not affix any type of tinted film or
stickers to the headlight lens.
EAU54501
Auxiliary lightThis model is equipped with LED-type
auxiliary lights.
If an auxiliary light does not come on,
have a Yamaha dealer check it.
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse:
15.0 A
YCC-S motor control fuse:
30.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse:
3.0 A
Windshield motor fuse:
20.0 A
Electronic throttle valve fuse:
7.5 A
1. Auxiliary light
1
1
U1MDE1E0.book Page 32 Monday, July 28, 2014 10:48 AM

SPECIFICATIONS
8-3
8
Wheel travel:
125 mm (4.9 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
GT14B-4
Voltage, capacity:
12 V, 12.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 60.0 W/55.0 W × 2
Tail/brake light:
12 V, 5.0 W/21.0 W × 2
Front turn signal light:
LED
Rear turn signal light:
12 V, 21.0 W × 2
Auxiliary light:
LED
License plate light:
12 V, 5.0 W × 1
Meter lighting:
LED
Neutral indicator light:
LED
High beam indicator light:
LEDOil level warning light:
LED
Turn signal indicator light:
LED
Engine trouble warning light:
LED
ABS warning light:
LED
Cruise control “SET” indicator light:
LED
Cruise control “ON” indicator light:
LED
Immobilizer system indicator light:
LED
Traction control system indicator/warning
light:
LED
"STOP MODE" indicator light:
LED
Shift down indicator light:
LED
YCC-S system warning light:
LED
Suspension warning light:
LED
Fuses:Main fuse 1:
50.0 A
Main fuse 2:
30.0 A
Headlight fuse:
25.0 A
Brake light fuse:
1.0 ASignaling system fuse:
10.0 A
Ignition fuse:
20.0 A
Radiator fan motor fuse:
10.0 A × 2
Hazard fuse:
7.5 A
Fuel injection system fuse:
15.0 A
ABS control unit fuse:
7.5 A
ABS motor fuse:
30.0 A
ABS solenoid fuse:
20.0 A
Suspension fuse:
15.0 A
Cruise control fuse:
1.0 A
Auxiliary DC jack fuse:
3.0 A
YCC-S motor control fuse:
30.0 A
Backup fuse:
7.5 A
Windshield motor fuse:
20.0 A
Electronic throttle valve fuse:
7.5 A
U1MDE1E0.book Page 3 Monday, July 28, 2014 10:48 AM

10-1
10
INDEXAABS ....................................................... 3-30
ABS warning light ................................... 3-5
Accessory box ...................................... 3-39
Air filter element .................................... 6-17
Auxiliary DC jack ................................... 3-49
Auxiliary light......................................... 6-32BBattery .................................................. 6-29
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake and YCC-S clutch fluid levels,
checking ............................................. 6-23
Brake and YCC-S clutch fluids,
changing ............................................. 6-25
Brake lever ............................................ 3-29
Brake lever, checking and lubricating .. 6-26
Brake lever free play, checking............. 6-21
Brake light switches.............................. 6-22
Brake pedal........................................... 3-29CCables, checking and lubricating ......... 6-25
Care ........................................................ 7-1
Catalytic converters .............................. 3-34
Centerstand and sidestand, checking
and lubricating .................................... 6-27
Coolant ................................................. 6-16
Cowling vents, opening and closing ..... 3-40
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-26
Cruise control system ............................. 3-7DDimmer/Pass switch ............................. 3-26
D-mode (drive mode) ............................ 3-25
EElectronically adjustable suspension
system warning light ............................ 3-6
Engine break-in ...................................... 5-4
Engine idling speed, checking ............. 6-17
Engine oil and oil filter cartridge ........... 6-12
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-4FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-22
Front fork, checking ............................. 6-28
Front turn signal light............................ 6-33
Fuel ....................................................... 3-33
Fuel consumption, tips for reducing ...... 5-4
Fuel tank breather/overflow hose ......... 3-34
Fuel tank cap ........................................ 3-32
Fuses, replacing ................................... 6-31HHandlebar position, adjusting .............. 3-40
Handlebar switches .............................. 3-25
Hand shift lever .................................... 3-29
Hazard switch....................................... 3-26
Headlight beams, adjusting.................. 3-40
Headlight bulb ...................................... 6-32
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-26IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-47
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-7
Indicator lights and warning lights ......... 3-4
LLicense plate light bulb, replacing ........6-34MMain switch/steering lock .......................3-2
Maintenance and lubrication, periodic....6-4
Maintenance, emission control
system ..................................................6-3
Matte color, caution ................................7-1
Menu switch..........................................3-26
Model label .............................................9-1
Multi-function meter unit .......................3-11NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PPanels, removing and installing ..............6-8
Parking ....................................................5-5
Part locations ..........................................2-1RRear suspension, lubricating ................6-27
Rear view mirrors ..................................3-42
Rider seat height, adjusting ..................3-36SSafety information ...................................1-1
Seats .....................................................3-35
Select switch.........................................3-27
Shift down indicator light ........................3-6
Shifting ....................................................5-3
Shift pedal .............................................3-28
Sidestand ..............................................3-46
Spark plugs, checking ..........................6-11
Specifications .........................................8-1
Start/Engine stop switch .......................3-26
U1MDE1E0.book Page 1 Monday, July 28, 2014 10:48 AM
