INSTRUMENT AND CONTROL FUNCTIONS
3-33
3
NOTICE
ECA10702
Use only unleaded g asoline. The use
of lead ed g asoline will cause unre-
pairab le damag e to the catalytic
converter.
EAU39496

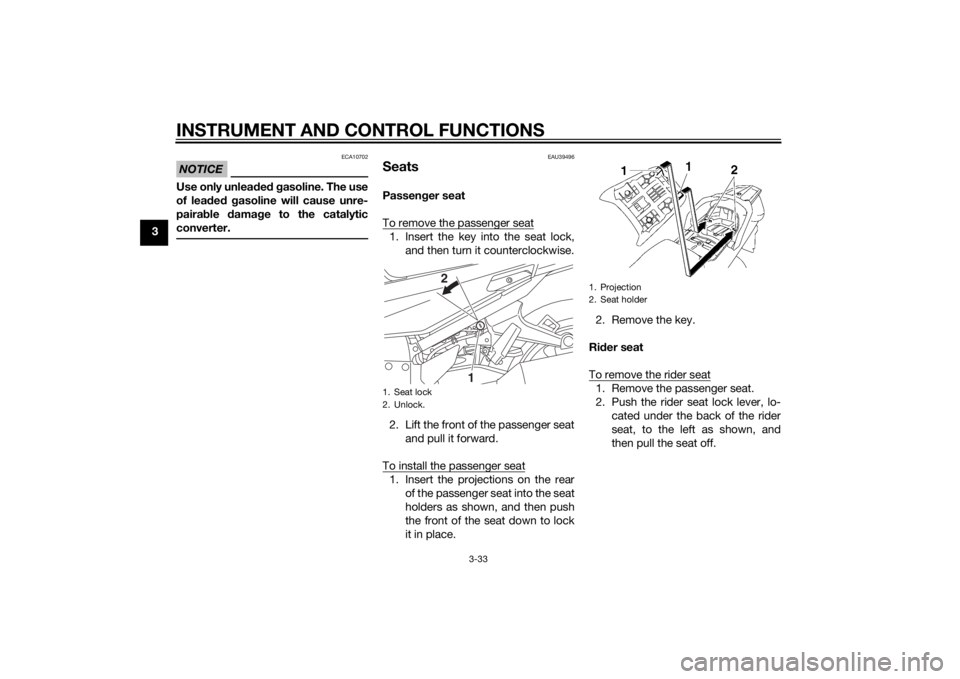

SeatsPassen ger seat
To remove the passenger seat1. Insert the key into the seat lock, and then turn it counterclockwise.
2. Lift the front of the passenger seat and pull it forward.
To install the passenger seat1. Insert the projections on the rear of the passenger seat into the seat
holders as shown, and then push
the front of the seat down to lock
it in place. 2. Remove the key.
Ri der seat
To remove the rider seat
1. Remove the passenger seat.
2. Push the rider seat lock lever, lo- cated under the back of the rider
seat, to the left as shown, and
then pull the seat off.
1. Seat lock
2. Unlock.
1
2
1. Projection
2. Seat holder
U2PDE1E0.book Page 33 Thursday, July 10, 2014 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-34
3
To install the rider seat
1. Insert the projection on the front of the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place. 2. Install the passenger seat.
TIP
Make sure that the seats are prop-
erly secured before riding.
 The rider seat height can be ad-
justed to change the riding posi-
tion. (See the following section.)
EAU39633
Adjustin g the ri der seat hei ghtThe rider seat height can be adjusted
to one of two positions to suit the rid-
er’s preference.
The rider seat height was adjusted to
the lower position at delivery.
To chan ge the ri der seat hei ght to
the hi gh position
1. Remove the rider seat. (See page 3-33.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
1. Rider seat lock lever
2. Rider seat
1. Projection
2. Seat holder
1. Low position
2. High position
U2PDE1E0.book Page 34 Thursday, July 10, 2014 5:19 PM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-10
6
2. Install the bolts and the quick fas-
teners.

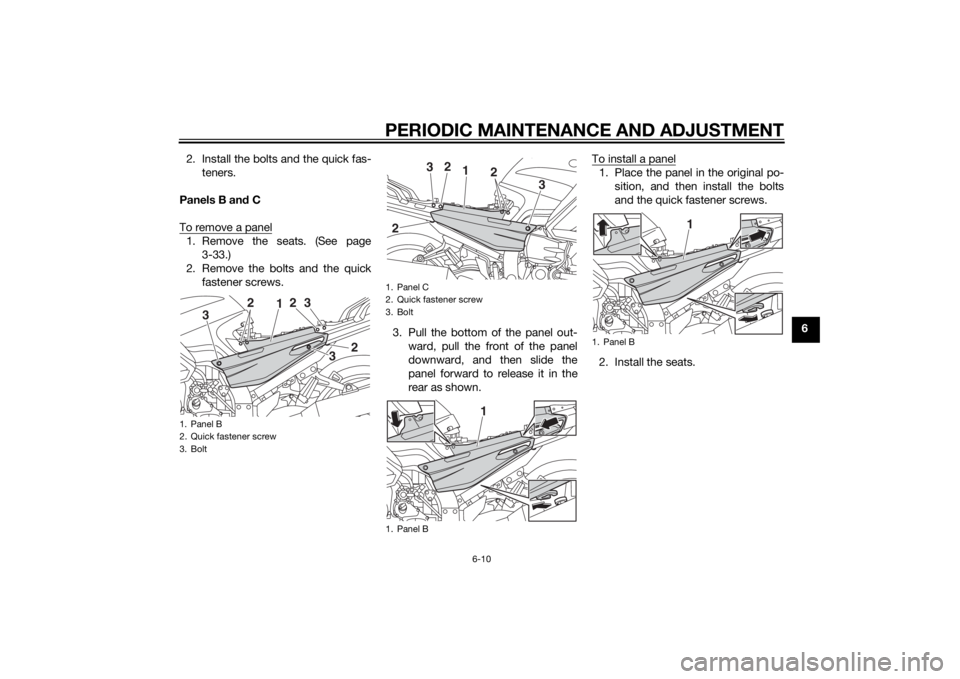

Panels B an d C
To remove a panel
1. Remove the seats. (See page 3-33.)
2. Remove the bolts and the quick fastener screws.
3. Pull the bottom of the panel out-ward, pull the front of the panel
downward, and then slide the
panel forward to release it in the
rear as shown. To install a panel
1. Place the panel in the original po-
sition, and then install the bolts
and the quick fastener screws.
2. Install the seats.
1. Panel B
2. Quick fastener screw
3. Bolt
1 2
2
3
3
2
3
1. Panel C
2. Quick fastener screw
3. Bolt
1. Panel B
1
2 2
2 3
3
1
1. Panel B
1
