INSTRUMENT AND CONTROL FUNCTIONS
3-34
3
To install the rider seat
1. Insert the projection on the front of the rider seat into the seat holder
as shown, and then push the rear
of the seat down to lock it in place. 2. Install the passenger seat.
TIP
Make sure that the seats are prop-
erly secured before riding.
 The rider seat height can be ad-
justed to change the riding posi-
tion. (See the following section.)
EAU39633
Adjustin g the ri der seat hei ghtThe rider seat height can be adjusted
to one of two positions to suit the rid-
er’s preference.
The rider seat height was adjusted to
the lower position at delivery.
To chan ge the ri der seat hei ght to
the hi gh position
1. Remove the rider seat. (See page 3-33.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
1. Rider seat lock lever
2. Rider seat
1. Projection
2. Seat holder
1. Low position
2. High position
U2PDE1E0.book Page 34 Thursday, July 10, 2014 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-35

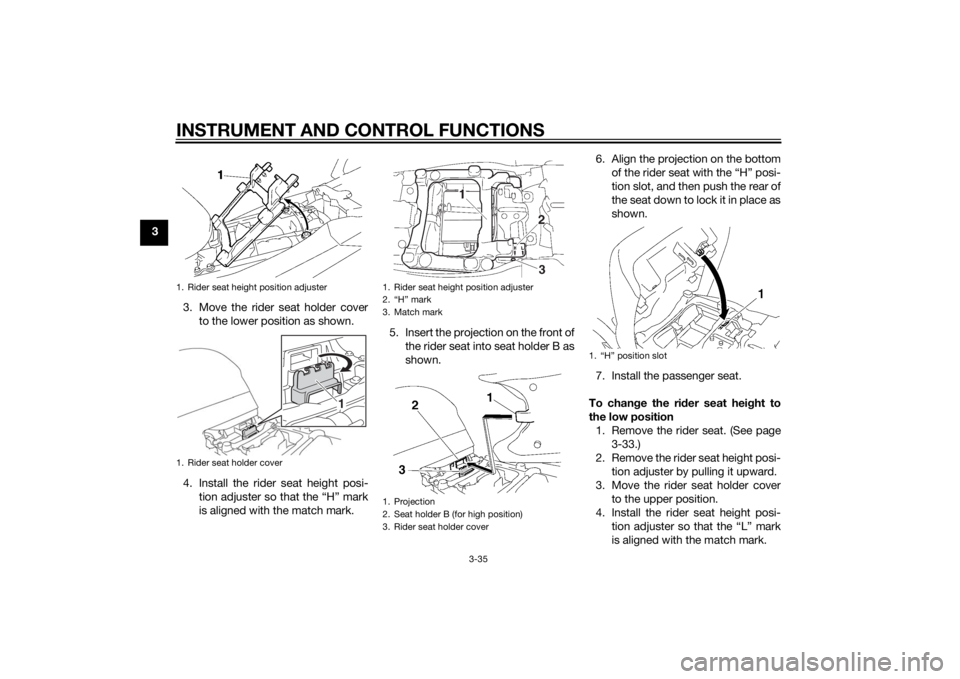

33. Move the rider seat holder coverto the lower position as shown.
4. Install the rider seat height posi- tion adjuster so that the “H” mark
is aligned with the match mark. 5. Insert the projection on the front of
the rider seat into seat holder B as
shown. 6. Align the projection on the bottom
of the rider seat with the “H” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
To chan ge the ri der seat hei ght to
the low position 1. Remove the rider seat. (See page 3-33.)
2. Remove the rider seat height posi- tion adjuster by pulling it upward.
3. Move the rider seat holder cover to the upper position.
4. Install the rider seat height posi- tion adjuster so that the “L” mark
is aligned with the match mark.
1. Rider seat height position adjuster
1. Rider seat holder cover
1
1. Rider seat height position adjuster
2. “H” mark
3. Match mark
1. Projection
2. Seat holder B (for high position)
3. Rider seat holder cover
1. “H” position slot
U2PDE1E0.book Page 35 Thursday, July 10, 2014 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-36
3

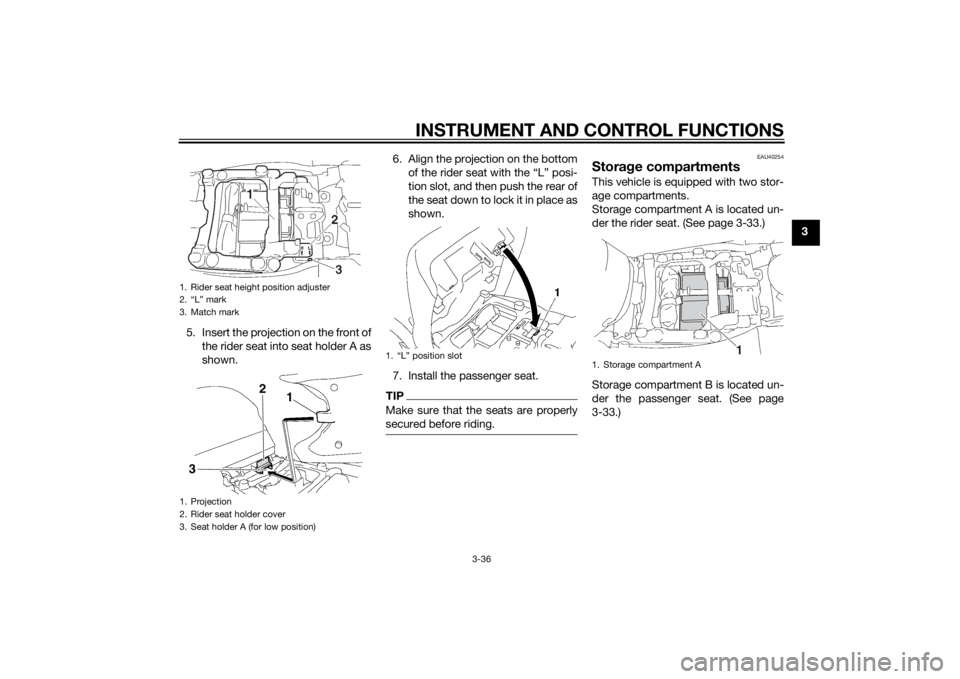

5. Insert the projection on the front of the rider seat into seat holder A as
shown. 6. Align the projection on the bottom
of the rider seat with the “L” posi-
tion slot, and then push the rear of
the seat down to lock it in place as
shown.
7. Install the passenger seat.
TIPMake sure that the seats are properly
secured before riding.
EAU40254
Stora ge compartmentsThis vehicle is equipped with two stor-
age compartments.
Storage compartment A is located un-
der the rider seat. (See page 3-33.)
Storage compartment B is located un-
der the passenger seat. (See page
3-33.)
1. Rider seat height position adjuster
2. “L” mark
3. Match mark
1. Projection
2. Rider seat holder cover
3. Seat holder A (for low position)
1
2
3
1. “L” position slot
1. Storage compartment A
1
U2PDE1E0.book Page 36 Thursday, July 10, 2014 5:19 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-38
3
EAU39612

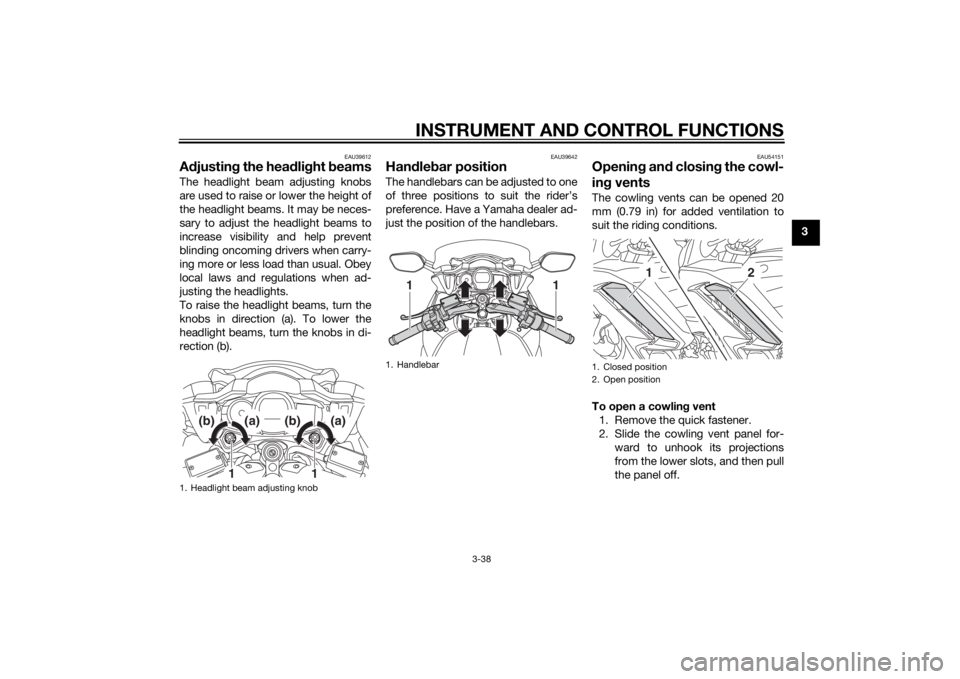

Adjustin g the hea dlig ht beamsThe headlight beam adjusting knobs
are used to raise or lower the height of
the headlight beams. It may be neces-
sary to adjust the headlight beams to
increase visibility and help prevent
blinding oncoming drivers when carry-
ing more or less load than usual. Obey
local laws and regulations when ad-
justing the headlights.
To raise the headlight beams, turn the
knobs in direction (a). To lower the
headlight beams, turn the knobs in di-
rection (b).
EAU39642
Han dle bar positionThe handlebars can be adjusted to one
of three positions to suit the rider’s
preference. Have a Yamaha dealer ad-
just the position of the handlebars.
EAU54151
Openin g an d closin g the cowl-
in g ventsThe cowling vents can be opened 20
mm (0.79 in) for added ventilation to
suit the riding conditions.
To open a cowlin g vent
1. Remove the quick fastener.
2. Slide the cowling vent panel for- ward to unhook its projections
from the lower slots, and then pull
the panel off.
1. Headlight beam adjusting knob
1
1
(b)
(a)
(b)
(a)
1. Handlebar
11
1. Closed position
2. Open position
1
2
U2PDE1E0.book Page 38 Thursday, July 10, 2014 5:19 PM

SPECIFICATIONS
8-1
8
Dimensions:Overall length:2230 mm (87.8 in)
Overall width:
750 mm (29.5 in)
Overall height: 1325/1455 mm (52.2/57.3 in)
Seat height: 805/825 mm (31.7/32.5 in)
Wheelbase:
1545 mm (60.8 in)
Ground clearance: 123 mm (4.84 in)
Minimum turning radius: 3200 mm (126.0 in)Wei ght:Curb weight:
292 kg (644 lb)Engine:Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement: Inline 4-cylinder
Displacement: 1298 cm³
Bore × stroke:
79.0 × 66.2 mm (3.11 × 2.61 in)
Compression ratio: 10.8 : 1
Starting system: Electric starter
Lubrication system:
Wet sump
Engine oil:Recommended brand:
YAMALUBE
Type:
SAE 10W-40, 10W-50, 15W-40, 20W-40 or
20W-50
Recommended engine oil grade: API service SG type or higher, JASO
standard MA
Engine oil quantity:
Without oil filter cartridge replacement:3.80 L (4.02 US qt, 3.34 Imp.qt)
With oil filter cartridge replacement:
4.00 L (4.23 US qt, 3.52 Imp.qt)Final gear oil:Type:
Yamaha genuine shaft drive gear oil SAE 80W-90 API GL-5
Quantity: 0.20 L (0.21 US qt, 0.18 Imp.qt)
Coolant quantity:Coolant reservoir (up to the maximum level
mark):0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator (including all routes): 2.60 L (2.75 US qt, 2.29 Imp.qt)Air filter:Air filter element:Dry elementFuel:Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity: 25.0 L (6.61 US gal, 5.50 Imp.gal)
Fuel reserve amount: 5.5 L (1.45 US gal, 1.21 Imp.gal)Fuel injection:Throttle body:ID mark:
1MC1 00Spark plu g(s):Manufacturer/model:
NGK/CPR8EA-9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)Clutch:Clutch type:Wet, multiple-discTransmission:Primary reduction ratio:1.563 (75/48)
Final drive: Shaft
–20 –10 0 1020 30 40 50 C
10 30 50 70 90 110
0 130 F
SAE 20W-50SAE 20W-40SAE 15W-40SAE 10W-40SAE 10W-50
U2PDE1E0.book Page 1 Thursday, July 10, 2014 5:19 PM

10-1
10
INDEXAABS ....................................................... 3-28
ABS warning light ................................... 3-5
Accessory box ...................................... 3-37
Air filter element, cleaning .................... 6-17
Auxiliary DC jack ................................... 3-47
Auxiliary light......................................... 6-34BBattery .................................................. 6-30
Brake and clutch fluid levels, checking ............................................. 6-24
Brake and clutch fluids, changing ........ 6-25
Brake and clutch levers, checking and lubricating ........................................... 6-27
Brake and shift pedals, checking and
lubricating ........................................... 6-26
Brake lever ............................................ 3-27
Brake lever free play, checking............. 6-22
Brake light switches.............................. 6-23
Brake pedal........................................... 3-27CCables, checking and lubricating ......... 6-26
Care ........................................................ 7-1
Catalytic converters .............................. 3-32
Centerstand and sidestand, checking and lubricating .................................... 6-28
Clutch lever ................................. 3-26, 6-22
Coolant ................................................. 6-16
Cowling vents, opening and closing ..... 3-38
Cruise control indicator lights ................. 3-4
Cruise control switches ........................ 3-25
Cruise control system ............................. 3-7DDimmer/Pass switch ............................. 3-25 D-mode (drive mode) ........................... 3-24
EElectronically adjustable suspension
system warning light ............................ 3-6
Engine break-in ...................................... 5-3
Engine idling speed, checking ............. 6-18
Engine oil and oil filter cartridge ........... 6-12
Engine serial number .............................. 9-1
Engine trouble warning light ................... 3-5FFinal gear oil ......................................... 6-14
Front and rear brake pads, checking ... 6-23
Front fork, checking ............................. 6-29
Front turn signal light............................ 6-34
Fuel ....................................................... 3-31
Fuel consumption, tips for reducing ...... 5-3
Fuel tank breather/overflow hose ......... 3-32
Fuel tank cap ........................................ 3-30
Fuses, replacing ................................... 6-32HHandlebar position, adjusting .............. 3-38
Handlebar switches .............................. 3-24
Hazard switch....................................... 3-25
Headlight beams, adjusting.................. 3-38
Headlight bulb ...................................... 6-33
High beam indicator light ....................... 3-4
Horn switch .......................................... 3-25IIdentification numbers ............................ 9-1
Ignition circuit cut-off system ............... 3-45
Immobilizer system ................................ 3-1
Immobilizer system indicator light .......... 3-6
Indicator lights and warning lights ......... 3-4
LLicense plate light bulb, replacing ........6-35MMain switch/steering lock .......................3-2
Maintenance and lubrication, periodic....6-4
Maintenance, emission control system ..................................................6-3
Matte color, caution ................................7-1
Menu switch..........................................3-25
Model label .............................................9-1
Multi-function meter unit .......................3-10NNeutral indicator light ..............................3-4OOil level warning light ..............................3-4PPanels, removing and installing ..............6-8
Parking ....................................................5-4
Part locations ..........................................2-1RRear suspension, lubricating ................6-28
Rear view mirrors ..................................3-40
Rider seat height, adjusting ..................3-34SSafety information ...................................1-1
Seats .....................................................3-33
Select switch.........................................3-26
Shifting ....................................................5-2
Shift pedal .............................................3-27
Sidestand ..............................................3-44
Spark plugs, checking ..........................6-11
Specifications .........................................8-1
Start/Engine stop switch .......................3-25
Starting the engine ..................................5-1
U2PDE1E0.book Page 1 Thursday, July 10, 2014 5:19 PM
