2015 VOLKSWAGEN POLO window

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
3/32

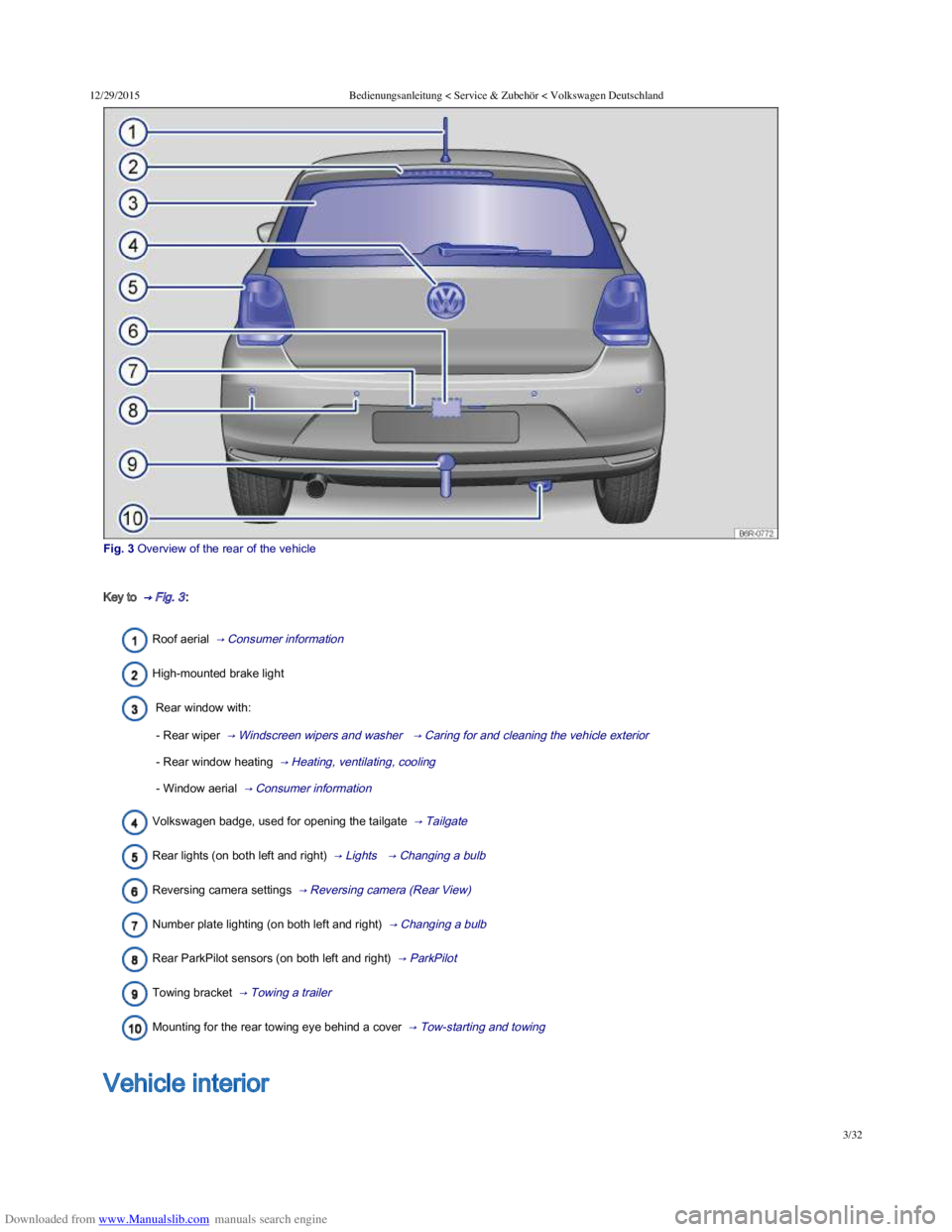

Fig. 3 Overview of the rear of the vehicle
Key to  → Fig. 3 :
Roof aerial  → Consumer information  
High-mounted brake light
Rear window with:
- Rear wiper  → Windscreen wipers and washer    → Caring for and cleaning the vehicle exterior  
- Rear window heating  → Heating, ventilating, cooling  
- Window aerial  → Consumer information  
Volkswagen badge, used for opening the tailgate  → Tailgate  
Rear lights (on both left and right)  → Lights    → Changing a bulb  
Reversing camera settings  → Reversing camera (Rear View)  
Number plate lighting (on both left and right)  → Changing a bulb  
Rear ParkPilot sensors (on both left and right)  → ParkPilot  
Towing bracket  → Towing a trailer  
Mounting for the rear towing eye behind a cover  → Tow-starting and towing  
Overview of the driver door
Vehicle interior

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
4/32

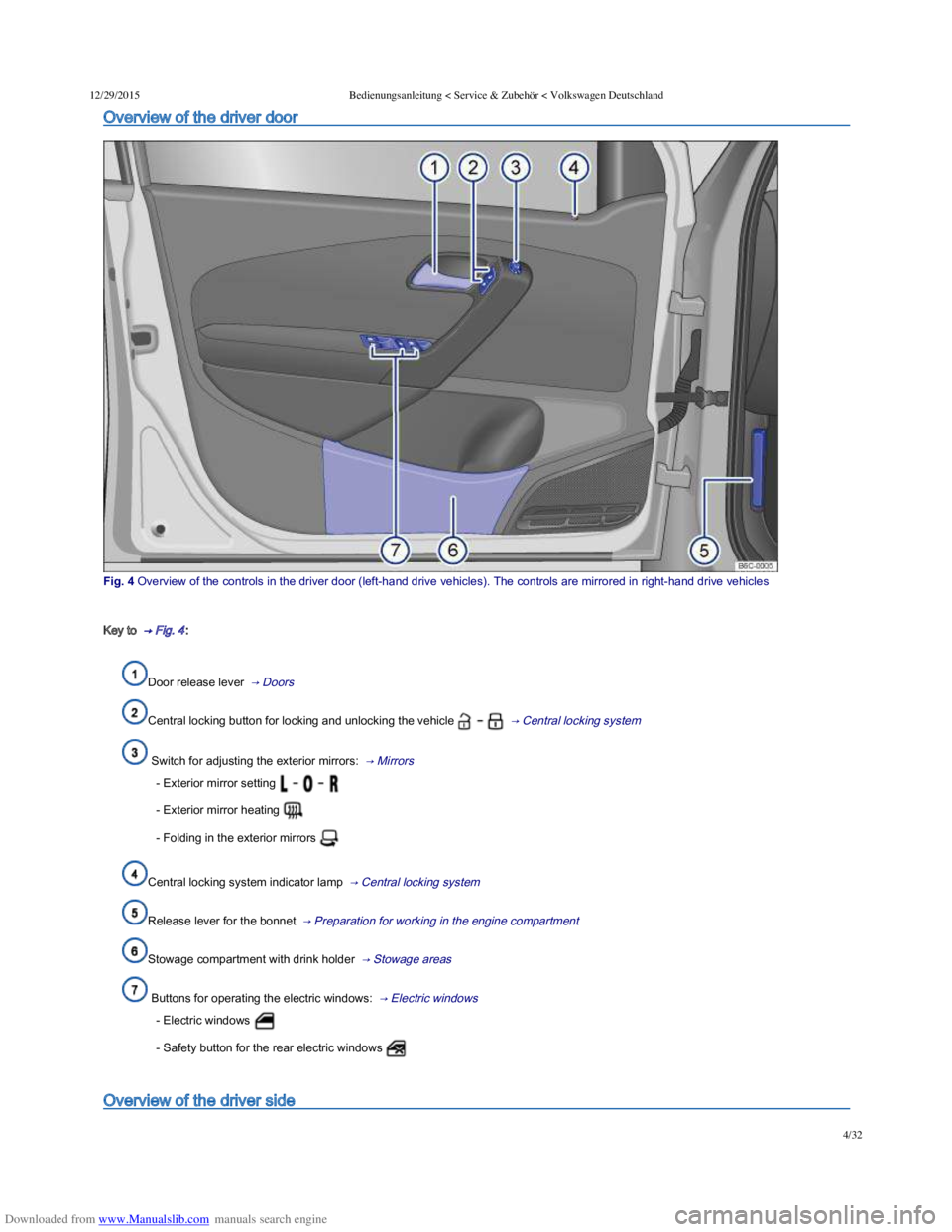

Overview of the driver door
Fig. 4 Overview of the controls in the driver door (left­hand drive vehicles). The controls are mirrored in right­hand drive vehicles
Key to  → Fig. 4 :
Door release lever  → Doors  
Central locking button for locking and unlocking the vehicle   → Central locking system  
Switch for adjusting the exterior mirrors:  → Mirrors  
- Exterior mirror setting
- Exterior mirror heating
- Folding in the exterior mirrors
Central locking system indicator lamp  → Central locking system  
Release lever for the bonnet  → Preparation for working in the engine compartment  
Stowage compartment with drink holder  → Stowage areas  
Buttons for operating the electric windows:  → Electric windows  
- Electric windows
- Safety button for the rear electric windows
Overview of the driver side

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
6/32
Light switch   → Lights  
- Daytime running lights or daytime headlights
- Automatic headlight control
- Side light and dipped beam headlights ,
- Fog lights ,
Headlight range control  → Lights  
Vent  –  –   → Heating, ventilating, cooling  
Lever  → Lights  
- For main beam headlights
- For dipped beam headlights
- For headlight flasher x
- For turn signal
- For parking lights
- With buttons for operating the cruise control system (CCS)  –   –  ,
 –  –   → Cruise Control System (CCS)   .
Instrument cluster:
- Instruments  → Instruments 
- Display  → Instruments 
- Warning and indicator lamps  → Warning and indicator lamps  
Lever for windscreen wipers and washers  → Windscreen wipers and washer  
- Windscreen wiper  –
- Interval wipe for the windscreen
- Length of intervals or sensitivity of the rain/light sensor
- Windscreen wiper switched off
- Flick wipe x
- Windscreen wipers
- Wash and wipe system for the windscreen
- Rear wiper
- Wash and wipe system for the rear window
- Control lever with buttons for operating the Volkswagen information system and the infotainment system ,
 → Volkswagen information system    → Infotainment system 
Controls on the multifunction steering wheel  → Volkswagen information system  
- Buttons for operating the cruise control system (CCS) ,  ,  ,   –   –   → Cruise Control
System (CCS)  

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
8/32

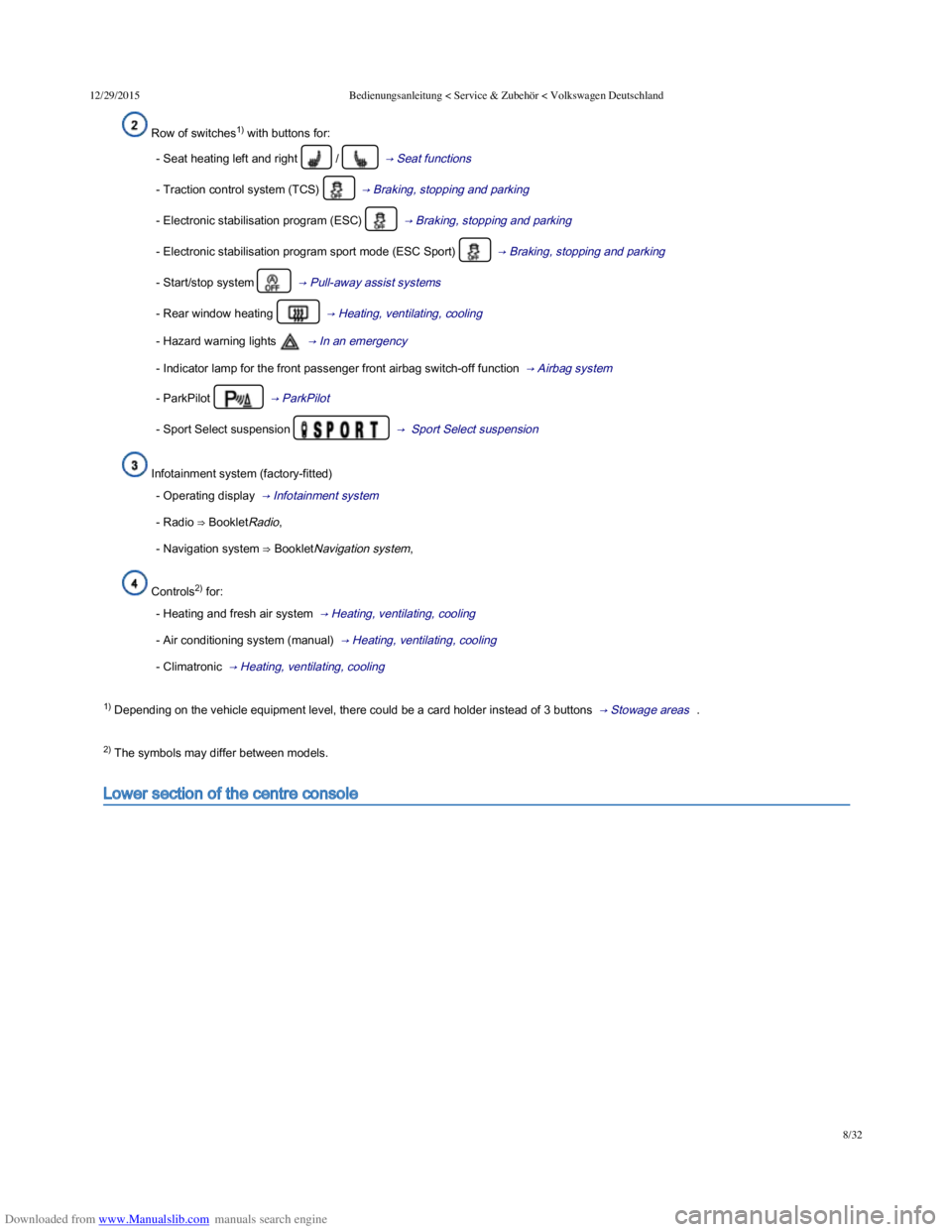

Row of switches1) with buttons for:
- Seat heating left and right /   → Seat functions  
- Traction control system (TCS)  → Braking, stopping and parking  
- Electronic stabilisation program (ESC)  → Braking, stopping and parking  
- Electronic stabilisation program sport mode (ESC Sport)  → Braking, stopping and parking  
- Start/stop system  → Pull-away assist systems  
- Rear window heating   → Heating, ventilating, cooling  
- Hazard warning lights   → In an emergency  
- Indicator lamp for the front passenger front airbag switch-off function  → Airbag system  
- ParkPilot   → ParkPilot  
- Sport Select suspension    →  Sport Select suspension  
Infotainment system (factory-fitted)
- Operating display  → Infotainment system 
- Radio ⇒ BookletRadio,
- Navigation system ⇒ BookletNavigation system,
Controls2) for:
- Heating and fresh air system  → Heating, ventilating, cooling  
- Air conditioning system (manual)  → Heating, ventilating, cooling  
- Climatronic  → Heating, ventilating, cooling  
1) Depending on the vehicle equipment level, there could be a card holder instead of 3 buttons  → Stowage areas   .
2) The symbols may differ between models.
Lower section of the centre console

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
27/32
MenuFunction
Front AssistSwitches the area monitoring system on or off  → Area monitoring system (Front Assist)   .
ACCAdaptive cruise control display  → Adaptive Cruise Control (ACC)   .
 Introduction
This chapter contains information on the following subjects:
 → Vehicle settings menu  
 → Think Blue. Trainer.  
Additional information and warnings:
Instruments  → Instruments 
Volkswagen information system  → Volkswagen information system  
Central locking system  → Central locking system  
Electric windows  → Electric windows  
Lights  → Lights  
Windscreen wipers/washer  → Windscreen wipers and washer  
Mirrors  → Mirrors  
Brake support systems  → Braking, stopping and parking  
Driving with respect for the environment  → Driving with respect for the environment  
Driver assist systems  → Driver assist systems 
Wheels and tyres  → Wheels and tyres  
⇒ BookletRadio , or ⇒ BookletNavigation system,
General information on operating the unit
The following section contains information on the settings that can be adjusted in the Vehicle settings menu. Basic information on operating the
infotainment system and on warning and safety instructions are contained in a separate manual ⇒ BookletRadio, or ⇒ BookletNavigation
system, .
Systems settings and display of vehicle information
After pressing the infotainment button you can touch the corresponding function button to display information or adjust settings, e.g.
you can check the current status of the start/stop system  → Pull-away assist systems   in the Vehicle status menu.
Vehicle settings (setup)  → Vehicle settings menu   .
Radio station selection.
Active media.
Vehicle status.
Driving data.
Convenience consumers.
Infotainment system
Menu and system settings (SETUP)

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
29/32

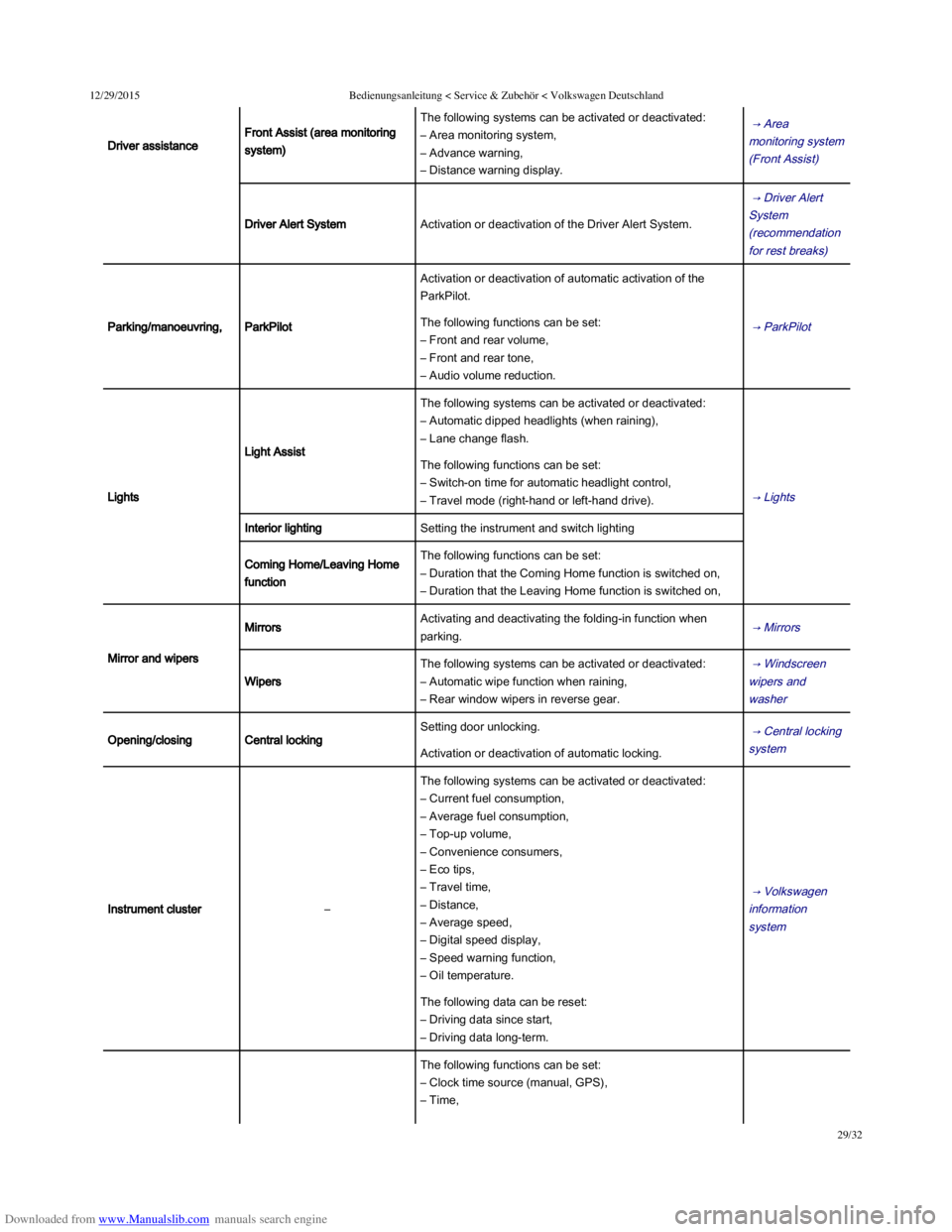

Driver assistance
Front Assist (area monitoring
system)
The following systems can be activated or deactivated:
– Area monitoring system,
– Advance warning,
– Distance warning display.
 → Area
monitoring system
(Front Assist)  
Driver Alert SystemActivation or deactivation of the Driver Alert System.
 → Driver Alert
System
(recommendation
for rest breaks)  
Parking/manoeuvring,ParkPilot
Activation or deactivation of automatic activation of the
ParkPilot.
 → ParkPilot  The following functions can be set:
– Front and rear volume,
– Front and rear tone,
– Audio volume reduction.
Lights
Light Assist
The following systems can be activated or deactivated:
– Automatic dipped headlights (when raining),
– Lane change flash.
 → Lights  
The following functions can be set:
– Switch-on time for automatic headlight control,
– Travel mode (right-hand or left-hand drive).
Interior lightingSetting the instrument and switch lighting
Coming Home/Leaving Home
function
The following functions can be set:
– Duration that the Coming Home function is switched on,
– Duration that the Leaving Home function is switched on,
Mirror and wipers
MirrorsActivating and deactivating the folding-in function when
parking. → Mirrors  
Wipers
The following systems can be activated or deactivated:
– Automatic wipe function when raining,
– Rear window wipers in reverse gear.
 → Windscreen
wipers and
washer  
Opening/closingCentral locking
Setting door unlocking. → Central locking
system  Activation or deactivation of automatic locking.
Instrument cluster–
The following systems can be activated or deactivated:
– Current fuel consumption,
– Average fuel consumption,
– Top-up volume,
– Convenience consumers,
– Eco tips,
– Travel time,
– Distance,
– Average speed,
– Digital speed display,
– Speed warning function,
– Oil temperature.
 → Volkswagen
information
system  
The following data can be reset:
– Driving data since start,
– Driving data long-term.
The following functions can be set:
– Clock time source (manual, GPS),
– Time,

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
1/136

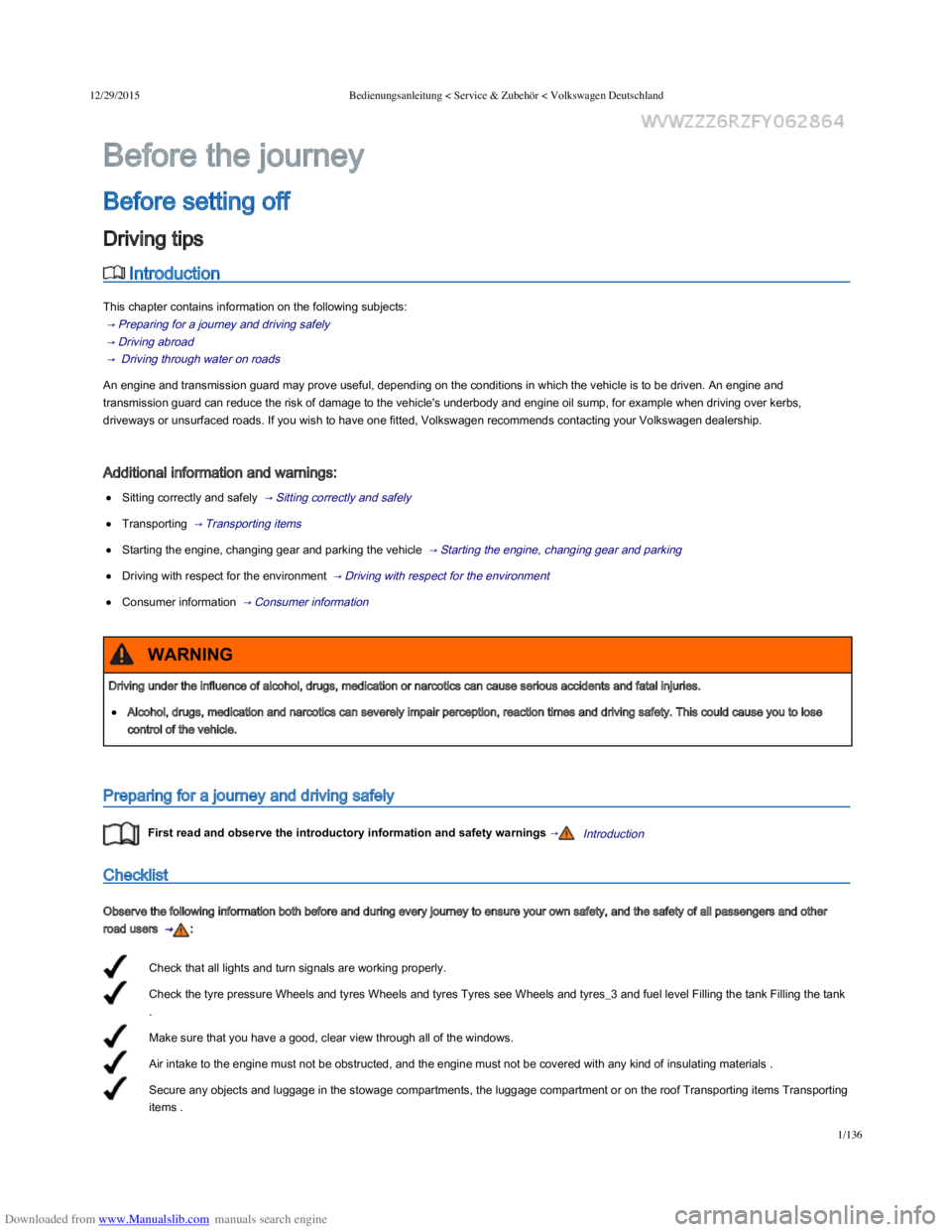

Check that all lights and turn signals are working properly.
Check the tyre pressure Wheels and tyres Wheels and tyres Tyres see Wheels and tyres_3 and fuel level Filling the tank Filling the tank
.
Make sure that you have a good, clear view through all of the windows.
Air intake to the engine must not be obstructed, and the engine must not be covered with any kind of insulating materials .
Secure any objects and luggage in the stowage compartments, the luggage compartment or on the roof Transporting items Transporting
items .
 Introduction
This chapter contains information on the following subjects:
 → Preparing for a journey and driving safely  
 → Driving abroad  
 →  Driving through water on roads 
An engine and transmission guard may prove useful, depending on the conditions in which the vehicle is to be driven. An engine and
transmission guard can reduce the risk of damage to the vehicle's underbody and engine oil sump, for example when driving over kerbs,
driveways or unsurfaced roads. If you wish to have one fitted, Volkswagen recommends contacting your Volkswagen dealership.
Additional information and warnings:
Sitting correctly and safely  → Sitting correctly and safely 
Transporting  → Transporting items  
Starting the engine, changing gear and parking the vehicle  → Starting the engine, changing gear and parking 
Driving with respect for the environment  → Driving with respect for the environment  
Consumer information  → Consumer information  
Preparing for a journey and driving safely
First read and observe the introductory information and safety warnings →Introduction 
Checklist
Observe the following information both before and during every journey to ensure your own safety, and the safety of all passengers and other
road users  → :
Before the journey
Before setting off
Driving tips
Driving under the influence of alcohol, drugs, medication or narcotics can cause serious accidents and fatal injuries.
Alcohol, drugs, medication and narcotics can severely impair perception, reaction times and driving safety. This could cause you to lose
control of the vehicle.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
9/136

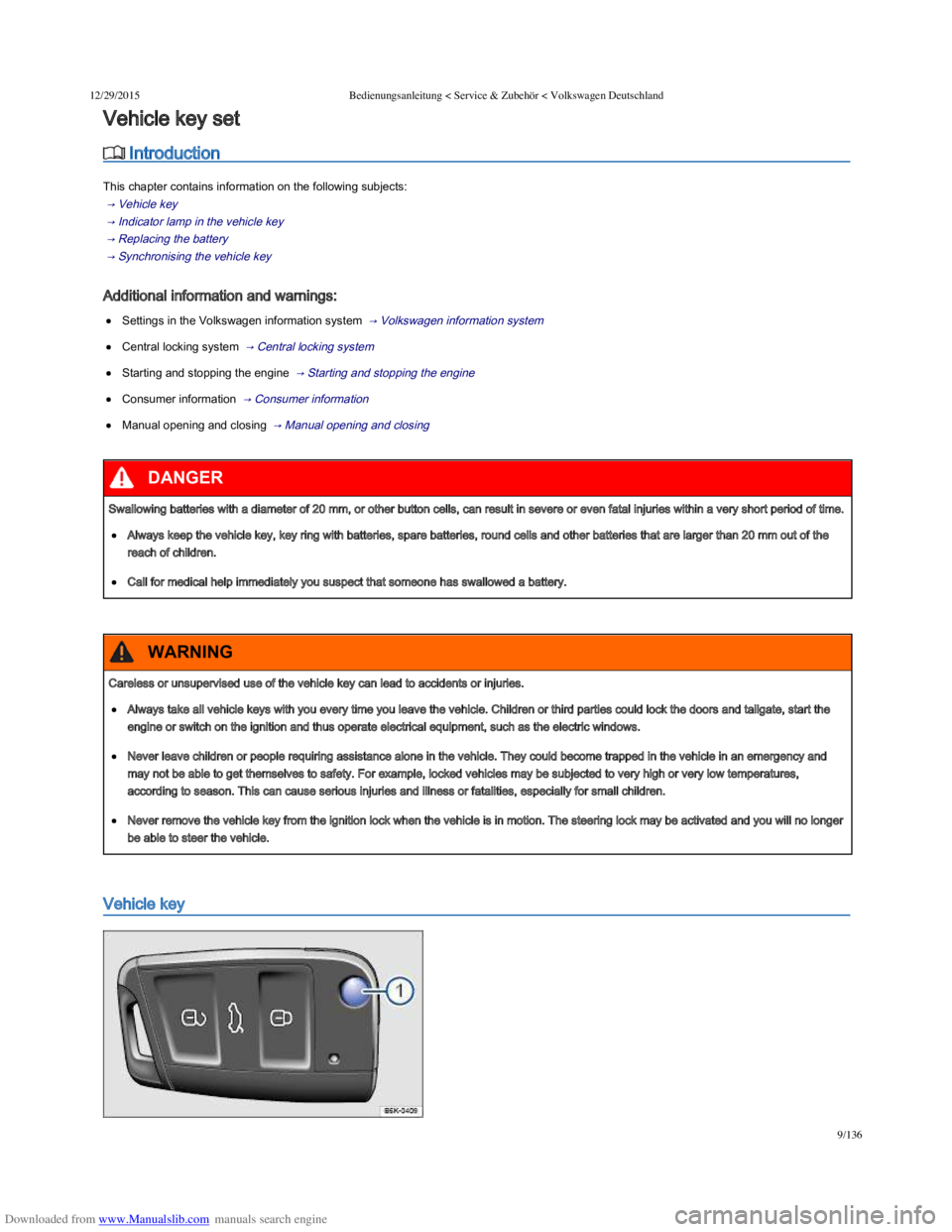

 Introduction
This chapter contains information on the following subjects:
 → Vehicle key  
 → Indicator lamp in the vehicle key  
 → Replacing the battery  
 → Synchronising the vehicle key  
Additional information and warnings:
Settings in the Volkswagen information system  → Volkswagen information system  
Central locking system  → Central locking system  
Starting and stopping the engine  → Starting and stopping the engine  
Consumer information  → Consumer information  
Manual opening and closing  → Manual opening and closing  
Vehicle key
Vehicle key set
Swallowing batteries with a diameter of 20 mm, or other button cells, can result in severe or even fatal injuries within a very short period of time.
Always keep the vehicle key, key ring with batteries, spare batteries, round cells and other batteries that are larger than 20 mm out of the
reach of children.
Call for medical help immediately you suspect that someone has swallowed a battery.
DANGER
Careless or unsupervised use of the vehicle key can lead to accidents or injuries.
Always take all vehicle keys with you every time you leave the vehicle. Children or third parties could lock the doors and tailgate, start the
engine or switch on the ignition and thus operate electrical equipment, such as the electric windows.
Never leave children or people requiring assistance alone in the vehicle. They could become trapped in the vehicle in an emergency and
may not be able to get themselves to safety. For example, locked vehicles may be subjected to very high or very low temperatures,
according to season. This can cause serious injuries and illness or fatalities, especially for small children.
Never remove the vehicle key from the ignition lock when the vehicle is in motion. The steering lock may be activated and you will no longer
be able to steer the vehicle.
WARNING
