2015 VOLKSWAGEN POLO window

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
32/136

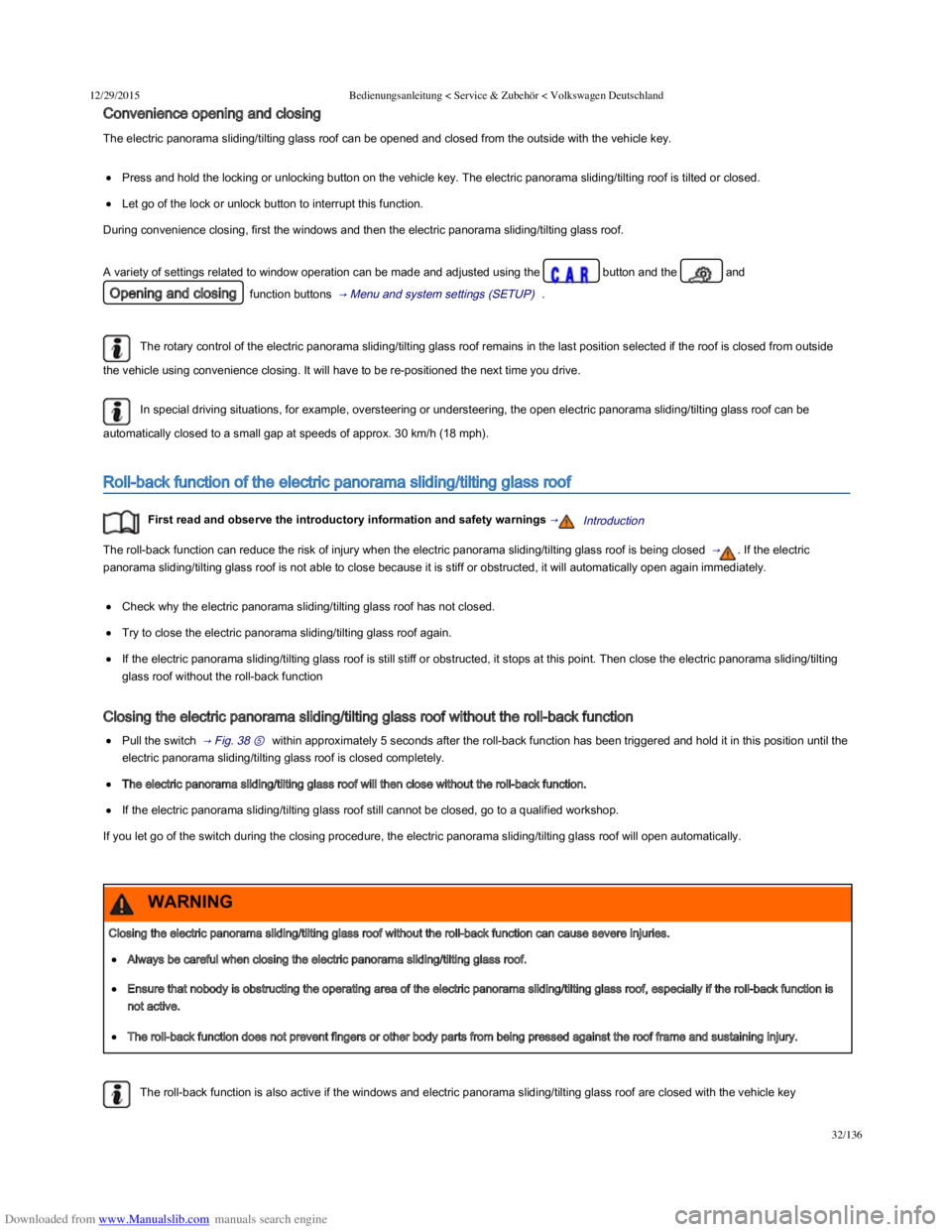

Convenience opening and closing
The electric panorama sliding/tilting glass roof can be opened and closed from the outside with the vehicle key.
Press and hold the locking or unlocking button on the vehicle key. The electric panorama sliding/tilting roof is tilted or closed.
Let go of the lock or unlock button to interrupt this function.
During convenience closing, first the windows and then the electric panorama sliding/tilting glass roof.
A variety of settings related to window operation can be made and adjusted using the button and the and
Opening and closing function buttons  → Menu and system settings (SETUP)   .
The rotary control of the electric panorama sliding/tilting glass roof remains in the last position selected if the roof is closed from outside
the vehicle using convenience closing. It will have to be re-positioned the next time you drive.
In special driving situations, for example, oversteering or understeering, the open electric panorama sliding/tilting glass roof can be
automatically closed to a small gap at speeds of approx. 30 km/h (18 mph).
Roll-back function of the electric panorama sliding/tilting glass roof
First read and observe the introductory information and safety warnings →Introduction 
The roll-back function can reduce the risk of injury when the electric panorama sliding/tilting glass roof is being closed  → . If the electric
panorama sliding/tilting glass roof is not able to close because it is stiff or obstructed, it will automatically open again immediately.
Check why the electric panorama sliding/tilting glass roof has not closed.
Try to close the electric panorama sliding/tilting glass roof again.
If the electric panorama sliding/tilting glass roof is still stiff or obstructed, it stops at this point. Then close the electric panorama sliding/tilting
glass roof without the roll-back function
Closing the electric panorama sliding/tilting glass roof without the roll-back function
Pull the switch  → Fig. 38 ⑤   within approximately 5 seconds after the roll-back function has been triggered and hold it in this position until the
electric panorama sliding/tilting glass roof is closed completely.
The electric panorama sliding/tilting glass roof will then close without the roll-back function.
If the electric panorama sliding/tilting glass roof still cannot be closed, go to a qualified workshop.
If you let go of the switch during the closing procedure, the electric panorama sliding/tilting glass roof will open automatically.
The roll-back function is also active if the windows and electric panorama sliding/tilting glass roof are closed with the vehicle key
 → Convenience opening and closing   .
Closing the electric panorama sliding/tilting glass roof without the roll-back function can cause severe injuries.
Always be careful when closing the electric panorama sliding/tilting glass roof.
Ensure that nobody is obstructing the operating area of the electric panorama sliding/tilting glass roof, especially if the roll-back function is
not active.
The roll-back function does not prevent fingers or other body parts from being pressed against the roof frame and sustaining injury.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
33/136
 → Convenience opening and closing   .

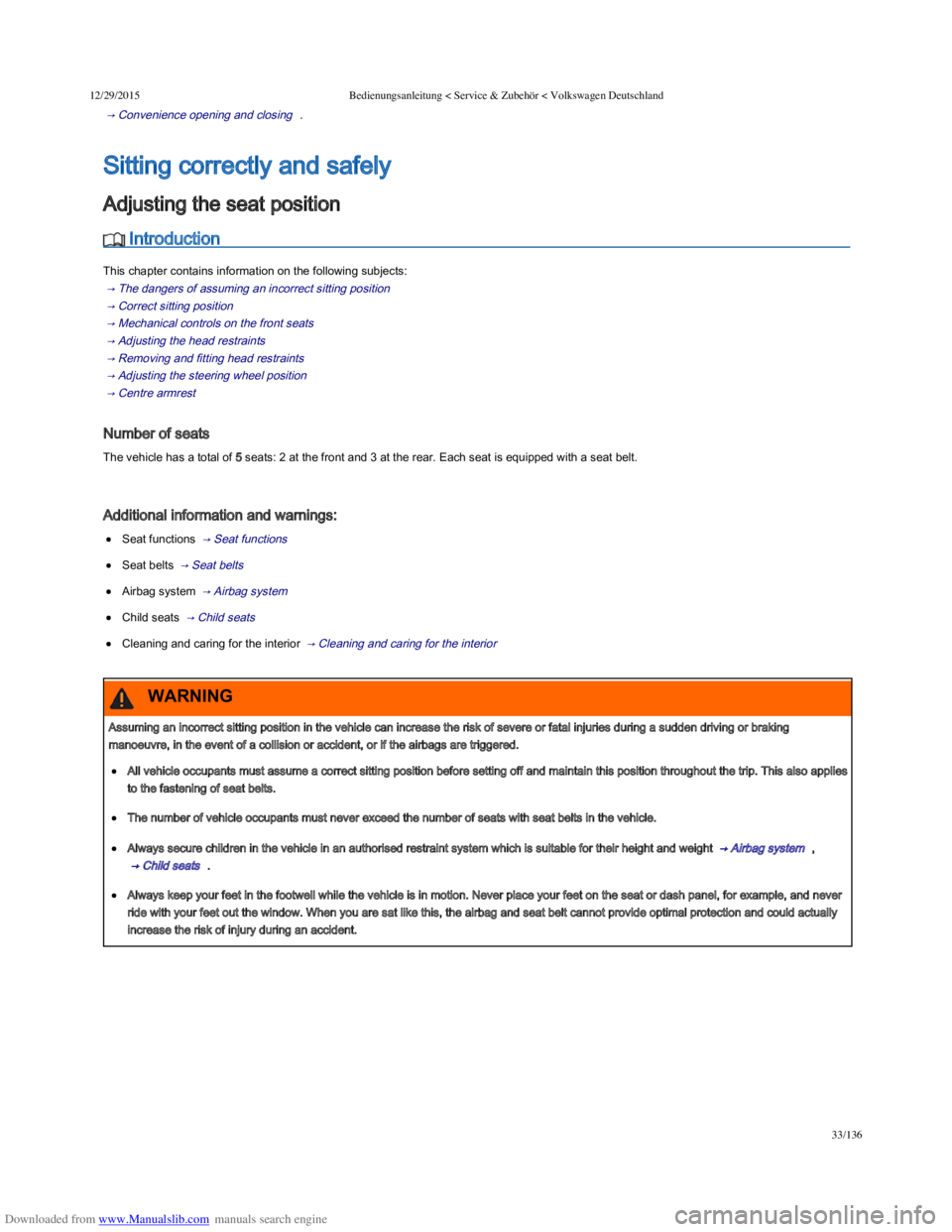

 Introduction
This chapter contains information on the following subjects:
 → The dangers of assuming an incorrect sitting position  
 → Correct sitting position  
 → Mechanical controls on the front seats  
 → Adjusting the head restraints  
 → Removing and fitting head restraints  
 → Adjusting the steering wheel position  
 → Centre armrest  
Number of seats
The vehicle has a total of 5 seats: 2 at the front and 3 at the rear. Each seat is equipped with a seat belt.
Additional information and warnings:
Seat functions  → Seat functions  
Seat belts  → Seat belts  
Airbag system  → Airbag system  
Child seats  → Child seats  
Cleaning and caring for the interior  → Cleaning and caring for the interior  
Sitting correctly and safely
Adjusting the seat position
Assuming an incorrect sitting position in the vehicle can increase the risk of severe or fatal injuries during a sudden driving or braking
manoeuvre, in the event of a collision or accident, or if the airbags are triggered.
All vehicle occupants must assume a correct sitting position before setting off and maintain this position throughout the trip. This also applies
to the fastening of seat belts.
The number of vehicle occupants must never exceed the number of seats with seat belts in the vehicle.
Always secure children in the vehicle in an authorised restraint system which is suitable for their height and weight  → Airbag system   ,
 → Child seats   .
Always keep your feet in the footwell while the vehicle is in motion. Never place your feet on the seat or dash panel, for example, and never
ride with your feet out the window. When you are sat like this, the airbag and seat belt cannot provide optimal protection and could actually
increase the risk of injury during an accident.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
35/136

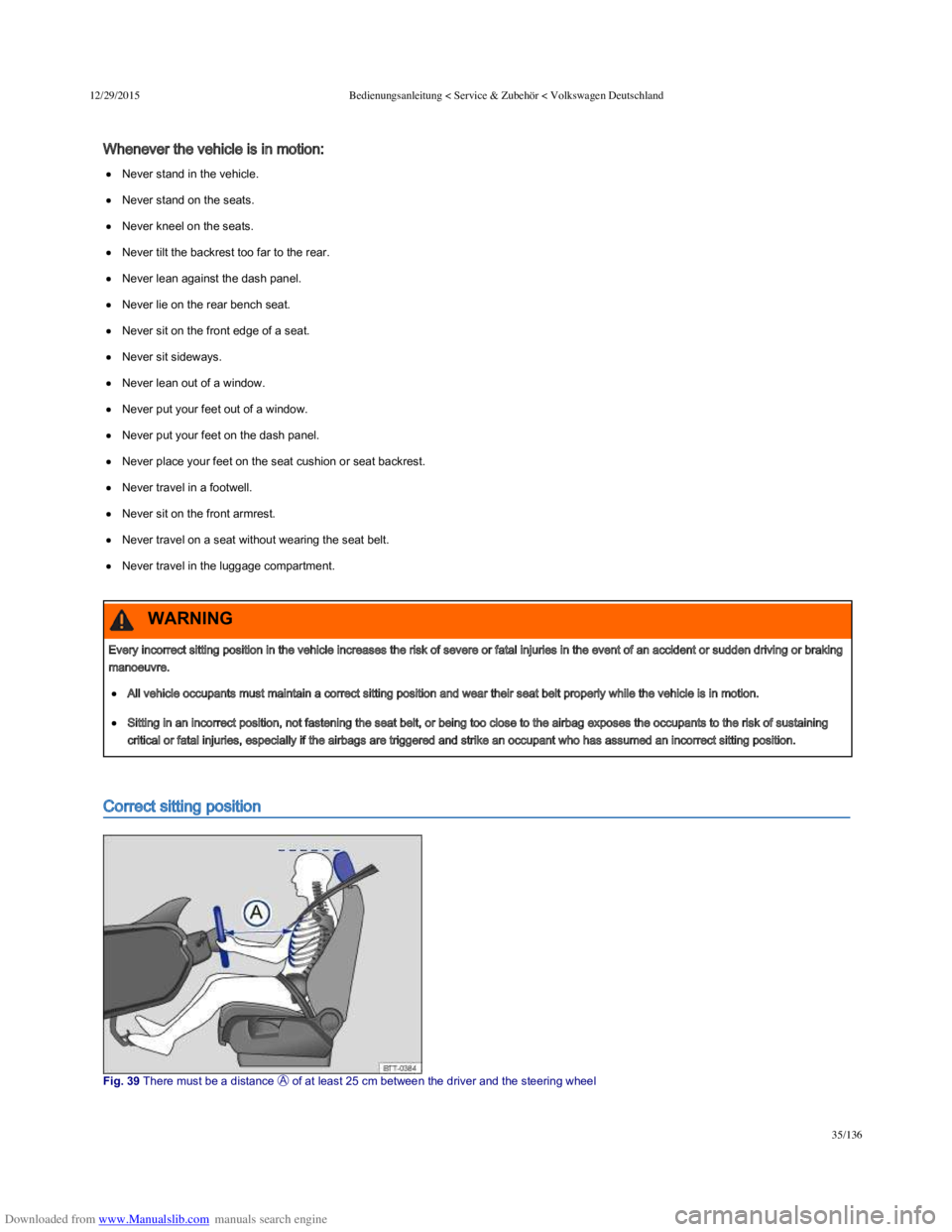

Whenever the vehicle is in motion:
Never stand in the vehicle.
Never stand on the seats.
Never kneel on the seats.
Never tilt the backrest too far to the rear.
Never lean against the dash panel.
Never lie on the rear bench seat.
Never sit on the front edge of a seat.
Never sit sideways.
Never lean out of a window.
Never put your feet out of a window.
Never put your feet on the dash panel.
Never place your feet on the seat cushion or seat backrest.
Never travel in a footwell.
Never sit on the front armrest.
Never travel on a seat without wearing the seat belt.
Never travel in the luggage compartment.
Correct sitting position
Fig. 39 There must be a distance  of at least 25 cm between the driver and the steering wheel
Every incorrect sitting position in the vehicle increases the risk of severe or fatal injuries in the event of an accident or sudden driving or braking
manoeuvre.
All vehicle occupants must maintain a correct sitting position and wear their seat belt properly while the vehicle is in motion.
Sitting in an incorrect position, not fastening the seat belt, or being too close to the airbag exposes the occupants to the risk of sustaining
critical or fatal injuries, especially if the airbags are triggered and strike an occupant who has assumed an incorrect sitting position.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
56/136

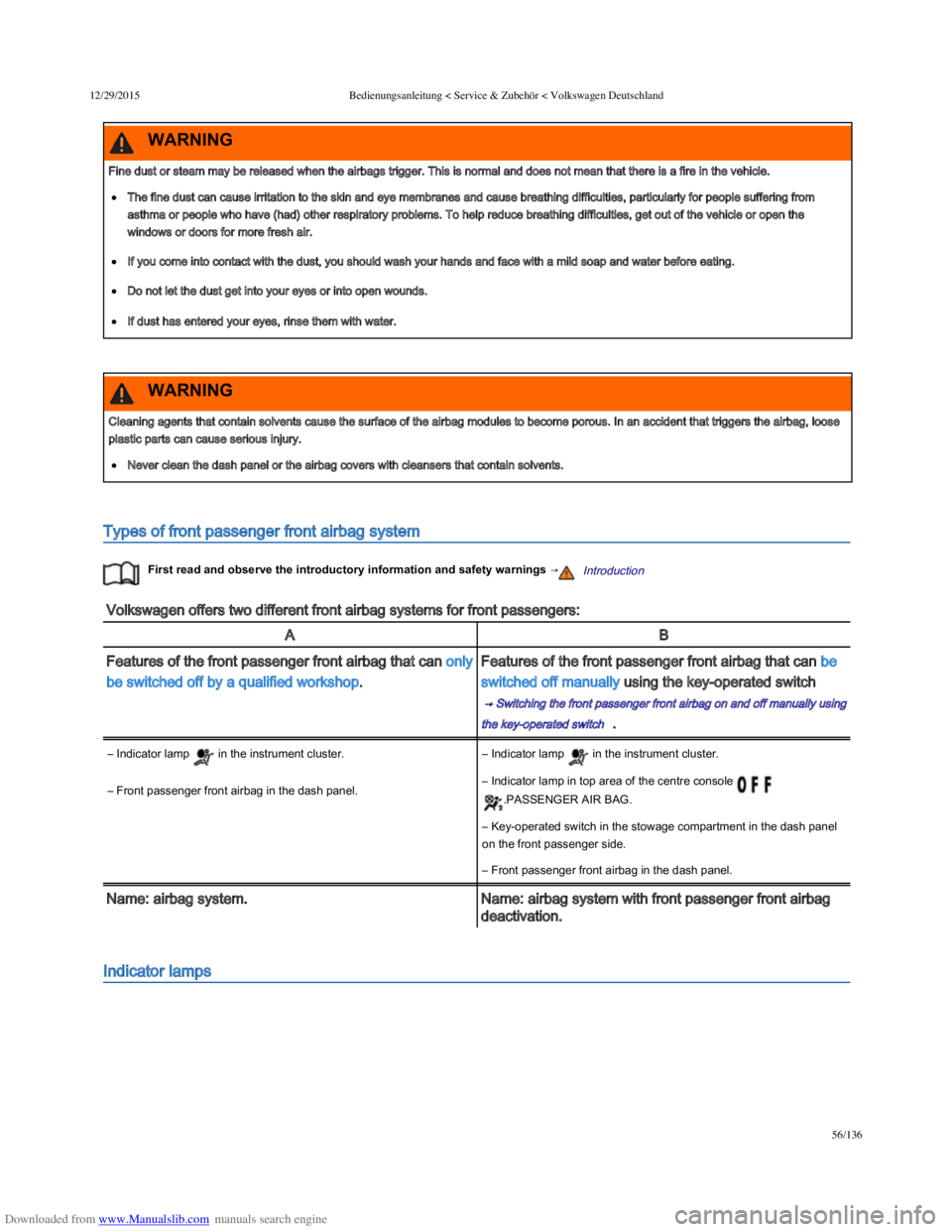

Types of front passenger front airbag system
First read and observe the introductory information and safety warnings →Introduction 
Volkswagen offers two different front airbag systems for front passengers:
AB
Features of the front passenger front airbag that can only
be switched off by a qualified workshop.
Features of the front passenger front airbag that can be
switched off manually using the key-operated switch
 → Switching the front passenger front airbag on and off manually using
the key-operated switch   .
Name: airbag system.Name: airbag system with front passenger front airbag
deactivation.
– Indicator lamp  in the instrument cluster.– Indicator lamp  in the instrument cluster.
– Front passenger front airbag in the dash panel.– Indicator lamp in top area of the centre console
.PASSENGER AIR BAG.
 – Key-operated switch in the stowage compartment in the dash panel
on the front passenger side.
 – Front passenger front airbag in the dash panel.
Indicator lamps
Fine dust or steam may be released when the airbags trigger. This is normal and does not mean that there is a fire in the vehicle.
The fine dust can cause irritation to the skin and eye membranes and cause breathing difficulties, particularly for people suffering from
asthma or people who have (had) other respiratory problems. To help reduce breathing difficulties, get out of the vehicle or open the
windows or doors for more fresh air.
If you come into contact with the dust, you should wash your hands and face with a mild soap and water before eating.
Do not let the dust get into your eyes or into open wounds.
If dust has entered your eyes, rinse them with water.
WARNING
Cleaning agents that contain solvents cause the surface of the airbag modules to become porous. In an accident that triggers the airbag, loose
plastic parts can cause serious injury.
Never clean the dash panel or the airbag covers with cleansers that contain solvents.
WARNING

Downloaded from www.Manualslib.com manuals search engine 12/29/2015Bedienungsanleitung < Service & Zubehör < Volkswagen Deutschland
65/136

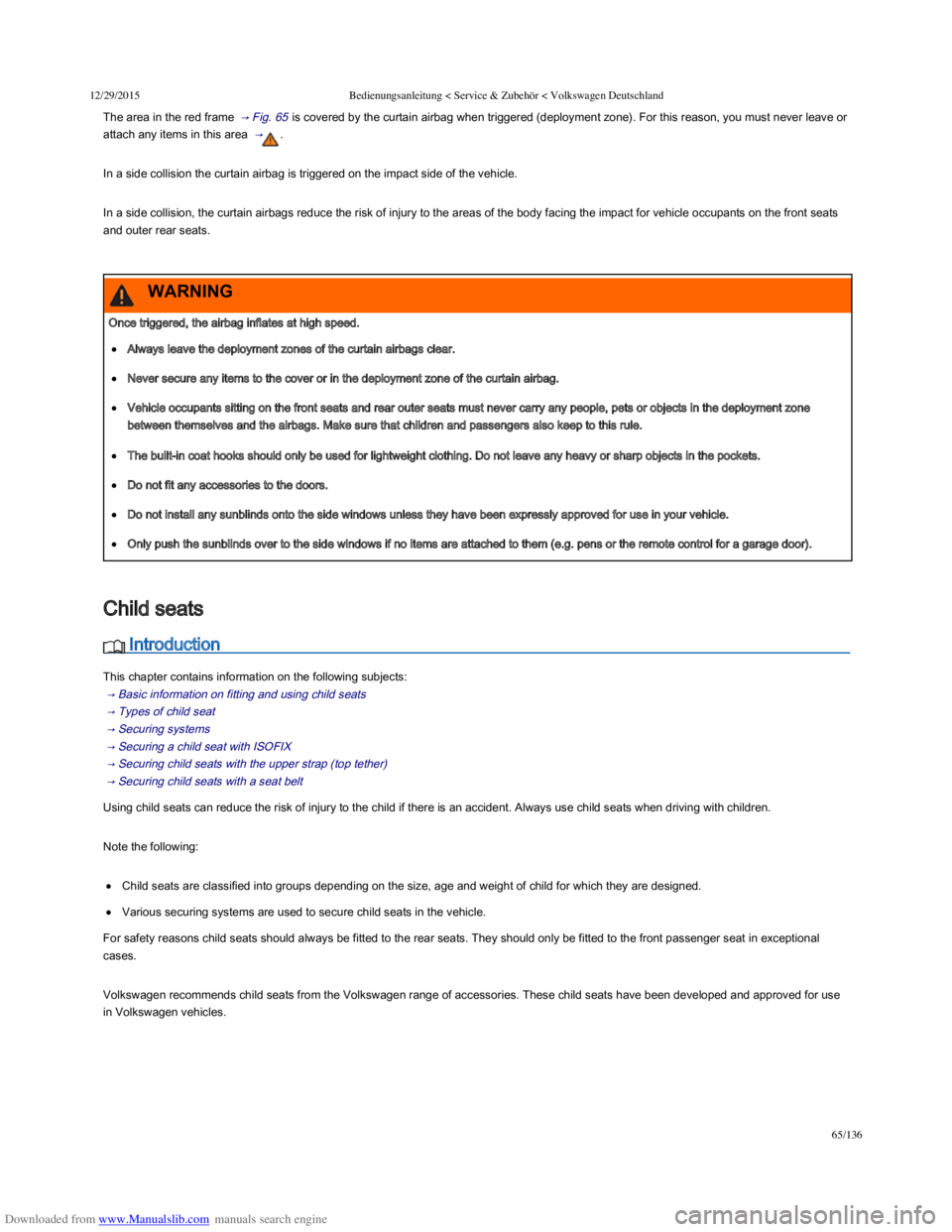

The area in the red frame  → Fig. 65  is covered by the curtain airbag when triggered (deployment zone). For this reason, you must never leave or
attach any items in this area  → .
In a side collision the curtain airbag is triggered on the impact side of the vehicle.
In a side collision, the curtain airbags reduce the risk of injury to the areas of the body facing the impact for vehicle occupants on the front seats
and outer rear seats.
 Introduction
This chapter contains information on the following subjects:
 → Basic information on fitting and using child seats 
 → Types of child seat 
 → Securing systems  
 → Securing a child seat with ISOFIX  
 → Securing child seats with the upper strap (top tether)  
 → Securing child seats with a seat belt  
Using child seats can reduce the risk of injury to the child if there is an accident. Always use child seats when driving with children.
Note the following:
Child seats are classified into groups depending on the size, age and weight of child for which they are designed.
Various securing systems are used to secure child seats in the vehicle.
For safety reasons child seats should always be fitted to the rear seats. They should only be fitted to the front passenger seat in exceptional
cases.
Volkswagen recommends child seats from the Volkswagen range of accessories. These child seats have been developed and approved for use
in Volkswagen vehicles.
Once triggered, the airbag inflates at high speed.
Always leave the deployment zones of the curtain airbags clear.
Never secure any items to the cover or in the deployment zone of the curtain airbag.
Vehicle occupants sitting on the front seats and rear outer seats must never carry any people, pets or objects in the deployment zone
between themselves and the airbags. Make sure that children and passengers also keep to this rule.
The built-in coat hooks should only be used for lightweight clothing. Do not leave any heavy or sharp objects in the pockets.
Do not fit any accessories to the doors.
Do not install any sunblinds onto the side windows unless they have been expressly approved for use in your vehicle.
Only push the sunblinds over to the side windows if no items are attached to them (e.g. pens or the remote control for a garage door).
WARNING
Child seats
