Instruments and controls71Transmission display
The mode and current gear of the
manual transmission automated is
shown in the transmission display.
Manual transmission automated
3 110.
Control indicators
The control indicators described are
not present in all vehicles. The
description applies to all instrument
versions. Depending on the
equipment, the position of the control indicators may vary.
When the ignition is switched on,
most control indicators will illuminate
briefly as a functionality test.
The control indicator colours mean:red=danger, important reminderyellow=warning, information, faultgreen=confirmation of activationblue=confirmation of activation

72Instruments and controls

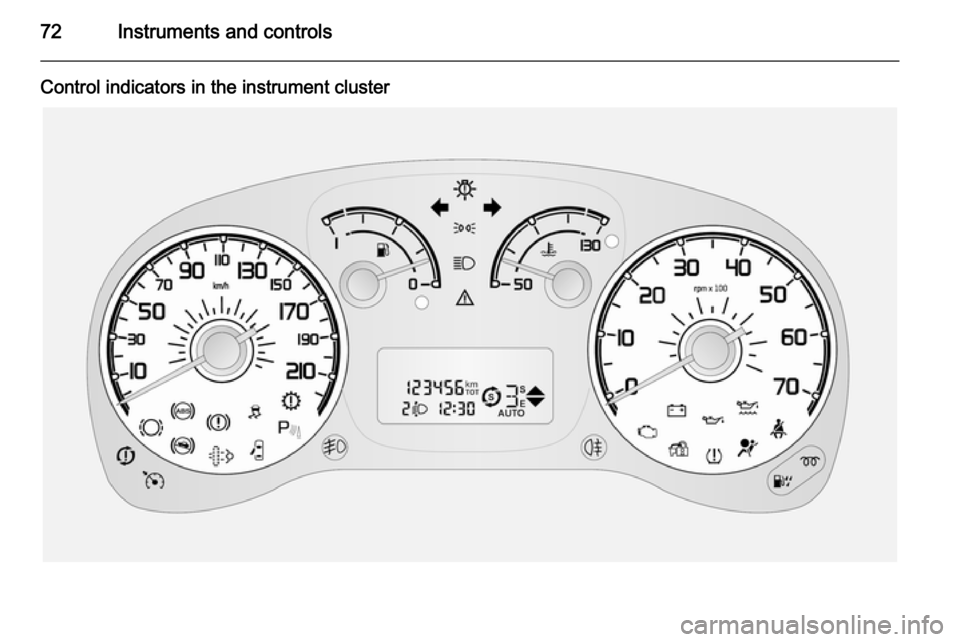

Control indicators in the instrument cluster

Instruments and controls73
Control indicator in the roof
console
Airbag deactivation 3 45, 3 74.
Generic warning 9 illuminates yellow.
Depending on model variant, control
indicator 9 may illuminate
independently or in conjunction with
Æ , t , Z or r .
If 9 illuminates together with I; stop
engine immediately and seek the
assistance of a workshop.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 80.
9 also illuminates if the fuel cut-off
switch is triggered, or if a fault is
detected in the engine oil pressure
sensor. Consult a workshop.
Fuel cut-off system 3 86.
Turn signal 2 or 3 flashes green.
Flashes
A turn signal or the hazard warning
flashers are activated.
Rapid flashing: failure of a turn signal
light or associated fuse, failure of turn signal light on trailer.
Bulb replacement 3 133, Fuses
3 139.
Turn signals 3 91.Seat belt reminder
Seat belt reminder for frontseats
X for driver's seat and/or front
passenger seat illuminates or flashes
red.
Illuminates
When the ignition has been switched
on, control indicator X illuminates
briefly if driver's seat belt and/or front
passenger seat belt is not engaged. A
warning chime also sounds for a few
seconds.
Flashes
During driving X will flash and a
warning chime will sound for
90 seconds until the front seat belts
are fastened.
Fastening the seat belt 3 39.

74Instruments and controls9Warning
Fasten seat belt before each trip.
In the event of an accident, people
not wearing seat belts endanger their fellow occupants and
themselves.
To deactivate the seat belt reminder,
consult a workshop. Reactivation of the warning chime for seat belt
reminder can be done via the Driver
Information Centre 3 80.
Notice
The volume of the warning chime
can also be adjusted via the Driver
Information Centre 3 80.
Airbag and belt tensioners v illuminates red.
When the ignition is switched on, the control indicator illuminates for
approx. 4 seconds. If it does not
illuminate, does not go out after
4 seconds or illuminates whilst
driving, there is a fault in the airbag
system. Seek the assistance of a
workshop. The airbags and belt
pretensioners may fail to trigger in the
event of an accident.
Deployment of the belt pretensioners
or airbags is indicated by continuous
illumination of v.9 Warning
Have the cause of the fault
remedied immediately by a
workshop.
Belt pretensioners, airbag system
3 38, 3 41.
Airbag deactivation
* illuminates yellow.
With the front passenger airbag
activated:
When the ignition is switched on, *
illuminates for approx. 4 seconds,
flashes for another 4 seconds and
then extinguishes.
With the front passenger airbag
deactivated:
* permanently illuminates yellow.
Airbag deactivation 3 45.9 Danger
Risk of fatal injury for a child using
a child restraint system together
with activated front passenger
airbag.
Risk of fatal injury for an adult
person with deactivated front
passenger airbag.
Charging system
p illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.

Instruments and controls75
Illuminates when the engine is
running Stop, switch off engine. Battery is not
charging. Engine cooling may be
interrupted. The brake servo unit may
cease to be effective. Seek the
assistance of a workshop.
Malfunction indicator light Z illuminates or flashes yellow.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
Illuminates when the engine is running Fault in the emission control system.
The permitted emission limits may be
exceeded. Seek the assistance of a
workshop immediately.Flashes when the engine is
running
Fault that could lead to catalytic
converter damage. Ease up on the
accelerator until the flashing stops.
Seek the assistance of a workshop
immediately.
Brake system R illuminates red.
Illuminates when the parking brake is
released if the brake fluid level is too
low 3 131.9 Warning
Stop. Do not continue your
journey. Consult a workshop.
Illuminates if the brake vacuum servo
fails; the brake pedal becomes stiff
when pressed. The brake system
remains operational however,
assistance will be reduced. The
steering may also require
considerably more effort when
turning.
Illuminates after the ignition is
switched on if the parking brake is
applied 3 114.
Brake pad wear F illuminates yellow.
The front brake pads are worn, seek
the assistance of a workshop
immediately.
Antilock brake system
(ABS)
u illuminates yellow.
Illuminates for a few seconds after the ignition is switched on. The system is
ready for operation when the control
indicator extinguishes.
If the control indicator does not
extinguish after a few seconds, or if it illuminates while driving, there is a
fault in the ABS. The brake system
remains operational but without ABS
regulation.
Antilock brake system 3 113.

76Instruments and controlsTransmission
s illuminates red.
Illuminates when a fault is present in
the transmission.
A warning message may also appear
in the Driver Information Centre
3 80 in conjunction with a warning
chime.
Continued driving is possible,
provided the vehicle is driven with
care and anticipation.
Have the cause of the fault remedied
by a workshop as soon as possible.
Manual transmission automated
3 110.
Upshift [ or Ò illuminates in the Driver
Information Centre 3 80 when
gearshifting is recommended to
improve fuel economy.
Hill start assist Z illuminates yellow.Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
If the control indicator does not
extinguish after a few seconds, or if it illuminates while driving, there is a
fault in the Hill start assist. Seek the
assistance of a workshop to have the
fault remedied.
The Electronic Stability Program
(ESP) control indicator x may also
illuminate 3 76 in conjunction with
Z .
Depending on model variant, 9 will
illuminate as an alternative if control
indicator Z is not present.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 80.
Generic warning 9 3 73.
Hill start assist 3 115.
Ultrasonic parking assist
r illuminates yellow.
Fault in system
orFault due to sensors that are dirty or
covered by ice or snow
or
Interference due to external sources
of ultrasound. Once the source of interference is removed, the system
will operate normally.
Have the cause of the fault in the
system remedied by a workshop.
Control indicator 9 will illuminate as
an alternative if control indicator r
is not present. Depending on version,
a warning message may also be
displayed in the Driver Information
Centre 3 80.
Generic warning 9 3 73.
Ultrasonic parking assist 3 118.
Electronic Stability
Program
R illuminates or flashes yellow.

Instruments and controls77
FlashesThe system is actively engaged.
Engine output may be reduced and
the vehicle may be braked
automatically to a small degree.
Illuminates
A fault in the system is present.
Continued driving is possible. Driving
stability, however, may deteriorate
depending on road surface
conditions.
Have the cause of the fault remedied
by a workshop.
Electronic Stability Program (ESP)
3 116, Traction control system/Anti-
Slip Regulator (ASR) 3 115.
Engine coolant
temperature
$ illuminates red.
Illuminates for a few seconds after the ignition is switched on.
If control indicator $ illuminates, the
coolant temperature is too high.
Depending on version, a warningmessage may also be displayed in
the Driver Information Centre 3 80.
Seek the assistance of a workshop.Caution
If engine coolant temperature is
too high, stop vehicle, switch off
the ignition. Danger to engine.
Check coolant level.
If the control indicator remains on, seek the assistance of your
workshop.
Engine coolant temperature gauge
3 70.
Preheating ! illuminates yellow.
Preheating is activated. Only
activates when outside temperature
is low.
Diesel particle filter
% illuminates yellow.
The diesel particle filter requires
cleaning.
Continue driving until %
extinguishes. If possible, do not allow engine speed to drop below
2000 rpm.
Illuminates The diesel particle filter is full. Start
cleaning process as soon as
possible.
Diesel particle filter 3 108, Stop-start
system 3 105.
Tyre pressure monitoring
system
w illuminates or flashes.
Illuminates
Tyre pressure loss. Stop immediately and check tyre pressure.
Control indicator w illuminates
together with a warning chime and, in
vehicles with Multifunction version of
the Driver Information Centre, a

78Instruments and controls
corresponding message also
appears when a puncture or severely
under-inflated tyre is detected.
Flashes
Fault in system. After a delay the
control indicator illuminates
continuously. Consult a workshop.
Control indicator w illuminates and
(depending on version) a
corresponding message appears in
the Driver Information Centre when a tyre without a pressure sensor ismounted (e.g. spare wheel).
Tyre pressure monitoring system
3 145.
Engine oil pressure
I illuminates red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.Illuminates when the engine is
runningCaution
Engine lubrication may be
interrupted. This may result in
damage to the engine and/or
locking of the drive wheels.
1. Depress clutch.
2. Select neutral gear (or move selector lever to N).
3. Move out of the flow of traffic as quickly as possible without
impeding other vehicles.
4. Switch off ignition.
9 Warning
When the engine is off,
considerably more force is needed
to brake and steer. During an
Autostop the brake servo unit will still be operational.
Do not remove key until vehicle isstationary, otherwise the steeringwheel lock could engage
unexpectedly.
Check oil level before seeking the
assistance of a workshop 3 128.
Change engine oil Diesel engines with dieselparticle filter
I flashes red.
Illuminates when the ignition is
switched on and extinguishes shortly
after the engine starts.
The engine oil life monitor lets you know when to change the oil. Control
indicator I will flash to indicate that
engine oil life has been diminished
and the oil needs changing.
Depending on version, a warning
message may also be displayed in
the Driver Information Centre 3 80.
Based on driving conditions, the
interval at which an oil change will be indicated can vary considerably.
